Next Generation AMP PACE
Card Edge Connector
DESCRIPTION
• Press-fit .100" x .200" [2.54 mm x 5.08mm]
centerline card edge connector
• Accepts .054" - .070" [1.37mm - 1.78 mm]
thick daughtercards
• Low applied cost connector
Issued 08/02
1654096
new product
APPLICATIONS
•
•
•
•
Computer Applications
Communication Equipment
Industrial Machinery and Controls
Instrumentation and Test Equipment

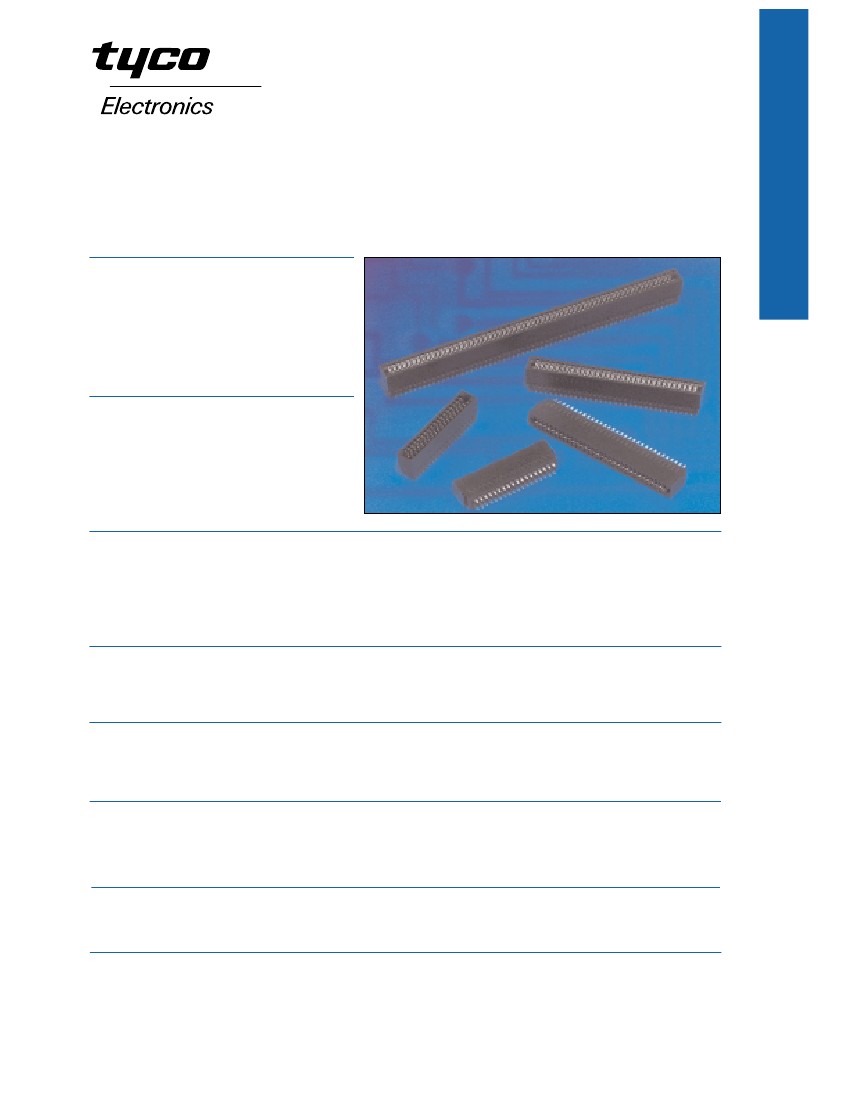

Photo 112289
KEY FEATURES
• Press-fit (solderless) termination to printed circuit
board
• Flat-rock tooling compatible (no special assembly
tooling required)
• Eye of the needle low insertion force contacts
• Can be produced in 10-60 dual position sizes
• Same overall dimensional envelope as current
AMP PACE products
• Daughtercard-to-connector keying without loss of
circuit position
ELECTRICAL
• Contact current rating up to 3 amps maximum
• 1000 volts AC withstanding voltage at sea level
MECHANICAL
• -55 to 85˚C temperature range
• Durability of 100 cycles mating and unmating
• Contact insertion:
6 to 8 lbs. avg. per contact
MATERIALS
• Housings:
• Contacts:
Glass-filled polyester
Phosphor bronze plated with nickel and select gold in contact area
STANDARDS & SPECS
• Design Objective:
108-14019-1
• Application Specification: 114-13040
FOR MORE INFORMATION
Technical Support
Phone: 1-800-522-6752
Internet: www.tycoelectronics.com
E-mail: newproducts@tycoelectronics.com
Next Generation AMP PACE
Card Edge Connector

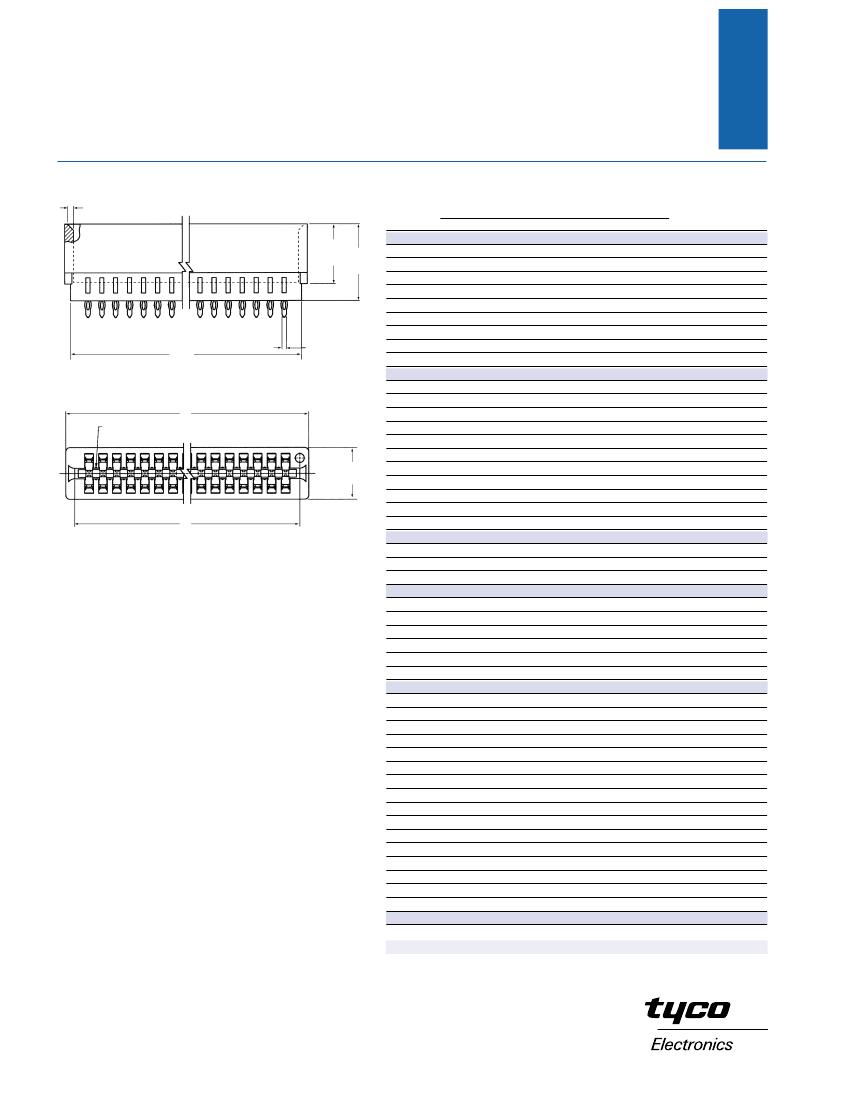

PRODUCT OFFERING & DIMENSIONS
.045
[1.14 x 45˚ TYP]
.430
[10.92]
.550
[13.97]
B
.020
[0.51]
A
Inter-contact Keying Slot
.368 +.05/-.010
[9.35 +0.13/0.25]
C
No. of
Positions
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
A
1.234 [31.34]
1.334 [33.88]
1.434 [36.42]
1.534 [38.96]
1.634 [41.50]
1.734 [44.04]
1.834 [46.58]
1.934 [49.12]
2.034 [51.66]
2.134 [54.20]
2.234 [56.74]
2.334 [59.28]
2.434 [61.82]
2.534 [64.36]
2.634 [66.90]
2.734 [69.44]
2.834 [71.98]
2.934 [74.52]
3.034 [77.06]
3.134 [79.60]
3.234 [82.14]
3.334 [84.68]
3.434 [87.22]
3.534 [92.30]
3.634 [92.30]
3.734 [94.84]
3.834 [97.38]
3.934 [99.92]
4.034 [102.46]
4.134 [105.00]
4.234 [107.54]
4.334 [110.08]
4.434 [112.62]
4.534 [115.16]
4.634 [117.70]
4.734 [120.24]
4.834 [122.78]
4.934 [125.32]
5.034 [127.86]
5.134 [130.40]
5.234 [132.94]
5.334 [135.48]
5.434 [138.02]
5.534 [140.56]
5.634 [143.10]
5.734 [145.64]
5.834 [148.18]
5.934 [150.72]
6.034 [153.26]
6.134 [155.80]
6.234 [158.34]
Dimensions
B
1.150 [29.21]
1.250 [31.75]
1.340 [34.29]
1.450 [36.83]
1.550 [39.37]
1.650 [41.91]
1.750 [44.45]
1.850 [46.99]
1.950 [49.53]
2.050 [52.07]
2.150 [54.61]
2.250 [57.15]
2.350 [59.69]
2.450 [62.23]
2.550 [64.77]
2.650 [67.31]
2.750 [69.85]
2.850 [72.39]
2.950 [74.93]
3.050 [77.47]
3.150 [80.01]
3.250 [82.55]
3.350 [85.09]
3.450 [87.63]
3.550 [90.17]
3.650 [92.71]
3.750 [95.25]
3.850 [97.79]
3.950 [100.33]
4.050 [102.87]
4.150 [105.41]
4.250 [107.95]
4.350 [110.49]
4.450 [113.03]
4.550 [115.57]
4.650 [118.11]
4.750 [120.65]
4.850 [123.19]
4.950 [125.73]
5.050 [128.27]
5.150 [130.81]
5.250 [133.35]
5.350 [135.89]
5.450 [138.43]
5.550 [140.97]
5.650 [143.51]
5.750 [146.05]
5.850 [148.59]
5.950 [151.13]
6.050 [153.67]
6.150 [156.21]
C
1.104 [28.04]
1.204 [30.58]
1.304 [33.12]
1.404 [35.66]
1.504 [38.20]
1.604 [40.74]
1.704 [43.28]
1.804 [45.82]
1.904 [48.36]
2.004 [50.90]
2.104 [53.44]
2.204 [55.98]
2.304 [58.52]
2.404 [61.06]
2.504 [63.60]
2.604 [66.14]
2.704 [68.68]
2.804 [71.22]
2.904 [73.76]
3.004 [76.30]
3.104 [78.84]
3.204 [81.38]
3.304 [83.92]
3.404 [86.46]
3.504 [89.00]
3.604 [91.54]
3.704 [94.08]
3.804 [96.62]
3.904 [99.16]
4.004 [101.70]
4.104 [104.24]
4.204 [106.78]
4.304 [109.32]
4.404 [111.86]
4.504 [114.40]
4.604 [116.94]
4.704 [119.48]
4.804 [122.02]
4.904 [124.56]
5.004 [127.10]
5.104 [129.64]
5.404 [132.18]
5.304 [134.72]
5.404 [137.26]
5.504 [138.90]
5.604 [142.34]
5.704 [144.88]
5.804 [147.42]
5.904 [149.96]
6.004 [152.50]
6.104 [155.04]
Part
Number
1-147490-0
1-147490-1
1-147490-2
1-147490-3
1-147490-4
1-147490-5
1-147490-6
1-147490-7
1-147490-8
1-147490-9
2-147490-0
2-147490-1
2-147490-2
2-147490-3
2-147490-4
2-147490-5
2-147490-6
2-147490-7
2-147490-8
2-147490-9
3-147490-0
3-147490-1
3-147490-2
3-147490-3
3-147490-4
3-147490-5
3-147490-6
3-147490-7
3-147490-8
3-147490-9
4-147490-0
4-147490-1
4-147490-2
4-147490-3
4-147490-4
4-147490-5
4-147490-6
4-147490-7
4-147490-8
4-147490-9
5-147490-0
5-147490-1
5-147490-2
5-147490-3
5-147490-4
5-147490-5
5-147490-6
5-147490-7
5-147490-8
5-147490-9
6-147490-0
Stocked in Sample Room
1654096-2.5M-GIC-FP-08/02-0G3C
