Opto Semiconductors
White LED
for backlighting illumination
ng
tti
i
Em
e-
id
S
ED
L
Micro SIDELED
®
-E
op
T
ED
L
ing
itt
m
SmartLED
Chipled
Mini TOPLED
®
Santana
Mini TOPLED
®
Most wanted for backlighting Applications!
The customers' partner of choice
OSRAM OS LED
Rainer Schmitt
Illumination in white OSRAM LED.ppt
18-Feb-02
Opto Semiconductors

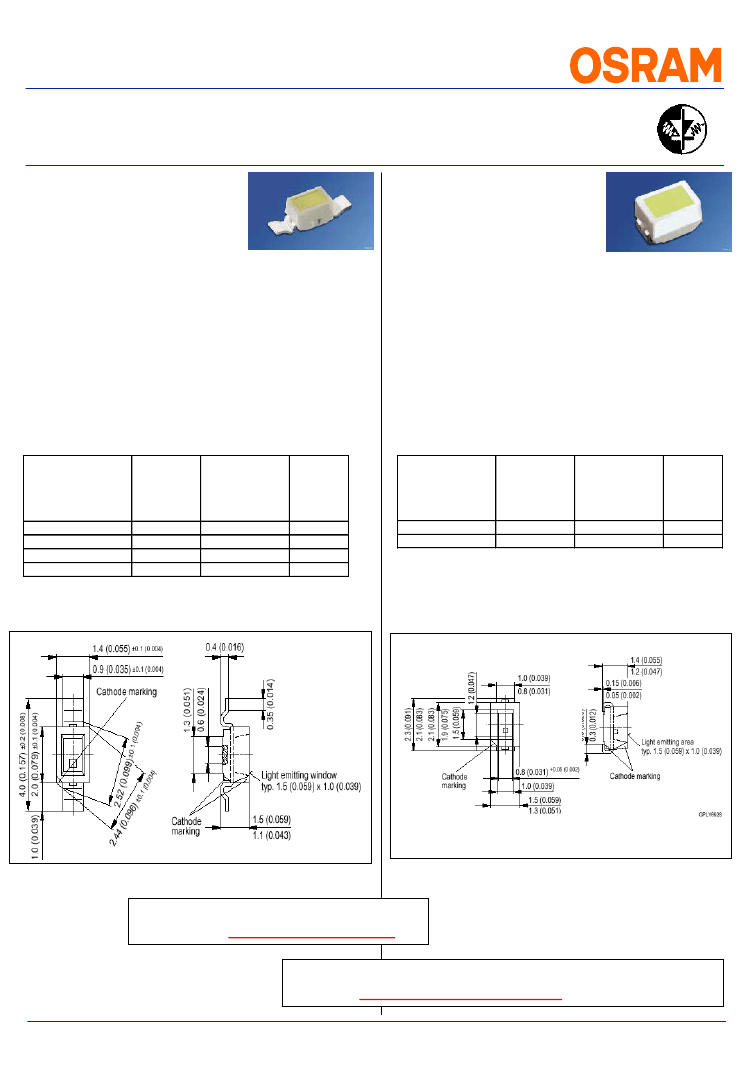

Top-Emitting LED
LW M47C
LW M47S
Hyper Mini TOPLED RG through-hole
Santana
Features
•
package:
white SMT package
•
feature of the deivce:
extremely wide viewing angle; LED is
mounted top down and emits through the PCB; ideal for
backlighting and coupling in light guides
•
color coordinates:
x = 0.32, y = 0.31 acc. to CIE 1931 (white)
•
viewing angle:
Lambertian Emitter (120°)
•
grouping parameter:
luminous intensity, color coordinates
•
assembly methods:
suitable for all SMT assembly methods
•
soldering methods:
IR reflow soldering and TTW soldering
•
preconditioning:
acc. to JEDEC Level 2
•
taping:
12 mm tape with 3000/reel, ø180mm or 11800/reel, ø330mm
•
ESD-withstand voltage:
up to 2 kV acc. to EOS/ESD-5.1-1993
Typ
Type
Lichtstärke
Luminous
Intensity
I
F = 20 mA
I V (mcd)
112 ... 224
180 ... 450
35.5 ...71.0
56.0 ...180
Lichtstrom
Luminous Flux
I
F = 20 mA
Φ
V (mlm)
500 (typ.)
950 (typ.)
160 (typ.)
350 (typ.)
Bestell-
nummer
Ordering
Code
on request
on request
on request
on request
MiniTOPLED
®
LW M67C
Hyper Mini TOPLED
White Hyper-Bright LED
Features
•
package:
white SMT package
•
feature of the deivce:
small package for applications where small
space is required
•
color coordinates:
x = 0.32, y = 0.31 acc. to CIE 1931 (white)
•
viewing angle:
Lambertian Emitter (120°)
•
grouping parameter:
luminous intensity, color coordinates
•
assembly methods:
suitable for all SMT assembly methods
•
soldering methods:
IR reflow soldering and TTW soldering
•
preconditioning:
acc. to JEDEC Level 2
•
taping:
8 mm tape with 3000/reel, ø180mm or 12000/reel, ø330 mm
•
ESD-withstand voltage:
up to 2 kV acc. to EOS/ESD-5.1-1993
Typ
Type
LW M47C-R1S1-1
LW M47C-S1T2-1
LW M47S-N2P2-35
LW M47S-P2R1-35
LW M67C-R1S1-1
LW M67C-S1T2-1
Lichtstärke
Luminous
Intensity
I
F = 20 mA
I V (mcd)
112 ... 224
180 ... 450
Lichtstrom
Luminous Flux
I
F = 20 mA
Φ
V (mlm)
500 (typ.)
950 (typ.)
Bestell-
nummer
Ordering
Code
on request
on request
Maßzeichnung
Package Outlines
Maßzeichnung
Package Outlines
Maße werden wie folgt angegeben: mm (inch) / Dimensions are specified as follows: mm (inch).
Maße werden wie folgt angegeben: mm (inch) / Dimensions are specified as follows: mm (inch).
For Detailed Product Informations please goto:
è
http://www.infineon.com/led
For price information please contact our Local Sales Responsible
è
http://www.infineon.com/business
OSRAM OS LED
Rainer Schmitt
Illumination in white OSRAM LED.ppt
18-Feb-02
The customers' partner of choice
Opto Semiconductors
Top-Emitting LED

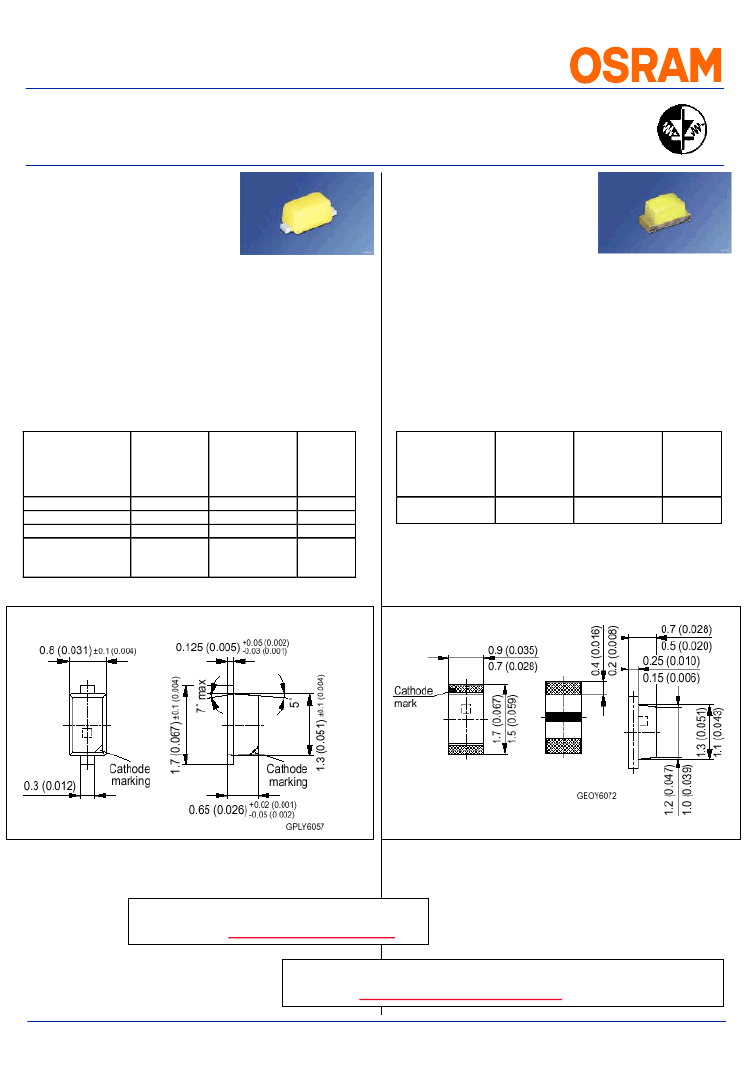

LW L88S
LW L88C
SmartLED
TM
White Hyper-Bright LED
Features
•
package:
SMT package SCD 80
•
feature of the device:
smallest package 1.7x0.8x0.65 mm, (LxWxH)
•
color coordinates:
x = 0.33, y = 0.33 acc. To CIE 1931 (white)
•
viewing angle:
horizontal 170°, vertical 130°
•
grouping parameter:
luminous intensity, color coordinates
•
assembly methods:
suitable for allSMT assembly methods
•
soldering methods:
IR reflow soldering andTTW soldering
•
preconditioning:
acc. to JEDEC Level 2
•
taping:
8 mm tape with 10000/reel, ø180 mm or 40000/reel, ø330 mm
•
ESD-withstand voltage:
up to 2 kV acc. toEOS/ESD-5.1-1993
Typ
Type
Lichtstärke
Luminous
Intensity
I
F = 10 mA
I V (mcd)
11.2 ...22.4
18.0 ...45.0
35.5 ...71.0
110mcd (typ.)
160mcd (typ.)
@20mA
Lichtstrom
Luminous Flux
I
F = 10 mA
Φ
V (mlm)
65 (typ.)
120 (typ.)
210 (typ.)
-
Bestell-
nummer
Ordering
Code
on request
on request
on request
on request
SmartLED
TM
& ChipLED
LW Q18S
Hyper CHIPLED
Hyper-Bright LED
Features
•
package:
SMT package 0603
•
feature of the device:
smallest package 1.6 x 0.8 x 0.6 mm (LxWxH)
•
color coordinates:
x = 0.35, y = 0.34 acc. to CIE 1931 (white)
•
viewing angle:
extremely wide (160°)
•
grouping parameter:
luminous intensity, color coordinates
•
assembly methods:
suitable for all SMT assembly methods
•
soldering methods:
IR reflow soldering
•
preconditioning:
acc. to JEDEC Level 2
•
taping:
8 mm tape with 4000/reel, ø180 mm
•
ESD-withstand voltage:
up to 2 kV acc. to EOS/ESD-5.1-1993
Typ
Type
Lichtstärke
Luminous
Intensity
I
F = 6 mA
I V (mcd)
min. 5
typ 15
Lichtstrom
Luminous Flux
I
F = 20 mA
Φ
V (mlm)
-
Bestell-
nummer
Ordering
Code
Q62702-
P5407
LW L88S-L1M1-35
LW L88S-M1N2-35
LW L88S-N2P2-35
LW L88C
LW Q18S
Maßzeichnung
Package Outlines
Maßzeichnung
Package Outlines
Maße werden wie folgt angegeben: mm (inch) / Dimensions are specified as follows: mm (inch).
Maße werden wie folgt angegeben: mm (inch) / Dimensions are specified as follows: mm (inch).
For Detailed Product Informations please goto:
è
http://www.infineon.com/led
For price information please contact our Local Sales Responsible
è
http://www.infineon.com/business
OSRAM OS LED
Rainer Schmitt
Illumination in white OSRAM LED.ppt
18-Feb-02
The customers' partner of choice
Opto Semiconductors

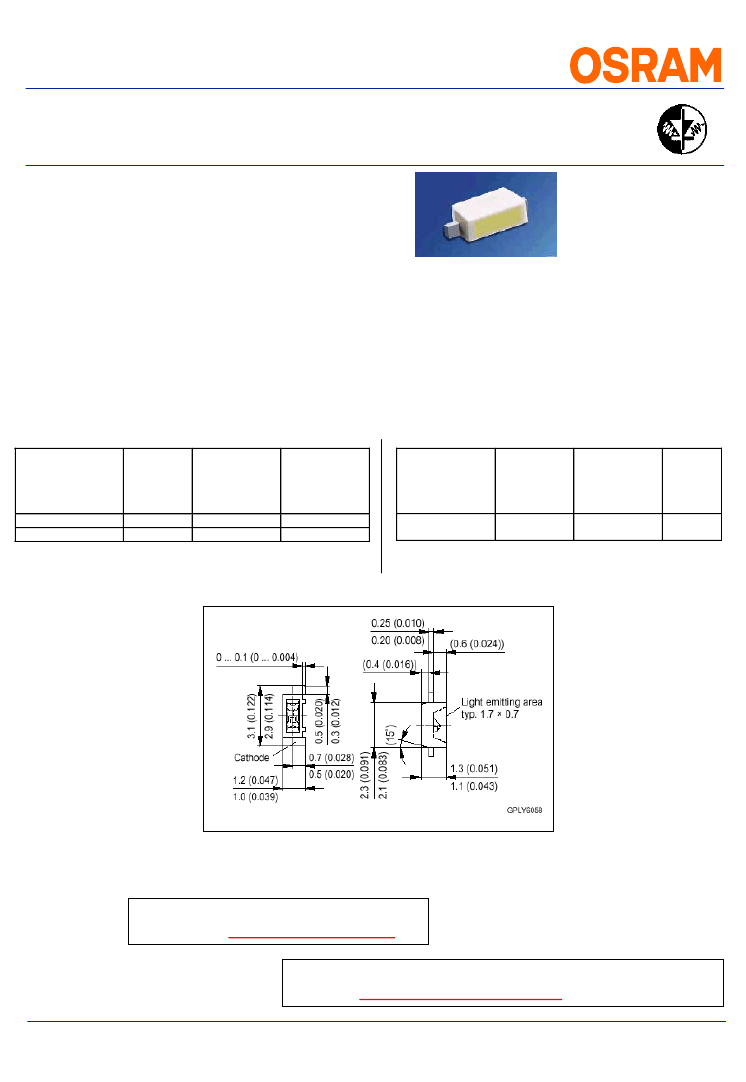

Side-Emitting LED
Micro SIDELED
®
LW Y87S
LW Y87C
Micro SIDELED
White Hyper-Bright LED
Features
•
package:
white SMT package
•
feature of the deivce:
small package with extremely wide viewing
angle; ideal for backlighting and coupling in light guides
•
color coordinates:
x = 0.33, y = 0.33 acc. to CIE 1931 (white)
•
viewing angle:
Lambertian Emitter (120°)
•
grouping parameter:
luminous intensity, color coordinates
•
assembly methods:
suitable for all SMT assembly methods
•
soldering methods:
IR reflow soldering and TTW soldering
•
preconditioning:
acc. to JEDEC Level 2
•
taping:
8 mm tape with 3000/reel, ø180mm or 10000/reel, ø330mm
•
ESD-withstand voltage:
up to 2 kV acc. to EOS/ESD-5.1-1993
Typ
Type
LW Y87C-R2S1-1
LW Y87C-S2T2-1
Lichtstärke
Luminous
Intensity
I
F = 10 mA
I V (mcd)
140 ... 224
224 ... 450
Lichtstrom
Luminous Flux
I
F = 10 mA
Φ
V (mlm)
550 (typ.)
1000 (typ.)
Bestell-nummer
Ordering Code
Typ
Type
Q62703-Q6393
Q62703-Q6394
LW Y87S-NQ-1
Lichtstärke
Luminous
Intensity
I
F = 10 mA
I V (mcd)
28.0 …112.0
Lichtstrom
Luminous Flux
I
F = 10 mA
Φ
V (mlm)
210
Bestell-
nummer
Ordering
Code
Q62703-
Q6139
Maßzeichnung
Package Outlines
Maße werden wie folgt angegeben: mm (inch) / Dimensions are specified as follows: mm (inch).
For Detailed Product Informations please goto:
è
http://www.infineon.com/led
For price information please contact our Local Sales Responsible
è
http://www.infineon.com/business
OSRAM OS LED
Rainer Schmitt
Illumination in white OSRAM LED.ppt
18-Feb-02
The customers' partner of choice
