5962R9575801VRC datasheet, PDF

5962R9575801VRC: DescriptionHCT SERIES, 8-BIT DRIVER, TRUE OUTPUT, CDIP20; Categorylogic logic; File Size241KB，10 Pages; ManufacturerIntersil ( Renesas ); Websitehttp://www.intersil.com/cda/home/

Download Datasheet Parametric View All

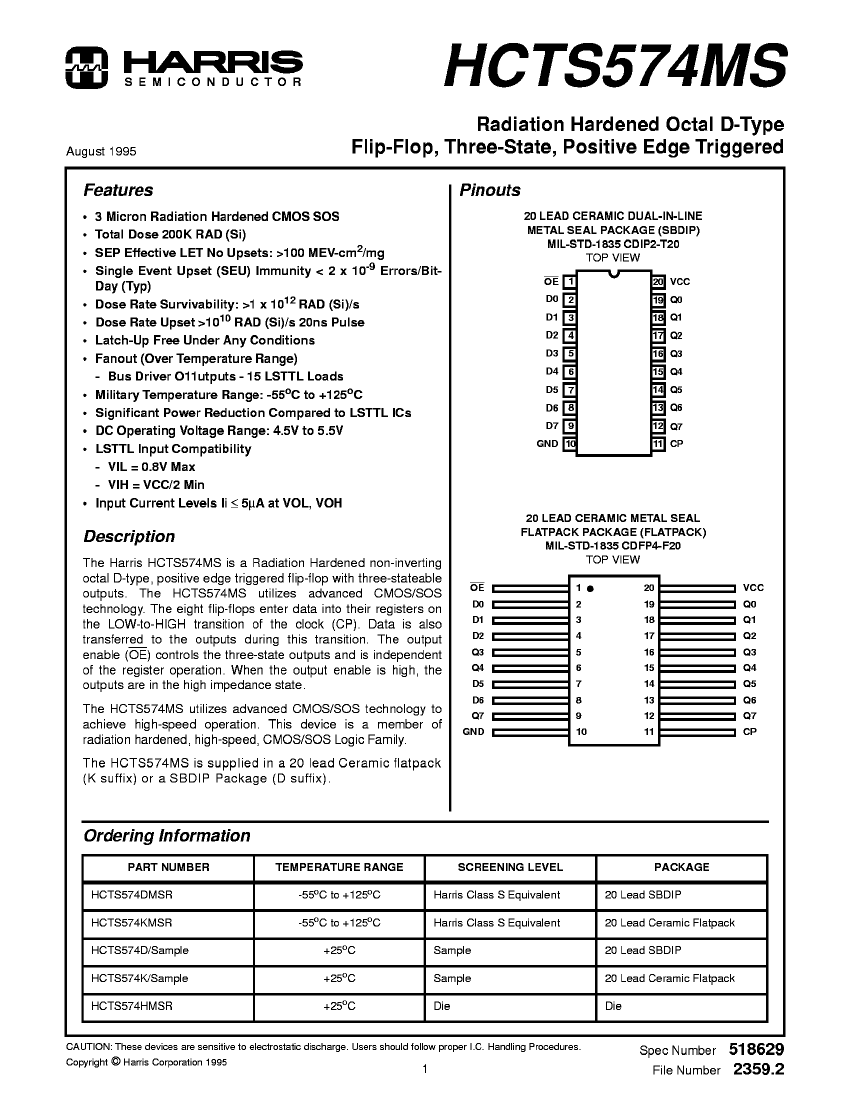

5962R9575801VRC Overview

HCT SERIES, 8-BIT DRIVER, TRUE OUTPUT, CDIP20

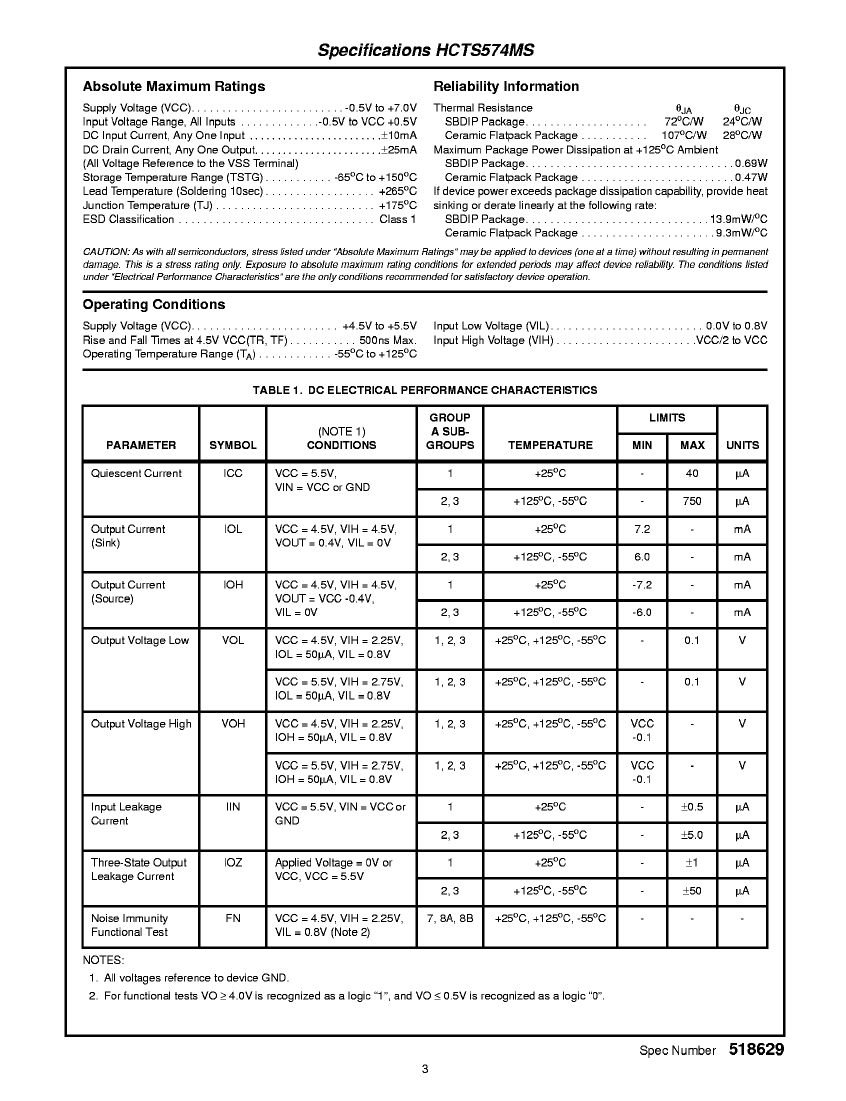

Parameter Name	Attribute value
Number of ports	2
Maximum supply voltage (Vsup)	5.5 V
technology	CMOS
Other features	BROADSIDE VERSION OF 374
MaximumI(ol)	0.006 A
Minimum supply voltage (Vsup)	4.5 V
Temperature level	MILITARY
Logic integrated circuit type	BUS DRIVER
Output polarity	TRUE
Output characteristics	3-STATE
encapsulated code	DIP
Nominal supply voltage (Vsup)	5 V
surface mount	NO
Maximum Frequency@Nom-Sup	20000000 Hz
Number of functions	1
Number of digits	8

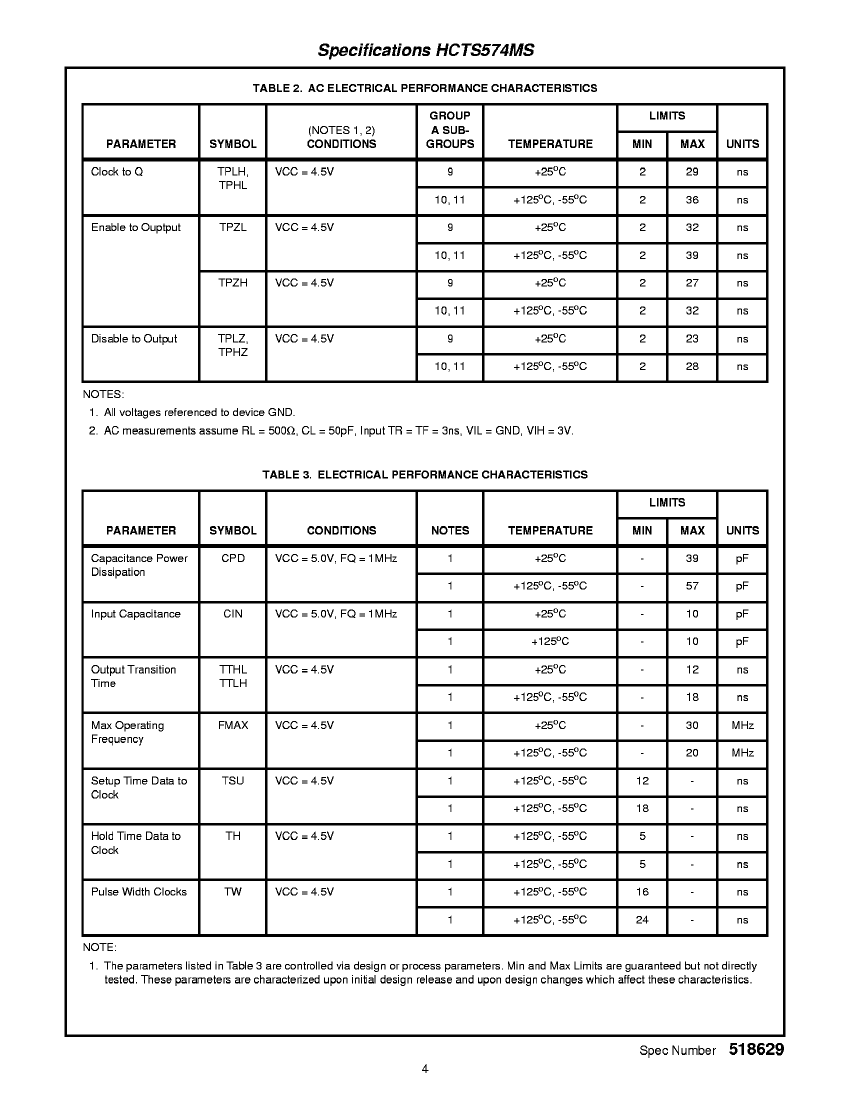

propagation delay (tpd)	36 ns
Trigger type	POSITIVE EDGE
series	HCT
Load capacitance (CL)	50 pF
JESD-30 code	R-CDIP-T20
JESD-609 code	e4
Certification status	Not Qualified
Maximum seat height	5.08 mm
width	7.62 mm
length	26.92 mm
Package body material	CERAMIC, METAL-SEALED COFIRED
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Number of terminals	20
Terminal surface	GOLD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Package form	IN-LINE
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Filter level	38535V;38534K;883S

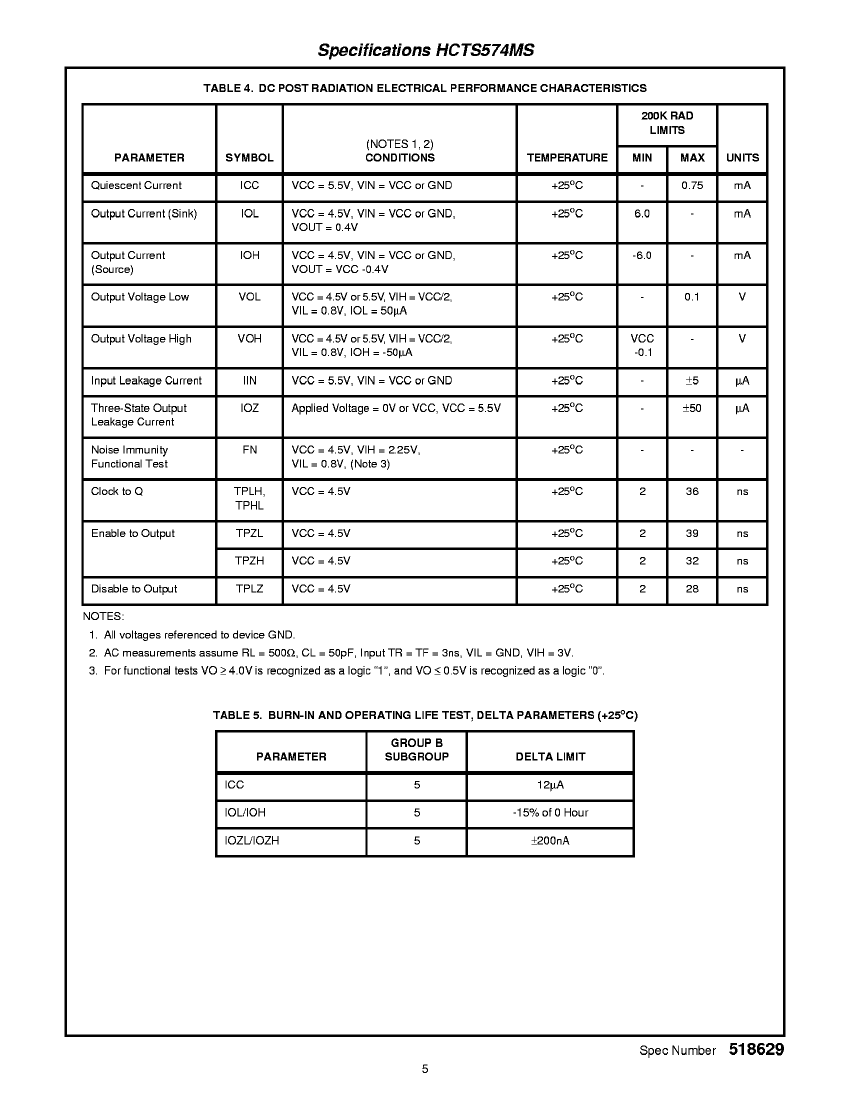

total dose	100k Rad(Si) V
Is Samacsys	N
Objectid	1532325452
package instruction	METAL SEALED, SIDE BRAZED, CERAMIC, DIP-20
Reach Compliance Code	Unknown
Parts packaging code	DIP
Contacts	20
YTEOL	0
