T419G686K006RCTLVL7005

Description
Tantalum Capacitor, Polarized, Tantalum, 6V, 10% +Tol, 10% -Tol, 68uF, 2711,
CategoryPassive components    capacitor
File Size1MB，19 Pages
ManufacturerKEMET
Websitehttp://www.kemet.com
Download Datasheet Parametric View All

T419G686K006RCTLVL7005 Overview

Tantalum Capacitor, Polarized, Tantalum, 6V, 10% +Tol, 10% -Tol, 68uF, 2711,

T419G686K006RCTLVL7005 Parametric

Parameter NameAttribute value
Is it Rohs certified?No
Reach Compliance CodeNot Compliant
Country Of OriginMexico
ECCN codeEAR99
Is SamacsysN
YTEOL6.85
Objectid250027649
package instruction, 2711
capacitance68 µF
ESR1000 mΩ
Installation featuresSURFACE MOUNT
negative tolerance10%
polarityPOLARIZED
positive tolerance10%
Rated (DC) voltage (URdc)6 V
Capacitor typeTANTALUM CAPACITOR
dielectric materialsTANTALUM (DRY/SOLID)
size code2711
high2.79 mm
length6.73 mm
width2.79 mm
JESD-609 codee0
GuidelineMIL-PRF-55365/11
surface mountYES
Terminal surfaceTin/Lead (Sn90Pb10)
Terminal shapeJ BEND
Number of terminals2
Package formSMT
method of packingTR, Plastic, 13 Inch
Maximum operating temperature125 °C
Minimum operating temperature-55 °C

T419G686K006RCTLVL7005 Preview

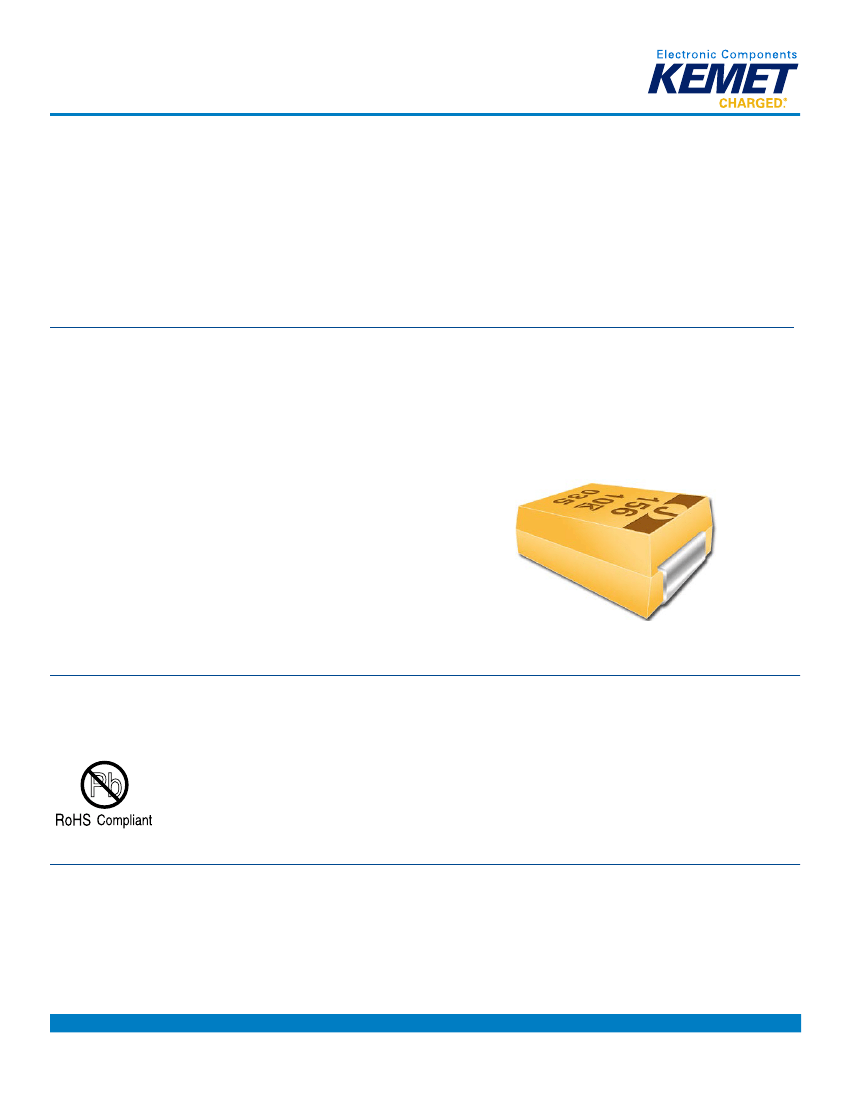

MIL–PRF (CWR Style) Established Reliability
T419 Series CWR19 Style MIL–PRF–55365/11
Overview
The KEMET T419 Series is approved to MIL–PRF–55365/11
(CWR19) with Weibull failure rates of B level (0.1% failures per
1,000 hours), C level (0.01% failures per 1,000 hours), D level
(0.001% failures per 1,000 hours), or T level (0.01% failures
per 1,000 hours, Option C surge current, DPA, Radiographic
inspection, 100% visual inspection, DCL and ESR measurements
within +3 standard deviations, and Group C inspection). This
CWR19 product is a precision-molded device with compliant
terminations and indelible laser marking. Tape and reeling per EIA
481–1 is standard.
Benefits
•
•
•
•
•
•
•
•
•
•
•
Established reliability options
Taped and reeled per EIA 481–1
Symmetrical, compliant terminations
Laser-marked case
100% surge current test available on all case sizes
Qualified to MIL–PRF–55365/11, Style CWR19
Termination options B, C, H, K
Weibull failure options B, C, D, and T
Exponential failure rates M, P, R, S
Voltage rating of 4 – 35 VDC
Operating temperature range of -55˚C to +125˚C
Applications
Typical applications include decoupling and filtering in Military
and aerospace applications requiring CWR19 devices.
Environmental Compliance
RoHS Compliant (6/6) according to Directive 2002/95/EC when ordered with 100% Sn Solder.
SPICE
For a detailed analysis of specific part numbers, please visit www.kemet.com for a free download of KEMET's SPICE software.
The KEMET SPICE program is freeware intended to aid design engineers in analyzing the performance of these capacitors over
frequency, temperature, ripple, and DC bias conditions.
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
T2002_T419 • 10/3/2013
1
MIL–PRF (CWR Style) Established Reliability – T419 Series CWR19 Style MIL–PRF–55365/11
KEMET Ordering Information
T
Capacitor
Class
419
Series
A
225
K
004
Voltage
004 = 4 V
006 = 6.3 V
010 = 10 V
015 = 15 V
020 = 20 V
025 = 25 V
035 = 35 V
A
Failure Rate/Design
Weibull
A = non-ER
B = (0.1%/1,000 hours)
C = (0.01%/1,000 hours)
D = (0.001%/1,000 hours)
T = (0.01%/1,000 hours)
Exponential
M = (1.0%/1,000 hours)
P = (0.1%/1,000 hours)
R = (0.01%/1,000 hours)
S =(0.001%/1,000 hours)
H
Lead Material
C = Hot Solder
Dipped
H = Standard
Solder Coated
(SnPb 5% Pb
minimum)
B = Gold Plated
K = Solder
Fused
4251
Surge
Blank = No Surge
4250= 25ºC after
Weibull
4251 = -55ºC and
85ºC after Weibull
4252 = -55ºC
and 85ºC before
Weibull
TLVL = Weibull
Grade Level "T"
7280
Packaging
(C-Spec)
Blank = 7" Reel
7280 = 13" Reel
7610 = Bag
7005 = Moisture
bags
Case Capacitance Capacitance
Size
Code (pF)
Tolerance
J = ±5%
T=
CWR19
A, B,
First two
K = ±10%
Tantalum Established
C, D,
digits
M = ±20%
Reliability E, F,
represent
G, H,
significant
X
figures. Third
digit specifies
number of
zeros.
Defense MIL–PRF–55365/11 Ordering Information
CWR19
Capacitor Style
Per MIL–PRF–
55365/11
K
Voltage
C=4V
D = 6 V
F = 10 V
H = 15 V
J = 20 V
K = 25 V
M = 35 V
H
225
K
Capacitance
Tolerance
J = ±5%
K = ±10%
M = ±20%
C
Reliability Level
Weibull
A = non-ER
B = (0.1%/1,000 hours)
C = (0.01%/1,000 hours)
D =(0.001%/1,000 hours)
T= T Level* (0.01%/1,000
hours)
Exponential
M = (1.0%/1,000 hours)
P = (0.1%/1,000 hours)
R = (0.01%/1,000 hours)
S =(0.001%/1,000 hours)
D
Case Code
A, B, C, D, E,
F, G, H, X
A
Surge Current Option
A = +25°C after
Weibull
B = -55°C +85°C after
Weibull
C = -55°C +85°C
before Weibull
Z = None
Termination Finish Capacitance Code (pF)
B = Gold Plated
C = Hot solder
dipped
H = Solder Plated
K = Solder fused
First two digits
represent significant
figures. Third digit
specifies number of
zeros.
* When T Level is ordered, no Surge Current Option is needed
Performance Characteristics
Item
Operating Temperature
Rated Capacitance Range
Capacitance Tolerance
Rated Voltage Range
DF (120 Hz)
ESR (100 kHz)
Leakage Current
-55°C to 125°C
0.33 – 330 µF @ 120 Hz/25°C
J Tolerance (5%), K Tolerance (10%), M Tolerance (20%)
4 – 35 V
Refer to Part Number Electrical Specification Table
Refer to Part Number Electrical Specification Table
≤ 0.01 CV (µA) at rated voltage after 5 minutes
T2002_T419 • 10/3/2013
2
Performance Characteristics
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
MIL–PRF (CWR Style) Established Reliability – T419 Series CWR19 Style MIL–PRF–55365/11
Qualification
Test
Endurance
Condition
Δ C/C
85°C @ rated voltage, 2,000 hours
125°C @ 2/3 rated voltage, 2,000 hours
DF
DCL
ESR
Δ C/C
DF
DCL
ESR
Δ C/C
MIL–STD–202, Method 107, Condition B, mounted,
-55°C to 125°C, 1,000 cycles
DF
DCL
ESR
Extreme temperature exposure at a
succession of continuous steps at +25°C,
-55°C, +25°C, +85°C, +125°C, +25°C
+25°C
Δ C/C
DF
DCL
IL*
IL
IL
Δ C/C
DF
DCL
ESR
Δ C/C
DF
DCL
Characteristics
Within ±10% of initial value
Within initial limits
Within 1.25 x initial limit
Within initial limits
Within ±10% of initial value
Within initial limits
Within 1.25 x initial limit
Within initial limits
Within ±5% of initial value
Within initial limits
Within 1.25 x initial limit
Within initial limits
-55°C
±10%
IL
n/a
+85°C
±10%
1.5 x IL
10 x IL
+125°C
±20%
1.5 x IL
12 x IL
Storage Life
125°C @ 0 volts, 2,000 hours
Thermal Shock
Temperature Stability
Within ±5% of initial value
Within initial limits
Within initial limits
Within initial limits
Within ±10% of initial value
Within initial limits
Within initial limits
Surge Voltage
25°C and 85°C, 1.32 x rated voltage 1,000 cycles
(125°C, 1.2 x rated voltage)
Mechanical Shock/Vibration
Additional qualification tests
per MIL–PRF–55365/11
*IL = Initial limit
MIL–STD–202, Method 213, Condition I, 100 G Peak
MIL–STD–202, Method 204, Condition D, 10 Hz to 2,000 Hz,
20 G peak
Please contact KEMET for more information.
Certification
MIL–PRF–55365/11
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
T2002_T419 • 10/3/2013
3
MIL–PRF (CWR Style) Established Reliability – T419 Series CWR19 Style MIL–PRF–55365/11

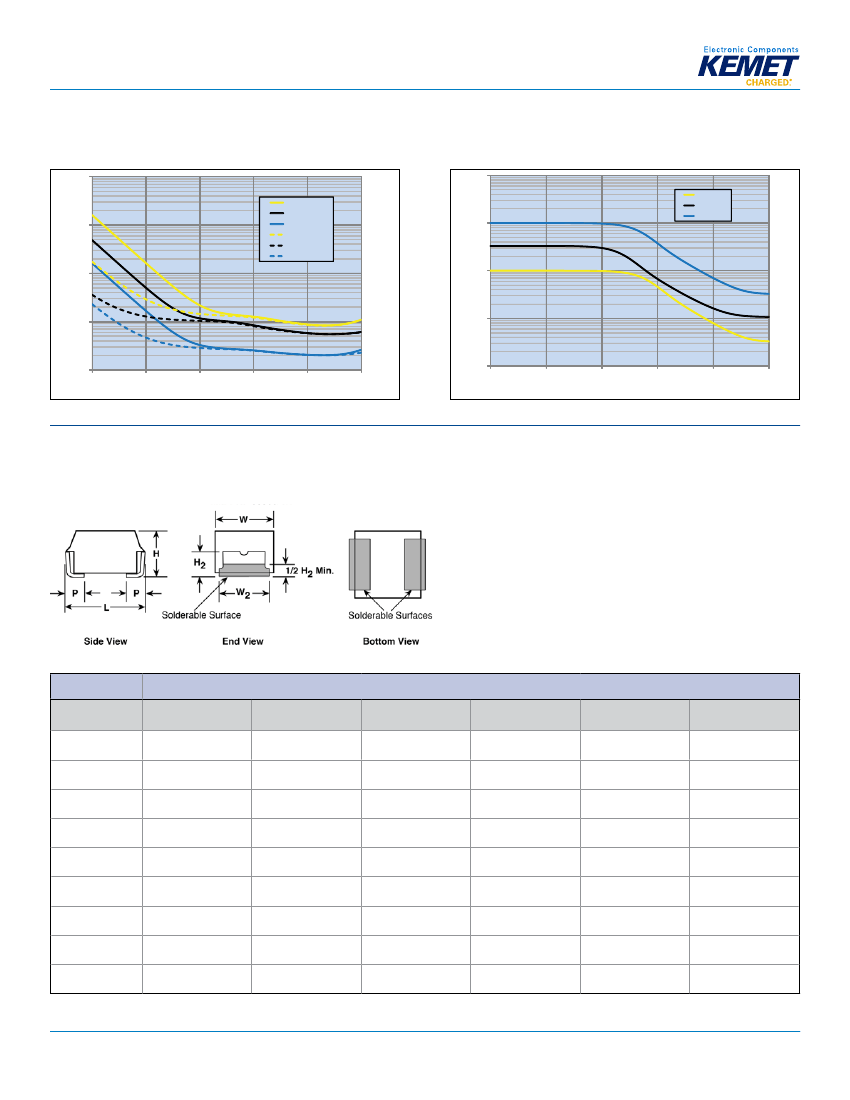

Electrical Characteristics
