ILLUMINATION
LUXEON Rebel ES
High value and easy design-in
LUXEON Rebel ES is a high flux LED that gives you the flexibility you
need to design luminaires and lamps for outdoor and industrial lighting
applications and bring them to market. Tested and binned at 700mA,
confidently design LUXEON Rebel ES into high lumen applications or
create more energy efficient devices using the same emitter. Luminaire
manufacturers and designers count on LUXEON Rebel ES for quality,
reliability and in-device performance.
FEATURES AND BENEFITS
High lm/$ for cost competitive applications
Broad portfolio of emitters for indoor and outdoor applications
CCT and CRI combinations to support a wide range of applications
Extensive applications ecosystem for easy design-in and quick ROI
LM-80 test report available
PRIMARY APPLICATIONS
High Bay & Low Bay
Outdoor
Specialty Lighting
LUXEON Rebel ES product performance at 700mA and 350mA, T
j
=25°C.
NOMINAL
CCT
[1]
4100K Neutral White
5650K Cool White
4000K
MINIMUM
CRI
[2, 3]
60
60
70
LUMINOUS FLUX
[3]
(lm)
MINIMUM
200
200
180
TYPICAL
700mA
230
235
205
110
112
98
130
135
114
TYPICAL
LUMINOUS
EFFICACY (lm/W)
TYPICAL
LUMINOUS
FLUX (lm)
TYPICAL
LUMINOUS
EFFICACY (lm/W)
350mA
130
135
114
LXML-PWN2
LXML-PWC2
LXH7-PW40
PART NUMBER
Notes:
1. Correlated color temperature is based upon mounted die on highly reflective surface at T
j
=25°C.
2. Lumileds maintains a tolerance of ±2 on CRI and ±6.5% on flux measurements.
3. Typical CRI is approximately 2 points higher than the minimum CRI specified, but this is not guaranteed.

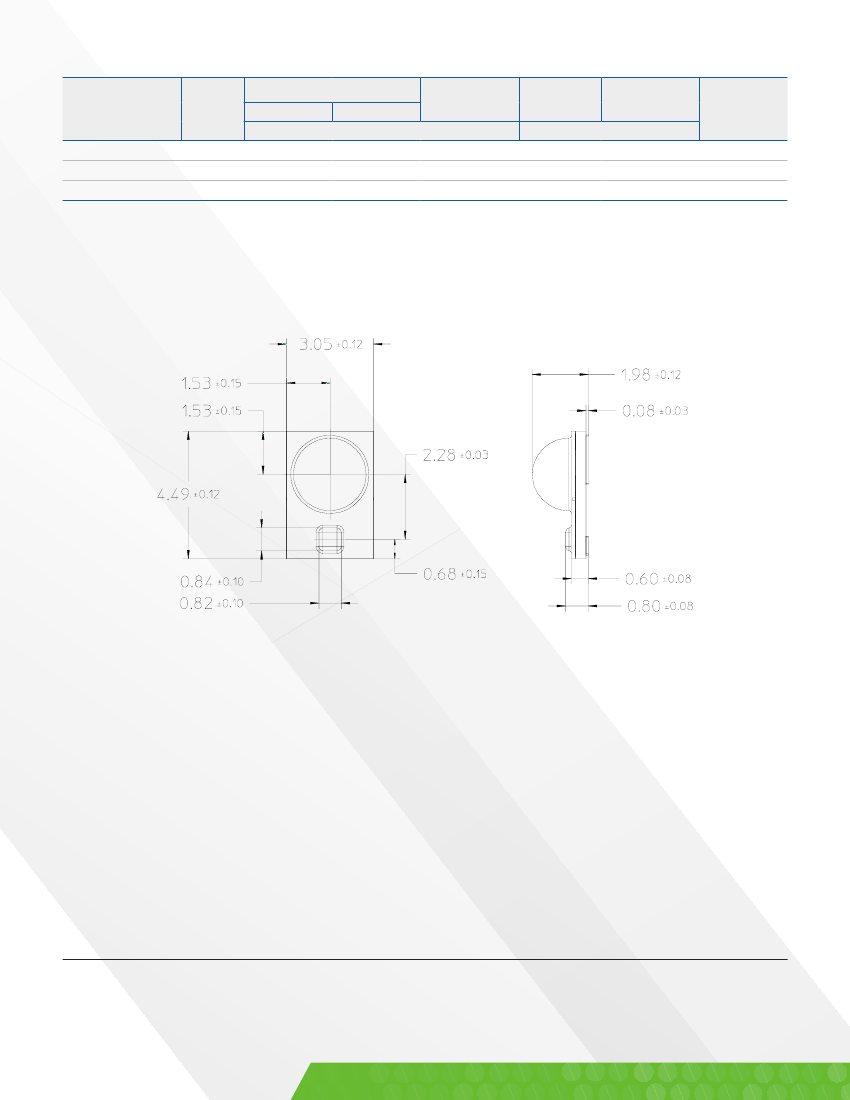

Mechanical Dimensions.
Notes:
1. Drawings are not scale.
2. All dimensions are in millimeters.
©2016 Lumileds Holding B.V. All rights reserved.
LUXEON is a registered trademark of the Lumileds Holding B.V.
in the United States and other countries.
lumileds.com
Neither Lumileds Holding B.V. nor its affiliates shall be liable for any kind of loss of data or any
other damages, direct, indirect or consequential, resulting from the use of the provided
information and data. Although Lumileds Holding B.V. and/or its affiliates have attempted to
provide the most accurate information and data, the materials and services information and data
are provided “as is,” and neither Lumileds Holding B.V. nor its affiliates warrants or guarantees
the contents and correctness of the provided information and data. Lumileds Holding B.V. and its
affiliates reserve the right to make changes without notice. You as user agree to this disclaimer
and user agreement with the download or use of the provided materials, information and data.
PB061 LUXEON Rebel ES Product Brief 20160628
