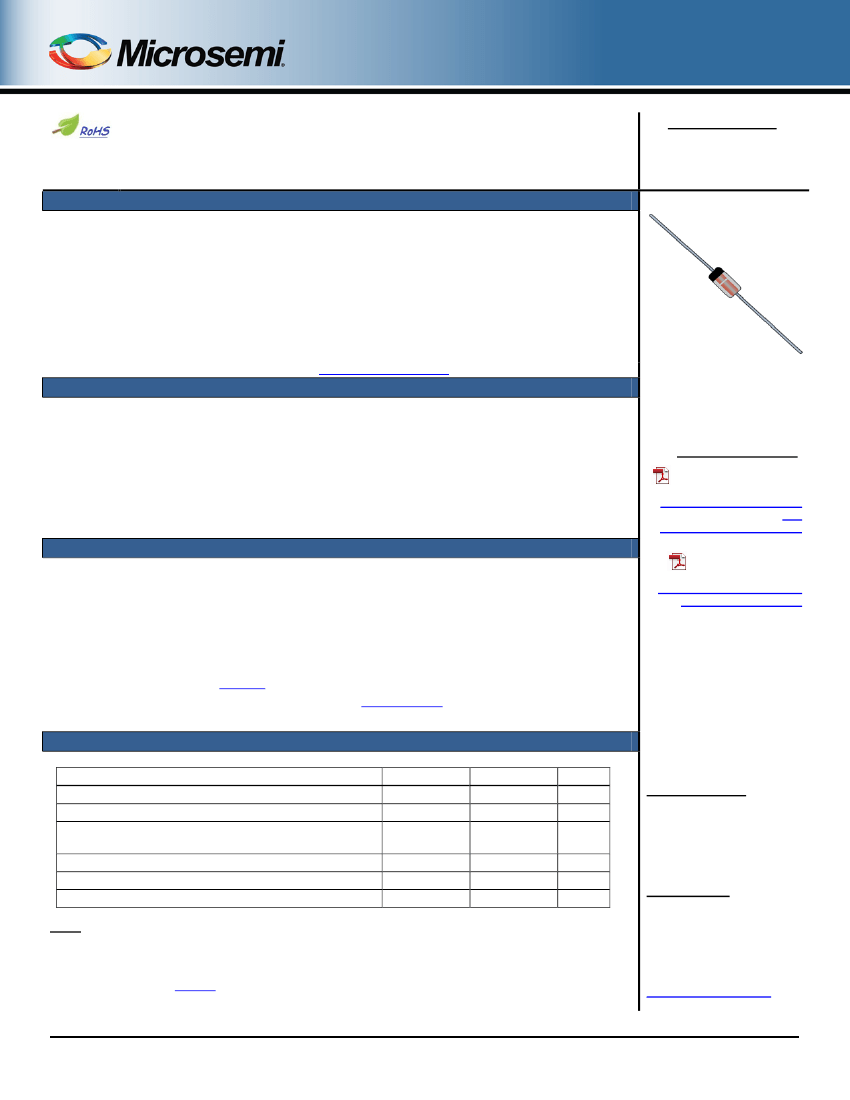

1N4614-1 – 1N4627-1e3,
1N4099-1 – 1N4135-1e3
500 mW Metallurgically Bonded
Glass Zener Diodes
Qualified per MIL-PRF-19500/435
DESCRIPTION
The 1N4099-1 through 1N4135-1 and 1N4614-1 through 1N4627-1 series are 500 mW, Zener
voltage regulators in the axial-leaded, glass DO-35 package. Voltages from 1.8 to 100V in
5%, 2%, and 1% tolerances are available. They are constructed with an internal metallurgical
bond and are mil-qualified up to the JANS level for high reliability applications.
Available on
commercial
versions
Qualified Levels:
JAN, JANTX,
JANTXV and JANS
Important:
For the latest information, visit our website
http://www.microsemi.com.
FEATURES
•
•
•
•
•
JEDEC registered 1N4099 through 1N4135 and 1N4614 through 1N4627 series.
Internal metallurgical bond.
Max noise density 40 μV / √Hz for 6.8 V and up. Falls quickly to 1 μV / √Hz at lower voltages.
JAN, JANTX, JANTXV and JANS qualifications are available per MIL-PRF-19500/435.
RoHS compliant versions available (commercial grade only).
DO-35 (DO-204AH)
Package
Also available in:
DO-213AA package
(surface mount)
1N4099UR-1 – 1N4135UR-1
and
1N4614UR-1 – 1N4627UR-1
APPLICATIONS / BENEFITS
•
•
•
•
•
•
•
•
Flexible axial-lead mounting terminals.
Regulates voltage over broad ranges of current and temperature.
Extensive selection from 1.8 to 100 volts.
Voltage tolerances of 5% (standard), 2% and 1% are available.
Hermetically sealed surface mount package.
Non-sensitive to ESD per MIL-STD-750 method 1020.
Minimal capacitance (see
Figure 3).
Inherently radiation hard as described in Microsemi
MicroNote 050.
DO-216 package
(tabbed surface mount)
1PMT4099 – 1PMT4135 and
1PMT4614 – 1PMT4627
MAXIMUM RATINGS
@ T
C
= +25 ºC unless otherwise specified
Parameters/Test Conditions
Junction and Storage Temperature
(1)
Thermal Resistance Junction-to-Ambient
Thermal Resistance Junction-to-Lead @ 3/8 (10 mm)
lead length from body
(2)
Rated Average Power Dissipation
Forward Voltage @ 200 mA
Solder Temperature @ 10 s
Symbol
T
J
and T
STG
R
ӨJA
R
ӨJL
P
M(AV)
V
F
Value
-65 to +175
300
250
0.5
1.1
260
Unit
C
o
C/W
o
C/W
W
V
o
C
o
MSC – Lawrence
6 Lake Street,
Lawrence, MA 01841
Tel: 1-800-446-1158 or
(978) 620-2600
Fax: (978) 689-0803
MSC – Ireland
Gort Road Business Park,
Ennis, Co. Clare, Ireland
Tel: +353 (0) 65 6840044
Fax: +353 (0) 65 6822298
Website:
www.microsemi.com
Notes:
1. When mounted on FR4 PC board (1 oz Cu) with 4 mm
2
copper pads and track width 1 mm, length 25
mm.
2. The 0.5 W should be linearly derated starting at T
L
= 50 °C and goes to zero at 175 °C. For ambient T
A
condition on a typical PC board, it linearly derates from 500 mW starting at 25 °C and goes to zero at
175 °C (see
Figure 2).
T4-LDS-0245-2, Rev. 1 (5/31/13)
©2013 Microsemi Corporation
Page 1 of 5
1N4614-1 – 1N4627-1e3,
1N4099-1 – 1N4135-1e3
MECHANICAL and PACKAGING
•
•
•
•
•
•
•
CASE: Hermetically sealed axial-lead glass DO-35 (DO-204AH) style package.
TERMINALS: Tin-lead or RoHS compliant annealed matte-tin (on commercial grade only) plating. Solderable per MIL-STD-750,
method 2026.
POLARITY: Cathode indicated by band. The diode is to be operated with the banded end positive with respect to the opposite
end for Zener regulation.
MARKING: Part number.
TAPE & REEL option: Standard per EIA-296 (add “TR” suffix to part number). Consult factory for quantities.
WEIGHT: Approximately 0.2 grams.
See
Package Dimensions
on last page.
PART NOMENCLATURE
JAN
Reliability Level
JAN = JAN level
JANTX = JANTX level
JANTXV = JANTXV level
JANS = JANS level
Blank = Commercial
JEDEC type number
(See
Electrical Characteristics
table)
Zener Voltage Tolerance
Blank = 5%
C = 2%
D = 1%
1N4099
C
-1
e3
RoHS Compliance
e3 = RoHS compliant (available
on commercial grade only)
Blank = non-RoHS compliant
Metallurgically Bonded
Symbol
α
VZ
I
R
I
Z
, I
ZT
, I
ZK
I
ZM
N
D
V
R
V
Z
Z
ZT
or Z
ZK
SYMBOLS & DEFINITIONS
Definition
Temperature Coefficient of Regulator Voltage: The change in regulator voltage divided by the change in temperature
that caused it expressed in %/C or mV/°C.
Reverse Current: The maximum reverse (leakage) current that will flow at the specified voltage and temperature.
Regulator Current: The dc regulator current (I
Z
), at a specified test point (I
ZT
), near breakdown knee (I
ZK
).
Maximum Regulator (Zener) Current: The maximum rated dc current for the specified power rating.
Noise Density: The noise generated over a specified frequency bandwidth usually specified in terms of mV/ √Hz.
Reverse Voltage: The reverse voltage dc value, no alternating component.
Zener Voltage: The Zener voltage the device will exhibit at a specified current (I
Z
) in its breakdown region.
Dynamic Impedance: The small signal impedance of the diode when biased to operate in its breakdown region at a
specified rms current modulation (typically 10% of I
ZT
or I
ZK
) and superimposed on I
ZT
or I
ZK
respectively.
T4-LDS-0245-2, Rev. 1 (5/31/13)
©2013 Microsemi Corporation
Page 2 of 5
1N4614-1 – 1N4627-1e3,
1N4099-1 – 1N4135-1e3
ELECTRICAL CHARACTERISTICS
@ 25
°C
unless otherwise stated
INDUSTRY
PART
NUMBER*
(Note 1)
NOMINAL
ZENER
VOLTAGE
ZENER
TEST
CURRENT
MAXIMUM
ZENER
IMPEDANCE
MAXIMUM
REVERSE
CURRENT
MAXIMUM
NOISE
DENSITY
MAXIMUM
ZENER
CURRENT
MAXIMUM
TEMP. COEFF.
OF ZENER
VOLTAGE
V
Z
@ I
ZT
(Note 2)
I
ZT
µA
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
Z
ZT
(Note 3)
I
R
@ V
R
µA
3.5
2.5
2.0
1.0
0.5
0.4
3.5
3.5
2.5
2.0
5.0
5.0
5.0
5.0
1.0
1.0
0.5
0.5
0.5
0.5
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
Volts
1.0
1.0
1.0
1.0
1.0
1.0
1.5
2.0
2.0
2.0
3.0
3.0
4.0
5.0
5.2
5.7
6.3
6.7
7.0
7.6
8.5
9.2
9.9
10.7
11.4
12.2
13.0
13.7
14.5
15.2
16.8
18.3
19.0
20.5
21.3
22.8
25.1
27.4
29.7
32.7
35.8
38.8
42.6
45.6
47.1
51.7
57.0
62.4
66.2
69.2
76.0
N
D
@ I
ZT
µV/√Hz
1
1
1
1
1
1
1
1
1
1
1
2
4
5
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
I
ZM
mA
120.0
110.0
100.0
95.0
90.0
87.0
85.0
83.0
80.0
77.0
75.0
70.0
65.0
61.0
56.0
51.0
46.0
44.0
42.0
38.0
35.0
32.0
29.0
27.0
25.0
24.0
22.0
21.0
20.0
19.0
17.0
16.0
15.0
14.0
14.0
13.0
12.0
11.0
9.8
8.9
8.1
7.5
6.7
6.4
6.1
5.6
5.1
4.6
4.4
4.2
3.8
Volts
1N4614-1
1.8
1N4615-1
2.0
1N4616-1
2.2
1N4617-1
2.4
1N4618-1
2.7
1N4619-1
3.0
1N4620-1
3.3
1N4621-1
3.6
1N4622-1
3.9
1N4623-1
4.3
1N4624-1
4.7
1N4625-1
5.1
1N4626-1
5.6
1N4627-1
6.2
1N4099-1
6.8
1N4100-1
7.5
1N4101-1
8.2
1N4102-1
8.7
1N4103-1
9.1
1N4104-1
10.0
1N4105-1
11.0
1N4106-1
12.0
1N4107-1
13.0
1N4108-1
14.0
1N4109-1
15.0
1N4110-1
16.0
1N4111-1
17.0
1N4112-1
18.0
1N4113-1
19.0
1N4114-1
20.0
1N4115-1
22.0
1N4116-1
24.0
1N4117-1
25.0
1N4118-1
27.0
1N4119-1
28.0
1N4120-1
30.0
1N4121-1
33.0
1N4122-1
36.0
1N4123-1
39.0
1N4124-1
43.0
1N4125-1
47.0
1N4126-1
51.0
1N4127-1
56.0
1N4128-1
60.0
1N4129-1
62.0
1N4130-1
68.0
1N4131-1
75.0
1N4132-1
82.0
1N4133-1
87.0
1N4134-1
91.0
1N4135-1
100.0
*JEDEC Registered Data.
SEE NOTES ON NEXT PAGE.
Ohms
1200
1250
1300
1400
1500
1600
1650
1700
1650
1600
1550
1500
1400
1200
200
200
200
200
200
200
200
200
200
200
100
100
100
100
150
150
150
150
150
150
200
200
200
200
200
250
250
300
300
400
500
700
700
800
1000
1200
1600
α
VZ
%/
o
C
-0.075
-0.075
-0.075
-0.075
-0.075
-0.075
-0.075
-0.065
-0.060
-0.050
-0.050,+0.020
-0.045,+0.030
-0.020,+0.040
-0.010,+0.050
+0.060
+0.065
+0.070
+0.075
+0.080
+0.080
+0.080
+0.080
+0.080
+0.085
+0.085
+0.085
+0.090
+0.090
+0.090
+0.090
+0.090
+0.090
+0.090
+0.090
+0.095
+0.095
+0.095
+0.095
+0.095
+0.095
+0.095
+0.100
+0.100
+0.100
+0.100
+0.100
+0.100
+0.100
+0.100
+0.100
+0.100
T4-LDS-0245-2, Rev. 1 (5/31/13)
©2013 Microsemi Corporation
Page 3 of 5
1N4614-1 – 1N4627-1e3,
1N4099-1 – 1N4135-1e3
NOTE 1:
NOTE 2:
NOTE 3:
The JEDEC type numbers shown in the prior table have a standard tolerance of +/-5% on the nominal Zener voltage. V
Z
is measured with
the diode in thermal equilibrium (still air) at 25
o
C.
Zener impedance is derived by superimposing on I
ZT
a 60 Hz rms ac current at 10% of I
ZT
(25
µA
). See
MicroNote 202
for Zener
impedance variation with different operating currents.
Based upon 400 mW maximum power dissipation at 25 ºC lead temperature, allowance has been made for the higher voltage associated
with operation at higher currents.

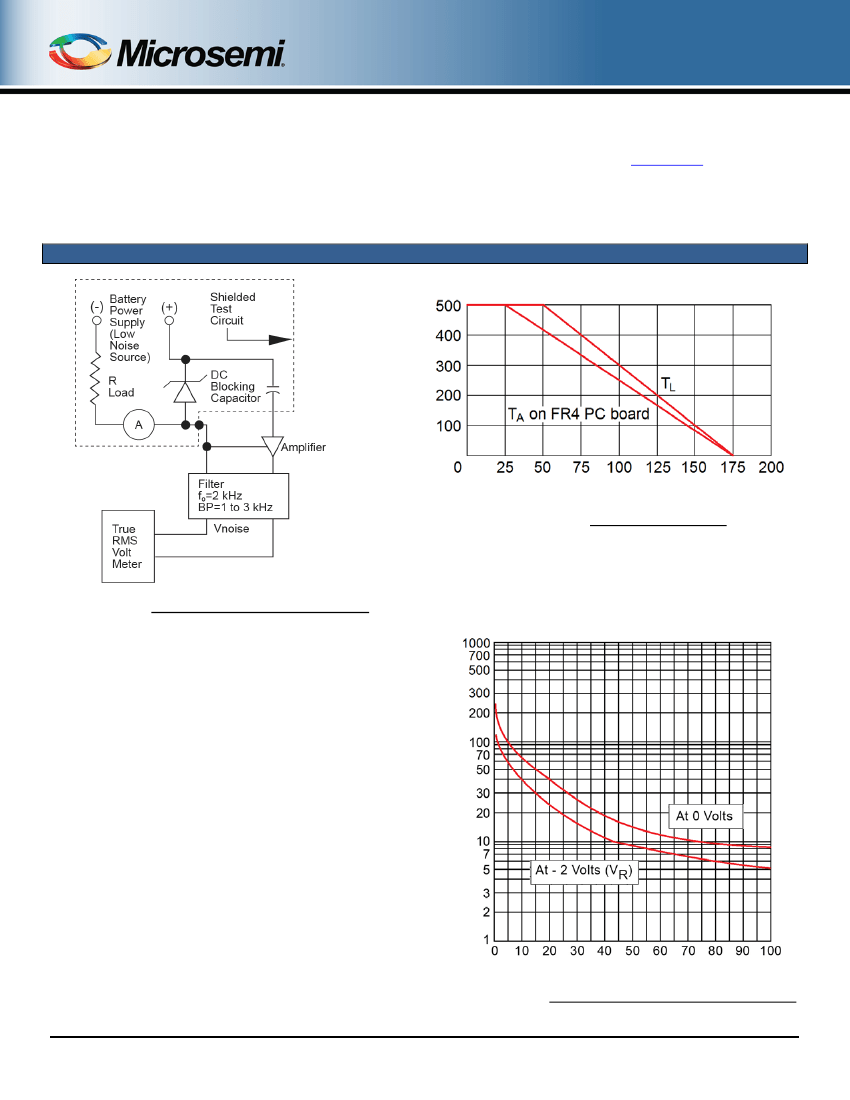

GRAPHS
P
d
Rated Power Dissipation (mW)
Temperature ( C)
o
FIGURE 2 –
Power Derating Curve
FIGURE 1
–
Noise Density Measurement Circuit
Noise density, (N
D
) is specified in microvolt-rms per square-root-hertz.
Actual measurement is performed using a 1 KHz to 3 KHz frequency
bandpass filter at a constant Zener test current (I
ZT
) at 25
o
C ambient
temperature. N
D
is calculated from the formula.
Typical Capacitance in Picofarads (pF)
Zener Voltage V
Z
FIGURE 3 –
Capacitance vs. Zener Voltage (Typical)
T4-LDS-0245-2, Rev. 1 (5/31/13)
©2013 Microsemi Corporation
Page 4 of 5
1N4614-1 – 1N4627-1e3,
1N4099-1 – 1N4135-1e3
PACKAGE DIMENSIONS
Ltr
BD
BL
LD
LL
LL
1
Dimensions
Inches
Millimeters
Min
Max
Min
Max
0.056
0.090
1.42
2.29
0.140
0.200
3.56
5.08
0.018
0.022
0.46
0.56
1.000
1.500
25.40
38.10
-
0.050
-
1.27
Notes
3
3
4
NOTES:
1. Dimensions are in inches.
2. Millimeters are given for information only.
3. Package contour optional within BD and length BL. Heat slugs, if any, shall be included within this cylinder
but shall not be subject to minimum limit of BD. The BL dimension shall include the entire body including
slugs.
4. Within this zone lead, diameter may vary to allow for lead finishes and irregularities other than heat slugs.
5. In accordance with ASME Y14.5M, diameters are equivalent to
Φx
symbology.
T4-LDS-0245-2, Rev. 1 (5/31/13)
©2013 Microsemi Corporation
Page 5 of 5
51mcu
京公网安备 11010802033920号
EEWORLD
