1N4728UR thru 1N4764AUR,e3
(or MLL4728A thru MLL4764A,e3)
SCOTTSDALE DIVISION
SURFACE MOUNT 1.0 W
GLASS ZENER DIODES
DESCRIPTION
This surface mountable 1 watt Zener diode series is electrically equivalent to
the 1N4728A thru 1N4764A registration in the DO-41 equivalent package
except that it meets the JEDEC surface mount outline DO-213AB. It is an
ideal selection for applications of high density and low parasitic requirements
for voltage regulation. Standard voltage tolerance is +/- 5% with tighter
tolerances available down to 1%. With its glass hermetic qualities, it may
also be used for high reliability applications when required by a source
control drawing (SCD).
APPEARANCE
WWW .
Microsemi
.C
OM
DO-213AB
IMPORTANT:
For the most current data, consult
MICROSEMI’s
website:
http://www.microsemi.com
FEATURES
•
•
•
•
•
Electrically similar to the JEDEC registered 1N4728 thru
1N4764 zener series
Zener voltages available 3.3V to 100V
Standard voltage tolerances are +/- 5% with “A” suffix and
10 % with no suffix identification
Tight tolerances available in plus or minus 2% or 1% with
C or D suffix respectively
Options for screening in accordance with MIL-PRF-19500
for JAN, JANTX, JANTXV, and JANS are available by
adding MQ, MX, MV, or MSP prefixes respectively to part
numbers.
Surface mount equivalents also available as SMAJ4728A
to SMAJ4764A and SMAJ4728A to SMAJ4764A
RoHS Compliant devices also available by adding e3 suffix
Plastic body axial-leaded Zener equivalents are also
available as 1N4728A to 1N4764A
•
•
•
•
•
•
•
•
APPLICATIONS / BENEFITS
Regulates voltage over a broad operating current
and temperature range
Wide selection from 3.3 to 100 V
Leadless package for surface mounting
Ideal for high density mounting
Nonsensitive to ESD
Hermetically sealed glass package
Specified capacitance (see Figure 2)
Inherently radiation hard per MicroNote 050
•
•
•
MAXIMUM RATINGS
•
•
•

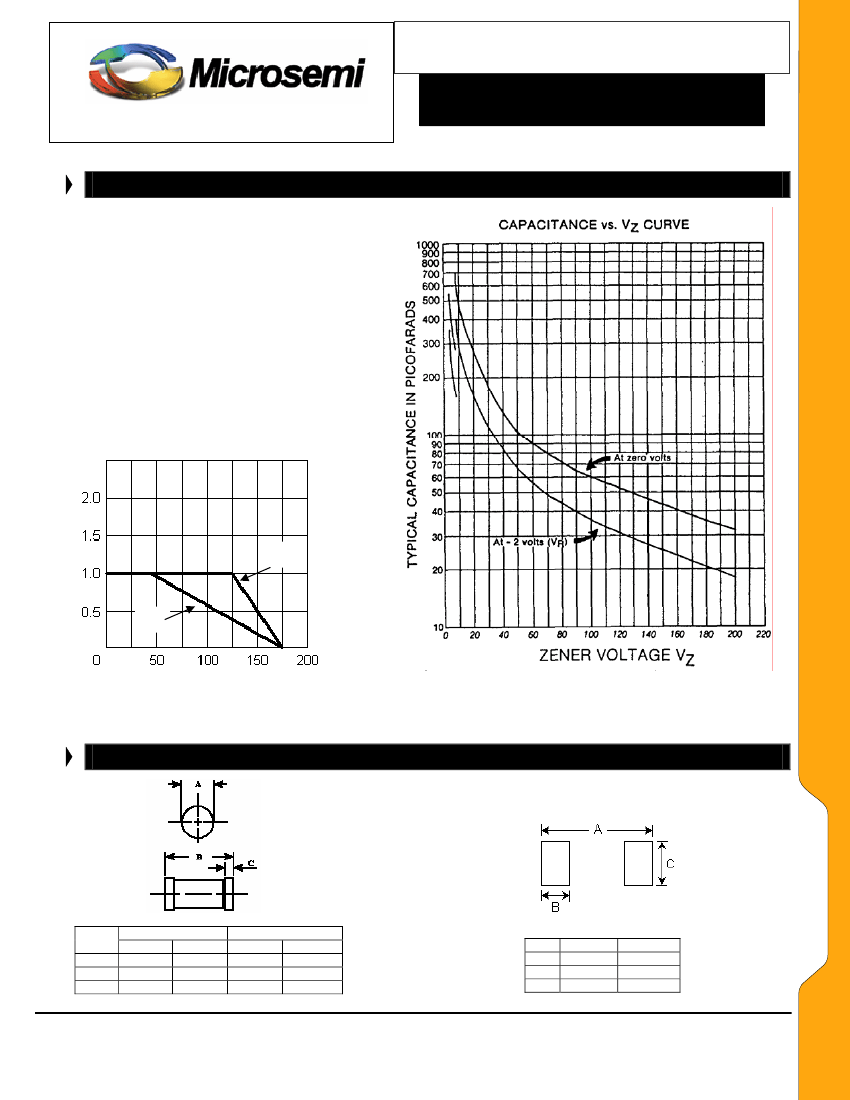

Power dissipation at 25
º
C: 1.0 watts (also see derating
in Figure 1).
Operating and Storage temperature: -65
º
C to +175
º
C
º
Thermal Resistance: 50 C/W junction to end cap, or
130
º
C/W junction to ambient when mounted on FR4 PC
board (1 oz Cu) with recommended footprint (see last
page)
Steady-State Power: 1.00 watts at T
EC
< 125
o
C, or 1.00
watts at T
A
< 45
º
C when mounted on FR4 PC board and
recommended footprint as described for thermal
resistance (also see Figure 1)
Forward voltage @200 mA: 1.2 volts (maximum)
Solder Temperatures: 260
º
C for 10 s (max)
MECHANICAL AND PACKAGING
•
CASE: Hermetically sealed DO-213AB glass MELF
•
TERMINALS: Tin-Lead or RoHS Compliant
annealed matte-Tin plating solderable per MIL-STD-
750, method 2026
•
POLARITY: Cathode indicated by band. Diode to
be operated with the banded end positive with
respect to the opposite end for Zener regulation
•
MARKING: Cathode band only
•
TAPE & REEL optional: Standard per EIA-481-B
with 12 mm tape, 1500 per 7 inch reel or 5000 per
13 inch reel (add “TR” suffix to part number)
•
WEIGHT: 0.05 grams
•
See package dimensions & recommended mounting
pad on last page
•
1N4728AUR thru
1N4764AUR, e3
•
•
Copyright
©
2005
10-18-2005 REV D
Microsemi
Scottsdale Division
8700 E. Thomas Rd. PO Box 1390, Scottsdale, AZ 85252 USA, (480) 941-6300, Fax: (480) 947-1503
Page 1
1N4728UR thru 1N4764AUR,e3
(or MLL4728A thru MLL4764A,e3)
SCOTTSDALE DIVISION
SURFACE MOUNT 1.0 W
GLASS ZENER DIODES
ELECTRICAL CHARACTERISTICS @
ZENER
VOLTAGE
(NOTE 4)
V
Z
Volts
T
C
= 30
o
C
MAXIMUM
REVERSE
CURRENT
I
R
@ V
R
μA
WWW .
Microsemi
.C
OM
TEST
CURRENT
I
ZT
mA
TYPE
NUMBER
(NOTE 1 & 5)
MAXIMUM
DYNAMIC
IMPEDANCE
(Note 2)
Z
ZT
@ I
ZT
Ohms
TEST
VOLTAGE
V
R
Volts
MAXIMUM
REGULATOR
CURRENT
T
A
= 50
o
C
I
ZM
mA
MAXIMUM
KNEE
IMPEDANCE
(NOTE2)
Z
ZK
@ I
ZK
Ohms
TEST
CURRENT
I
ZK
mA
MAXIMUM
(SURGE)
CURRENT
(NOTE 3)
I
S
mA
1N4728AUR
1N4729AUR
1N4730AUR
1N4731AUR
1N4732AUR
1N4733AUR
1N4734AUR
1N4735AUR
1N4736AUR
1N4737AUR
1N4738AUR
1N4739AUR
1N4740AUR
1N4741AUR
1N4742AUR
1N4743AUR
1N4744AUR
1N4745AUR
1N4746AUR
1N4747AUR
1N4748AUR
1N4749AUR
1N4750AUR
1N4751AUR
1N4752AUR
1N4753AUR
1N4754AUR
1N4755AUR
1N4756AUR
1N4757AUR
1N4758AUR
1N4759AUR
1N4760AUR
1N4761AUR
1N4762AUR
1N4763AUR
1N4764AUR
NOTE 1:
NOTE 2:
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
12
13
15
16
18
20
22
24
27
30
33
36
39
43
47
51
56
62
68
75
82
91
100
76
69
64
58
53
49
45
41
37
34
31
28
25
23
21
19
17
15.5
14
12.5
11.5
10.5
9.5
8.5
7.5
7.0
6.5
6.0
5.5
5.0
4.5
4.0
3.7
3.3
3.0
2.8
2.5
10
10
9
9
8
7
5
2
3.5
4.0
4.5
5.0
7
8
9
10
14
16
20
22
23
25
35
40
45
50
60
70
80
95
110
125
150
175
200
250
350
100
100
50
10
10
10
10
10
10
10
10
10
10
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
1
1
1
1
1
1
2
3
4
5
6
7
7.6
8.4
9.1
9.9
11.4
12.2
13.7
15.2
16.7
18.2
20.6
22.8
25.1
27.4
29.7
32.7
35.8
38.8
42.6
47.1
51.7
56.0
62.2
69.2
76.0
276
252
234
217
193
178
162
146
133
121
110
100
91
83
76
69
61
57
50
45
41
38
34
30
27
25
23
22
19
18
16
14
13
12
11
10
9
400
400
400
400
500
550
600
700
700
700
700
700
700
700
700
700
700
700
750
750
750
750
750
1000
1000
1000
1000
1500
1500
1500
2000
2000
2000
2000
3000
3000
3000
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
0.5
0.5
0.5
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
1380
1260
1190
1070
970
890
810
730
660
605
550
500
454
414
380
344
304
285
250
225
205
190
170
150
135
125
115
110
95
90
80
70
65
60
55
50
45
NOTE 3:
NOTE 4:
NOTE 5:
The type numbers shown with an “A” suffix have a +/-5% tolerance on the nominal Zener voltage. Also available with suffix “C” for +/-2%, and
“D” for +/-1%, while the absence of a suffix letter denotes +/- 10% tolerance.
The Zener impedance is derived from the 60Hz ac voltage, which results when an ac current having an rms value equal to 10% of the dc Zener
current (I
ZT
or I
ZK
) is superimposed on I
ZT
or I
ZK
. Zener impedance is measured at two points to ensure a sharp knee on the breakdown curve and
eliminate unstable units.
The reverse surge current is measured at 25
o
C ambient using a
½
square wave or equivalent sine wave pulse 1/120 second duration
superimposed on I
ZT
.
Voltage measurements to be performed 90 seconds after application of dc current.
This product series has also been previously identified as the MLL4728A thru MLL4764A series. This alternate name may still be used.
1N4728AUR thru
1N4764AUR, e3
Copyright
©
2005
10-18-2005 REV D
Microsemi
Scottsdale Division
8700 E. Thomas Rd. PO Box 1390, Scottsdale, AZ 85252 USA, (480) 941-6300, Fax: (480) 947-1503
Page 2
