10079248-10714 datasheet, PDF - EEWORLD Datasheet

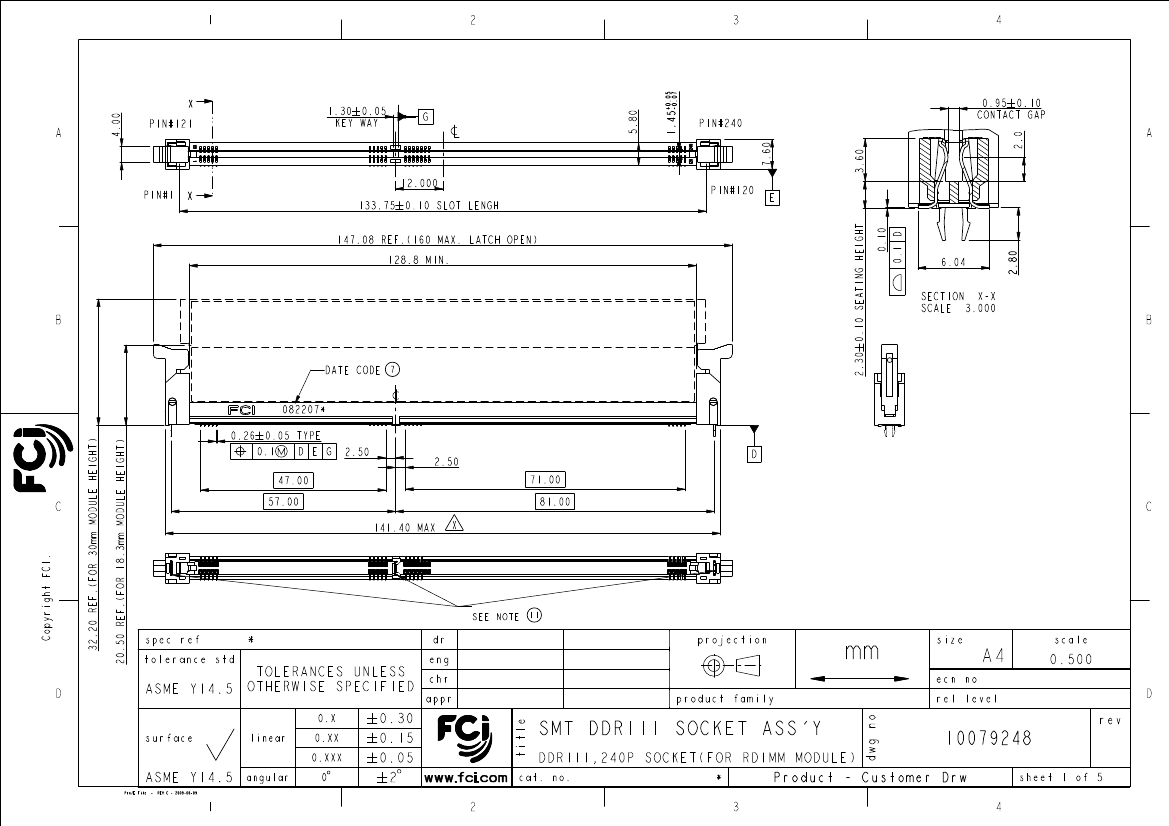

10079248-10714: DescriptionCard Edge Connector, 240 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Latch & Eject, Black Insulator, Socket,; CategoryThe connector The connector; File Size417KB，5 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

10079248-10714 Overview

Card Edge Connector, 240 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Latch & Eject, Black Insulator, Socket,

Parameter Name	Attribute value
Body/casing type	SOCKET
Connector type	CARD EDGE CONNECTOR
Installation type	BOARD
Terminal pitch	1 mm
Total number of contacts	240
Contact to complete cooperation	GOLD FLASH OVER NICKEL (50)
Contact point gender	FEMALE
Installation method	STRAIGHT
PCB row number	2
Number of rows loaded	2
DIN compliance	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Guideline	UL
UL Flammability Code	94V-0
Filter function	NO
ECCN code	EAR99
Is Samacsys	N
YTEOL	0
Objectid	1226036853
Reach Compliance Code	Compliant
Number of connectors	ONE
PCB contact pattern	RECTANGULAR
Insulator color	BLACK
Installation option 2	LOCKING
Mixed contacts	NO
Installation option 1	LATCH & EJECT
Options	GENERAL PURPOSE
Termination type	SURFACE MOUNT
Board mount options	SPLIT BOARD LOCK
Contact completed and terminated	TIN LEAD (100) OVER NICKEL (50)
subject depth	1.268 inch
body length	5.567 inch
body width	0.299 inch

Rick Bian

Eric Jiang

Nickor Zuo

Pei-Ming Zheng

2010/07/03

2015/06/17

2015/06/24

ELX-DG-21184-1

Released

X

PDS: Rev :X

STATUS:Released

Printed: Jun 25, 2015
