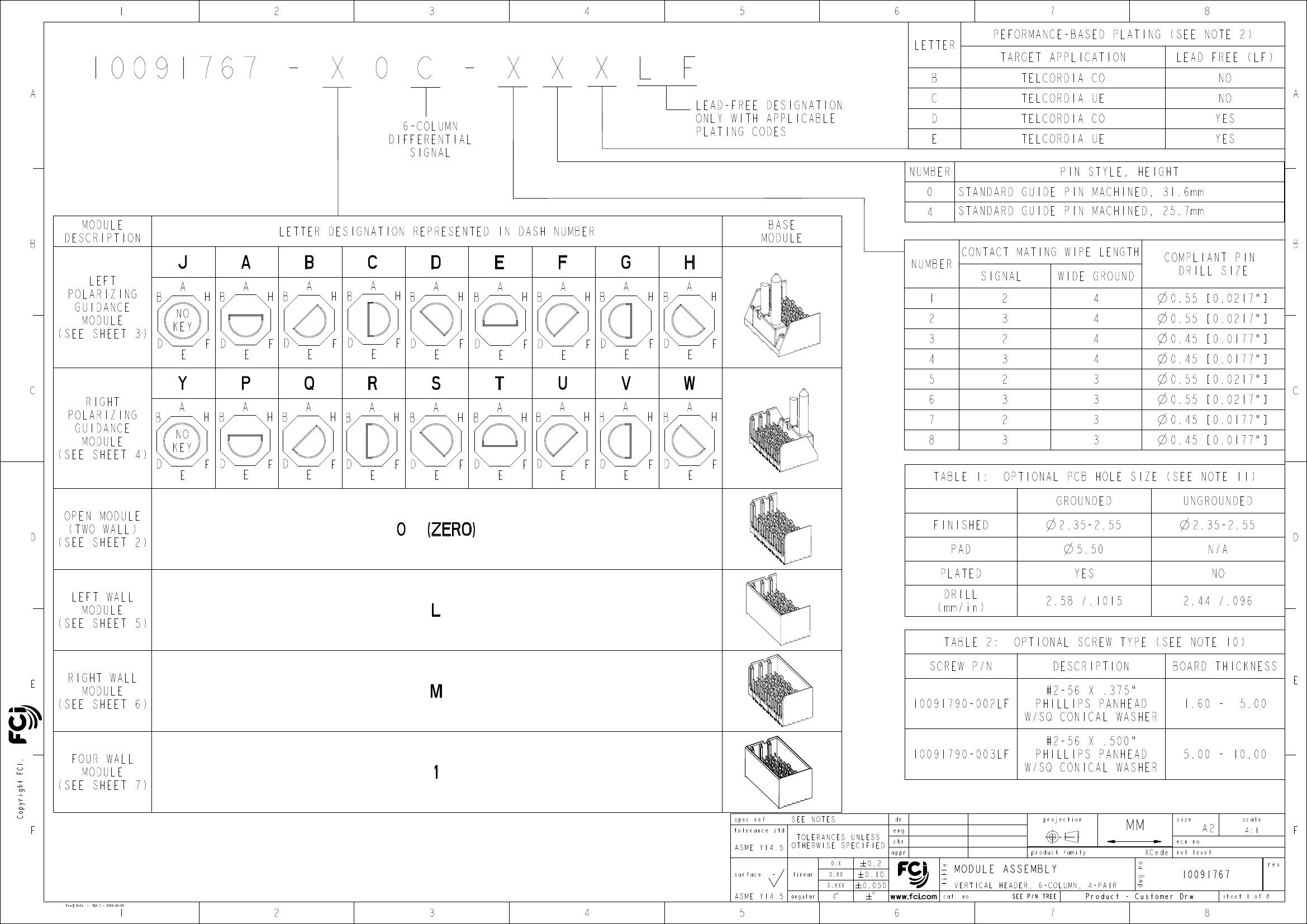

10091767-E0C-44ELF

Description
Board Connector, 48 Contact(s), Male, Straight, Press Fit Terminal, Guide Pin, Gray Insulator
CategoryThe connector    The connector
File Size3MB,8 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Environmental Compliance
Download Datasheet Parametric View All

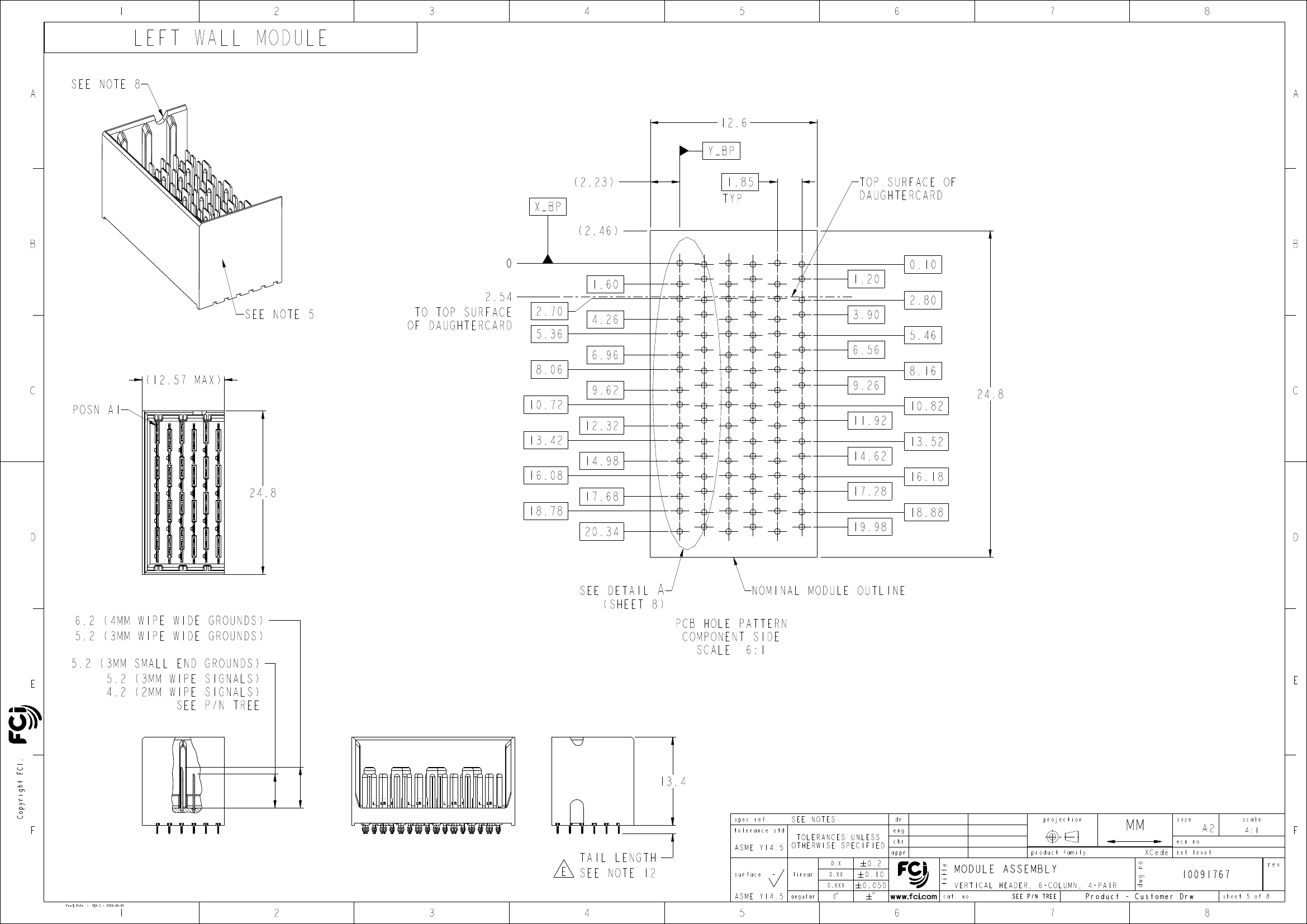

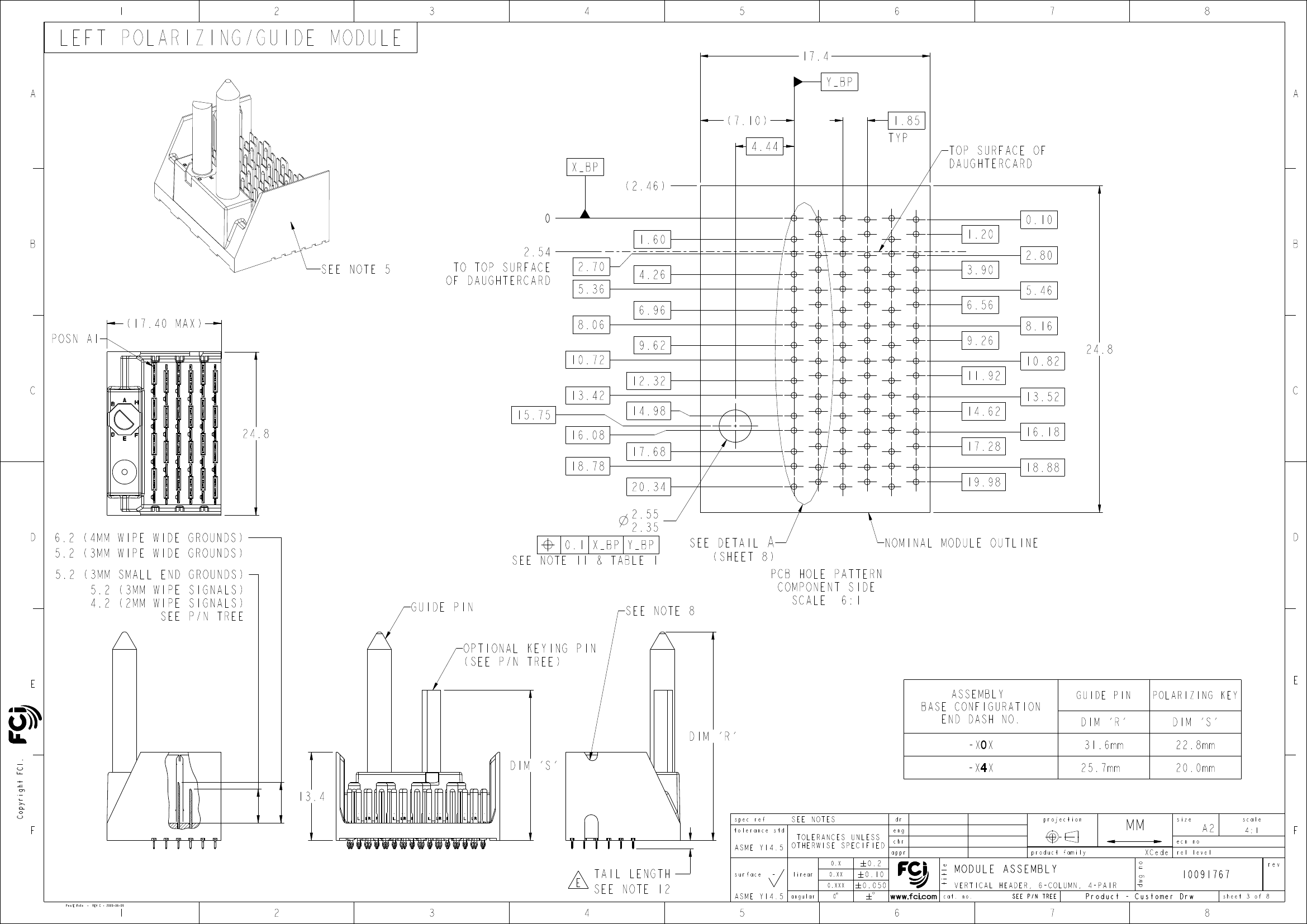

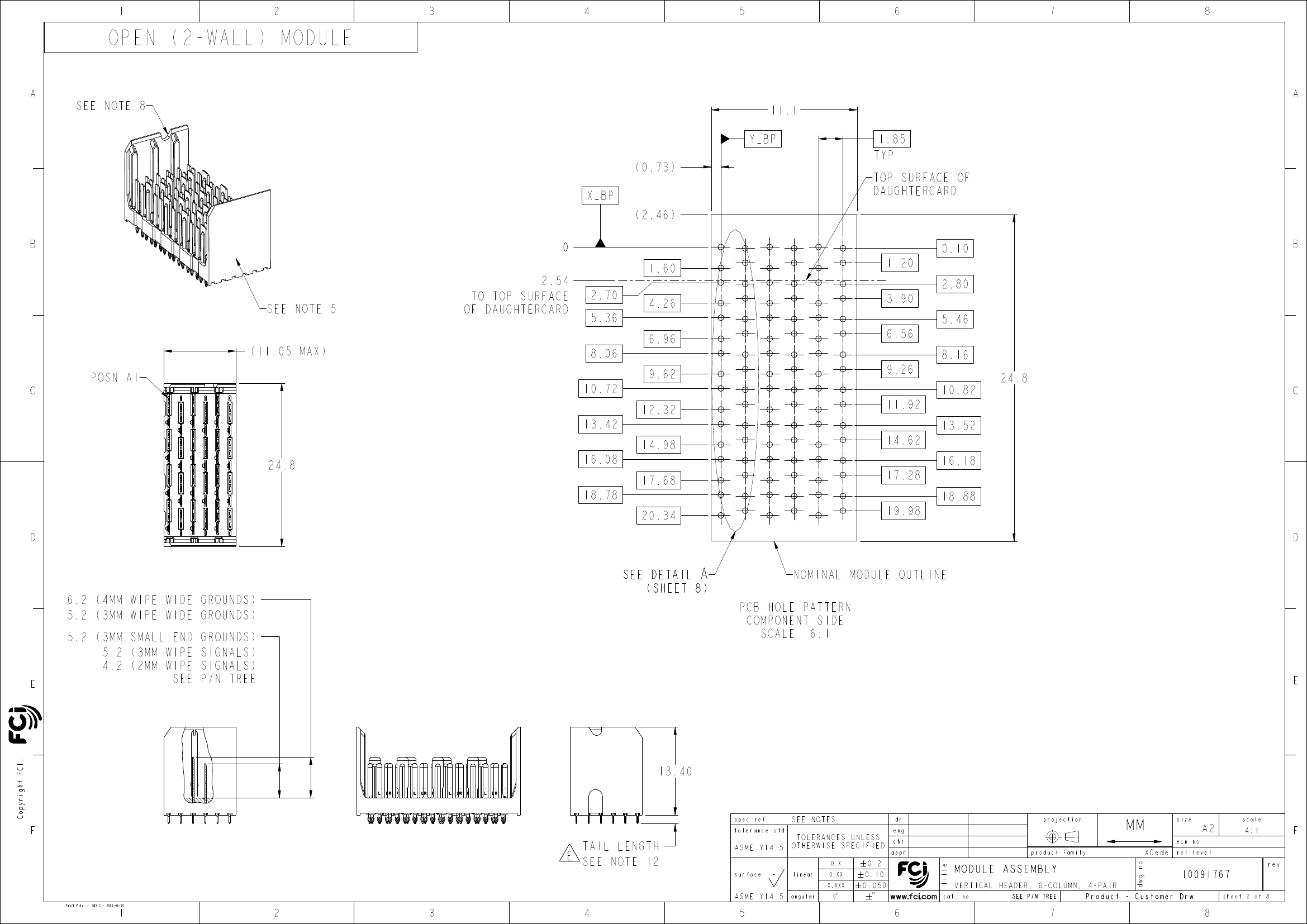

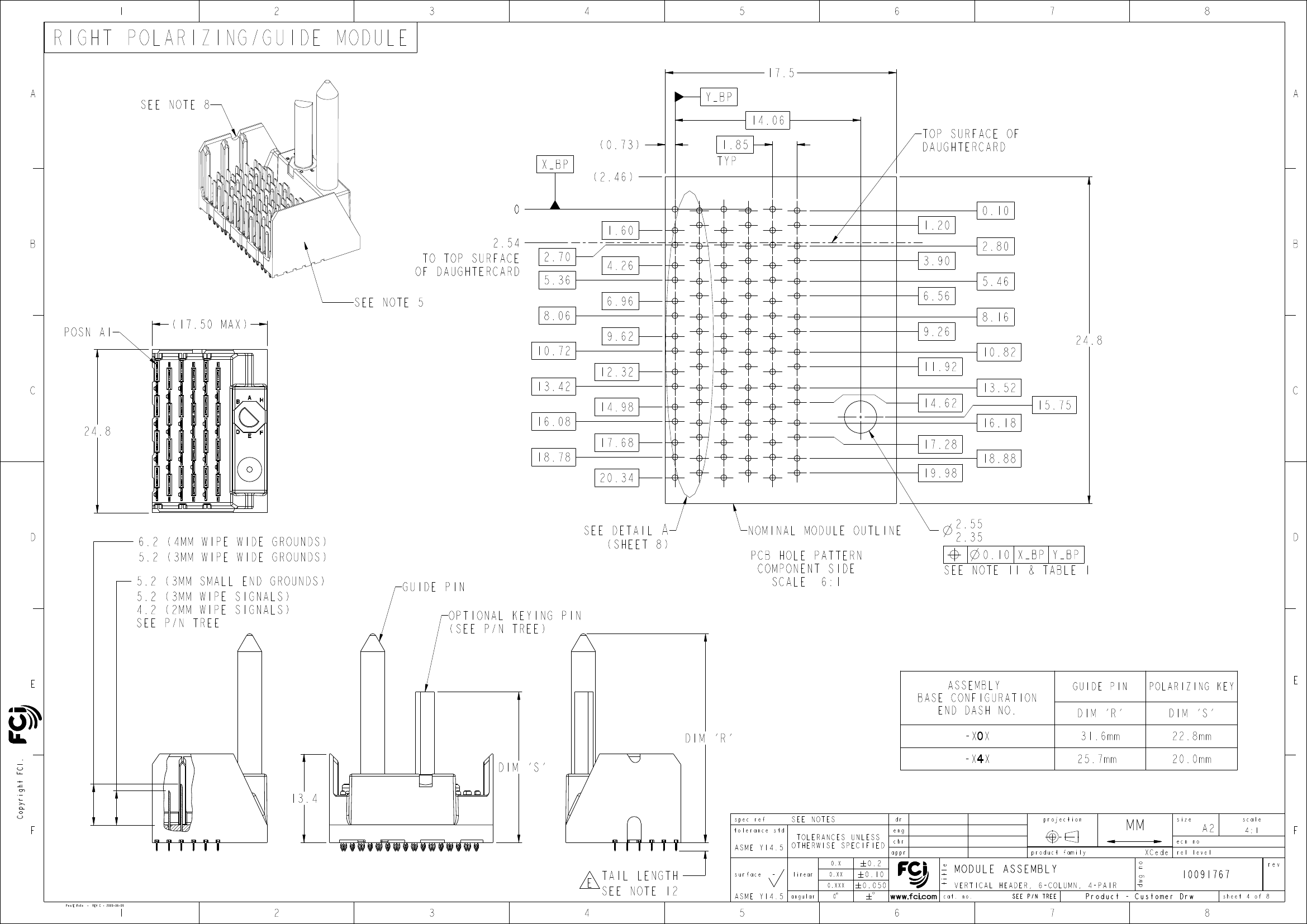

10091767-E0C-44ELF Overview

Board Connector, 48 Contact(s), Male, Straight, Press Fit Terminal, Guide Pin, Gray Insulator

10091767-E0C-44ELF Parametric

Parameter NameAttribute value
Contact resistance55 mΩ
insulator materialPOLYETHYLENE
Installation methodSTRAIGHT
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Terminal pitch1.8542 mm
Total number of contacts48
Contact point genderMALE
Installation typeBOARD
Contact completed and terminatedTin (Sn) - with Nickel (Ni) barrier
Contact materialCOPPER ALLOY
contact modeSTAGGERED
Contact styleBLADE PIN-SKT
Installation option 1GUIDE PIN
Termination typePRESS FIT
Insulator colorGRAY
Mixed contactsNO
Installation option 2LOCKING
Number of connectorsONE
PCB contact patternSTAGGERED
maximum insertion force.6394 N
Insulation resistance1000000000 Ω
polarization keyPOLARIZED KEY
Evacuation force-minimum value.14734 N
Filter functionNO
JESD-609 codee3
GuidelineUL
Is it lead-free?Yes
Is it Rohs certified?Yes
Reach Compliance CodeCompliant
ECCN codeEAR99
Is SamacsysN
YTEOL9
Objectid1252104915
body width0.976 inch
subject depth0.528 inch
body length0.685 inch
Terminal length0.059 inch
Jim Swain
Sandar Soe
-
Chen-Hong Tan
2009/03/02
2014/10/02
-
2014/12/10
ELX-S-18843-1
Released
E
PDS: Rev :E
STATUS:Released
Printed: Dec 10, 2014
