10091836-C0J-34BLF datasheet, PDF

10091836-C0J-34BLF: DescriptionBoard Connector, 32 Contact(s), Male, Straight, Press Fit Terminal, Guide Pin, Gray Insulator; CategoryThe connector The connector; File Size2MB，8 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

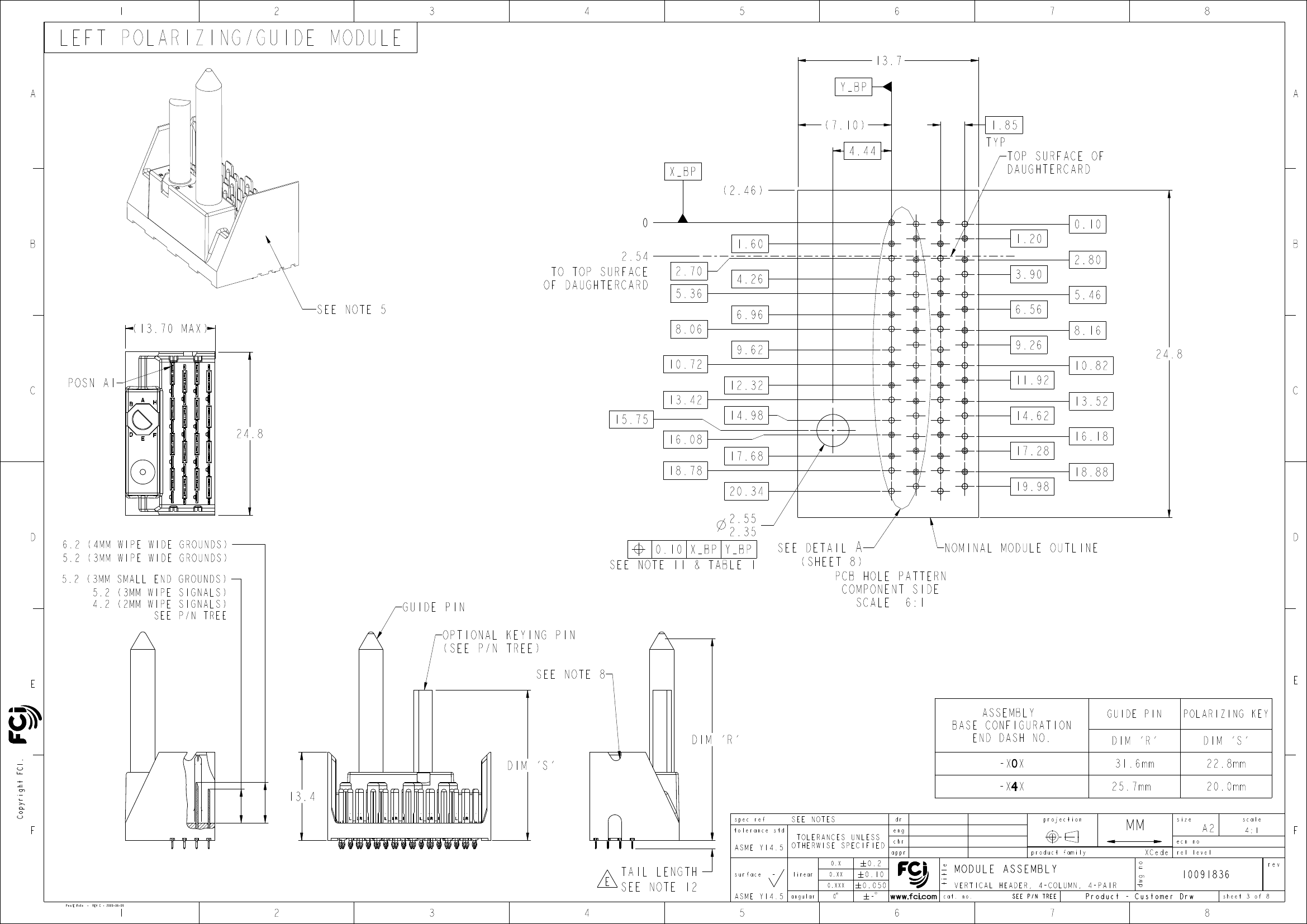

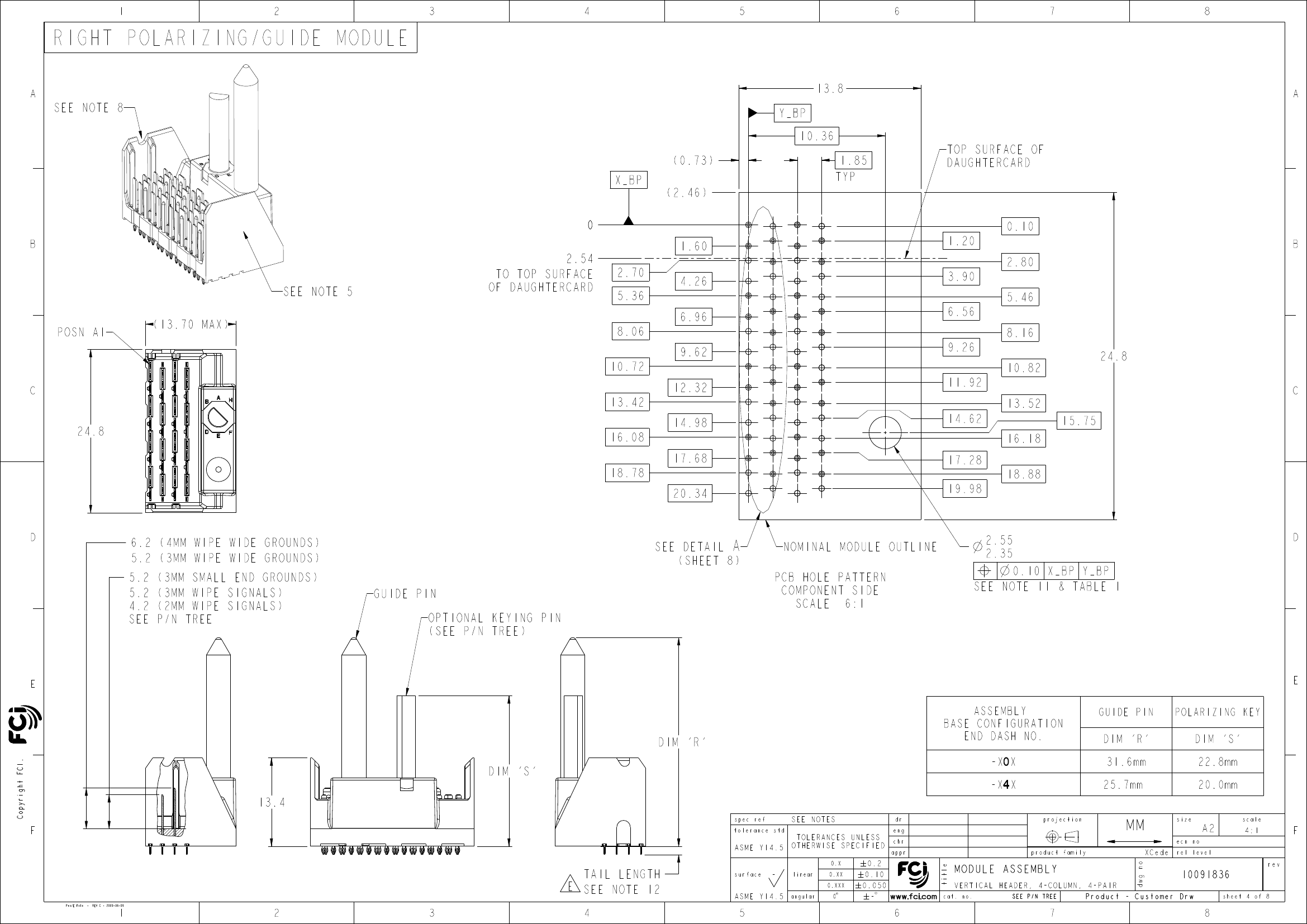

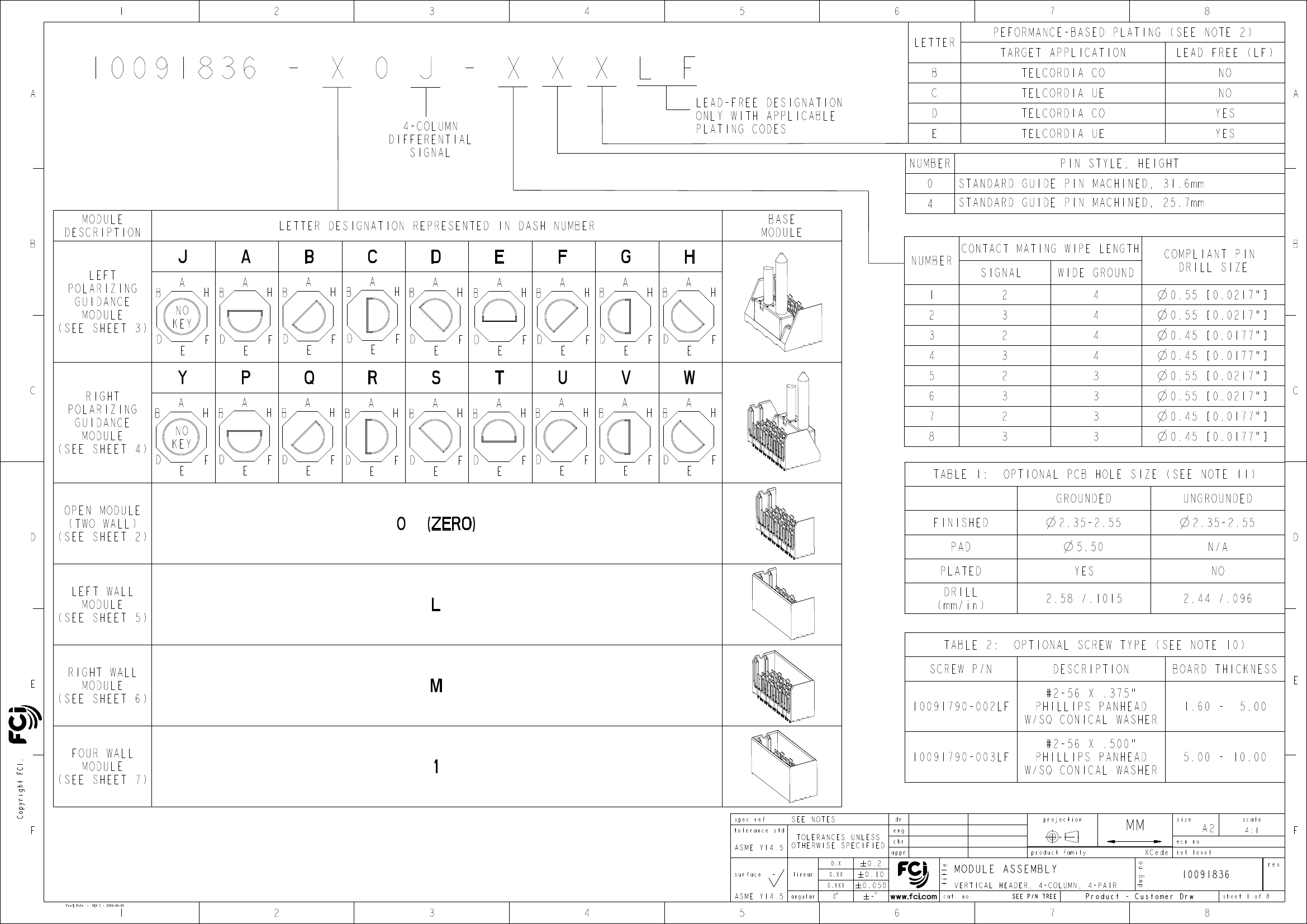

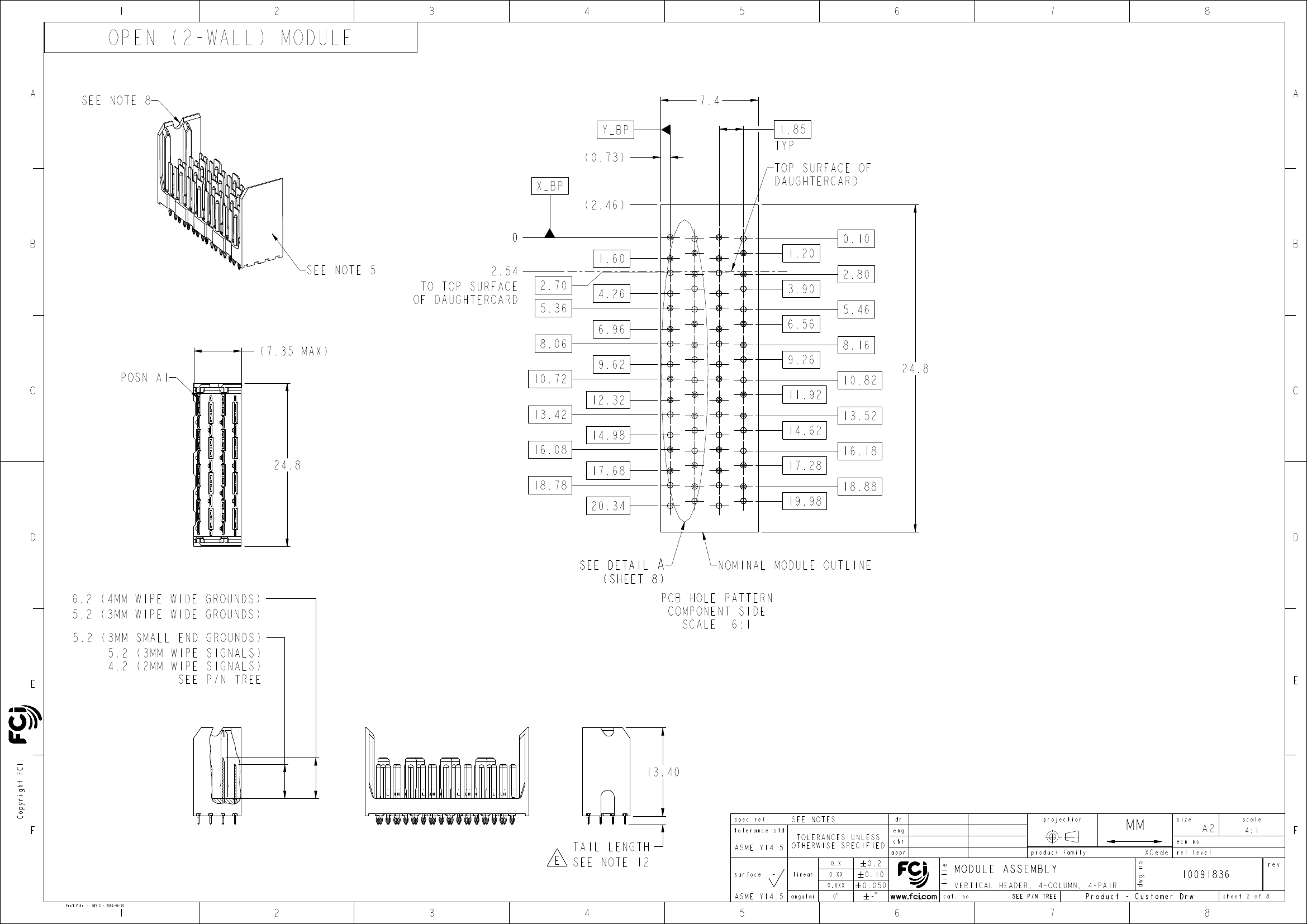

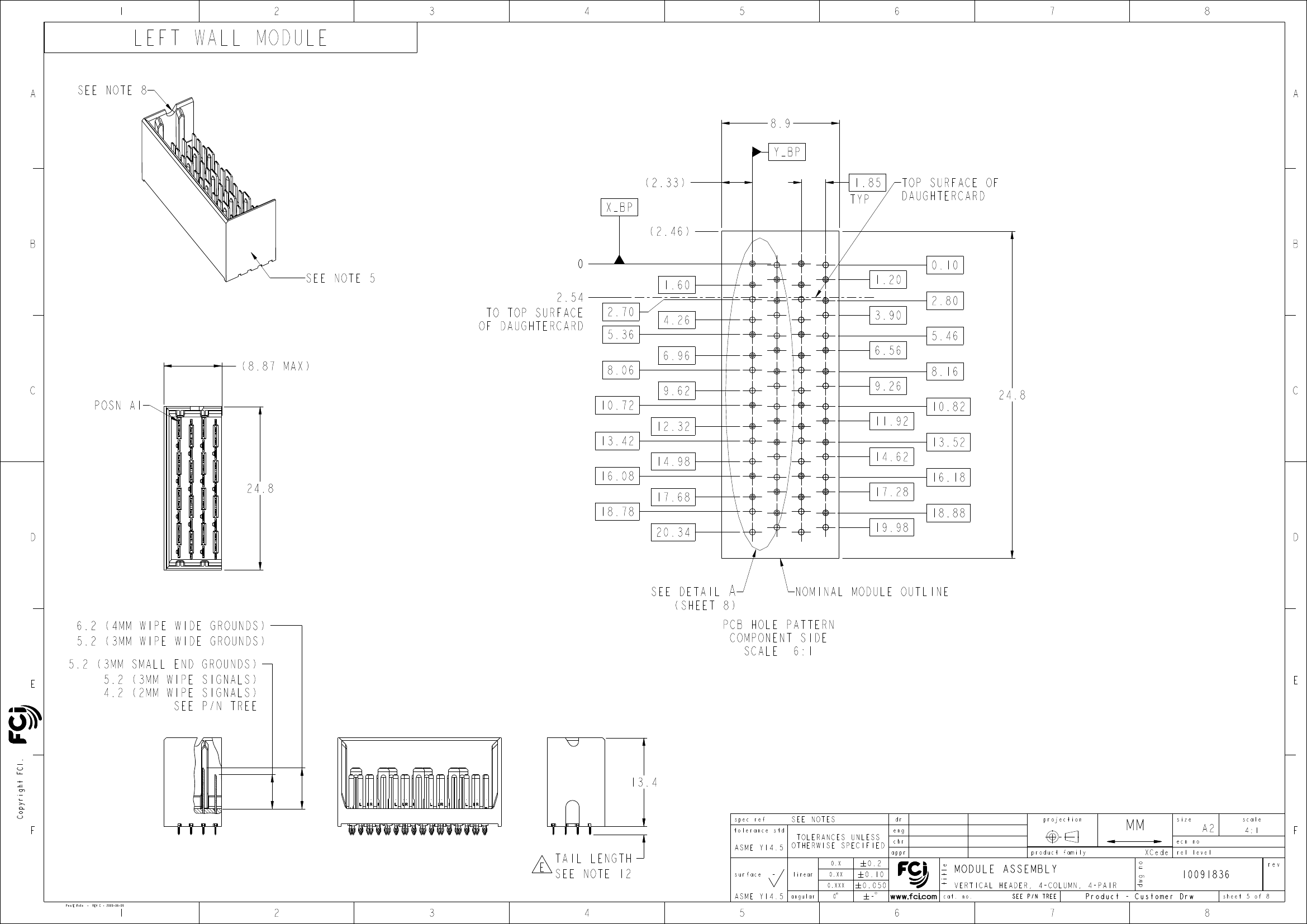

10091836-C0J-34BLF Overview

Board Connector, 32 Contact(s), Male, Straight, Press Fit Terminal, Guide Pin, Gray Insulator

Parameter Name	Attribute value
Objectid	315779920
Reach Compliance Code	Compliant
ECCN code	EAR99
Is Samacsys	N
body width	0.976 inch
subject depth	0.528 inch
body length	0.539 inch
Terminal length	0.059 inch
Contact resistance	55 mΩ
insulator material	POLYETHYLENE
Installation method	STRAIGHT
Installation type	BOARD
Total number of contacts	32
Connector type	BOARD CONNECTOR
Contact point gender	MALE
Mixed contacts	NO
Number of connectors	ONE
Termination type	PRESS FIT
Contact completed and terminated	TIN OVER NICKEL
Contact style	BLADE PIN-SKT
Insulator color	GRAY
Installation option 2	LOCKING
PCB contact pattern	STAGGERED
Contact material	COPPER ALLOY
contact mode	STAGGERED
Installation option 1	GUIDE PIN
Filter function	NO
maximum insertion force	.6394 N
Insulation resistance	1000000000 Ω
polarization key	POLARIZED KEY
Evacuation force-minimum value	.14734 N
Guideline	UL

Jim Swain

Sandar Soe

-

Chen-Hong Tan

2010/04/12

2014/10/02

-

2014/12/10

ELX-S-18843-1

Released

E

PDS: Rev :E

STATUS:Released

Printed: Dec 10, 2014
