802-40-046-10-007000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 802-40-046-10-007000

802-40-046-10-007000: DescriptionBoard Connector; CategoryThe connector The connector; File Size349KB，2 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

802-40-046-10-007000 Overview

Board Connector

802-40-046-10-007000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Yes
Is it Rohs certified?	Yes
Is Samacsys	N
YTEOL	9.1
Objectid	1334425759
Reach Compliance Code	Compliant
Country Of Origin	USA
ECCN code	EAR99
subject depth	0.11 inch
body length	2.3 inch
Terminal length	0.165 inch
Contact to complete cooperation	NOT SPECIFIED
Installation type	CABLE
insulator material	POLYETHYLENE
Number of rows loaded	2
Terminal pitch	2.54 mm
Total number of contacts	46
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact point gender	MALE
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact style	RND PIN-SKT
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Number of connectors	ONE
Termination type	SOLDER
Contactor design	STAMPED
contact mode	RECTANGULAR
Mixed contacts	NO
Installation option 1	LOCKING
Plating thickness	200u inch
Contact material	NOT SPECIFIED
Plug contact pitch	0.1 inch
Options	GENERAL PURPOSE
Dielectric withstand voltage	1000VAC V
Filter function	NO
Insulation resistance	10000000000 Ω
Maximum wire diameter	18 AWG
Minimum wire diameter	20 AWG
JESD-609 code	e3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C

Preview

Download Datasheet

View All

MAXIMUM

SOLUTIONS

Soldercup Header and Socket Interconnects

for Medium Duty Applications

Mill-Max is expanding its line of wire termination interconnects with new socket and header strips rated at

4.5 amps per contact. These connectors feature pins and receptacles with soldercups that can accept up to

20 AWG stranded & 18 AWG solid wires. They are a convenient and reliable method to make connections

between discrete wires or cables and mating components such as PC boards or other cable assemblies.

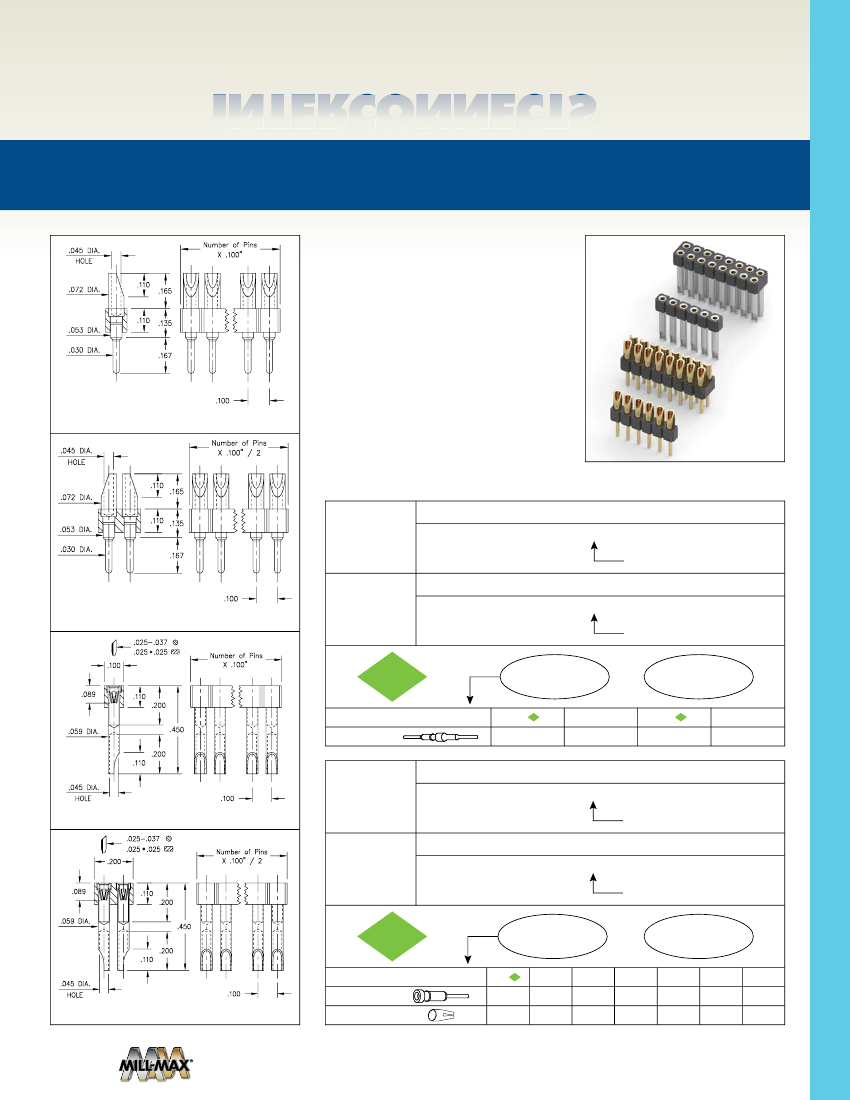

The male header strips are:

800-XX-0XX-10-007000,

Single row

802-XX-0XX-10-007000,

Double row

The female socket strips are:

801-XX-0XX-10-007000,

Single row

803-XX-0XX-10-007000,

Double row

These soldercup connectors are ideal for wire termination applications where direct wire connections are

required. They eliminate the difficulties of soldering wires directly to boards and the headers and sockets

form mating pairs for easy configuration of interconnects. Uniform orientation of the soldercups makes it

easy to solder your cable or discrete wires to the pins by eliminating the need to manipulate the wires or the

connector to solder each wire. Once the wires are securely soldered in the cups you have a wired assembly;

a perfect interface solution for discreet wire-to- board, cable-to-board or cable-to-cable applications.

The brass pins and receptacle shells are high speed machined to precision tolerances. Each receptacle is

fitted with the Mill-Max #47 stamped beryllium copper contact which accepts .025” - .037” (.63mm - .94mm)

diameter leads as well as .025” (.63mm) square leads. The male headers feature sturdy .030” (.76mm) diam-

eter pluggable pin tails for mating with the corresponding solder cup socket. Standard plating options are

tin or gold. All connectors in these series are on .100” (2.54mm) spacing and feature high temperature PCT

insulators, suitable for RoHS soldering profiles. They are available from 2-64 positions single row and 4-64

positions double row.

This new line of connectors joins the existing 3 amp rated headers and sockets currently offered:

380-XX-1XX-00-001000,

single row header;

480-XX-2XX-00-001000,

double row header;

329-43-1XX-41-540000,

single row socket and

429-43-2XX-41-540000,

double row socket.

For more information, please visit:

www.mill-max.com/PR628.

(6/14 -- PR628)

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, Oyster Bay, NY 11771

516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
