87754-2552 datasheet, PDF - EEWORLD Datasheet

87754-2552: DescriptionBoard Connector, 25 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle; CategoryThe connector The connector; File Size154KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

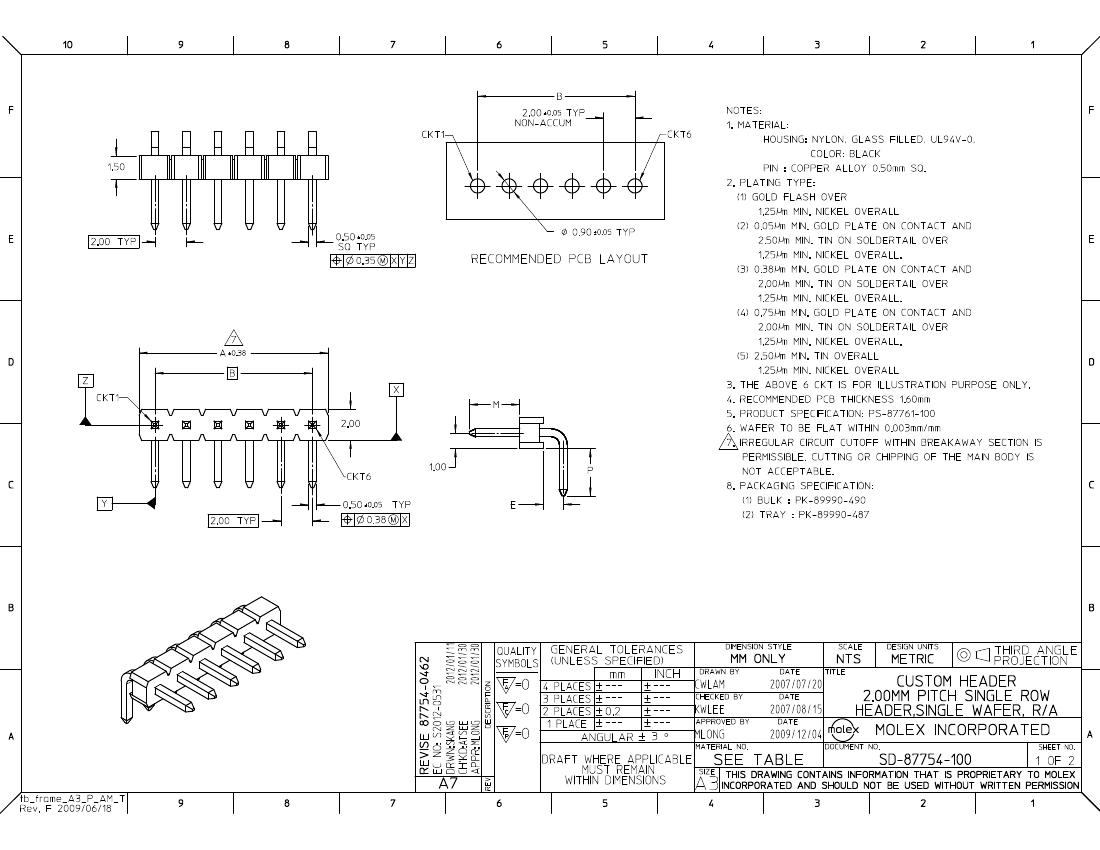

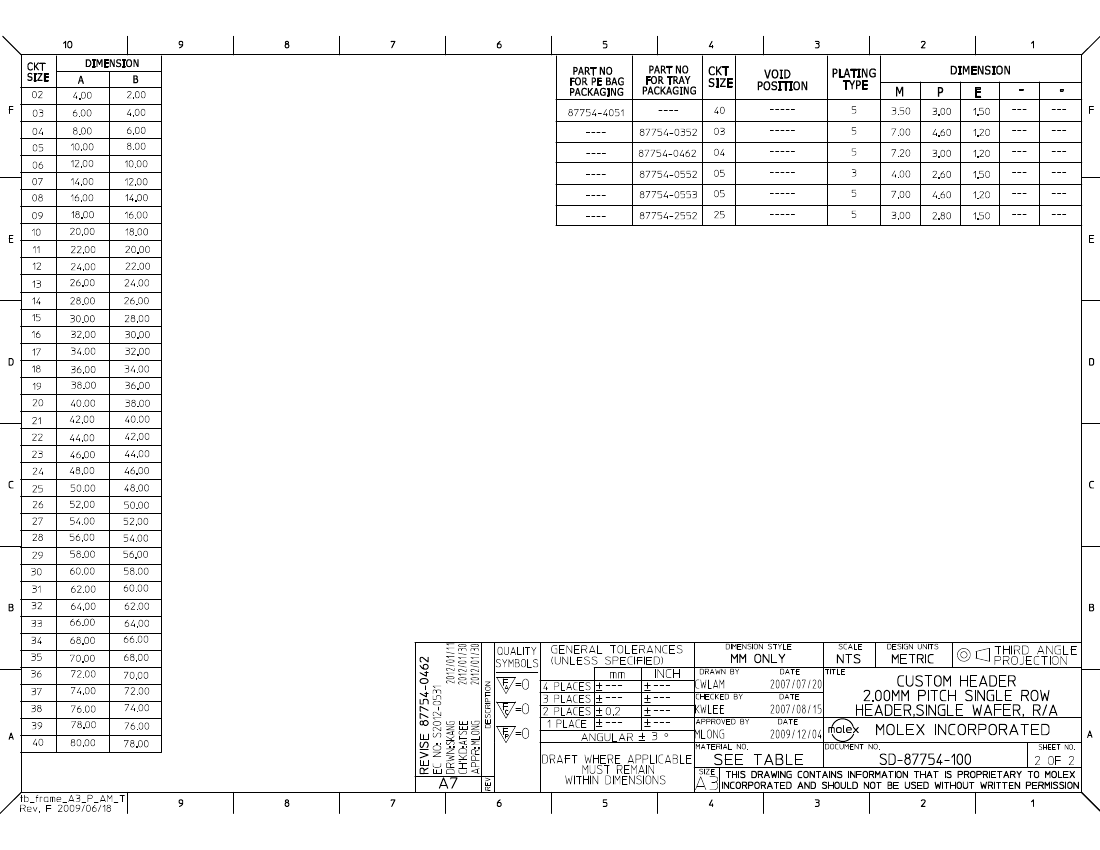

87754-2552 Overview

Board Connector, 25 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle

Parameter Name	Attribute value
PCB row number	1
Total number of contacts	25
Contact to complete cooperation	SN ON NI
Installation type	BOARD
Contact point gender	MALE
insulator material	POLYAMIDE
Installation method	RIGHT ANGLE
Number of rows loaded	1
Rated current (signal)	2 A
Terminal pitch	2.0066 mm
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Insulator color	BLACK
Number of connectors	ONE
PCB contact pattern	RECTANGULAR
Plating thickness	98u inch
Contact completed and terminated	TIN OVER NICKEL
contact mode	RECTANGULAR
Plug contact pitch	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Termination type	SOLDER
Contact material	COPPER ALLOY
Contact style	SQ PIN-SKT
Filter function	NO
Insulation resistance	1000000000 Ω
Dielectric withstand voltage	500VAC V
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Guideline	UL
Samacsys PartID	16399733
Samacsys Thumbnail Image	https://componentsearchengine.com/2D/0/16399733.png
YTEOL	8
Reach Compliance Code	Compliant
2D Presentation	https://componentsearchengine.com/2D/0/16399733.png
3D View	https://componentsearchengine.com/viewer/3D.php?partID=16399733
Is Samacsys	N
Samacsys Manufacturer	Molex
Samacsys Modified On	2022-06-14 21:18:39
Objectid	305646432
ECCN code	EAR99
subject depth	0.059 inch
body length	1.969 inch
Terminal length	0.181 inch
body width	0.079 inch
