C050FL2547G6: DescriptionGeneral Purpose Inductor, 0.37uH, 1 Element, Iron-Core, ROHS COMPLIANT; CategoryPassive components inductor; File Size2MB，1 Pages; ManufacturerGowanda Electronics

Download Datasheet Parametric View All

C050FL2547G6 Overview

General Purpose Inductor, 0.37uH, 1 Element, Iron-Core, ROHS COMPLIANT

C050FL2547G6 Parametric

Parameter Name	Attribute value
Maker	Gowanda Electronics
Reach Compliance Code	compliant
ECCN code	EAR99
core material	IRON
DC Resistance	0.7 Ω
Nominal inductance(L)	0.37 µH
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e4
Manufacturer's serial number	C050FL
Number of functions	1
Number of terminals	2
Maximum rated current	0.153 A
Shape/Size Description	CONICAL PACKAGE
shield	NO
surface mount	NO
Terminal surface	GOLD
Terminal location	RADIAL
Terminal shape	WIRE
Test frequency	10 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

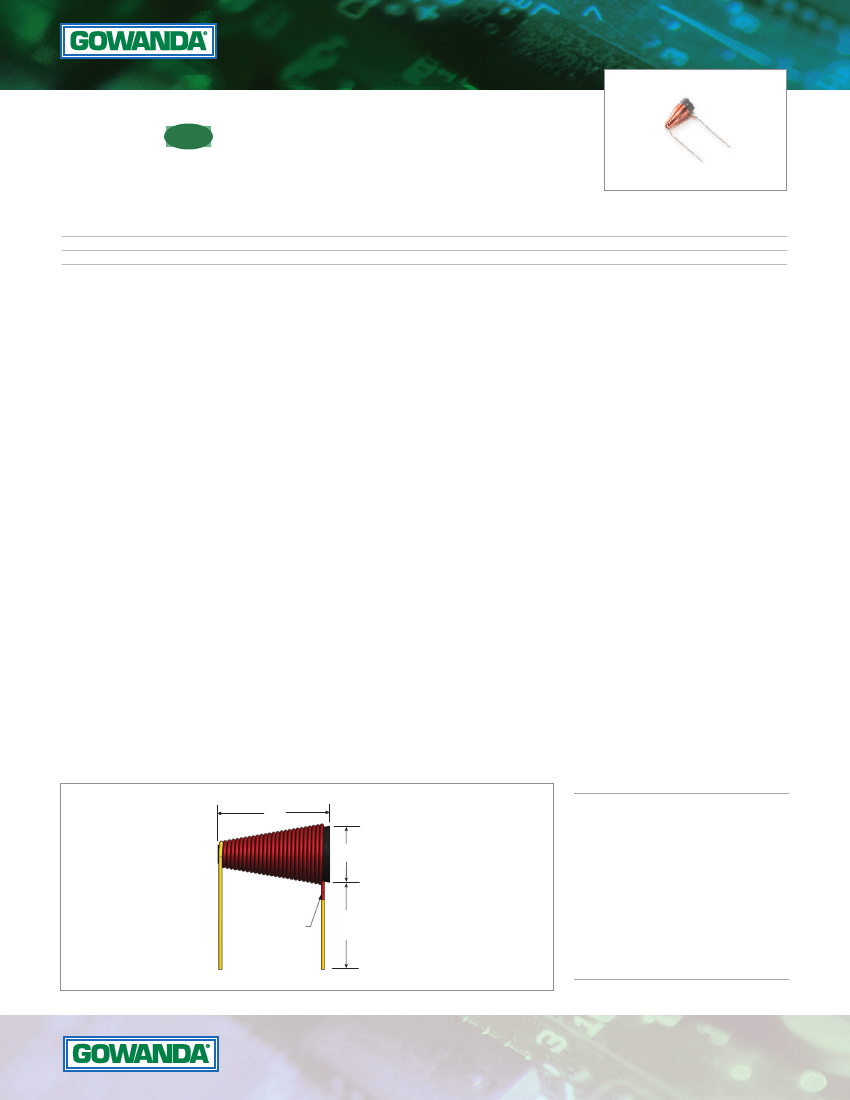

BROADBAND INDUCTORS - THRU HOLE

C050FL

COMPLIANT

RoHS

Wirewound, Conical, Flying Leads

Outgassing Tested per ASTM E-595 (*)

PART

NUMBER

C050FL2144G6

C050FL2547G6

INDUCTANCE µH

@10 MHz

0.28

0.40

TURNS

21

25

DCR

OHMS

0.45

0.90

CURRENT

RATING mA

250

153

WIRE SIZE

AWG

44

47

WIRE TYPE

Gold Plated Copper

CORE

MATERIAL

Powdered Iron

NOTES:

0.050

(1.27)

• Operating Temperature Range:

-55°C to +125°C

Ø0.025

(0.635)

• Current Rating is based on a 35°C temperature

rise at an ambient temperature of 90°C

• All non-tolerance and electrical data are reference

only and based on nominal data

• Terminations are gold plated and RoHS

compliant

Stripped to within

0.030 (0.76)

of winding

0.125

(3.17)

Ref.

* Meets a TML (Total Mass Loss) requirement of

1.0% maximum when tested in accordance with

ASTM E-595.

in. (mm)

PACKAGING SPECS:

Bulk - 50 pieces per case

One Magnetics Pkwy, Gowanda, NY 14070 • (t) 716-532-2234 • (f) 716-532-2702 • sales@gowanda.com

www.gowanda.com
