127150FE080S128ZU: DescriptionBoard Connector, 80 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Black Insulator, Plug; CategoryThe connector The connector; File Size170KB，1 Pages; ManufacturerSUYIN-USA; Websitehttp://www.suyinusa.com

Download Datasheet Parametric View All

127150FE080S128ZU Overview

Board Connector, 80 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Black Insulator, Plug

127150FE080S128ZU Parametric

Parameter Name	Attribute value
Number of rows loaded	2
Terminal pitch	1.27 mm
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Installation type	BOARD
PCB row number	2
Rated current (signal)	1 A
Total number of contacts	80
Other features	TUBE PACKAGE WITHOUT CAP
Contact point gender	FEMALE
insulator material	POLYESTER
Installation method	STRAIGHT
Mixed contacts	NO
Number of connectors	ONE
PCB contact pattern	RECTANGULAR
Termination type	SURFACE MOUNT
contact mode	RECTANGULAR
Plug contact pitch	0.05 inch
Contact material	PHOSPHOR BRONZE
Contact style	SQ PIN-SKT
Insulator color	BLACK
Match contact row spacing	0.05 inch
Plating thickness	5u inch
Board mount options	PEG
Contact completed and terminated	TIN
subject depth	0.177 inch
body length	2.124 inch
body width	0.142 inch
Dielectric withstand voltage	500VAC V
Filter function	NO
polarization key	POLARIZED KEY
Guideline	UL
Is Samacsys	N
Objectid	303879879
Reach Compliance Code	Unknown
ECCN code	EAR99

Preview

Download Datasheet

View All

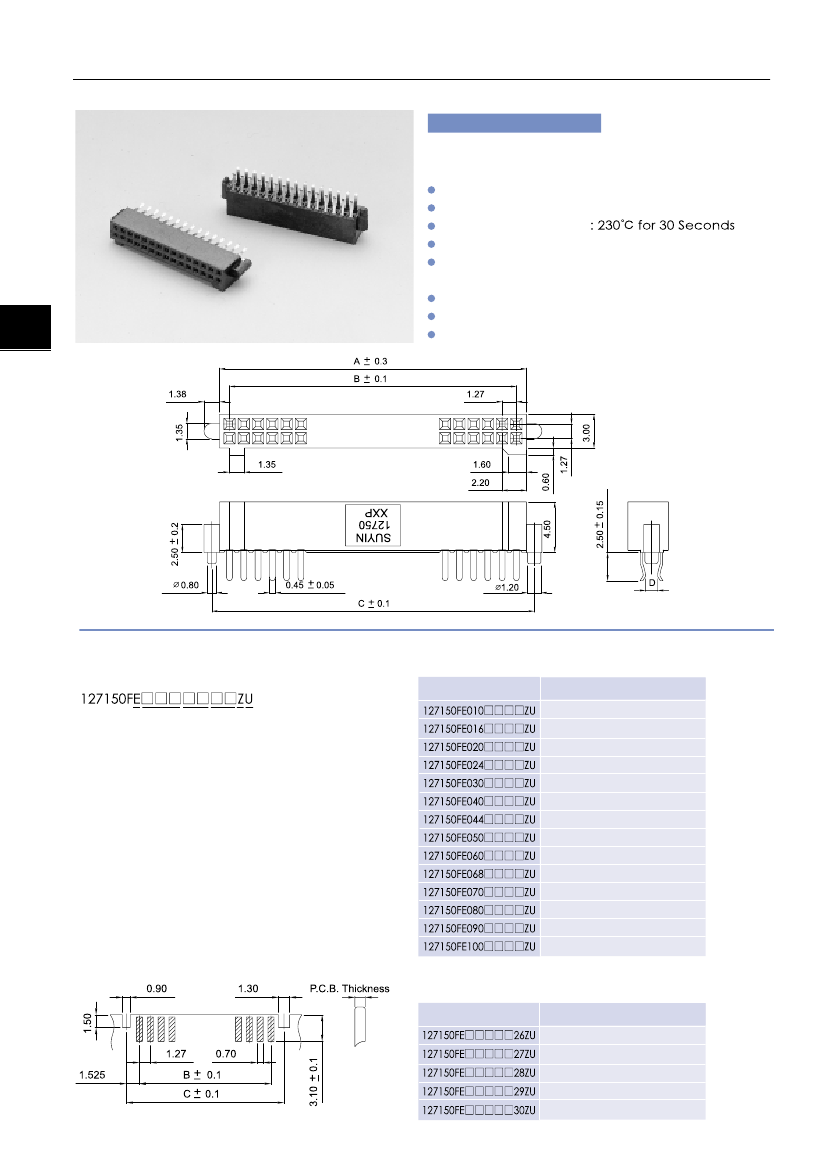

1.27X1.27mm DUAL ROW SOCKET EDGE MOUNT TYPE

(WITH POLARIZATION KEY)

127150FE Series

Mates with SUYIN 127153,127154,127155,127157,127196 Series

Specifications:

10-100 Circuits

: Black High Temp . Plastic

Insulator material

Max.Processing Temp.

: Phosphor Bronze

Terminal Material

: Selective Plated(Gold/Tin)

Plating

:

or Full Gold Plated

: 1.0A

Max. Current Rating

: 150V AC

Voltage Rating

: 500V(Min. 60 seconds)

Dielectric Strength

1.27

mm

Order Information

1

2

3

6 45

Dimensional Information I

SUYIN P/NO.

NO. PINS DIM.A

10

16

20

24

30

40

44

50

60

68

70

80

90

100

6.75

10.56

13.10

15.64

19.45

25.80

28.34

32.15

38.50

43.58

44.85

51.20

57.55

63.90

DIM.B

5.08

8.89

11.43

13.97

17.78

24.13

26.67

30.48

36.83

41.91

43.18

49.53

55.88

62.23

DIM.C

8.13

11.94

14.48

17.02

20.83

27.18

29.72

33.53

39.88

44.96

46.23

52.58

58.93

65.28

1. 'E' : Edge Mount

2. No. of Pins

3. Plating

4. Color 'Z' : Black

5. Package

'U' : Tube Package Without CAP

6. P.C Board Thickness

Recommended P.C.B. Layout

Dimensional Information II

SUYIN P/NO.

For P.C.B.

Thickness(m/m)

0.8

1.0

1.2

1.6

2.0

DIM.A

0.7

0.9

1.1

1.5

1.9

46
