352624-4 datasheet, PDF - EEWORLD Datasheet

352624-4: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,175 CONTACTS,PIN,0.079 PITCH,COMPLIANT FIT TERMINAL,LOCKING; CategoryThe connector The connector; File Size231KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

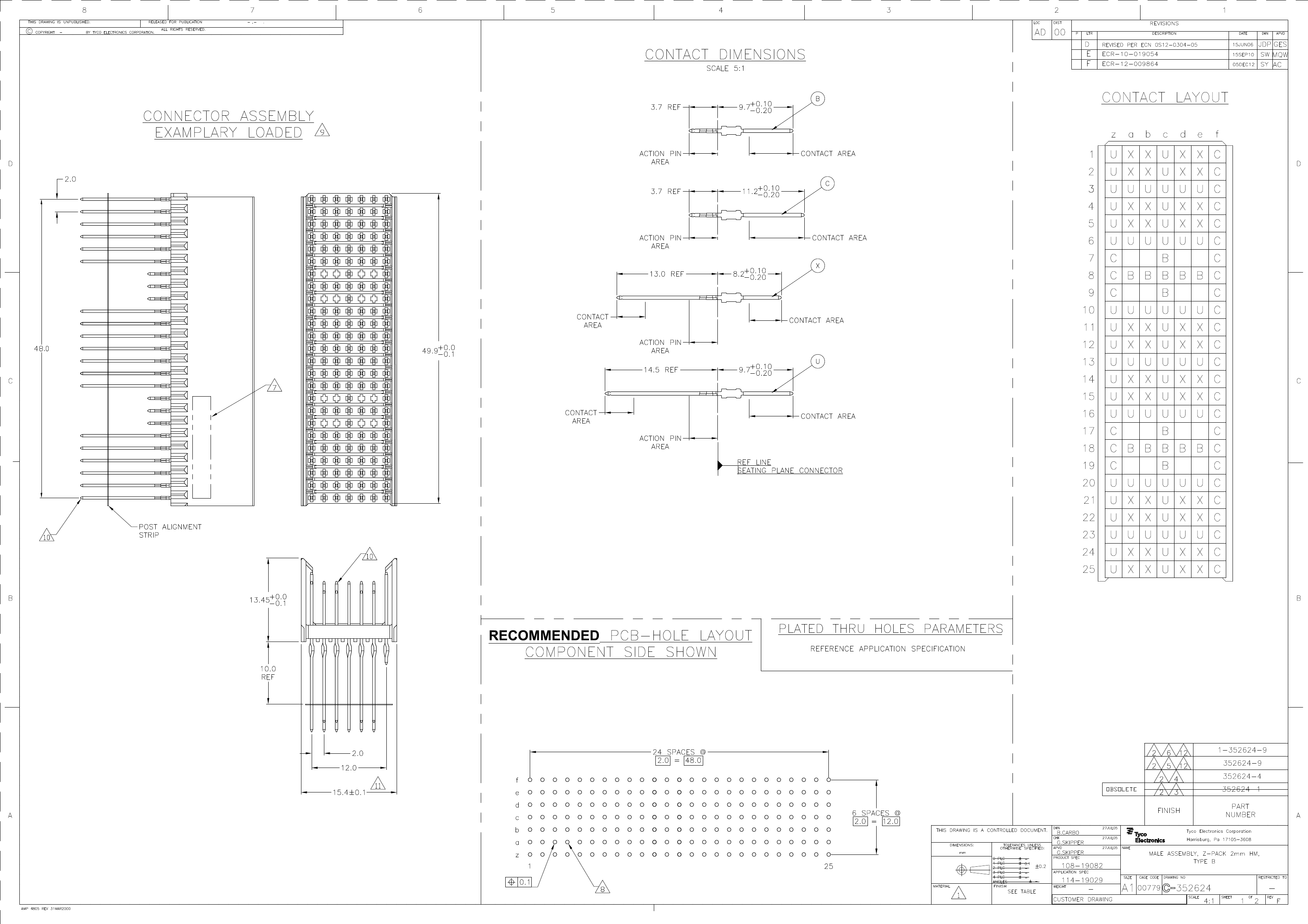

352624-4 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,175 CONTACTS,PIN,0.079 PITCH,COMPLIANT FIT TERMINAL,LOCKING

Parameter Name	Attribute value
Is Samacsys	N
YTEOL	8
Objectid	306377880
Reach Compliance Code	Unknown
ECCN code	EAR99
Is it Rohs certified?	No
body width	0.606 inch
subject depth	0.529 inch
body length	1.965 inch
Durability	250 Cycles
insulator material	GLASS FILLED POLYESTER
Installation method	STRAIGHT
PCB row number	7
Rated current (signal)	1.5 A
Total number of contacts	175
Connector type	BOARD CONNECTOR
Contact point gender	MALE
Installation type	BOARD
Number of rows loaded	7
Terminal pitch	2.0066 mm
Body/casing type	RECEPTACLE
Contact resistance	20 mΩ
Installation option 1	LOCKING
Number of connectors	ONE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
PCB contact pattern	RECTANGULAR
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact material	PHOSPHOR BRONZE
PCB contact row spacing	2.0066 mm
Termination type	PRESS FIT
Insulation resistance	10000000000 Ω
polarization key	POLARIZED HOUSING
Evacuation force-minimum value	.15012 N
Filter function	NO
maximum insertion force	.7506 N
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
