352712-4 datasheet, PDF - EEWORLD Datasheet

352712-4: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,175 CONTACTS,PIN,0.079 PITCH,COMPLIANT FIT TERMINAL,LOCKING; CategoryThe connector The connector; File Size211KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

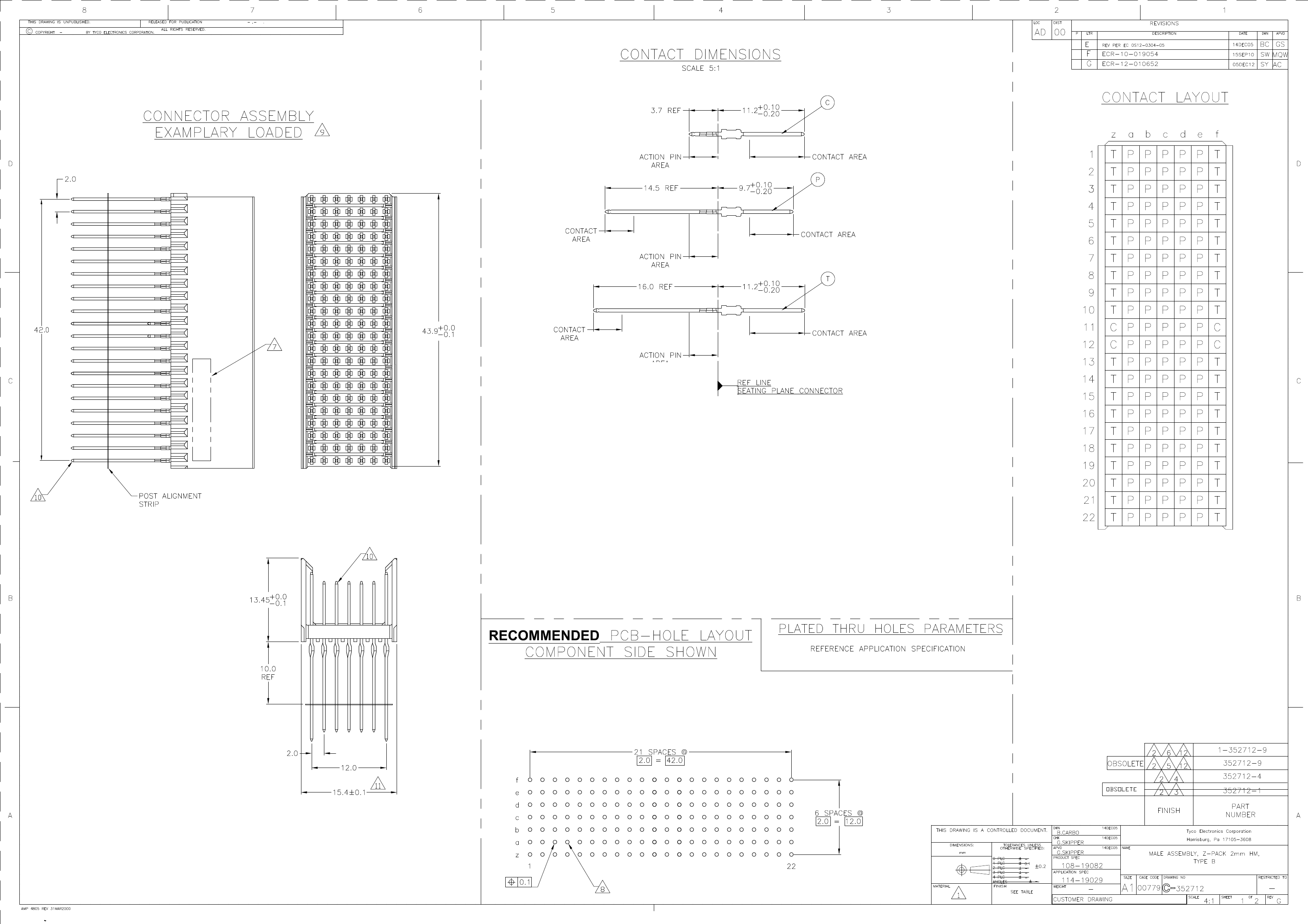

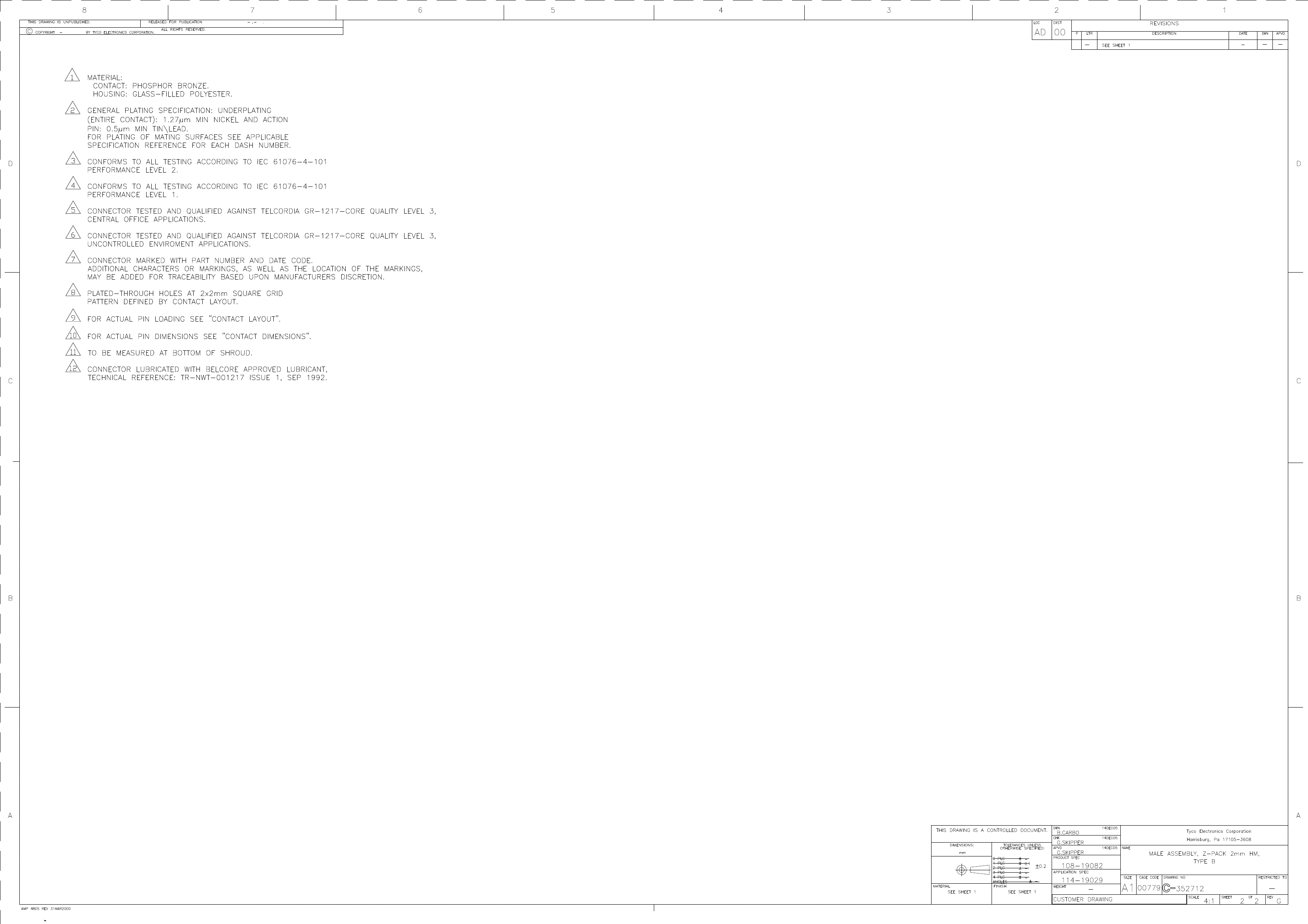

352712-4 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,175 CONTACTS,PIN,0.079 PITCH,COMPLIANT FIT TERMINAL,LOCKING

Parameter Name	Attribute value
Filter function	NO
maximum insertion force	.7506 N
Insulation resistance	10000000000 Ω
polarization key	POLARIZED HOUSING
Evacuation force-minimum value	.15012 N
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
YTEOL	8
Objectid	306377857
Reach Compliance Code	Unknown
ECCN code	EAR99
Is Samacsys	N
Is it Rohs certified?	No
body width	0.606 inch
subject depth	0.529 inch
body length	1.965 inch
Connector type	BOARD CONNECTOR
Contact point gender	MALE
Contact resistance	20 mΩ
Durability	250 Cycles
insulator material	GLASS FILLED POLYESTER
Installation method	STRAIGHT
Installation type	BOARD
Body/casing type	RECEPTACLE
Number of rows loaded	7
Terminal pitch	2.0066 mm
Total number of contacts	175
PCB row number	7
Rated current (signal)	1.5 A
Plug contact pitch	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Match contact row spacing	0.079 inch
Number of connectors	ONE
Termination type	PRESS FIT
