41352R: DescriptionTelecom Filter, 2 Function(s), 0.4A, SURFACE MOUNT PACKAGE-6; CategoryAnalog mixed-signal IC filter; File Size160KB，1 Pages; ManufacturerWurth Elektronik

Download Datasheet Parametric Compare View All

41352R Overview

Telecom Filter, 2 Function(s), 0.4A, SURFACE MOUNT PACKAGE-6

41352R Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	SURFACE MOUNT PACKAGE-6
Reach Compliance Code	compliant
Other features	COMMON MODE CHOKE
Maximum DC resistance	0.5 Ω
filter type	TELECOM FILTER
high	2.54 mm
inductance	1200 µH
length	6.55 mm
Manufacturer's serial number	41352R
Installation type	SURFACE MOUNT
Number of functions	2
physical size	L6.55XB6.1XH2.54 (mm)/L0.258XB0.24XH0.1 (inch)
Rated current	0.4 A
width	6.1 mm
Base Number Matches	1

Preview

Download Datasheet

View All

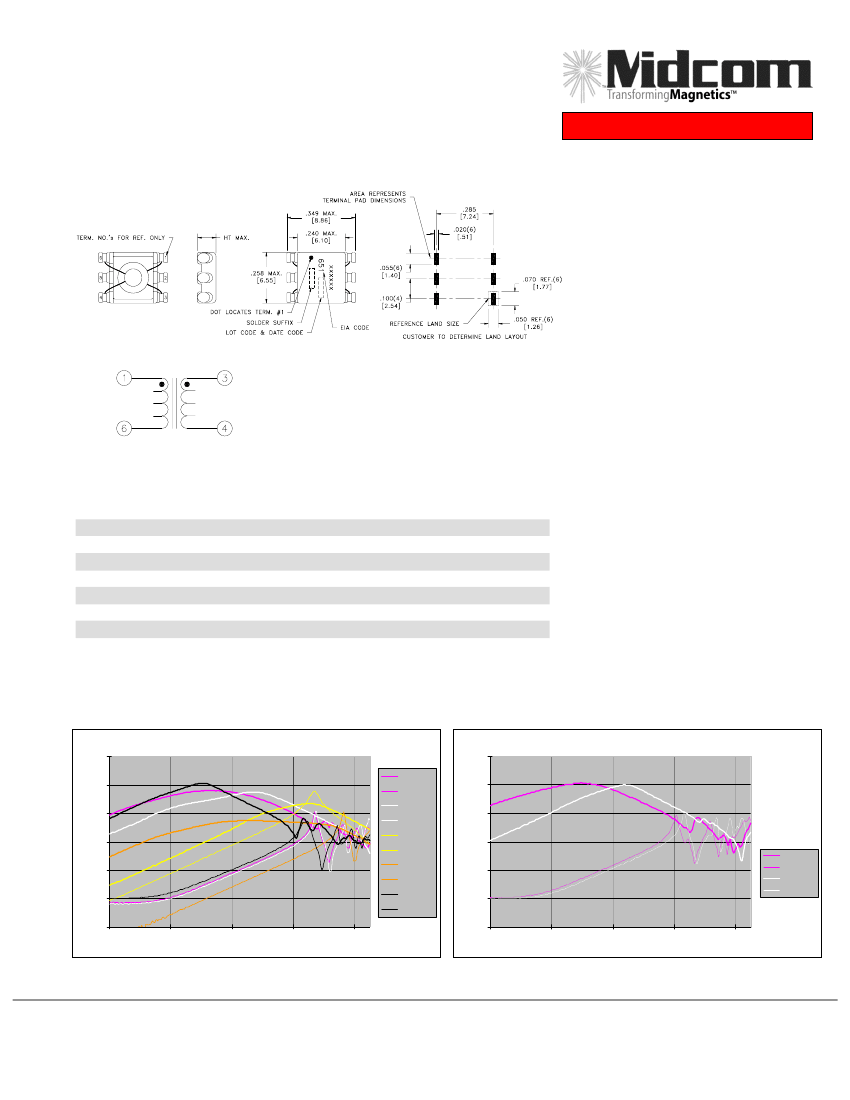

Low Profile Datacom

Common Mode Chokes

Digital

Telecom

Features

•

Low Profile

Small size

Excellent EMI reduction

Surface mount design

Good isolation

Applications

•

Networking

o

10 Base-T

o

10/100 Base-T

o

Gigabit

o

HPLN

o

AUI

o

Fiber to Coax

•

Broadband Telecom

o

ADSL

o

HDSL

o

VDSL

•

Cable Modem

•

T1/E1

•

ISDN

•

DS3

•

DDS

•

SONET/SDH

•

Low Power Switch Mode

Inductance

Part Number

(µH)

4.6

41355R

41390R

42

41358R

150

221

41353R

41394R

1100

41352R

1200

41356R

2500

DCR Max.

(Ω each wind)

0.25

0.05

0.60

0.50

0.60

0.50

0.60

Current Rating

1

Max Ht.

(mADC)

(inches/mm)

600

0.100/2.54

1700

0.100/2.54

400

0.140/3.55

400

0.100/2.54

400

0.100/2.54

400

0.100/2.54

400

0.140/3.55

Note 1: With 40°C Temperature Rise

Typical Common and Differential Mode Impedance

100,000

41352 CM

10,000

41352 DM

41353 CM

41353 DM

41355 CM

Typical Common and Differential Mode Impedance

100,000

10,000

1,000

100

Impedance (Ohms)

41355 DM

41390 CM

41390 DM

100

41356 CM

10

41356 DM

41358 CM

41358 DM

10

1

41394 CM

41394 DM

1

0

0.1

1.0

10.0

100.0

1,000.0

0

0.1

1.0

10.0

100.0

1,000.0

Frequency (MHz)

Details subject to change. Contact your Midcom sales representative for additional information. Dimensions: in/mm. All tolerances are

±.010/0,25

and electrical specifications are @25°C unless otherwise specified.

Midcom, Inc. USA

121 Airport Drive – PO Box 1330

Watertown, SD 57201

T: 605.886.4385 ~ F: 605.886.4486

www.midcom-inc.com ~ email:sales@midcom-inc.com

Midcom, Inc. China

10/F Spectrum Tower 53 Hung to Road

Kwun Tong, Kowloon, HK

T: 852.2320.4221 ~ F: 852.2352.3272

email: asiasales@midcom-inc.com

10/19/2006

1/1
