311-026D372 datasheet, PDF - EEWORLD Datasheet

311-026D372: DescriptionBoard Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size1MB，10 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/

Download Datasheet Parametric View All

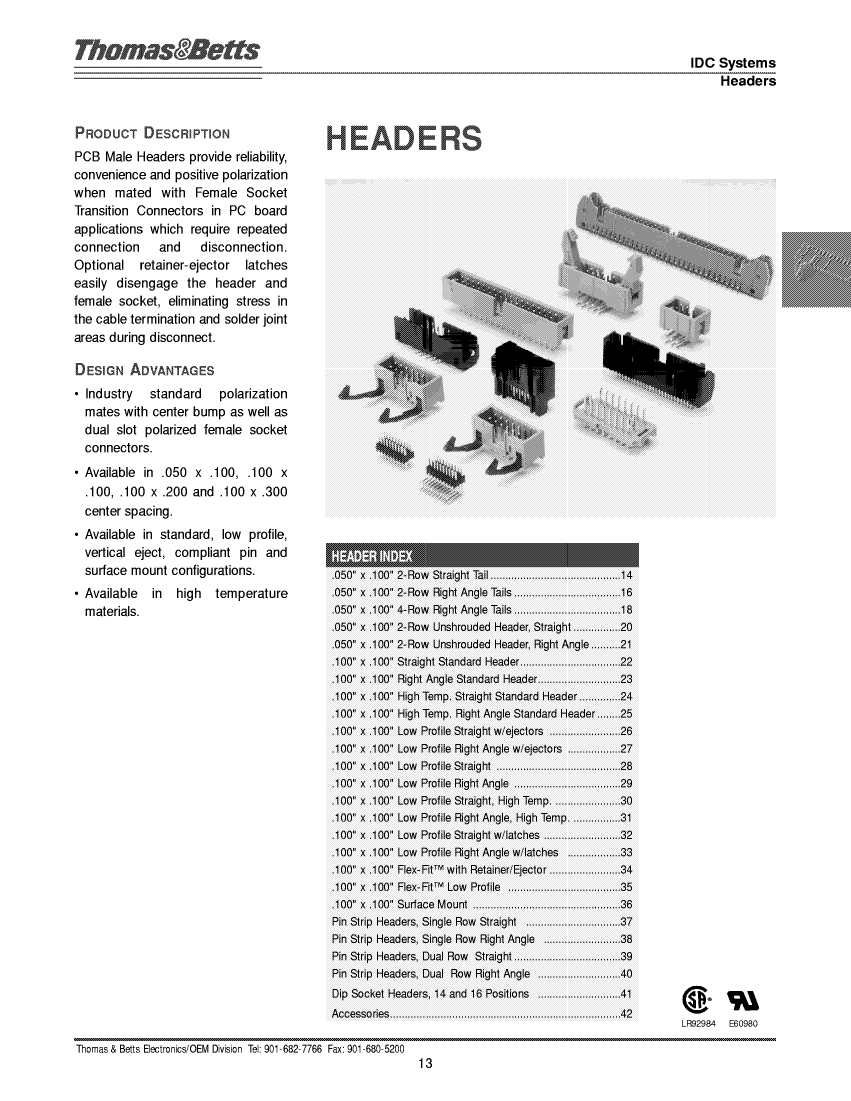

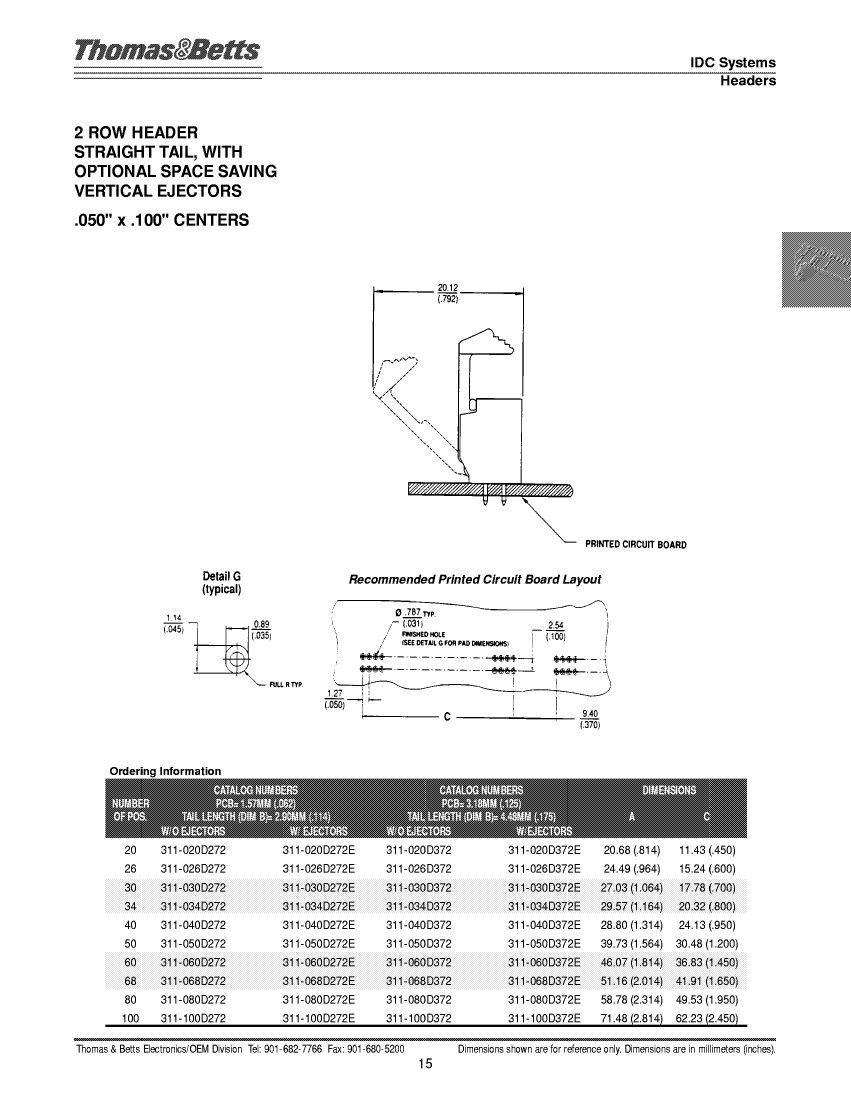

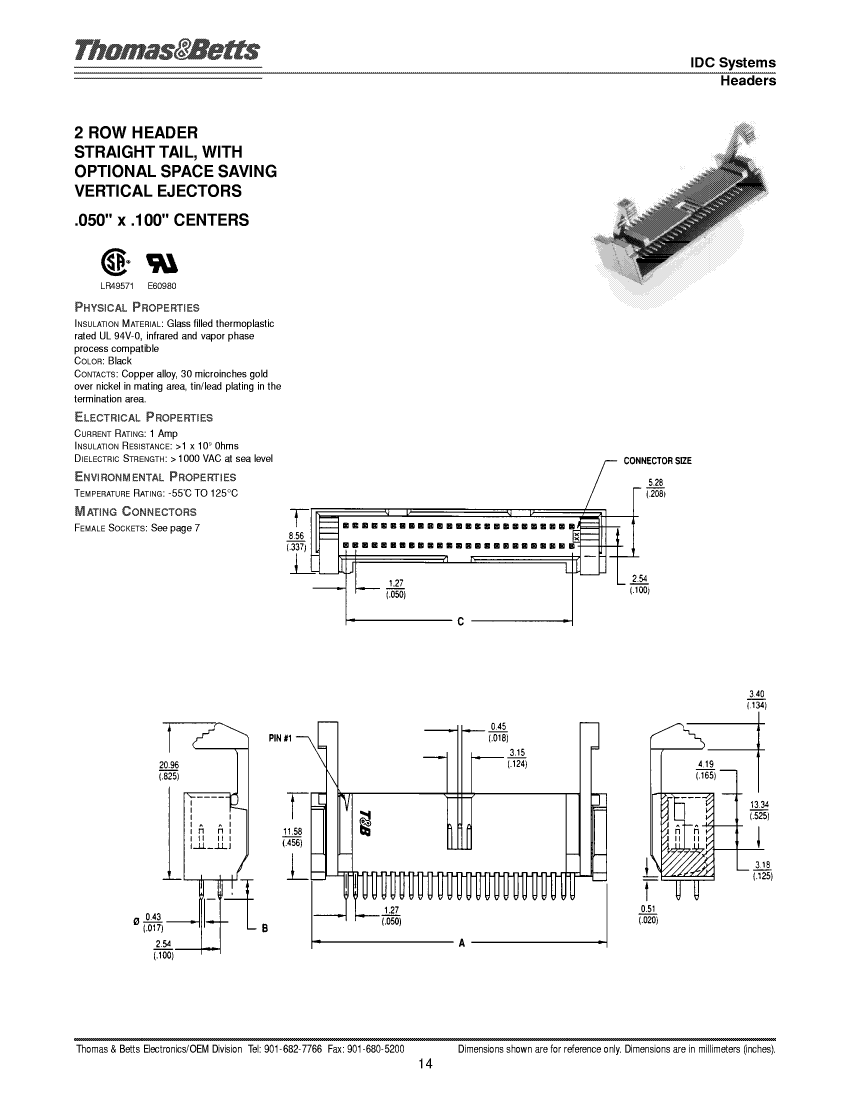

311-026D372 Overview

Board Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle

Parameter Name	Attribute value
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
polarization key	CTR W/GUIDE SLOTS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
ECCN code	EAR99
Is Samacsys	N
YTEOL	0
Objectid	1461671939
Reach Compliance Code	Unknown
Number of rows loaded	2
Rated current (signal)	1 A
Terminal pitch	1.27 mm
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
insulator material	GLASS FILLED POLYETHYLENE
Installation method	STRAIGHT
Total number of contacts	26
Other features	NONE
Body/casing type	RECEPTACLE
Installation type	BOARD
PCB row number	2
body width	0.337 inch
subject depth	0.456 inch
body length	0.964 inch
Terminal length	0.175 inch
Insulator color	BLACK
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
PCB contact pattern	RECTANGULAR
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Number of connectors	ONE
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
Termination type	SOLDER
Contact completed and terminated	TIN OVER NICKEL
Contact style	SQ PIN-SKT
Guideline	UL, CSA
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
