006333082818504: DescriptionCard Edge Connector, 82 Contact(s), 2 Row(s), Straight, 0.125 inch Pitch, Wire Wrap Terminal, #4-40, Receptacle; CategoryThe connector The connector; File Size146KB，1 Pages; ManufacturerAVX

Download Datasheet Parametric View All

006333082818504 Overview

Card Edge Connector, 82 Contact(s), 2 Row(s), Straight, 0.125 inch Pitch, Wire Wrap Terminal, #4-40, Receptacle

006333082818504 Parametric

Parameter Name	Attribute value
Insulation resistance	5000000000 Ω
Evacuation force-minimum value	.556 N
Dielectric withstand voltage	1500VAC V
Filter function	NO
maximum insertion force	3.336 N
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Guideline	UL, CSA
ECCN code	EAR99
Is Samacsys	N
YTEOL	0
Objectid	1165928987
Reach Compliance Code	Unknown
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact resistance	10 mΩ
insulator material	GLASS FILLED POLYESTER
Installation type	BOARD
PCB row number	2
Other features	DUAL READ-OUT
Body/casing type	RECEPTACLE
Installation method	STRAIGHT
Number of rows loaded	2
Terminal pitch	3.175 mm
Total number of contacts	82
subject depth	0.61 inch
body length	5.93 inch
Terminal length	0.465 inch
body width	0.365 inch
Mixed contacts	NO
Installation option 2	FLUSH
PCB contact row spacing	6.35 mm
Plating thickness	30u inch
Termination type	WIRE WRAP
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
Match contact row spacing	0.25 inch
Installation option 1	#4-40
Number of connectors	ONE
PCB contact pattern	RECTANGULAR
Contact material	PHOSPHOR BRONZE
Plug contact pitch	0.125 inch

Preview

Download Datasheet

View All

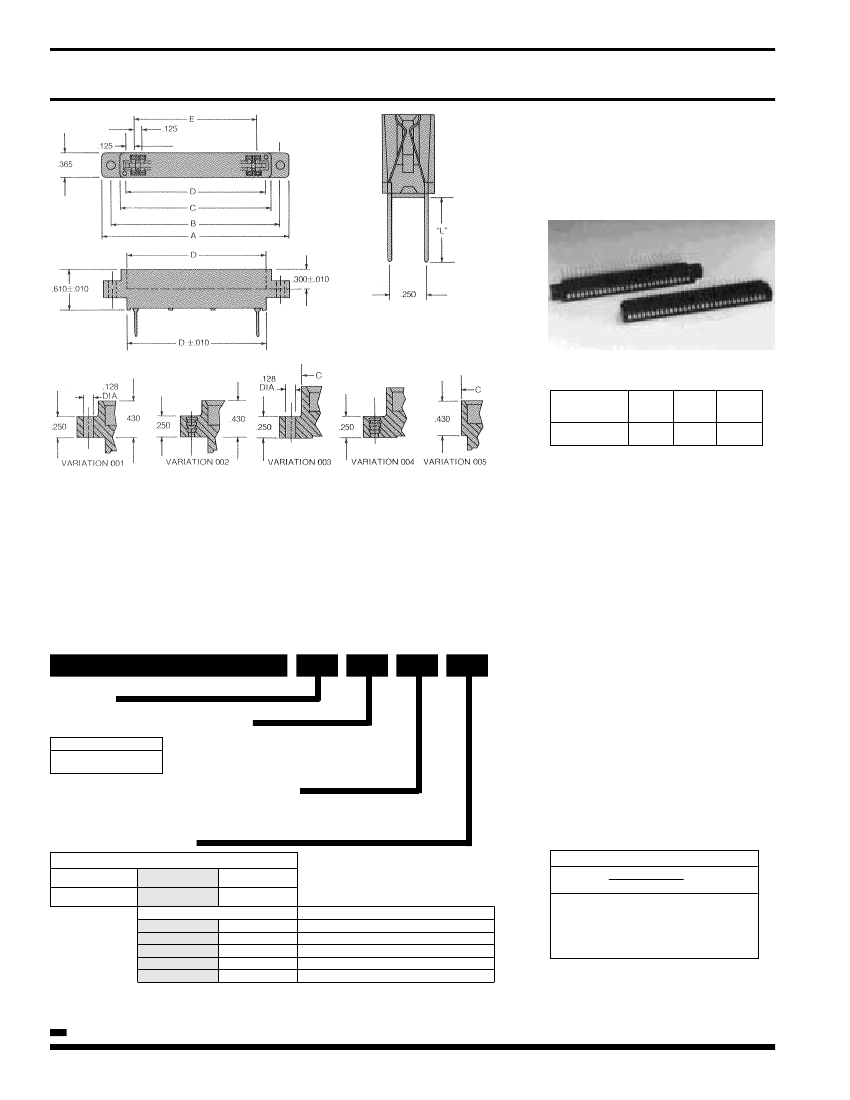

.125" x .250"

SERIES 6333

.025" Square Post/

Rectangular Tails

CONTACT TAIL

±.020

“L” DIMENSION

2 LEVEL

WRAP

POST

.465"

(11.81)

3 LEVEL

WRAP

POST

.580"

(14.73)

LONG

P.C. TAIL

.205"

(5.21)

Features

Low cost, high performance

combination of material, design and

tooling

Accepts .0625 (1.59) ±.008 P.C. board

.025 (0.64) square wrap post or P.C.

tail contacts

Preloaded cantilever spring design for

control of mating force and contact gap

100 gram minimum normal contact

force for high electrical reliability

Slotted contact interface for redundancy

Molded contact position identification

Mounting standoff for solder flux removal

Tested to requirements of MIL-C-21097

Recognized under component program

of Underwriters Laboratories Inc.,

file no. E 27 610

Approved by Canadian Standards Ass’n.,

file no. 40 338

Available in 6 to 50 contact pairs

Specifications

ELECTRICAL

Contact resistance:

10 milliohms,

maximum

Insulation resistance:

5000 megohms,

minimum, at 500 VDC

Dielectric withstanding voltage:

1500

VAC between adjacent contacts, RMS at

sea level

MECHANICAL

Insertion/withdrawal force:

12-2

oz./position, .062" test blade

Contact retention:

Wrap post contact —

8 pounds minimum P.C. contact —

2 pounds minimum

ENVIRONMENTAL

Operating temperature:

-65°C to +125°C

Humidity:

MIL-STD-1344, Method 1002, II

MATERIALS

Contact:

Phosphor bronze

Selective plating:

Gold 30 microinch

minimum in the mating area over nickel

100 microinch minimum, with 3-5

microinch gold or tin lead tails

Thermoplastic insulator:

94V-0 glass-filled

polyester

Ordering Code

Typical Example

6333

080

819

601

SERIES

NUMBER OF CONTACTS

DUAL READ-OUT

Even Numbers Only

12 thru 100

CONTACT CODE (Gold Plated)

818

.025 Sq. post length .465"

819

.025 Sq. wrap post length .580"

825

P.C. solder tail length .205" (.010" x .025")

VARIATION CODE

PLATING DESCRIPTION

Mating

Area

Tail

Area

Gold

Flash

Gold

501

502

503

504

505

Gold

Tin/Lead

VARIATION CODE

601

602

603

604

605

MOUNTING

Center mount .128 (3.25) dia. holes

Center mount #4-40 threaded holes

Flush mount .128 (3.25) dia. holes

Flush mount #4-40 threaded insert

No mounting ears

INSULATOR DIMENSIONS

YYY

(

No. of contacts -1

)

x .125"

A = YYY + .930"

B = YYY + .670"

C = YYY + .410"

D = YYY + .250"

E = YYY

POLARIZATION

Between-Contact Polarizing Insert: order

separately by part no. 60-6061-3138-00-000

Recommended for standard applications. Available through ELCO franchised distributors.
