W3J512M32K-1066BI datasheet, PDF

Datasheet> All Categories > storage> storage> W3J512M32K-1066BI

W3J512M32K-1066BI: DescriptionDDR DRAM, 512MX32, 0.3ns, CMOS, PBGA136, 10 X 14.50 MM, 0.80 MM PITCH, PLASTIC, BGA-136; Categorystorage storage; File Size2MB，43 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

W3J512M32K-1066BI Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	W3J512M32K-1066BI	-	-	View	Buy Now

W3J512M32K-1066BI Overview

DDR DRAM, 512MX32, 0.3ns, CMOS, PBGA136, 10 X 14.50 MM, 0.80 MM PITCH, PLASTIC, BGA-136

W3J512M32K-1066BI Parametric

Parameter Name	Attribute value
Maker	Microsemi
package instruction	FBGA, BGA136,12X17,32
Reach Compliance Code	compliant
access mode	SINGLE BANK PAGE BURST
Maximum access time	0.3 ns
Other features	AUTO/SELF REFRESH; LG-MAX; WD-MAX; SEATED HT-CALCULATED
Maximum clock frequency (fCLK)	533 MHz
I/O type	COMMON
interleaved burst length	8
JESD-30 code	R-PBGA-B136
length	14.6 mm
memory density	17179869184 bit
Memory IC Type	DDR DRAM
memory width	32
Number of functions	1
Number of ports	1
Number of terminals	136
word count	536870912 words
character code	512000000
Operating mode	SYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	512MX32
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	FBGA
Encapsulate equivalent code	BGA136,12X17,32
Package shape	RECTANGULAR
Package form	GRID ARRAY, FINE PITCH
power supply	1.35 V
Certification status	Not Qualified
refresh cycle	8192
Maximum seat height	3.84 mm
self refresh	YES
Continuous burst length	8
Maximum standby current	0.072 A
Maximum slew rate	0.76 mA
Maximum supply voltage (Vsup)	1.45 V
Minimum supply voltage (Vsup)	1.283 V
Nominal supply voltage (Vsup)	1.35 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	BALL
Terminal pitch	0.8 mm
Terminal location	BOTTOM
width	10.1 mm
Base Number Matches	1

Preview

Download Datasheet

View All

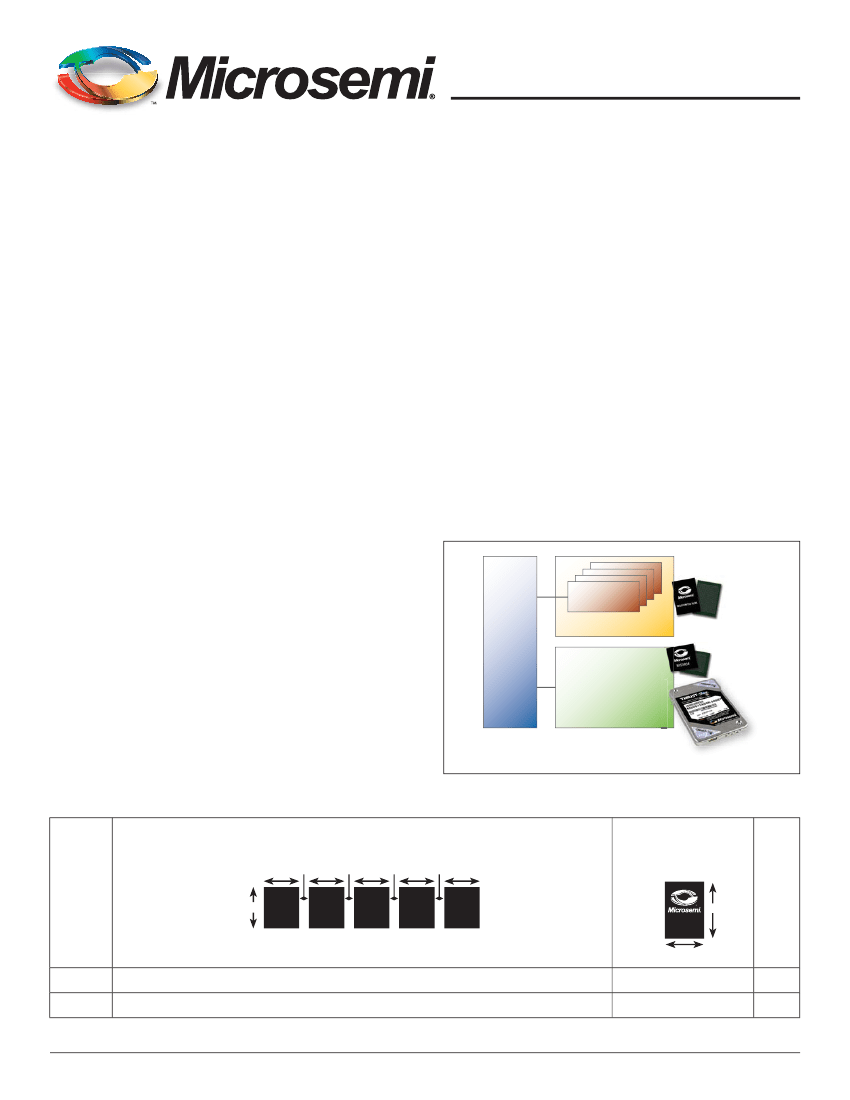

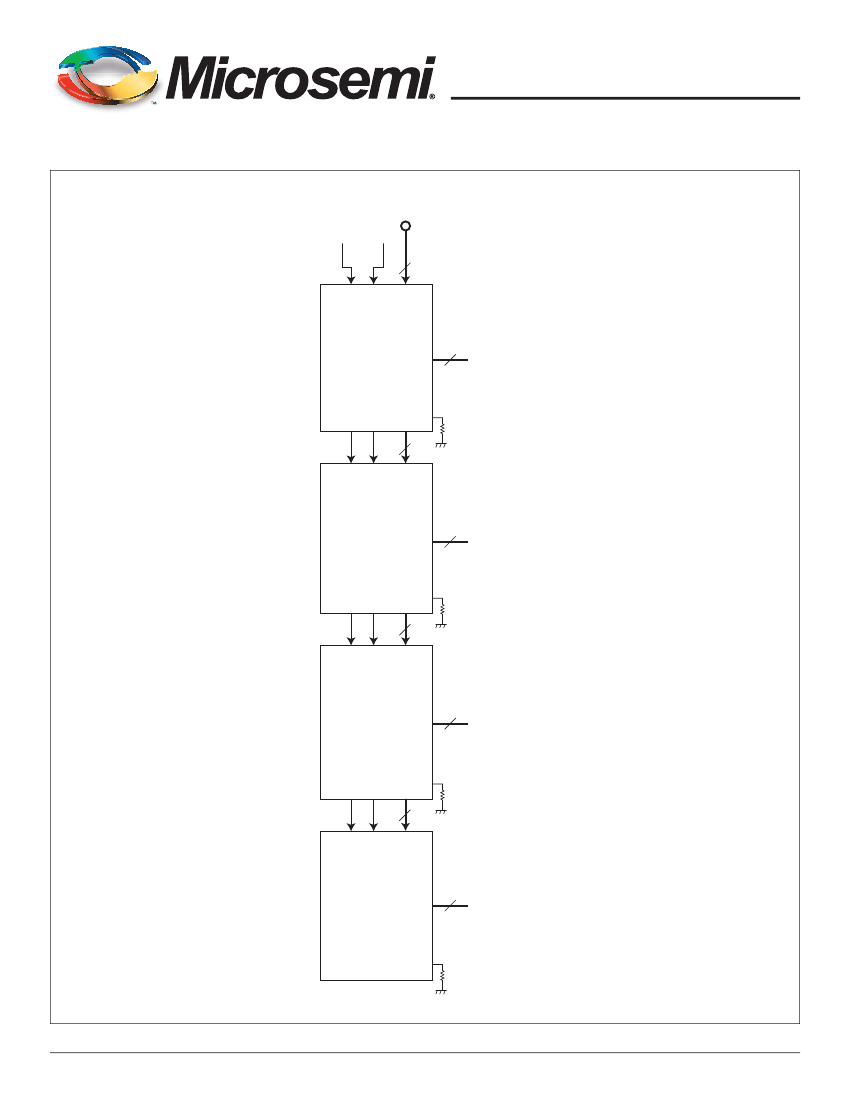

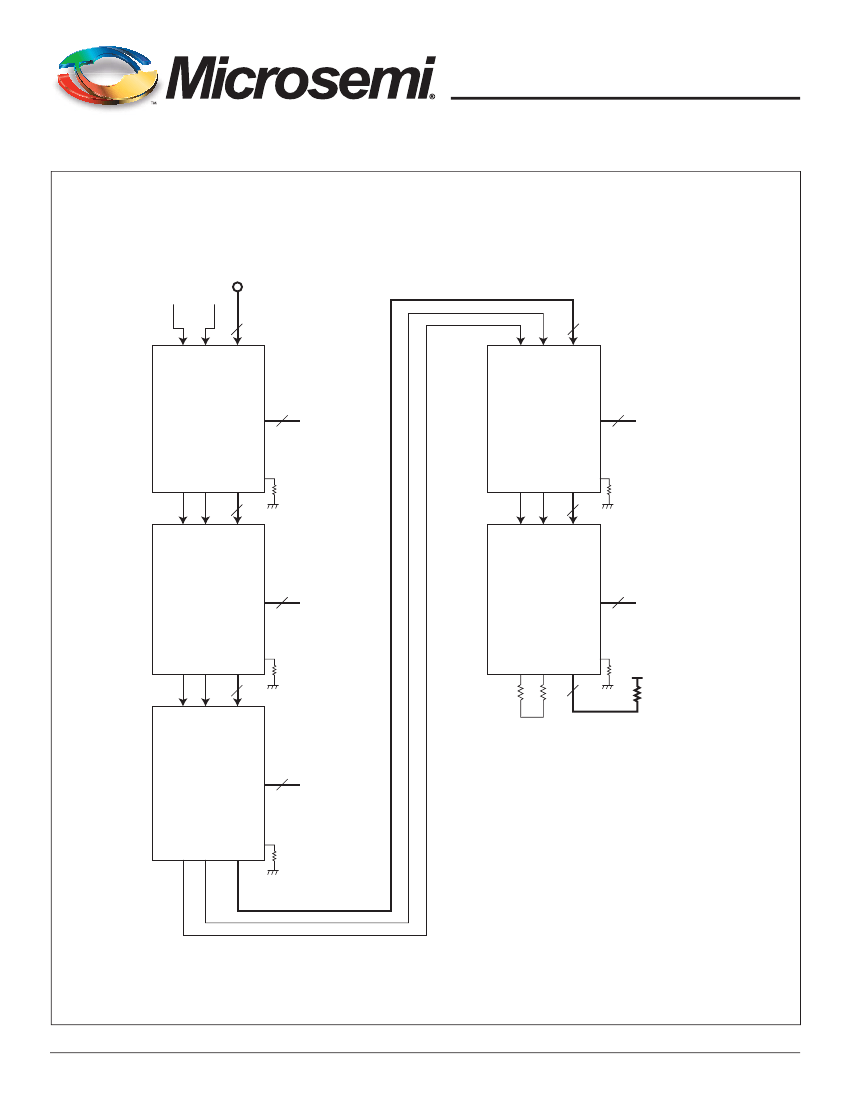

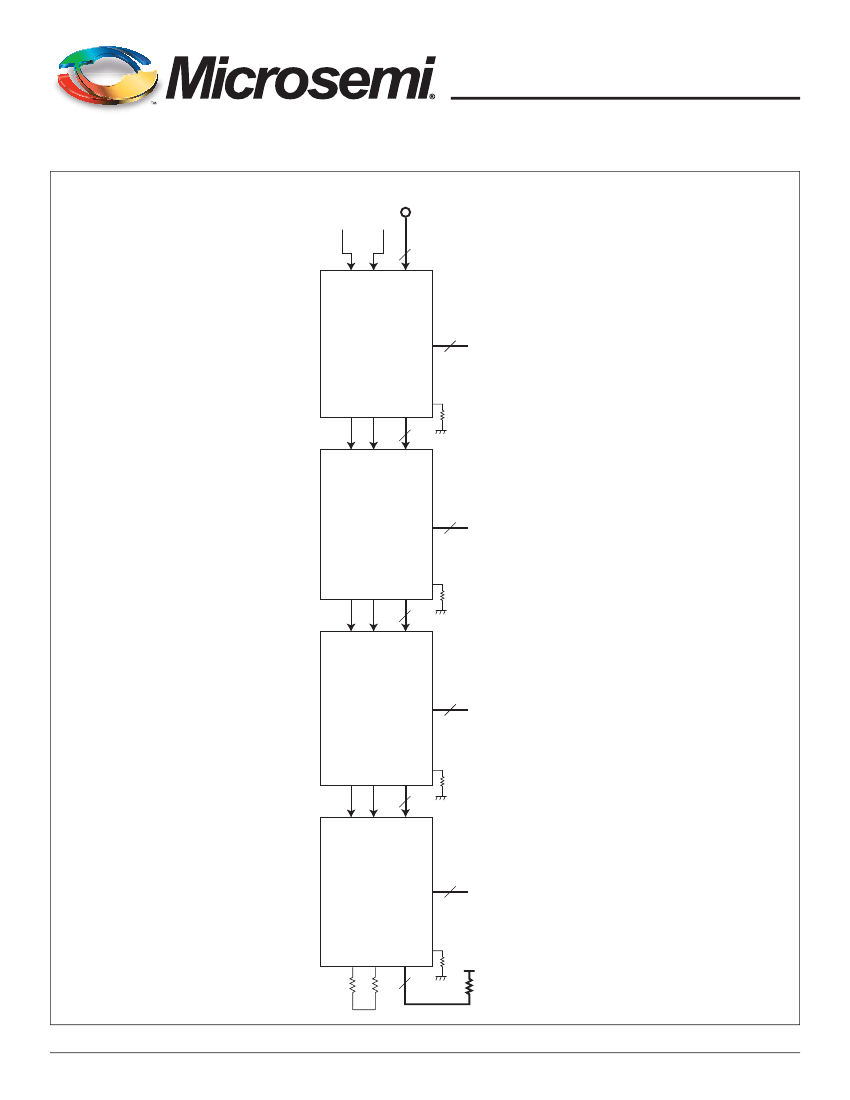

W3J512M32K-XBX

W3J512M32/36/40K(T)-XB2X

*PRELIMINARY

2GB – 512M x 32/36/40 DDR3 SDRAM 1.35V – 136/204 PBGA Multi-Chip

Package

FEATURES



DDR3 Data Rate = 800, 1,066, 1333 Mb/s



Packages:

• 136 PBGA, 204 PBGA 10 x 14.5mm

• 0.8mm pitch



Supply Voltage = 1.35V



Center terminated push/pull I/O



Differential bidirectional data strobe



Differential clock inputs (CK, CK#)



8n-bit prefetch architecture



Eight internal banks



Fixed Burst length (BL) of 8 and Burst Chop (BC) of 4



Selectable BC4 or BL8 on-the-ﬂy (OTF)



Auto Refresh and Self Refresh Modes



Nominal and dynamic On Die Termination (ODT)



Programmable CAS read latency (CL)



Posted CAS additive latency



Write leveling



Programmable CAS write latency (CWL) based on t



Commercial, industrial and military** temperature ranges



Organized as 1 rank of 512M x 32 or 512M x36 or

512M x40



1.5V option available in same packages.

Refer to W3J512M32/36/40G data sheet.



W3J512M32K-XBX is footprint compatible with

M41K256M32 device.

Micron

is a registered trademark of Micron Technology, Inc.

* This product is under development, is not qualiﬁed or characterized and is subject to change or

cancellation without notice.

** Contact factory for availability.

BENEFITS



74% Space savings vs. FBGA



Reduced part count



48% I/O reduction vs. FBGA



Optional:

• Address/control terminations



Differential clock terminations (not populated in XBX

package)



Output drive calibration resistors (RZQ)



Reduced trace lengths for lower parasitic capacitance



Suitable for hi-reliability applications



Enhanced thermal management

TYPICAL APPLICATION

Zynq

7000

Series

RAM

DDR3

W3J512M32K-XBX

Host

FPGA/

Processor

SSD (SLC)

MSM32/MSM64 (SATA BGA)

)

W7N16GVHxxBI (PATA BGA)

M512/M256/M128 (SATA, 2.5in)

Micron

FIGURE 1 – DENSITY COMPARISONS

CSP Approach (mm)

10.5

FBGA

2.0

W3J512M40KT-XB2X

2.0

FBGA

2.0

FBGA

2.0

FBGA

W3J512M40KT-XB2X

14.5

74%***

48%

Area

I/O Count

556.5 mm

5 x 78 balls = 390 balls

145 mm

204 Balls

*** not including terminations

Microsemi Corporation reserves the right to change products or speciﬁcations without notice.

February 2014

Rev. 2

Microsemi Corporation • (602) 437-1520 • www.microsemi.com/pmgp
