214641 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 214641

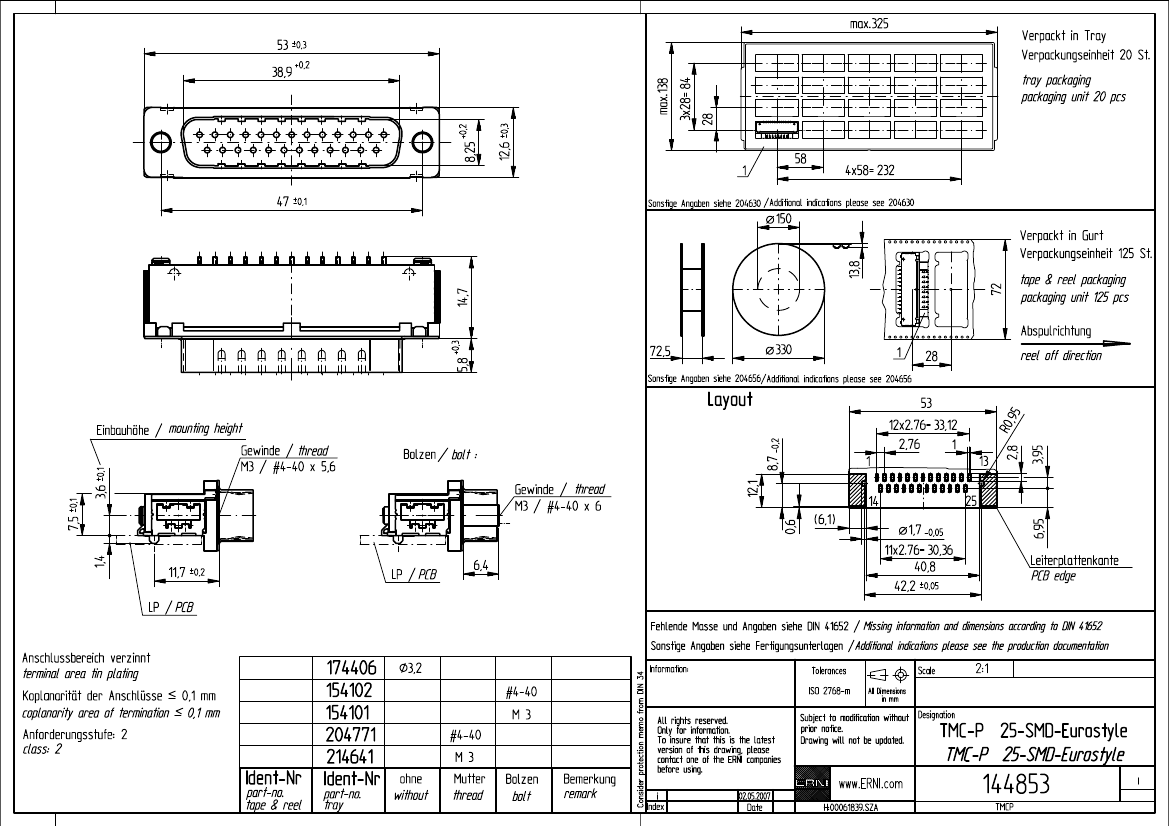

Preview

214641: DescriptionD Subminiature Connector, 25 Contact(s), Male, Surface Mount Terminal, M3, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size91KB，1 Pages; ManufacturerProvertha Connectors Cables & Solutions GmbH; Environmental Compliance

Download Datasheet Parametric Compare View All

214641 Overview

D Subminiature Connector, 25 Contact(s), Male, Surface Mount Terminal, M3, Receptacle, ROHS COMPLIANT

214641 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Provertha Connectors Cables & Solutions GmbH
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308
body width	0.496 inch
subject depth	0.579 inch
body length	2.087 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	3.2804 N
Insulation resistance	5000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation option 1	M3
Installation option 2	THREADED
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	3.9624 mm
Rated current (signal)	4.5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Housing size	3/B
Terminal pitch	2.7686 mm
Termination type	SURFACE MOUNT
Total number of contacts	25
UL Flammability Code	94V-0
Evacuation force-minimum value	.278 N
Base Number Matches	1

Preview

Download Datasheet

View All

214641 Related Products

	214641	154102
Description	D Subminiature Connector, 25 Contact(s), Male, Surface Mount Terminal, M3, Receptacle, ROHS COMPLIANT	D Subminiature Connector, 25 Contact(s), Male, Surface Mount Terminal, #4-40, Receptacle, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to
Maker	Provertha Connectors Cables & Solutions GmbH	Provertha Connectors Cables & Solutions GmbH
package instruction	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compli
Other features	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308
body width	0.496 inch	0.496 inch
subject depth	0.579 inch	0.579 inch
body length	2.087 inch	2.087 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)	Tin (Sn)
Contact point gender	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED
contact mode	STAGGERED	STAGGERED
Contact resistance	25 mΩ	25 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT
DIN compliance	NO	NO
Dielectric withstand voltage	1400VAC V	1400VAC V
empty shell	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
maximum insertion force	3.2804 N	3.2804 N
Insulation resistance	5000000000 Ω	5000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER
JESD-609 code	e3	e3
MIL compliance	NO	NO
Mixed contacts	NO	NO
Installation option 1	M3	#4-40
Installation option 2	THREADED	SCREW
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
PCB row number	2	2
Number of rows loaded	2	2
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	STAGGERED	STAGGERED
PCB contact row spacing	3.9624 mm	3.9624 mm
Rated current (signal)	4.5 A	4.5 A
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Shell surface	TIN	TIN
Shell material	STEEL	STEEL
Housing size	3/B	3/B
Terminal pitch	2.7686 mm	2.7686 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	25	25
UL Flammability Code	94V-0	94V-0
Evacuation force-minimum value	.278 N	.278 N
