Printview: Plug; Snap-in version; 5-pole - Item No.: 890-755/062-000
.
Plug; Snap-in version; 5-pole
Item No.: 890-755/062-000
.
Plug; Snap-in version; 5-pole
.
.
Business data
Supplier
Item no.
GTIN / EAN
Content
Order amount
Customer item number
.
Notes
WAGO
890-755/062-000
4055143376730
1
50
Note:All connectors for fixed installations (snap-in versions for lighting fixtures, devices or all types of PCBs and
distribution cabinets) are factory-equipped with locking levers to ensure plugs and sockets are securely locked.
Additional locking levers are only required for “flying leads” (plug/socket).All WINSTA® components are 100%
protected against mismating in terms of:a.) plugging different number of polesb.) plugging when turned by 180°c.)
plugging when laterally staggeredd.) plugging one poleNote on Continuous Service Temperature:-35 °C … +85
°CPVC cable for temperatures 70 °C (including halogen-free)Insulating parts for temperatures 105 °C
Technical data
Miscellaneous
No. of poles
Pin spacing
Total number of connection points
Total number of potentials
Potential marking
Color
Coding
Rated voltage (III / 3) [V]
5
4.4 mm / 0.173 in %
5
5
N PE 3 2 1
gray
B
400 [V]
WAGO Kontakttechnik GmbH & Co. KG
1
Printview: Plug; Snap-in version; 5-pole - Item No.: 890-755/062-000
Technical data
Rated surge voltage (III / 3) [kV]
Nominal current [A]
Connection technology
Number of connection points
Actuation type
Nominal cross section
Solid sizes
solid, directly pluggable
stranded, connectable
Fine-stranded wires
Fine-stranded wires with insulated ferrule
Fine-stranded wires with uninsulated ferrule
6 [kV]
16 [A]
Push-in CAGE CLAMP®
1
Betätigungswerkzeug
1.5 mm² / 16 AWG
0.25 … 1.5 mm² / 22 … 16 AWG
0.75 … 1.5 mm² / 20 … 16 AWG
0.25 … 1 mm² / 22 … 18 AWG
0.25 … 1.5 mm² / 22 … 16 AWG
0.25 … 0.75 mm² / 22 … 20 AWG
0.25 … 1 mm² / 22 … 18 AWG
min. fine-stranded with insulated ferrule, push-in terminati 0.75 mm² / 20 AWG
Strip length
Mating force of a plug-in connection
Unmating force of a plug-in connection
Retention force of a plug-in connection
Insulating material
Flammability rating per UL 94
Clamping spring material
Contact material
Processing temperature
Weight [g]
Width
Height
Length
Marking
9 mm / 0.35 in
approx. 20 … 70 N (depending on pole number)
when unlocked: approx. 20 … 70 N (depending on pole
number)
when locked: > 80N
Polyamide 66 (PA 66)
V0
Chrome nickel spring steel (CrNi)
Copper or copper alloy, surface-treated
-5°C ... +40°C
8.012 [g]
35.5 mm / 1.398 in
17.5 mm / 0.689 in
39.85 mm / 1.569 in
N PE 3 2 1
WAGO Kontakttechnik GmbH & Co. KG
2
Printview: Plug; Snap-in version; 5-pole - Item No.: 890-755/062-000

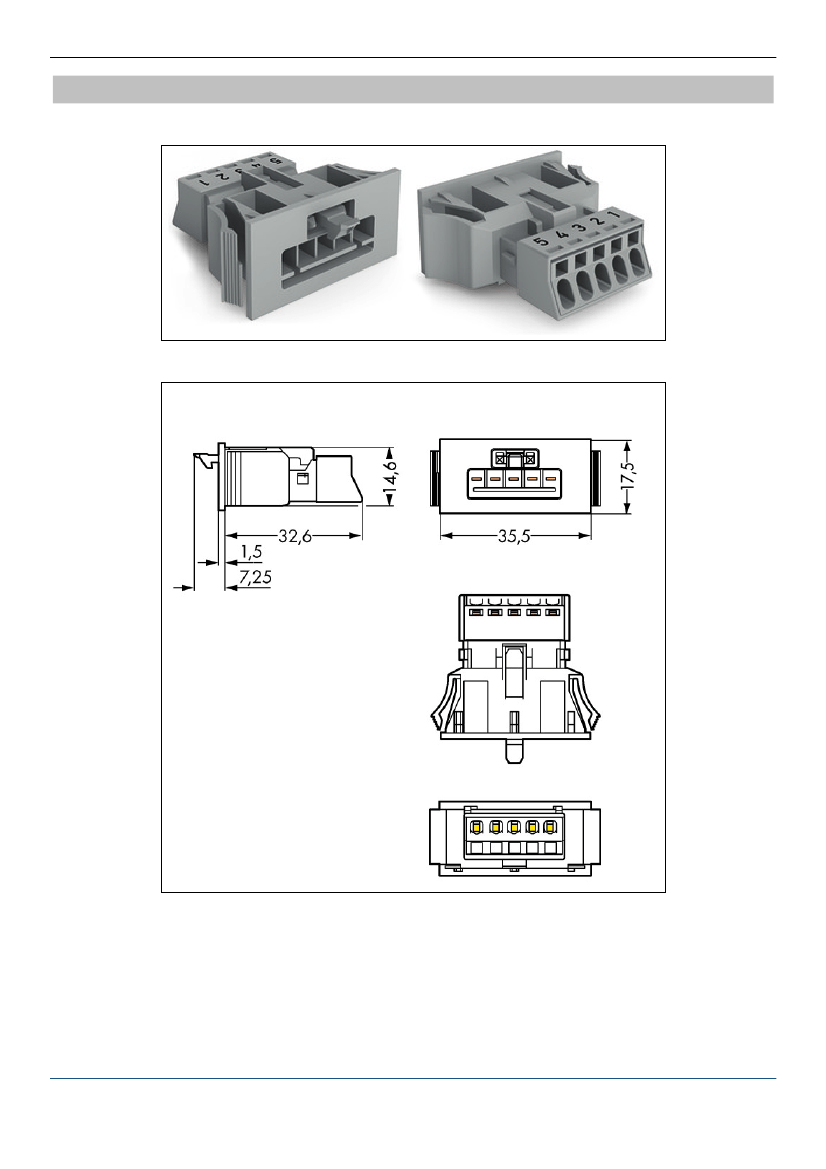

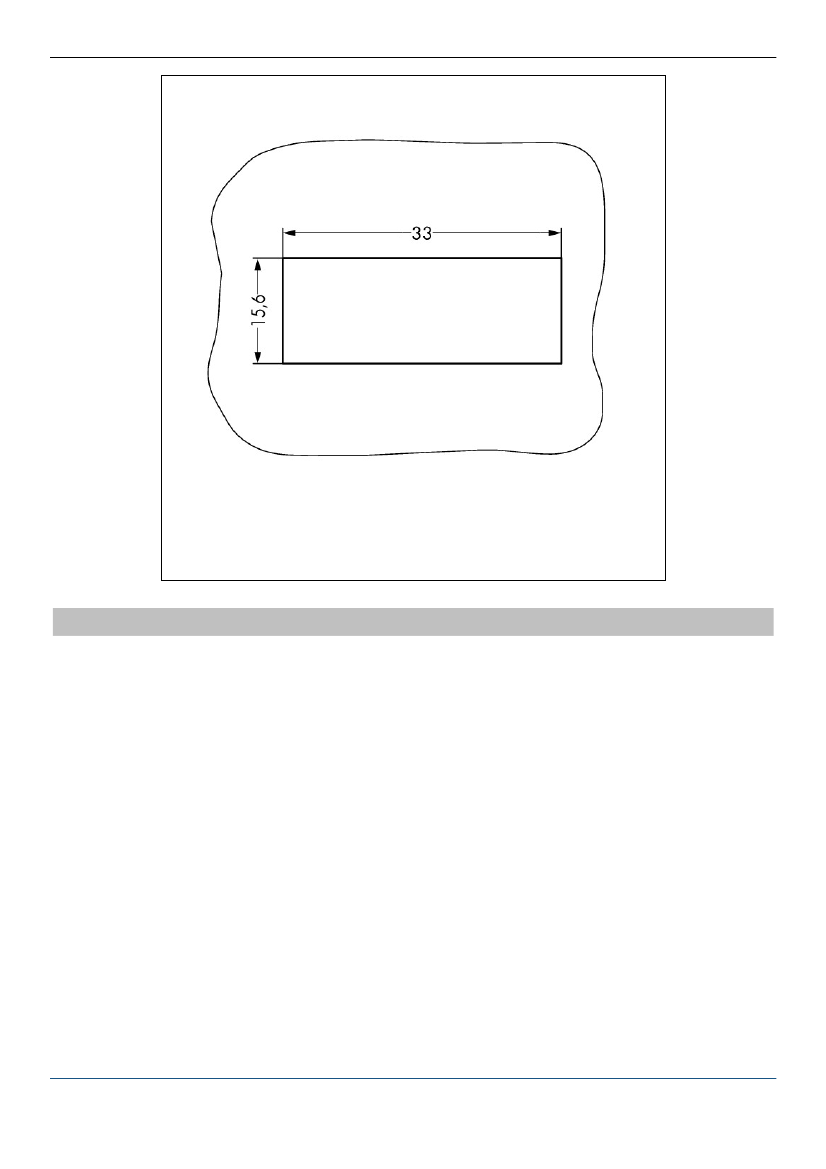

Images & drawings
WAGO Kontakttechnik GmbH & Co. KG
3
Printview: Plug; Snap-in version; 5-pole - Item No.: 890-755/062-000
.
Address
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Telefon: 0571/887-0
Fax: 0571/887-169
http://www.wago.com
© WAGO Kontakttechnik GmbH & Co. KG
Technische Änderungen und Irrtümer vorbehalten.
WAGO Kontakttechnik GmbH & Co. KG
4
