B061-0411-149-Z datasheet, PDF

Datasheet> All Categories > The connector> The connector> B061-0411-149-Z

B061-0411-149-Z: DescriptionBoard Connector, 4 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size204KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

B061-0411-149-Z Overview

Board Connector, 4 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug

B061-0411-149-Z Parametric

Parameter Name	Attribute value
Guideline	UL
Reach Compliance Code	Unknown
ECCN code	EAR99
Is Samacsys	N
Objectid	304389561
Contact point gender	FEMALE
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Rated current (signal)	3 A
Total number of contacts	4
Other features	ROHS COMPLIANT
Body/casing type	PLUG
Contact resistance	20 mΩ
Terminal pitch	2.54 mm
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
insulator material	GLASS FILLED POLYESTER
body length	0.4 inch
Terminal length	0.138 inch
body width	0.138 inch
subject depth	0.268 inch
Contact completed and terminated	TIN
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Plug contact pitch	0.1 inch
PCB contact pattern	RECTANGULAR
Termination type	SOLDER
Mixed contacts	NO
Number of connectors	ONE
Plating thickness	30u inch
Insulation resistance	5000000000 Ω
Dielectric withstand voltage	500VAC V
Filter function	NO
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C

Preview

Download Datasheet

View All

HOW TO ORDER:

RoHS

COMPLIANT

ELECTRICAL:

NUMBER OF CONTACTS:

04 thru 40

DEFINITION:

1 - STRAIGHT

NUMBER OF ROWS:

1 - ONE

Drawn Checked

S.M.

A.M.

B.S.

S.M.

HOUSING DIMESIONS:

Height - 6.8mm

Width - 3.50mm

Contact Tail - 3.35mm

CONTACT STYLE:

1 - CANTILEVER BEAM

CURRENT: 3A

CONTACT RESISTANCE: 20mΩ Max.

INSULATOR RESISTANCE: 5000MΩ Min.

DIELECTRIC WITHSTANDING VOLTAGE: 500VAC FOR 1 MIN.

OPERATING TEMPERATURE: -40° C TO +105° C

INSULATOR: GLASS FILLED POLYESTER (UL94V-0)

CONTACT: COPPER ALLOY

Rev

Issued

Revised for RoHS Compliance

SCALE:n/a

TOL. DEC.

.X +/- 0.35

.XX +/- 0.25

.XXX +/- 0.15

PLATING OVERALL:

0 - FULL TIN

1 - FULL Au

3 - 10u" Au

4 - 15u" Au

5 - 30u" Au

MATERIAL:

SELECTIVE PLATING:

6 - Au CONTACT AREA/TIN TAIL

7 - 10u" Au CONTACT AREA/TIN TAIL

8 - 15u" Au CONTACT AREA/TIN TAIL

9 - 30u" Au CONTACT AREA/TIN TAIL

Date

Appproved

S.M.

08/25/03

12/15/06

S.M.

SMP TECHNOLOGY, INC.

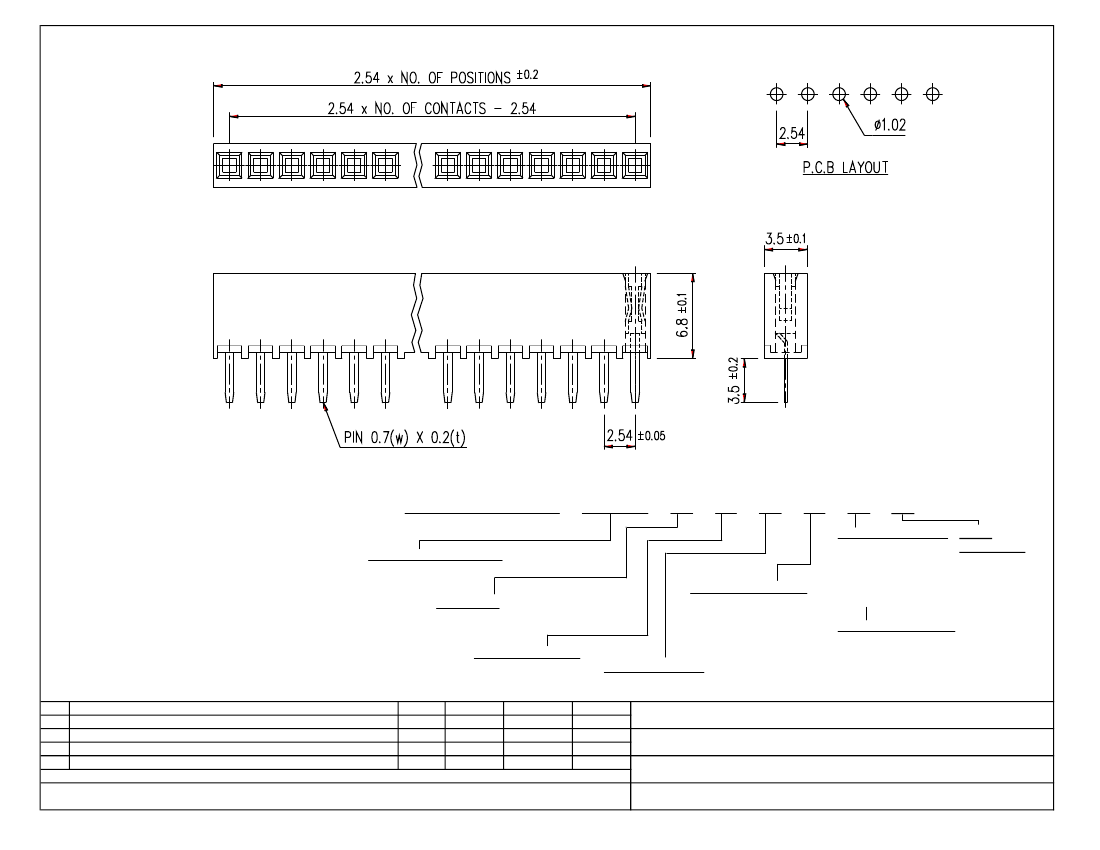

Receptacle Assembly, 2.54mm Pitch, Top Entry, Single Row, Straight

Cantilever Beam Contact, 6.8mm Height, 3.5mm Width, Thru Hole

ANGLE +/- 5°

UNIT: mm

SERIES: B061

Pg: 1
