B705-1011-000-Z

Description
Board Connector, 10 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle
CategoryThe connector    The connector
File Size313KB,1 Pages
ManufacturerSMP Technology Inc.
Download Datasheet Parametric View All

B705-1011-000-Z Overview

Board Connector, 10 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle

B705-1011-000-Z Parametric

Parameter NameAttribute value
Objectid304391091
Reach Compliance CodeUnknown
ECCN codeEAR99
Is SamacsysN
body width0.26 inch
subject depth0.468 inch
body length1.27 inch
Terminal length0.134 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU
Contact point genderMALE
Contact resistance15 mΩ
insulator materialPOLYESTER
Installation typeBOARD
PCB row number1
Number of rows loaded1
Installation methodSTRAIGHT
Rated current (signal)3 A
Terminal pitch2.54 mm
Total number of contacts10
Contact styleRND PIN-SKT
Installation option 1LOCKING
PCB contact patternRECTANGULAR
Termination typeSOLDER
Contact completed and terminatedGOLD
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Plug contact pitch0.1 inch
Mixed contactsNO
Number of connectorsONE
OptionsGENERAL PURPOSE
Plating thicknessFLASH inch
Filter functionNO
Insulation resistance1000000000 Ω
polarization keyPOLARIZED HOUSING
Dielectric withstand voltage600VAC V
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
GuidelineUL
UL Flammability Code94V-0
RECEPTACLE CONTACT HOUSING
10.16
* Material: Nylon UL 94V-0
* Current rating : 3A, AC/DC
* Voltage rating : 250V, AC/DC
ELECTRICAL:
CURRENT RATING: 3A
CONTACT RESISTANCE: < 15m
INSULATOR RESISTANCE: > 1000M
DIELECTRIC WITHSTANDING VOLTAGE: 600VAC FOR 1 MIN.
OPERATING TEMPERATURE: -40°C TO +105°C
HOW TO ORDER:
B
7
0
5
-
X
X
1
1
-
0
0
X
-
Z
NUMBER OF POSITIONS:
02 thru 18
MATERIAL:
CONTACT PLATING:
0 - GOLD FLASH
8 - TIN / LEAD PLATED
RoHS
COMPLIANT
INSULATOR: POLYESTER (UL94V-0)
CONTACT: COPPER ALLOY
Rev
0
Issued
Apv.
WHS
Date
3/31/06
SMP TECHNOLOGY, INC.

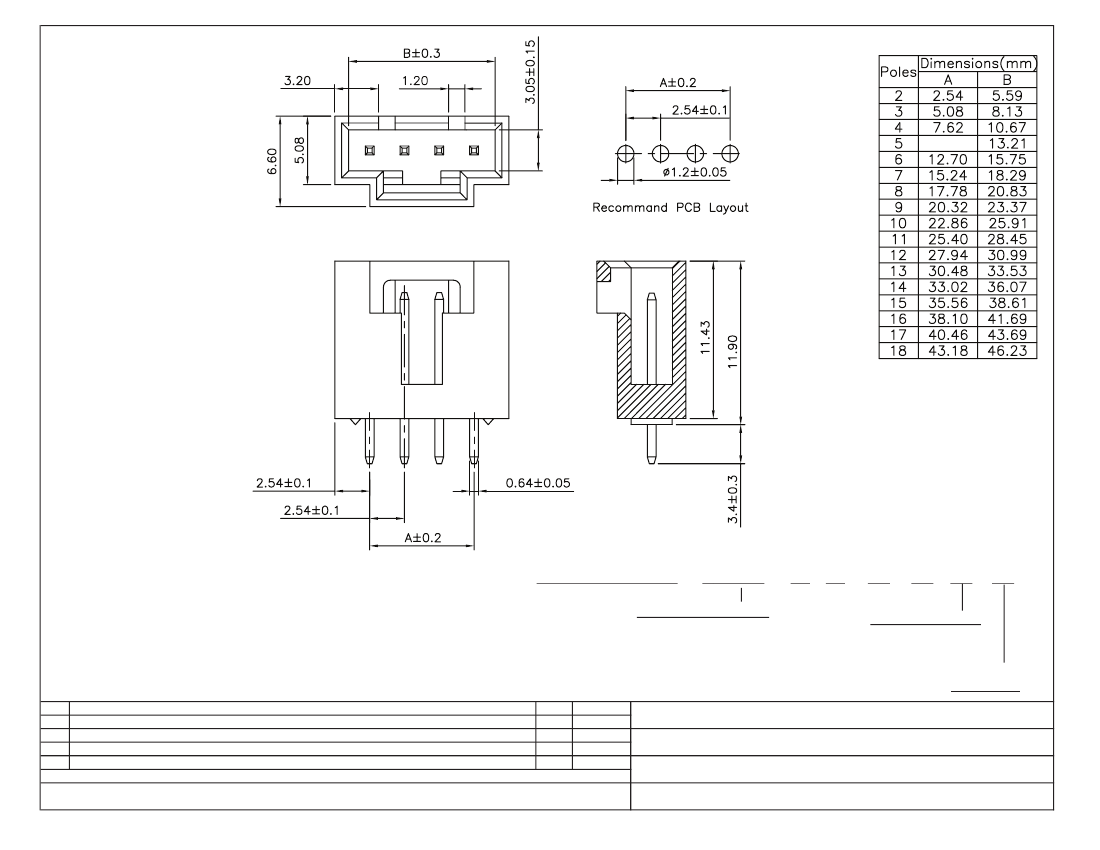

Pocket Header; 2.54mm Pitch; Vertical
SCALE
TOL. DEC.
.X +/- 0.35
MAT'L
.XX +/- 0.25
.XXX +/-
FINISH
ANGLE +/-
UNIT: mm
SERIES: B705-XX11-00X-Z
Pg: 1
