D007-0311-200-Z datasheet, PDF

Datasheet> All Categories > The connector> The connector> D007-0311-200-Z

D007-0311-200-Z: DescriptionCircular DIN Connector, 3 Contact(s), Female, Board Mount, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size349KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

D007-0311-200-Z Overview

Circular DIN Connector, 3 Contact(s), Female, Board Mount, Solder Terminal, Locking, Receptacle

D007-0311-200-Z Parametric

Parameter Name	Attribute value
ECCN code	EAR99
Is Samacsys	N
Objectid	304395665
Reach Compliance Code	Unknown
Body/casing type	RECEPTACLE
Connector type	MINI DIN CONNECTOR
Installation type	BOARD
Shell material	COPPER ALLOY
Rated current (signal)	2 A
Total number of contacts	3
Other features	ROHS COMPLIANT
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact resistance	30 mΩ
insulator material	POLYETHYLENE/POLYBUTYLENE TEREPHTHALATE
Installation method	RIGHT ANGLE
Contact style	RND PIN-SKT
Electromagnetic interference shielding	YES
Installation option 1	LOCKING
Options	GENERAL PURPOSE
Plating thickness	FLASH inch
Termination type	SOLDER
Board mount options	SPLIT BOARD LOCK
Contact completed and terminated	TIN
Contact material	PHOSPHOR BRONZE
body width	0.512 inch
subject depth	0.512 inch
body length	0.551 inch
Terminal length	0.125 inch
DIN compliance	YES
Guideline	UL
Dielectric withstand voltage	500VAC V
Insulation resistance	500000000 Ω
Number of ports	1
polarization key	POLARIZED
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C

Preview

Download Datasheet

View All

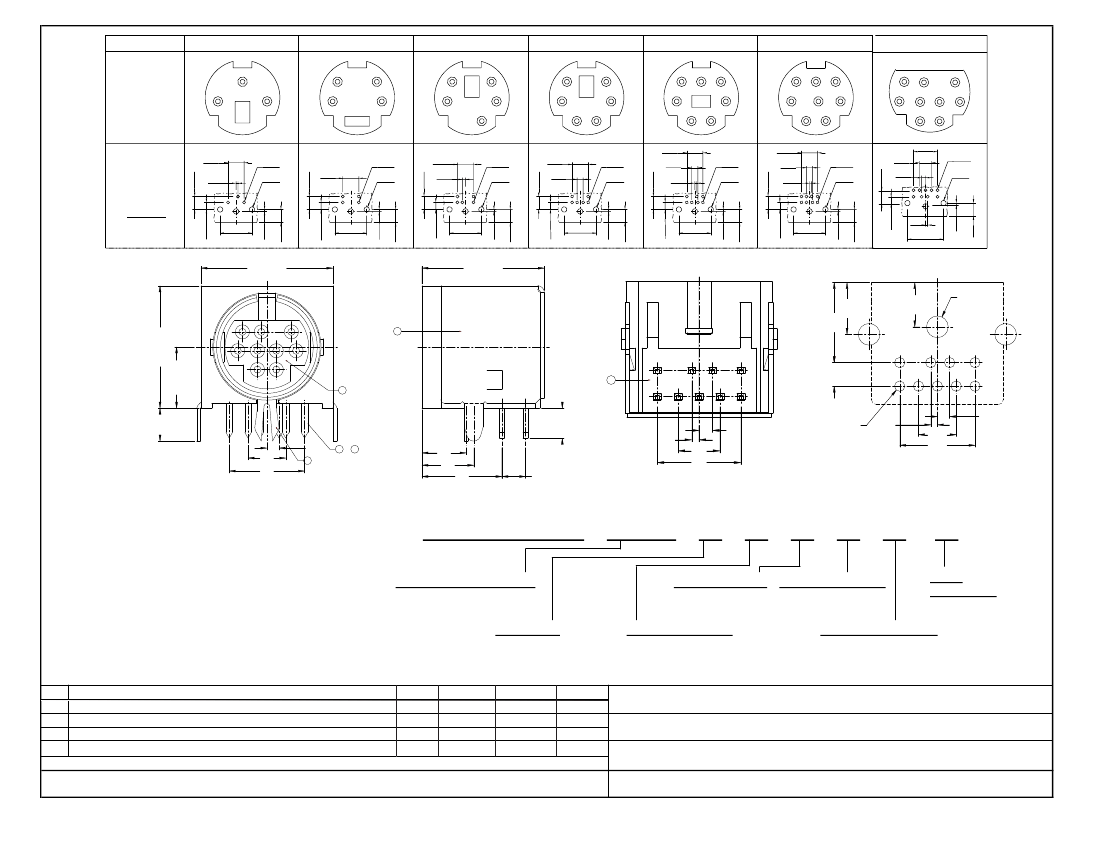

number of contacts

Arrangement

of contacts

6.81

.268

2.59

.102

0.90

.035

6.81

.268

2.59

.102

0.90

.035

5 4

P.C

Board Layout

Tolerance

.X ±0.10/.004

.XX ±0.05/.002

6.81

.268

0.90

.035

∅

0.90

.035

∅

2.20

.087

5.50

.217

5.50

.217

5.50

.217

5.50

.217

5.50

.217

5.50

.217

6.81

.268

∅

0.90

.035

∅

2.20

.087

6.81

.268

1.30

.051

∅

0.90

.035

∅

2.20

.087

6.81

.268

2.59

.102

∅

0.90

.035

∅

2.20

.087

∅

0.90

.035

∅

2.20

.087

∅

0.90

.035

∅

2.20

.087

5.50

.217

4.00

.157

1.30

.051

8.00

.315

∅

0.90

.035

∅

2.20

.087

13.5

.531

13.5

.531

13.5

.531

13.5

.531

13.5

.531

13.5

.531

3.00

.1 18

3.00

.1 18

3.00

.1 18

3.00

.1 18

3.00

.1 18

3.00

.1 18

0.8

.031

5.5

.217

0.8

.031

5.5

.217

0.8

.031

5.5

.217

0.8

.031

5.5

.217

14.0±0.3

13.0±0.3

5.50

4.70

3-∅2.30

0.8

.031

5.5

.217

13.0±0.3

8.50

0.8

.031

5.5

.217

0.70

.028

3.00

14.5

.571

6.5±0.2

2.50

1.3

4.0

0.8

0.70

3.18±0.30

3.5±0.3

CURRENT: 100VAC 1A MAX. / 12VDC 2A MAX.

CONTACT RESISTANCE: < 30m

Ω

INSULATOR RESISTANCE: > 500M

Ω

AT 500VDC

DIELECTRIC WITHSTANDING VOLTAGE: 500VAC FOR 1 MIN.

OPERATING TEMPERATURE: -40° C TO +105° C

INSULATOR: THERMOPLASTIC PBT (UL94V-0)

CONTACT: PHOSPHOR BRONZE

SHIELD: COPPER ALLOY

CONTACT FORCE: 0.9~3KG

CONTACT RETENTION FORCE: 4Lb MIN.

Rev

0 Issued

A Revised for RoHS Compliance

ELECTRICAL:

4.0

8.0

1.3

4.7

5.5

0.7

9-∅1.10

4.00

8.00

8.5

2.5

HOW TO ORDER:

MATERIAL:

NUMBER OF CONTACTS:

03 thru 09

SHIELDING:

1 - SHIELDED

2 - FULLY SHIELDED

Drawn

A.M.

B.S.

Checked

S.M.

Approved

S.M.

Date

09/09/03

07/28/08

TERMINAL TYPE:

2 - SNAP IN FIT

GROUNDING TABS:

1 - STRAIGHT TYPE

2 - KINK TYPE

FERRITE OPTION:

0 - NO FERRITE

1 - FERRITE

RoHS

COMPLIANT

MECHANICAL:

SELECTIVE PLATING:

0 - Au FLASH CONTACT AREA/TIN TAIL

1 - 15u" Au CONTACT AREA/TIN TAIL

2 - 30u" Au CONTACT AREA/TIN TAIL

SMP TECHNOLOGY, INC.

Mini Din Connector, Straight Side Tabs, Snap Fit

TOL. DEC.

.X +/- 0.35

.XX +/- 0.25

.XXX +/-

ANGLE +/-

UNIT: mm/in

P/N: D007-XX11-2XX-Z

0.8

.031

5.5

.217

1.30

Pg: 1
