8596070000 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> 8596070000

8596070000: DescriptionPower/Signal Relay, SPDT, Momentary, 1750mW (Coil), AC Input, AC Output, DIN-Rail Mount; CategoryMechanical and electronic products relay; File Size60KB，2 Pages; ManufacturerWeidmuller; Websitehttp://www.weidmuller.com/

Download Datasheet Parametric View All

8596070000 Overview

Power/Signal Relay, SPDT, Momentary, 1750mW (Coil), AC Input, AC Output, DIN-Rail Mount

8596070000 Parametric

Parameter Name	Attribute value
Maker	Weidmuller
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	COIL OPERATING VOLTAGE (AC): 103 V, COIL RELEASE VOLTAGE (AC): 49 V
body width	6.1 mm
body height	91 mm
Body length or diameter	94 mm
Coil current (AC) maximum value	0.008 A
Coil power	1750 mW
Maximum coil voltage (AC)	230 V
Coil/Input Power Type	AC
Contact (AC) maximum rated R load	6A@250VAC
Maximum contact current (AC)	6 A
Maximum contact voltage (AC)	250 V
Contact/Output Power Type	AC
Installation features	DIN-RAIL MOUNT
operating hours	13 ms
Maximum operating temperature	50 °C
Minimum operating temperature	-25 °C
physical size	94mm x 6.1mm x 91mm
Guideline	CE; UL
Relay action	MOMENTARY
Relay function	SPDT
Relay type	POWER/SIGNAL RELAY
release time	11 ms
seal	IP20
surface mount	NO
Termination type	SCREW
Base Number Matches	1

Preview

Download Datasheet

View All

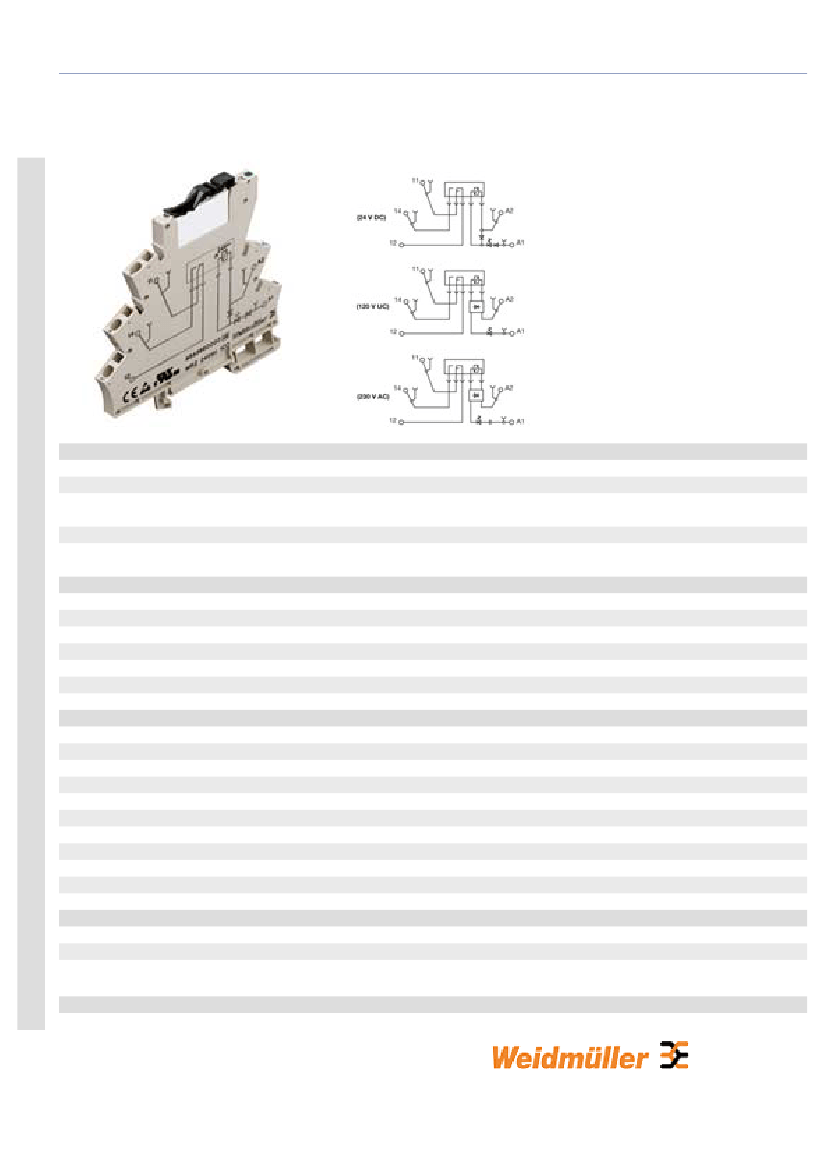

Product catalogue | Functional Electronics | Relays | MICROSERIES | 1 changeover contact with hard gold-plated

contacts

General ordering data

Order No.

Part designation

Version

EAN

Qty.

Input

Rated control voltage

Pull-in (sparkover) / drop-out voltage AC coil

Rated current AC

Pull-in / drop-out current, AC coil

Power rating

Status indicator

Output

Continuous current

Inrush current

Max. switching current

Max. switching frequency at rated load

Max. switching power

Max. switching voltage AC

Min. switching power

Sparkover time / Drop-out time

Switch-off delay

Switch-on delay

Contact data

Number of contacts

Contact base material

Mechanical service life

Rated data

Climate

8596070000

MRZ 230Vac 1CO 5uAu

Relays, 1 CO contact, 230 V AC ±10% , 6 A,

Tension clamp connection

4032248254965

10 pc(s).

230 V AC ±10%

103V/49V

7.6 mA

5 mA/ 2.5mA

1.75 VA

Green LED

0.1 Hz

1500 VA

250 V

1 V / 1 mA

13 ms / 11 ms

11ms

13ms

AgSnO 5µm Au

20*10 switching cycles

40°C/93% rel. humidity, no condensation

-1-
