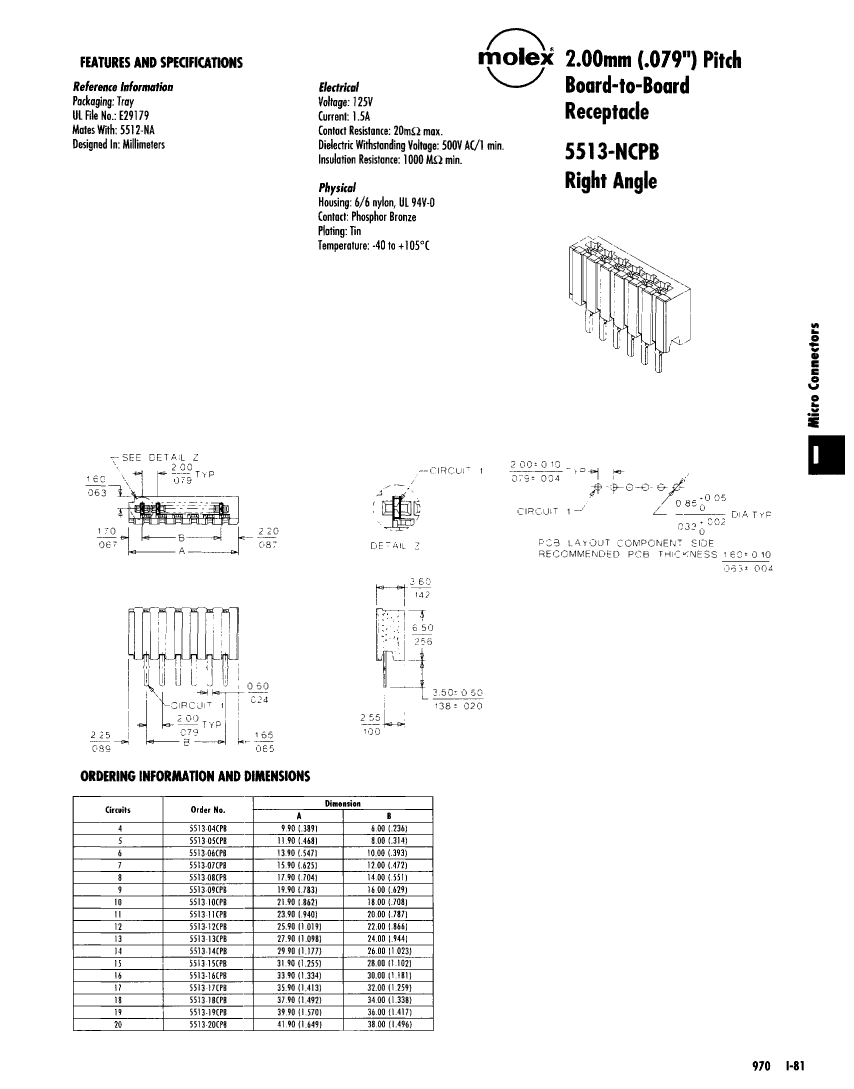

5513-17CPB

Description
Board Connector, 17 Contact(s), 1 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Receptacle
CategoryThe connector    The connector
File Size33KB,1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric View All

5513-17CPB Overview

Board Connector, 17 Contact(s), 1 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Receptacle

5513-17CPB Parametric

Parameter NameAttribute value
MakerMolex
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresTRAY PACKAGING
body width0.142 inch
subject depth0.256 inch
body length1.413 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationSN
Contact completed and terminatedTIN OVER NICKEL
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage500VAC V
Filter functionNO
IEC complianceNO
Insulation resistance1000000000 Ω
insulator materialNYLON
MIL complianceNO
Manufacturer's serial number5513-NCPB
Plug contact pitch0.079 inch
Plug information5512-17A
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
Rated current (signal)1.5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.138 inch
Terminal pitch2 mm
Termination typeSOLDER
Total number of contacts17
UL Flammability Code94V-0
Base Number Matches1
