TECHNICAL CHARACTERISTICS
MATERIAL
INSULATOR: PA 66
FLAMABILITY RATING: UL94-V0
COLOR: GREEN
CONTACT PIN: BRASS (CuZn)
SURFACE OF SOLDER TAIL PLATING: TIN
NUT: BRASS M2.5
5
A
ENVIRONMENTAL
OPERATING TEMPERATURE: -40 UP TO 105°C
COMPLIANCE: LEAD FREE AND ROHS
ELECTRICAL
CURRENT RATING:
WORKING VOLTAGE:
WITHSTANDING VOLTAGE:
CONTACT RESISTANCE:
STANDARD
CERTIFIED E315414
MECHANICAL
PITCH: 3.81mm
SOLDERING
JEDEC LEAD FREE WAVE SOLDERING PROCESS
PACKAGING
BOX
UL
10A
300VAC
1.6KV
20 mOhm MAX
B
C
RoHS Compliant
G
F
E
D
C
B
A
REV
06-JUL-15
14-JUN-10
DATE
UPDATE
PDF
FILE
AK
JP
BY
APPROVAL: FBr
SCALE:
SHEET: 1/2
DRAW: MARVIN
PROJECTION:
GENERAL TOLERANCE
.X = +/- 0.2
.XX = +/- 0.15
UNIT: MM

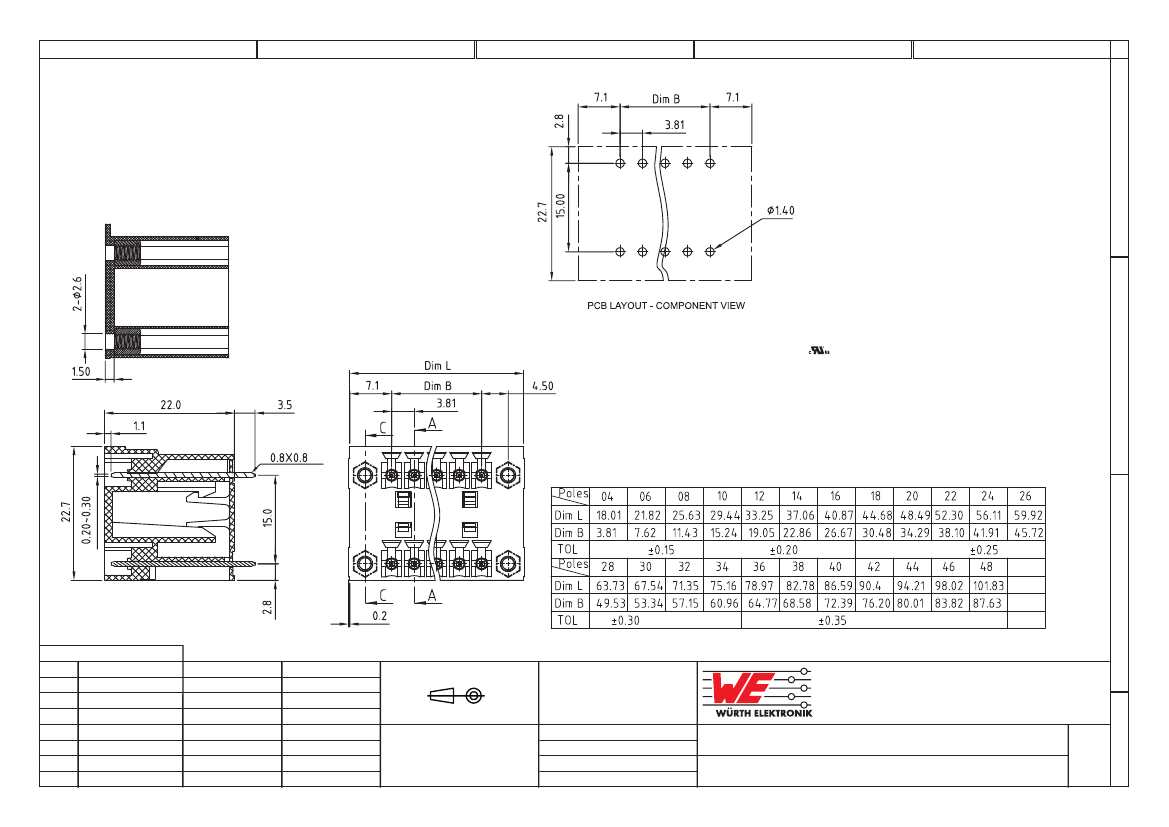

DESCRIPTION: SERIE 3303 - 3.81MM DOUBLE LEVEL VERTICAL MALE
PCB HEADER WITH FLANGES & NUT TYPE WR-TBL
WERI PART NO: 691 330 300 0xx
SIZE
A4
D
1
2
3
4
5
Cautions and Warnings:
This electronic component is designed and developed with the intention for use
in general electronics equipments.
Before incorporating the components into any equipments in the field such as aerospace, aviation,
nuclear control, submarine, transportation, (automotive control, train control, ship control),
transportation signal, disaster prevention, medical, public information network etc. where higher safety
and reliability are especially required or if there is possibility of direct damage or injury to human body,
Wurth Elektronik must be asked for a written approval.
In addition, even electronic component in general electronic equipments, when used in electrical circuits
that require high safety, reliability functions or performance, the sufficient reliability evaluation-check
for the safety must be performed before by the user before usage.
A
B
C
RoHS Compliant
G
F
E
D
C
B
A
REV
10-SEP-14
DATE
PDF
FILE
QL
BY
APPROVAL: JC
SCALE:
SHEET: 2/2
DRAW: QL
WERI PART NO: DISCLAIMER
PROJECTION:
GENERAL TOLERANCE
.X = +/- 0.2
.XX = +/- 0.15
UNIT: MM
DESCRIPTION: DISCLAIMER
SIZE
A4
D
