1118-26-114-11: DescriptionBoard Connector, 14 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Natural Insulator, Receptacle; CategoryThe connector The connector; File Size218KB，1 Pages; ManufacturerMethode Electronics Inc.

Download Datasheet Parametric View All

1118-26-114-11 Overview

Board Connector, 14 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Natural Insulator, Receptacle

Parameter Name	Attribute value
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Plug information	MULTIPLE MATING PARTS AVAILABLE
Number of connectors	ONE
Plating thickness	15u inch
Termination type	SOLDER
Contact material	PHOSPHOR BRONZE
Insulator color	NATURAL
Plug contact pitch	0.1 inch
Mixed contacts	NO
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Contact completed and terminated	TIN LEAD (200) OVER NICKEL (50)
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Guideline	UL, CSA
UL Flammability Code	94V-0
DIN compliance	NO
Filter function	NO
maximum insertion force	2.224 N
Insulation resistance	500000000000 Ω
polarization key	HOUSING SIDE
Evacuation force-minimum value	.556 N
Dielectric withstand voltage	1500VAC V
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Objectid	1153150370
Reach Compliance Code	Unknown
ECCN code	EAR99
Is Samacsys	N
YTEOL	0
Contact resistance	10 mΩ
insulator material	GLASS FILLED POLYESTER
Installation method	STRAIGHT
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Installation type	BOARD
PCB row number	1
Terminal pitch	2.54 mm
Other features	POLARIZED
Rated current (signal)	3.5 A
Contact point gender	MALE
Number of rows loaded	1
Total number of contacts	14
Contact to complete cooperation	GOLD (15) OVER NICKEL (50)
body width	0.25 inch
subject depth	0.3 inch
body length	1.39 inch
Terminal length	0.14 inch

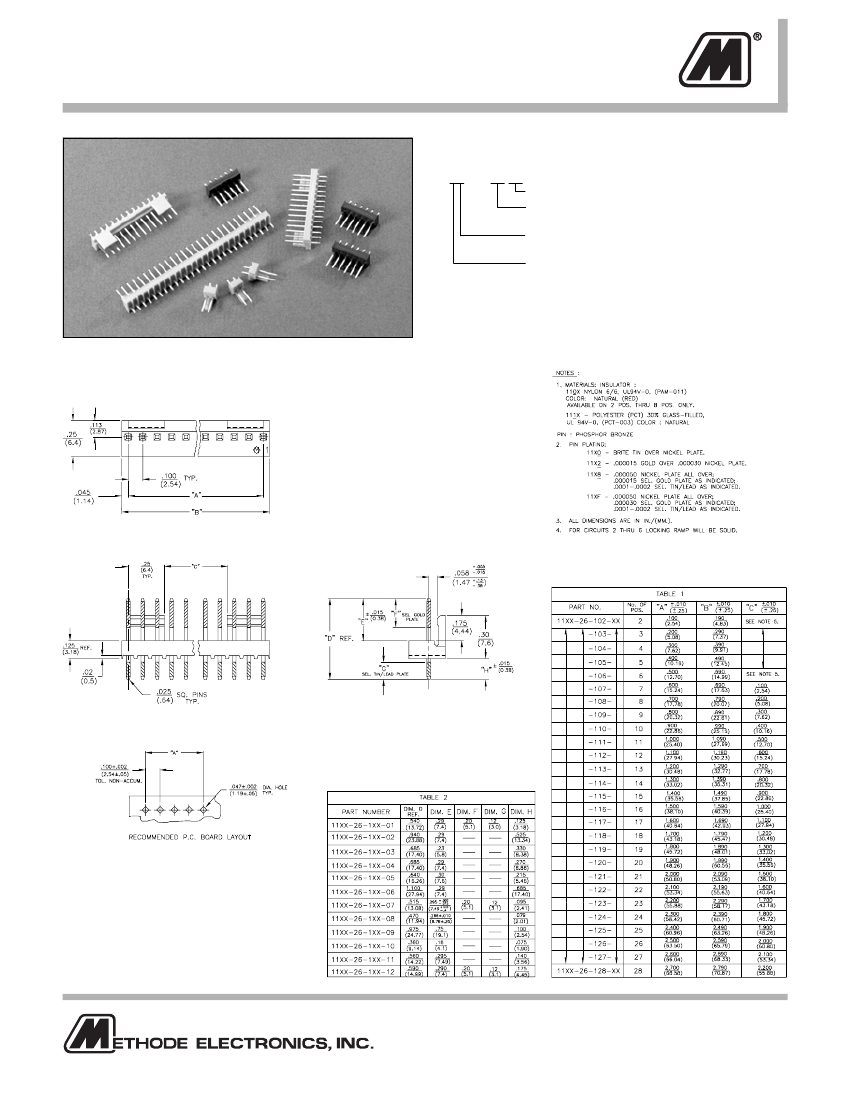

.100” (2.54mm) Single Row, Through Hole

Vertical, Polarizing, Locking Headers

(Short Back)

1100 SERIES “TERMACON”

PART NUMBER LEGEND

11XX-26-1XX-XX

PIN LENGTH

(SEE TABLE 2)

NUMBER OF POSITIONS PER ROW

(SEE TABLE 1)

PIN PLATING

(SEE NOTE 2)

INSULATOR MATERIAL

(SEE NOTE 1)

MATING CONNECTORS: 1300 SERIES CRIMP OR IDC

STYLE CONNECTORS

Connector Products

1700 Hicks Road • Rolling Meadows, IL 60008 USA

Telephone: 847.392.3500 • Fax: 847.392.9404

email: mcpsales@methode.com • Web Page: www.methode.com
