2213-04-R-01 datasheet, PDF - EEWORLD Datasheet

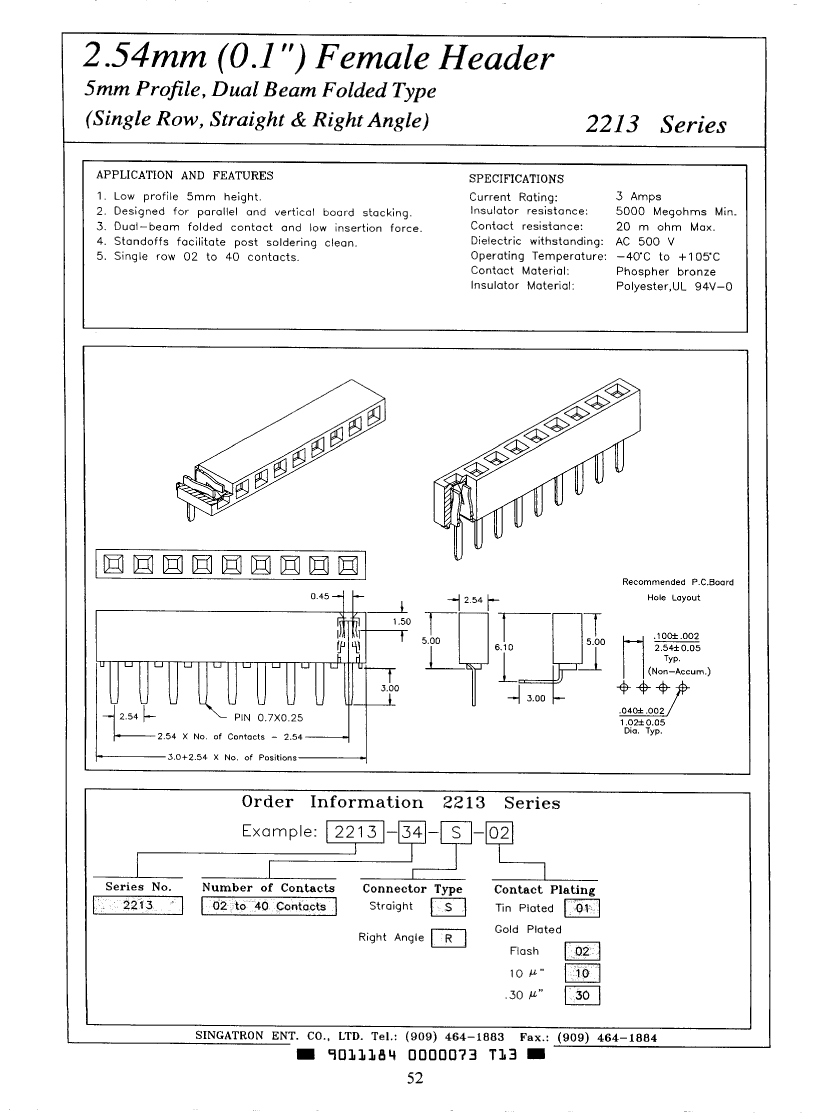

2213-04-R-01: DescriptionBoard Connector, 4 Contact(s), 1 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size77KB，1 Pages; ManufacturerSingatron Enterprises Co

Download Datasheet Parametric View All

2213-04-R-01 Overview

Board Connector, 4 Contact(s), 1 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Plug

Parameter Name	Attribute value
Reach Compliance Code	Compliant
ECCN code	EAR99
Is Samacsys	N
Objectid	1166356095
body width	0.1 inch
subject depth	0.24 inch
body length	0.518 inch
Terminal length	0.118 inch
Contact point gender	FEMALE
Number of rows loaded	1
Terminal pitch	2.54 mm
Total number of contacts	4
PCB row number	1
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact resistance	20 mΩ
insulator material	POLYESTER
Installation method	RIGHT ANGLE
Installation type	BOARD
Rated current (signal)	3 A
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Plug contact pitch	0.1 inch
Mixed contacts	NO
Number of connectors	ONE
PCB contact pattern	RECTANGULAR
Termination type	SOLDER
Dielectric withstand voltage	500VAC V
Filter function	NO
maximum insertion force	LIF N
Insulation resistance	5000000000 Ω
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Guideline	UL
