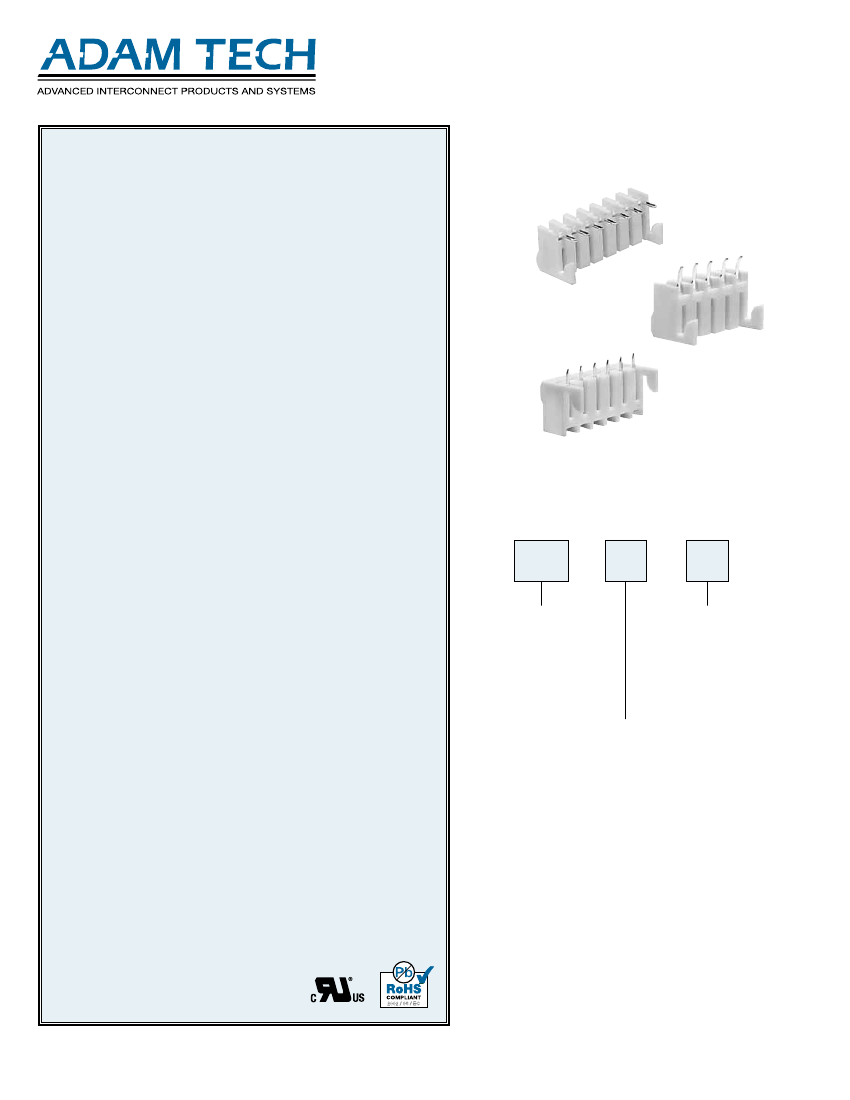

.100" & .156" REcEPTAclE
WITH BOARD HOOkS
.100" & .156" CENTERLINE
PCE SERIES
INTRODucTION:
Adam Tech PCE & PCD Series receptacles are PCB mounted
sockets that have integral PC Board hooks which wrap around
the edge of the PCB for added stability. They are made with three
mounting and mating configurations which include Top, Bottom &
Side entry. Offered in pitches of .100" & .156" they contain a high
reliability contact system that offers superior connectivity through a
set of long, wide, precision stamped contacts which provide ample
contact pressure with a smooth wiping action.
FEATuRES:
.100" & .156" Centerlines
Hooks for stability to PCB
High normal force contacts
Low insertion force
Three mounting orientation options
MATING HEADERS:
Adam Tech PH & LHB headers and all industry standard .100" and
.156" pitch pin headers with a .025" or .045" square or round pins
SPEcIFIcATIONS:
Material:
Insulator: Nylon 66, rated UL94V-0
Insulator Color: Natural
Contacts: Phosphor Bronze
contact Plating:
Tin over copper underplate overall
Electrical:
Operating voltage: 250V AC max.
Current rating: .100 pitch: 3 Amp max.
.156 pitch: 7 Amps max.
Contact resistance: 10 mΩ max. Initial
Insulation resistance: 1000 MΩ min.
Dielectric withstanding voltage: 1500V AC for 1 minute
Mechanical:
Insertion force: 0.375 lbs max
Withdrawal force: 0.187 lbs min.
Recommended PCB Thickness: 0.063" (1.6mm]
Temperature Rating:
Operating temperature: -40°C to +105°C
PAckAGING:
Anti-ESD plastic trays
SAFETy AGENcy APPROvAlS:
UL Recognized & CSA Certified, File no. E224053
OPTIONS
Add designator(s) to end of part number
NH
= No Board hooks
ORDERING INFORMATION
PcE
SERIES INDIcATOR
PcE
= .100" PCB
Connector with
board hooks
PcD
= .156" PCB
Connector with
board hooks
A
10
POSITIONS
02 thru 20
ENTRy ANGlE
A
= Top entry
B
= Side entry
c
= Bottom entry
340
www.adam-tech.com
.100" REcEPTAclE
WITH BOARD HOOkS
PCE SERIES

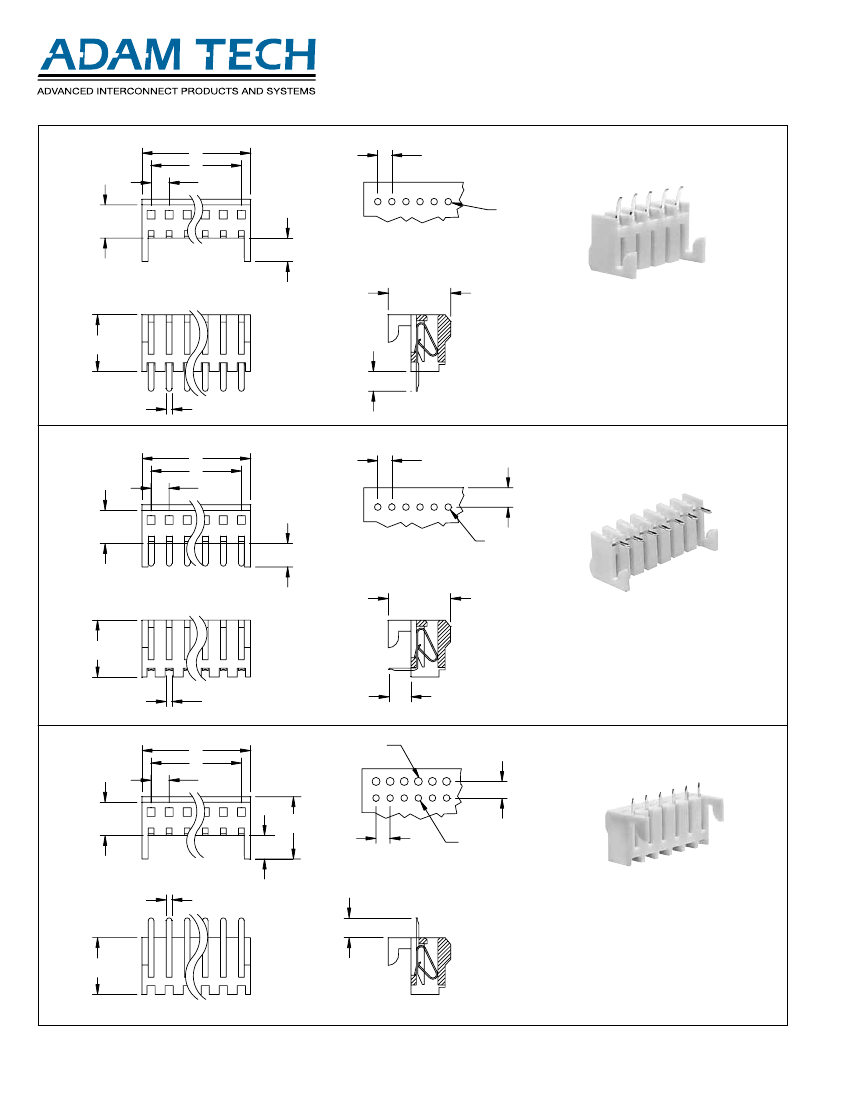

pCE-A
A
B
.100
[2.54] TYP.
.100
[2.54]
.189
[4.80]
.159
[1.50]
Recommended
PcB layout
.315
[8.00]
.276
[7.00]
.144 [3.65]
ø.042
[1.06]
TOP ENTRy
PcE-A-05
.453
[11.50]
.031 [0.80]
.150 [3.80]
A = .100 [2.54] x No. of Positions
B = .100 [2.54] x No. of Spaces
A
B

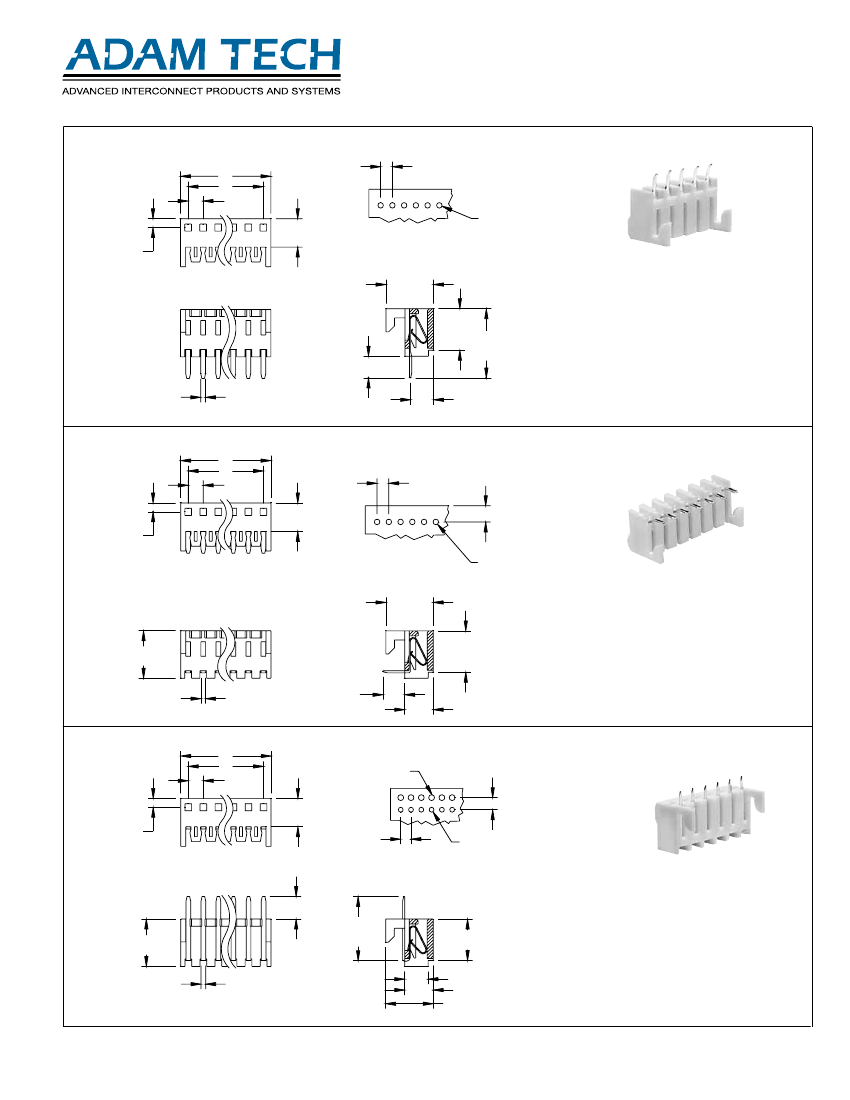

pCE-B
.100
[2.54]
.189
[4.80]
.100
[2.54] TYP.
.210 [5.33]
.159
[1.50]
Recommended
PcB layout
.315
[8.00]
ø.042
[1.06]
SIDE ENTRy
PcE-B-07
.315 [8.00]
.126
[3.20]
.276 [7.00]
.031 [0.80]
.189 [4.80]
A = .100 [2.54] x No. of Positions
B = .100 [2.54] x No. of Spaces
A
B
pCE-C
.100
[2.54]
.189
[4.80]
.100
[2.54]
.070 [1.77]
.150 [3.81]
.159
[1.50]
ø.042 [1.06]
Recommended
PcB layout
.146 [3.70]
.315 [8.00]
.425
[10.80]
.276 [7.00]
BOTTOM ENTRy
PcE-c-06
.031 [0.80]
.156 [3.96]
.189 [4.80]
.315 [8.00]
A = .100 [2.54] x No. of Positions
B = .100 [2.54] x No. of Spaces
www.adam-tech.com
341
.156" REcEPTAclE
WITH BOARD HOOkS
PCD SERIES
pCD-A
A
B
.156
[3.96] TYP.
.156
[3.96]
ø.063
[1.60]
.165 [4.20]
.244
[6.20]
Recommended PcB layout
.433
[11.00]
TOP ENTRy
PcD-A-05
.417 [10.60]
.137 [3.50]
.051 [1.30]
A = .156 [3.96] x No. of Positions
B = .156 [3.96] x No. of Spaces
A
B
.156
[3.96] TYP.
.156
[3.96]
.311 [7.90]
pCD-B
.244
[6.20]
.165 [4.20]
ø.063
[1.60]
Recommended PcB layout
.433
[11.00]
SIDE ENTRy
PcD-B-07
.417 [10.60]
.051 [1.30]
.154
[3.90]
A = .156 [3.96] x No. of Positions
B = .156 [3.96] x No. of Spaces
A
B
.156
[3.96]
.244
[6.20]
.433
[11.00]
.102 [2.60]
pCD-C
.134 [3.40]
.156
[3.96]
.165
[4.20]
ø.042 [1.06]
.051 [1.30]
Recommended PcB layout
.122 [3.10]
BOTTOM ENTRy
PcD-c-06
.417 [10.60]
A = .156 [3.96] x No. of Positions
B = .156 [3.96] x No. of Spaces
342
www.adam-tech.com
