BC070-06-A-B2-L-C datasheet, PDF

Datasheet> All Categories > The connector> The connector> BC070-06-A-B2-L-C

BC070-06-A-B2-L-C: DescriptionBoard Connector, 6 Contact(s), 1 Row(s), Female, Straight, 0.039 inch Pitch, Surface Mount Terminal, Plug,; CategoryThe connector The connector; File Size119KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BC070-06-A-B2-L-C Overview

Board Connector, 6 Contact(s), 1 Row(s), Female, Straight, 0.039 inch Pitch, Surface Mount Terminal, Plug,

BC070-06-A-B2-L-C Parametric

Parameter Name	Attribute value
Dielectric withstand voltage	300VAC V
Filter function	NO
Insulation resistance	1000000000 Ω
JESD-609 code	e4
Guideline	UL
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Is it Rohs certified?	Yes
Is Samacsys	N
YTEOL	0
Objectid	304460064
Reach Compliance Code	Compliant
Country Of Origin	Mainland China
ECCN code	EAR99
Other features	ROHS COMPLIANT
Body/casing type	PLUG
Contact to complete cooperation	AU
Contact resistance	40 mΩ
Total number of contacts	6
insulator material	LIQUID CRYSTAL POLYMER
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Rated current (signal)	1 A
Connector type	BOARD CONNECTOR
PCB row number	2
Contact point gender	FEMALE
Terminal pitch	2.0066 mm
body width	0.059 inch
subject depth	0.089 inch
body length	0.256 inch
PCB contact pattern	STAGGERED
Contact completed and terminated	Gold (Au)
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Plug contact pitch	0.039 inch
Mixed contacts	NO
Number of connectors	ONE
PCB contact row spacing	2.3876 mm
Plating thickness	FLASH inch
Termination type	SURFACE MOUNT

Preview

Download Datasheet

View All

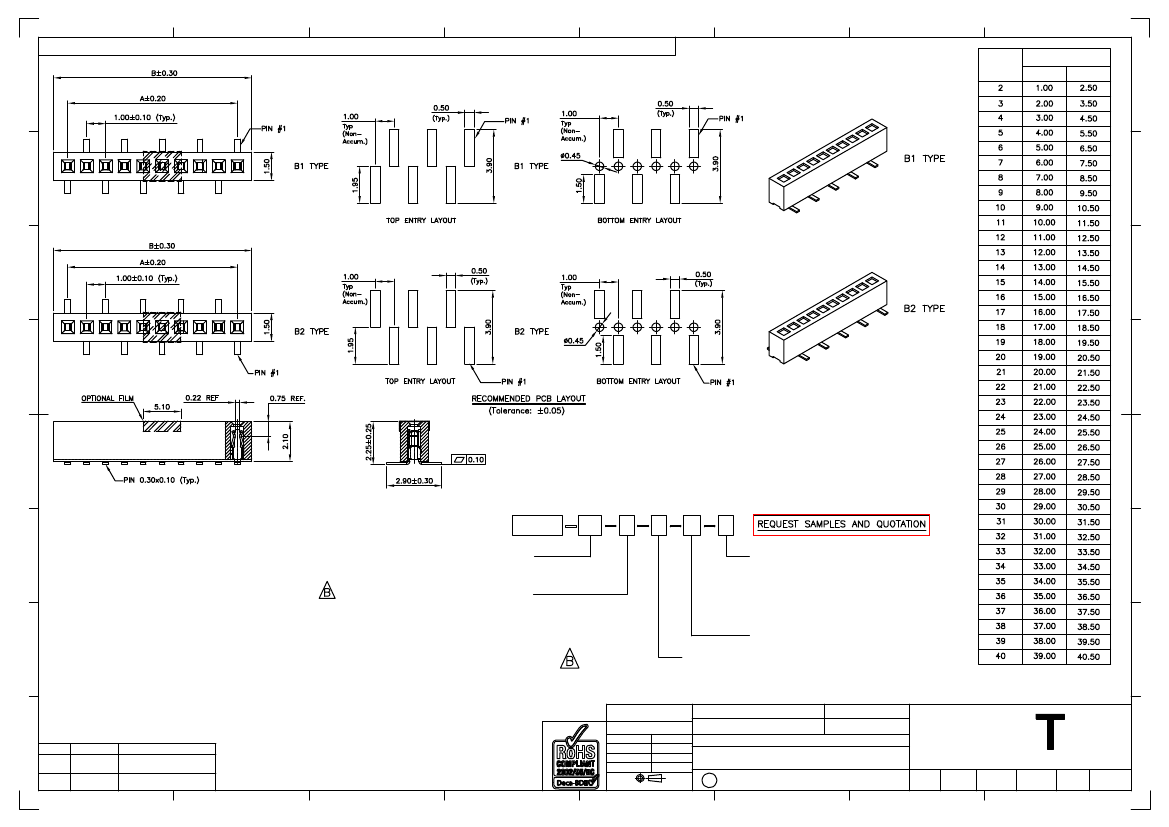

Global Connector Technology Ltd. - BC070: 1.00mm PITCH SOCKET, SINGLE ROW, SURFACE MOUNT, VERTICAL, DUAL ENTRY

CONTACTS

DIMENSIONS

Ordering Grid

BC070

SPECIFICATIONS

规格

CURRENT RATING

电流额定值：

1 AMP

INSULATOR RESISTANCE

绝缘电阻值

: 1000 MEGOHMS MIN.

DIELECTRIC WITHSTANDING

耐电压：

AC 300 V

CONTACT RESISTANCE

接触电阻值：

40m

Ω

Max.

OPERATING TEMPERATURE

工½温度：

-40°C TO +105°C

CONTACT MATERIAL

端子物料：

PHOSPHOR BRONZE

INSULATOR MATERIAL

绝缘½物料

STANDARD

标准物料

: POLYESTER

聚酯

, LCP, UL 94-V0

SOLDERING PROCESS

可焊性

LCP (STANDARD

标准物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

: 250°C for 5-10 sec

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

BC020

BC025

BC030

BC032

BC034

No. of Contacts

02 to 40

Packing Options

C = Tape and Reel with Film (Standard)

B = Tape and Reel with Cap

D = Tube

E = Tube with Cap

F = Tube with Film

Insulator Material

L = LCP (Standard)

Contact Plating

A = Gold Flash All Over

C = Tin All Over

Standard = Gold Flash All Over

Type

1 = B1 Type

2 = B2 Type

Tolerances

(Except as noted)

For bottom entry applications, stringent soldering control & pin alignment

are required as lead to pad misalignment could cause incorrect mating.

Date:-

Part Number:-

Dimensions in mm

X.°± 5°

.X°± 3°

X.X ± 0.25

X.XX ± 0.15

.XX°± 2°

X.XXX ± 0.10 .XXX°± 1°

X. ± 0.30

Third Angle Projection

BC070

Description:-

20 MAY 08

DETAIL

REV

DATE

ASE

DRAWING

RELEASE

20/05/08

AMENDMENT TO PLATING

OPTIONS AND SPEC

21/12/09

1.00mm PITCH SOCKET, SINGLE ROW,

SURFACE MOUNT, VERTICAL, DUAL ENTRY

www.globalconnectortechnology.com

Scale

NTS

Material

See Note

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

Drawn by

ASE

E & OE

Sheet No.

1/1
