1846807783 datasheet, PDF - EEWORLD Datasheet

1846807783: DescriptionBoard Connector, 78 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size331KB，1 Pages; ManufacturerAcmelux Taiwan Inc; Websitehttp://www.acmelux.com

Download Datasheet Parametric View All

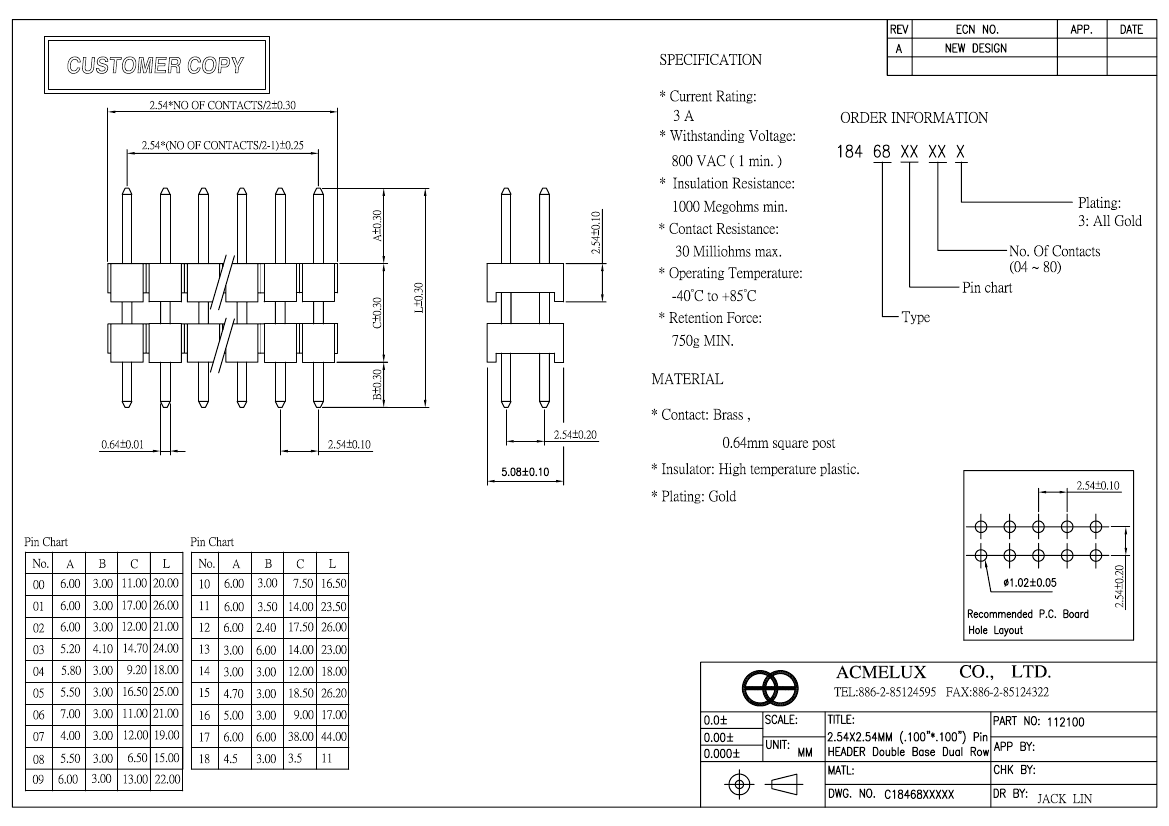

1846807783 Overview

Board Connector, 78 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle

Parameter Name	Attribute value
Is Samacsys	N
Objectid	1166159109
Reach Compliance Code	Unknown
ECCN code	EAR99
Total number of contacts	78
Other features	0.64MM SQUARE POST
Contact to complete cooperation	AU
Contact point gender	MALE
Installation method	STRAIGHT
Rated current (signal)	3 A
Body/casing type	RECEPTACLE
Contact resistance	30 mΩ
insulator material	POLYETHYLENE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Connector type	BOARD CONNECTOR
Terminal pitch	2.54 mm
body length	3.9 inch
Terminal length	0.118 inch
body width	0.2 inch
subject depth	0.472 inch
Contact completed and terminated	GOLD
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Termination type	SOLDER
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Number of connectors	ONE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Dielectric withstand voltage	800VAC V
Filter function	NO
Insulation resistance	1000000000 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
