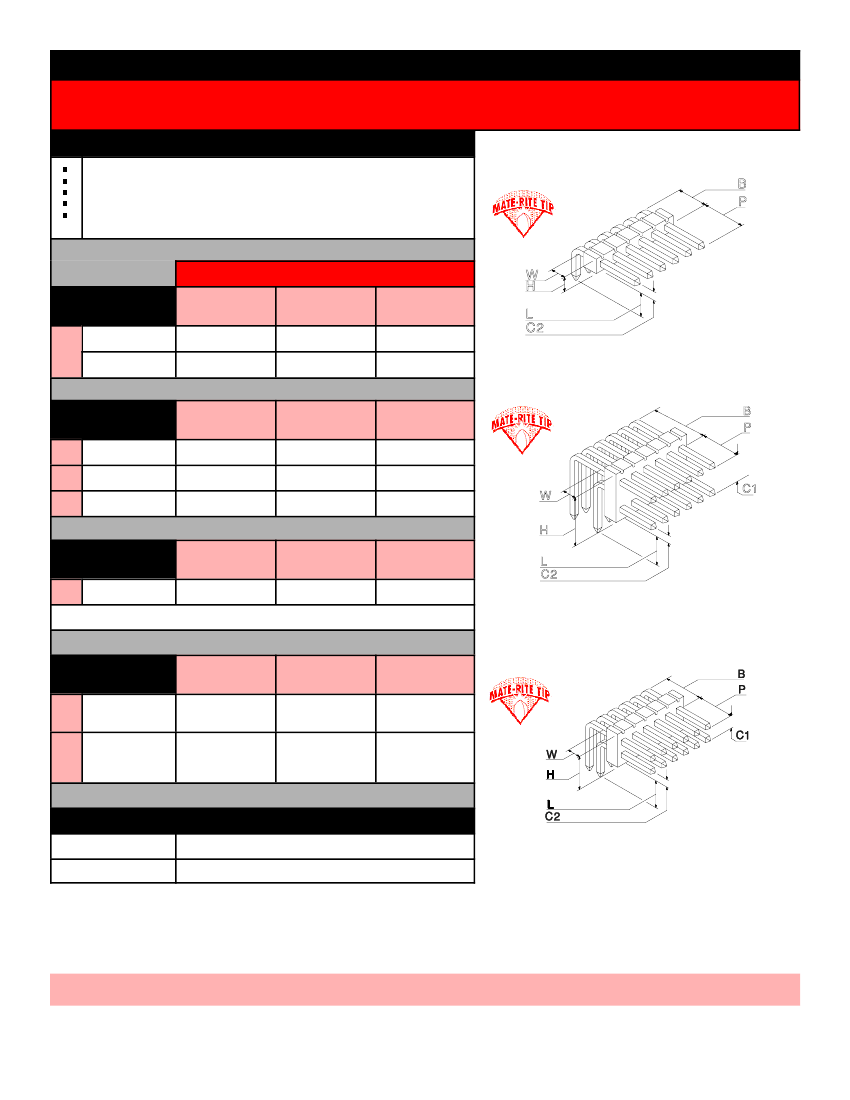

PFF / PFH SERIES
PAGE ONE OF THREE
3,1675,3+($'(5
FEATURES
SINGLE ROW (1 to 60 Positions) PFH
Super low profile for tight applications
Smaller centers allow higher density packaging
Pin tip geometry reduces insertion forces
Custom applications available ... call us!
Mates with Crane’s ATF and AFF Series Sockets
STANDARD PART DIMENSIONS
MATING
Single Row
PFH
0.220" / 5,58mm
0.120" / 3,05mm
Dual Row
PFH
0.220" / 5,58mm
0.120" / 3,05mm
Dual Row
PFF
0.220" / 5,58mm
0.120" / 3,05mm
POST “B”
P
POST “C”
DUAL ROW (2 to 120 Positions) PFH
INSULATOR BODY
Single Row
PFH
0.050" / 1,27mm
0.100" / 2,54mm
N/A
Dual Row
PFH
0.050" / 1,27mm
0.180" / 4,57mm
0.100" / 2,54mm
Dual Row
PFF
0.050" / 1,27mm
0.130" / 3,30mm
0.050" / 1,27mm
W
H
C1
WIDTH
HEIGHT
ROW TO ROW
PC TAIL
Single Row
PFH
0.100" / 2,54mm
Dual Row
PFH
0.100" / 2,54mm
Dual Row
PFF
0.100" / 2,54mm
L
LENGTH
For other lengths, see Selected Options (next page)
DUAL ROW (2 to 120 Positions) - PFF
Dual Row
PFF
POST CENTERLINE
DIMENSIONS
Single Row
PFH
0.050" / 1,27mm
0.100" / 2,54mm
Dual Row
PFH
0.040" / 1,01mm
0.200" / 5,08mm
C2
B
Height Above
PC Board
Post Centerline
To Insulator
Body
0.040" / 1,01mm
0.150" / 3,81mm
MATERIALS
INSULATOR BODY
POST
High Temperature Thermoplastic (UL94V-O)
Phosphor Bronze
See SPECIFICATIONS and PERFORMANCE DATA for more detail
SAMPLE HOTLINE: 1-800-676-7644
CRANE CONNECTORS
• 4700 Smith Road • Cincinnati, Ohio 45212 USA • E-mail Address: info@craneconnectors.com
Phone: (513) 631-4700 • Fax (513) 631-5700 • Toll Free US (800) 676-7644 • Canada (800) 420-7310
PFF / PFH SERIES
0.050" (1,27mm) Centers
0.018" (0,46mm) Square or Round
Mating Posts
PAGE TWO OF THREE
PAGE TWO OF THREE
HOW TO ORDER CRANE’S PFF / PFH SERIES
STANDARD PART NUMBER
--
PRODUCT SERIES
PF
INSULATOR STYLE
050 x 100
050 x 050
SINGLE
DUAL
DUAL
H
H
F
TOTAL NUMBER OF POSITIONS
SINGLE
DUAL
01-60
02-120
NUMBER OF ROWS
SINGLE
DUAL
S
D
TYPE OF HEADER
RIGHT ANGLE
R
PLATING (See Specs Below)
G or T
MATING POST DATAA
Mating Post Length
0.220" / 5,58mm
0.120" / 3,05mm
Min. Gold Plated Area
0.150" / 3,81mm
0.080" / 2,03mm
B
C
TAIL (0.100" / 2,54mm) STANDARD
SQUARE
0.018" / 0,46mm
Q
KINKED
TAIL OPTIONS
ROUNDED
ROUND (WHOLE PIN)*
0.018" / 0,46mm
0.020" / 0,51mm Diagonal
0.018" / 0,46mm Diameter
K
R
D
*NOTE: Minimum order may be necessary.
SAMPLE HOTLINE: 1-800-676-7644
CRANE CONNECTORS
• 4700 Smith Road • Cincinnati, Ohio 45212 USA • E-mail Address: info@craneconnectors.com
Phone: (513) 631-4700 • Fax (513) 631-5700 • Toll Free US (800) 676-7644 • Canada (800) 420-7310
CRANE CONNECTORS - PLATING SPECIFICATIONS
PLATING OPTIONS
CONTACT AREA
Inches (Millimeters)
15
” (0,00038) Gold
100
” (0,00254) Tin / Lead
50
” (0,00127) Gold
30
” (0,00076) Gold
10
” (0,00025) Gold
3
” (0,00008) Gold
PC TAIL
Inches (Millimeters)
100
” (0,00254) Tin/Lead - Min
100
” (0,00254) Tin/Lead - Min
100
” (0,00254) Tin/Lead - Min
100
” (0,00254) Tin/Lead - Min
100
” (0,00254) Tin/Lead - Min
100
” (0,00254) Tin/Lead - Min
UNDERPLATE
Inches (Millimeters)
50
” (0,00127) Nickel - Min.
50
” (0,00127) Nickel - Min.
50
” (0,00127) Nickel - Min.
50
” (0,00127) Nickel - Min.
50
” (0,00127) Nickel - Min.
50
” (0,00127) Nickel - Min.
G
T
M
H
L
F
Selective
Tin / Lead
Selective
Selective
Selective
Selective
ENGINEERING NOTE:
The information presented in this catalog page is accurate to the best of our knowledge.
Due to ongoing efforts to advance design and material performance, the information is
subject to change without notice.
STANDARDS
ISO9001
Crane Connectors
File No. A-3620
Registered by UL to ISO9001
under UL’s accreditation by
Raad voor de Certificatie
(RvC), the Dutch Council for
Certification.
SAMPLE HOTLINE: 1-800-676-7644
CRANE CONNECTORS
• 4700 Smith Road • Cincinnati, Ohio 45212 USA • E-mail Address: info@craneconnectors.com
Phone: (513) 631-4700 • Fax (513) 631-5700 • Toll Free US (800) 676-7644 • Canada (800) 420-7310
