Freescale Semiconductor

Technical Data

MPC7447AEC

Rev. 5, 01/2006

MPC7447A

RISC Microprocessor

Hardware Specifications

This document is primarily concerned with the PowerPC™

MPC7447A; however, unless otherwise noted, all

information here also applies to the MPC7447. The

MPC7447A is an implementation of the PowerPC

microprocessor family of reduced instruction set computer

(RISC) microprocessors. This document describes pertinent

electrical and physical characteristics of the MPC7447A. For

functional characteristics of the processor, refer to the

MPC7450 RISC Microprocessor Family Reference Manual.

To locate any published updates for this document, refer to

the Freescale website located at

http://www.freescale.com.

Contents

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Comparison with the MPC7447, MPC7445, and

MPC7441 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

General Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Electrical and Thermal Characteristics . . . . . . . . . . . . 9

Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Pinout Listings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Package Description . . . . . . . . . . . . . . . . . . . . . . . . . 27

System Design Information . . . . . . . . . . . . . . . . . . . 34

Document Revision History . . . . . . . . . . . . . . . . . . . 52

Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . 52

10.

11.

Overview

The MPC7447A is the fifth implementation of the

fourth-generation (G4) microprocessors from Freescale. The

MPC7447A implements the full PowerPC 32-bit

architecture and is targeted at networking and computing

systems applications. The MPC7447A consists of a

processor core and a 512-Kbyte L2.

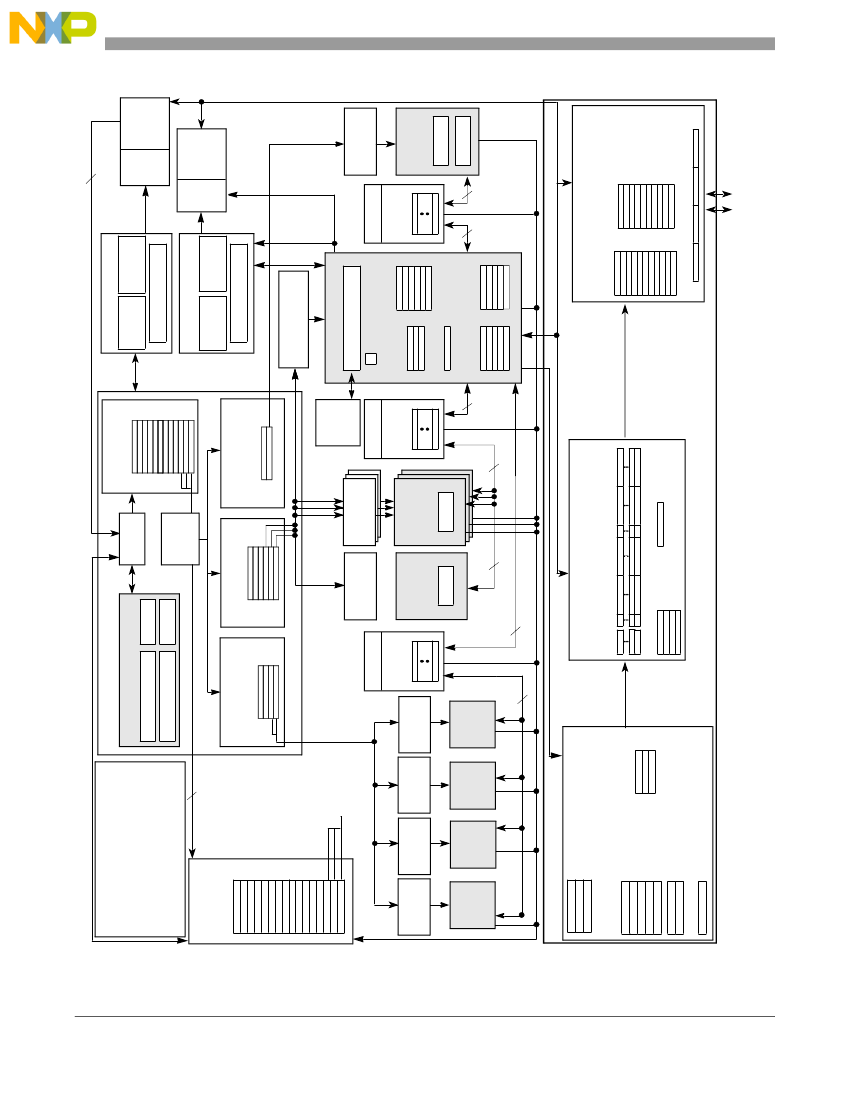

Figure 1

shows a block diagram of the MPC7447A. The core

is a high-performance superscalar design supporting a

double-precision floating-point unit and a SIMD multimedia

unit. The memory storage subsystem supports the MPX bus

protocol and a subset of the 60x bus protocol to main

memory and other system resources.

Features

NOTE

The MPC7447A is a footprint-compatible, drop-in replacement in an

MPC7447 application if the core power supply is 1.3 V.

Features

This section summarizes features of the MPC7447A implementation of the PowerPC architecture.

Major features of the MPC7447A are as follows:

• High-performance, superscalar microprocessor

— Up to four instructions can be fetched from the instruction cache at a time.

— Up to 12 instructions can be in the instruction queue (IQ).

— Up to 16 instructions can be at some stage of execution simultaneously.

— Single-cycle execution for most instructions

— One instruction per clock cycle throughput for most instructions

— Seven-stage pipeline control

• Eleven independent execution units and three register files

— Branch processing unit (BPU) features static and dynamic branch prediction

– 128-entry (32-set, four-way set-associative) branch target instruction cache (BTIC), a cache

of branch instructions that have been encountered in branch/loop code sequences. If a target

instruction is in the BTIC, it is fetched into the instruction queue a cycle sooner than it can

be made available from the instruction cache. Typically, a fetch that hits the BTIC provides

the first four instructions in the target stream.

– 2048-entry branch history table (BHT) with 2 bits per entry for four levels of

prediction—not taken, strongly not taken, taken, and strongly taken

– Up to three outstanding speculative branches

– Branch instructions that do not update the count register (CTR) or link register (LR) are

often removed from the instruction stream.

– Eight-entry link register stack to predict the target address of Branch Conditional to Link

— Four integer units (IUs) that share 32 GPRs for integer operands

– Three identical IUs (IU1a, IU1b, and IU1c) can execute all integer instructions except

multiply, divide, and move to/from special-purpose register instructions.

– IU2 executes miscellaneous instructions including the CR logical operations, integer

multiplication and division instructions, and move to/from special-purpose register

instructions.

— Five-stage FPU and a 32-entry FPR file

– Fully IEEE 754-1985–compliant FPU for both single- and double-precision operations

– Supports non-IEEE mode for time-critical operations

– Hardware support for denormalized numbers

– Thirty-two 64-bit FPRs for single- or double-precision operands

MPC7447A RISC Microprocessor Hardware Specifications, Rev. 5

Freescale Semiconductor

Features

•

— Four vector units and 32-entry vector register file (VRs)

– Vector permute unit (VPU)

– Vector integer unit 1 (VIU1) handles short-latency AltiVec™ integer instructions, such as

vector add instructions (for example,

vaddsbs, vaddshs,

and

vaddsws).

– Vector integer unit 2 (VIU2) handles longer-latency AltiVec integer instructions, such as

vector multiply add instructions (for example,

vmhaddshs, vmhraddshs,

and

vmladduhm).

– Vector floating-point unit (VFPU)

— Three-stage load/store unit (LSU)

– Supports integer, floating-point, and vector instruction load/store traffic

– Four-entry vector touch queue (VTQ) supports all four architected AltiVec data stream

operations

– 3-cycle GPR and AltiVec load latency (byte, half word, word, vector) with 1-cycle

throughput

– 4-cycle FPR load latency (single, double) with 1-cycle throughput

– No additional delay for misaligned access within double-word boundary

– Dedicated adder calculates effective addresses (EAs)

– Supports store gathering

– Performs alignment, normalization, and precision conversion for floating-point data

– Executes cache control and TLB instructions

– Performs alignment, zero padding, and sign extension for integer data

– Supports hits under misses (multiple outstanding misses)

– Supports both big- and little-endian modes, including misaligned little-endian accesses

Three issue queues, FIQ, VIQ, and GIQ, can accept as many as one, two, and three instructions,

respectively, in a cycle. Instruction dispatch requires the following:

— Instructions can only be dispatched from the three lowest IQ entries—IQ0, IQ1, and IQ2.

— A maximum of three instructions can be dispatched to the issue queues per clock cycle.

— Space must be available in the CQ for an instruction to dispatch. (This includes instructions that

are assigned a space in the CQ but not in an issue queue.)

Rename buffers

— 16 GPR rename buffers

— 16 FPR rename buffers

— 16 VR rename buffers

Dispatch unit

— Decode/dispatch stage fully decodes each instruction

Completion unit

— The completion unit retires an instruction from the 16-entry completion queue (CQ) when all

instructions ahead of it have been completed, the instruction has finished execution, and no

exceptions are pending.

MPC7447A RISC Microprocessor Hardware Specifications, Rev. 5

Freescale Semiconductor

Features

•

— Guarantees sequential programming model (precise exception model)

— Monitors all dispatched instructions and retires them in order

— Tracks unresolved branches and flushes instructions after a mispredicted branch

— Retires as many as three instructions per clock cycle

Separate on-chip L1 instruction and data caches (Harvard architecture)

— 32-Kbyte, eight-way set-associative instruction and data caches

— Pseudo least-recently-used (PLRU) replacement algorithm

— 32-byte (eight-word) L1 cache block

— Physically indexed/physical tags

— Cache write-back or write-through operation programmable on a per-page or per-block basis

— Instruction cache can provide four instructions per clock cycle; data cache can provide four

words per clock cycle

— Caches can be disabled in software.

— Caches can be locked in software.

— MESI data cache coherency maintained in hardware

— Separate copy of data cache tags for efficient snooping

— Parity support on cache and tags

— No snooping of instruction cache except for

icbi

instruction

— Data cache supports AltiVec LRU and transient instructions

— Critical double- and/or quad-word forwarding is performed as needed. Critical quad-word

forwarding is used for AltiVec loads and instruction fetches. Other accesses use critical

double-word forwarding.

Level 2 (L2) cache interface

— On-chip, 512-Kbyte, eight-way set-associative unified instruction and data cache

— Fully pipelined to provide 32 bytes per clock cycle to the L1 caches

— A total 9-cycle load latency for an L1 data cache miss that hits in L2

— Cache write-back or write-through operation programmable on a per-page or per-block basis

— 64-byte, two-sectored line size

— Parity support on cache

Separate memory management units (MMUs) for instructions and data

— 52-bit virtual address, 32- or 36-bit physical address

— Address translation for 4-Kbyte pages, variable-sized blocks, and 256-Mbyte segments

— Memory programmable as write-back/write-through, caching-inhibited/caching-allowed, and

memory coherency enforced/memory coherency not enforced on a page or block basis

— Separate IBATs and DBATs (eight each) also defined as SPRs

— Separate instruction and data translation lookaside buffers (TLBs)

– Both TLBs are 128-entry, two-way set-associative, and use an LRU replacement algorithm.

MPC7447A RISC Microprocessor Hardware Specifications, Rev. 5

Freescale Semiconductor

Recommended Resources
