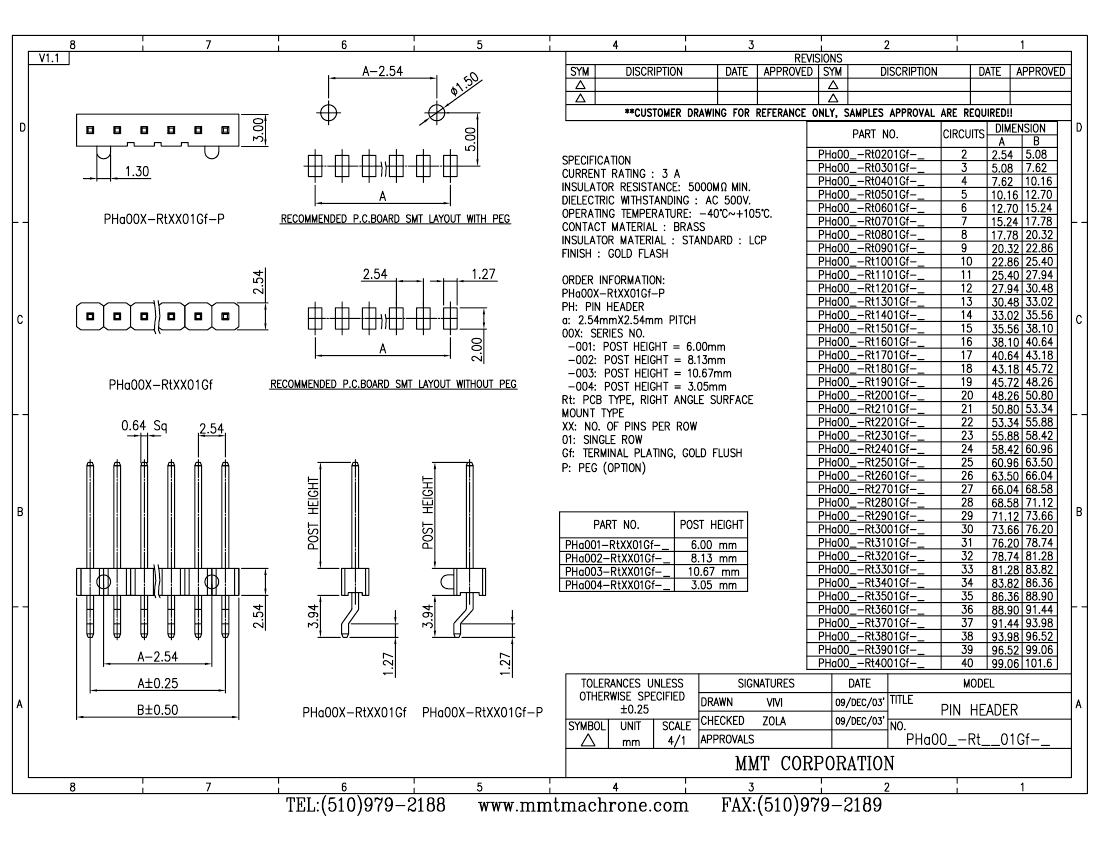

PHA002-RT1101GF-P datasheet, PDF

PHA002-RT1101GF-P: DescriptionBoard Connector, 11 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Receptacle; CategoryThe connector The connector; File Size110KB，1 Pages; ManufacturerMMT Corp; Websitehttp://www.mmtmachrone.com

Download Datasheet Parametric View All

PHA002-RT1101GF-P Overview

Board Connector, 11 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Receptacle

Parameter Name	Attribute value
Plug contact pitch	0.1 inch
Number of connectors	ONE
Plating thickness	FLASH inch
Board mount options	PEG
Contact material	BRASS
Contact style	SQ PIN-SKT
PCB contact pattern	RECTANGULAR
Termination type	SURFACE MOUNT
Contact completed and terminated	GOLD FLASH
contact mode	RECTANGULAR
Mixed contacts	NO
body width	0.118 inch
subject depth	0.1 inch
body length	1.1 inch
Contact to complete cooperation	AU
insulator material	LIQUID CRYSTAL POLYMER
PCB row number	1
Number of rows loaded	1
Rated current (signal)	3 A
Total number of contacts	11
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact point gender	MALE
Installation method	RIGHT ANGLE
Installation type	BOARD
Terminal pitch	2.54 mm
Insulation resistance	5000000000 Ω
Dielectric withstand voltage	500VAC V
Filter function	NO
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Is Samacsys	N
Objectid	304316559
Reach Compliance Code	Unknown
ECCN code	EAR99
