2234R-60G-85 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2234R-60G-85

2234R-60G-85: DescriptionBoard Connector, 60 Contact(s), 3 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Socket,; CategoryThe connector The connector; File Size83KB，1 Pages; ManufacturerNeltron Industrial Company Ltd; Environmental Compliance

Download Datasheet Parametric View All

2234R-60G-85 Overview

Board Connector, 60 Contact(s), 3 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Socket,

2234R-60G-85 Parametric

Parameter Name	Attribute value
JESD-609 code	e4
Guideline	UL
UL Flammability Code	94V-0
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Is it Rohs certified?	Yes
Reach Compliance Code	Compliant
Country Of Origin	Taiwan
Is Samacsys	N
Objectid	145154471715
Terminal length	0.126 inch
body width	0.295 inch
subject depth	0.586 inch
body length	2.01 inch
Contact point gender	FEMALE
Number of rows loaded	3
Terminal pitch	2.54 mm
Total number of contacts	60
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact resistance	20 mΩ
insulator material	POLYBUTYLENE TEREPHTHALATE
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	3
Rated current (signal)	3 A
PCB contact pattern	RECTANGULAR
Contact completed and terminated	Gold (Au)
Contact style	SQ PIN-SKT
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Options	GENERAL PURPOSE
PCB contact row spacing	2.54 mm
Termination type	SOLDER
Contactor design	PREASSEM CONN
contact mode	RECTANGULAR
Number of connectors	ONE
Dielectric withstand voltage	600VAC V
Filter function	NO
Insulation resistance	1000000000 Ω

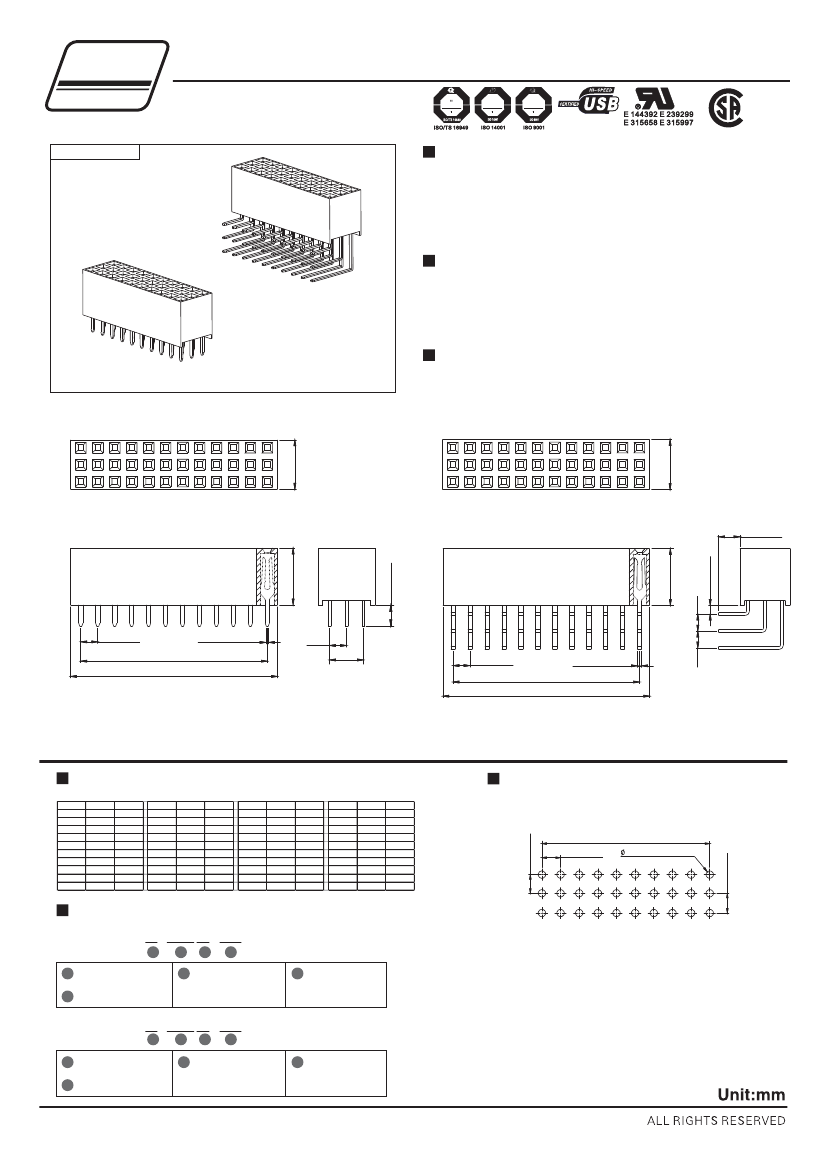

2234R-60G-85 Preview

Neltron

Connectors

RoHS Compliant

2234S(2234R) Series

2.54mm PCB Socket Triple

Rows R/A & Straight Type

(H=8.5)

TUV

SUD

TUV

SUD

TUV

SUD

Specifications

1. Current Rating: 3.0A AC/DC.

2. Voltage Rating: 250V AC/DC.

3. Contact Resistance: 20m ohm. max.

4. Insulation Resistance: 1000M ohm. Min.

5. Withstanding Voltage: 600V AC for one minute.

6. Operating Temperature Range: -40°C to +105°C.

223

4R-

Material and Finish

XXG

-85

223

1. Insulator:

Standard: PBT (UL94V-0);

High Temperature M aterial (UL94V-0) .

2. Contact: Phosphor Bronze.

3 . Plating: Gold Plated .

4S-

XXG

-85

Feature

1. Design for Home Appliances, Aviation Electronics,

Automobile Electronics and Computer(PC) Peripherals.

7.50±0.15

3.20±0.25

8.50±0.15

3.15±0.25

2.54±0.05

Dim.A±0.20

Dim.B±0.30

PIN 0.64X0.40

2.54

5.08

2.54±0.05

Dim.A±0.20

Dim.B±0.30

PIN 0.64X0.40

P/N: 2234S-XXG-85

P/N: 2234R-XXG-85

Engineering Dimension

Circuits

Dim. A

2.54

5.08

7.62

10.16

12.70

15.24

17.78

20.32

22.86

25.40

Dim. B

5.33

7.87

10.41

12.95

15.49

18.03

20.57

23.11

25.65

28.19

Circuits

Dim. A

27.94

30.48

33.02

35.56

38.10

40.64

43.18

45.72

48.26

50.80

Dim. B

30.73

33.27

35.81

38.35

40.89

43.43

45.97

48.51

51.05

53.59

Circuits

Dim. A

53.34

55.88

58.42

60.96

63.50

66.04

68.58

71.12

73.66

76.20

Dim. B

56.13

58.67

61.21

63.75

66.29

68.83

71.37

73.91

76.45

78.99

Circuits

102

105

108

111

114

117

120

Dim. A

78.74

81.28

83.82

86.36

88.90

91.44

93.98

96.52

99.06

Dim. B

81.53

84.07

86.61

89.15

91.69

94.23

96.77

99.31

101.85

Recommended PCB Layout

2.54

±0.05

Dim.A±0.10

2.54

±0.05

2.54±0.05

1.02±0.05 HOLE

Ordering Information

2234S-XXG-85

S: Straight Type

Triple Rows

No. Of Contacts

Insulator Height

85=8.50mm

G:Gold Plated

T:Tin Plated

SG: Selective Gold

2234R-XXG-85

Triple Rows

No. Of Contacts

Insulator Height

85=8.50mm

R: Right Angle Type

G:Gold Plated

T:Tin Plated

SG: Selective Gold

2.54

2017-2026

1.30±0.25

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
