254G1-V03 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 254G1-V03

254G1-V03: DescriptionBoard Connector, 3 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Detent, Receptacle; CategoryThe connector The connector; File Size27KB，2 Pages; ManufacturerSouth Sea Terminal Co., Ltd.

Download Datasheet Parametric View All

254G1-V03 Overview

Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Detent, Receptacle

254G1-V03 Parametric

Parameter Name	Attribute value
Guideline	UL
Reach Compliance Code	Unknown
ECCN code	EAR99
Is Samacsys	N
Objectid	303820529
body width	0.23 inch
subject depth	0.441 inch
body length	0.303 inch
Terminal length	0.138 inch
insulator material	POLYAMIDE
Installation type	BOARD
Terminal pitch	2.54 mm
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact point gender	MALE
PCB row number	1
Number of rows loaded	1
Rated current (signal)	3 A
Total number of contacts	3
Body/casing type	RECEPTACLE
Contact resistance	20 mΩ
Installation method	STRAIGHT
Contact completed and terminated	TIN
Contact material	BRASS
contact mode	RECTANGULAR
Plug contact pitch	0.1 inch
Installation option 1	DETENT
Number of connectors	ONE
PCB contact pattern	RECTANGULAR
Termination type	SOLDER
Contact style	SQ PIN-SKT
Mixed contacts	NO
Dielectric withstand voltage	1000VAC V
Filter function	NO
Insulation resistance	1000000000 Ω
polarization key	POLARIZED HOUSING
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C

Preview

Download Datasheet

View All

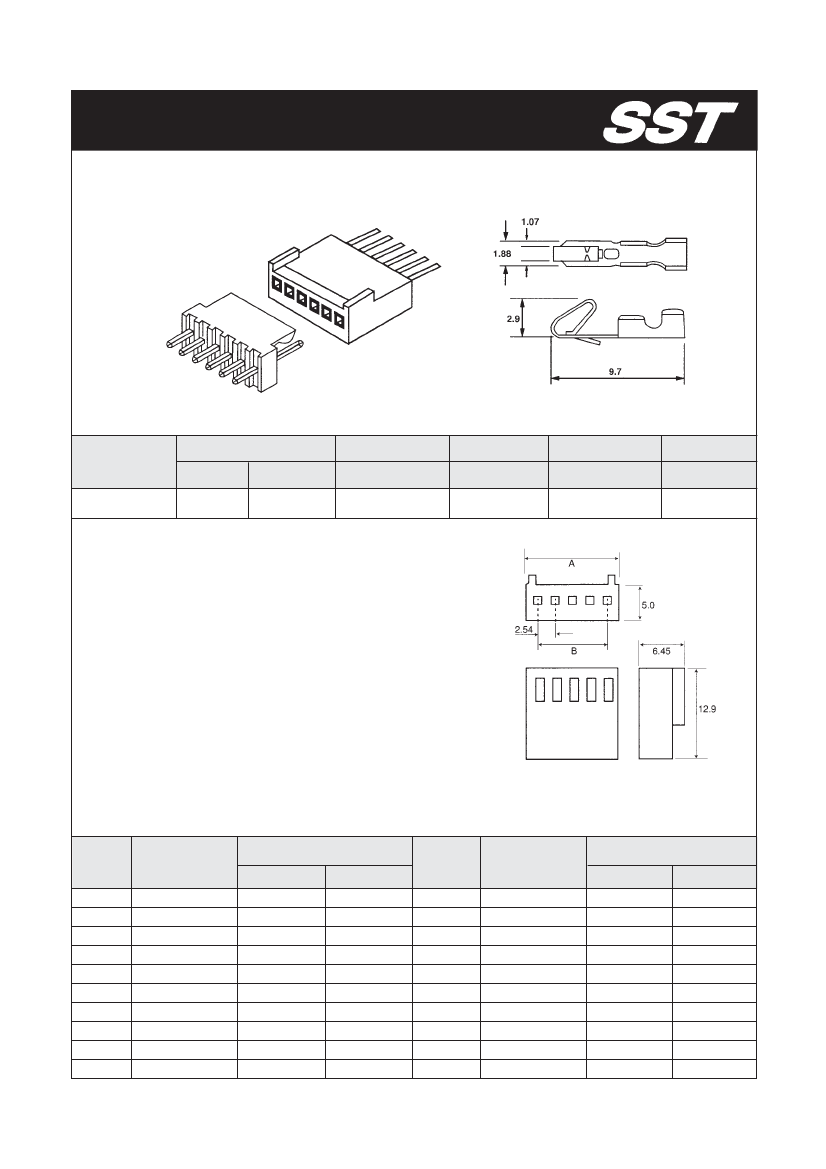

254G1 CONNECTOR SYSTEM

.100” (2.54mm) pitch wire-to-board type

WIRE RANGE

PART NO.

AWG#

254G1-T

22-28

0.33-0.08

MATERIAL/

FINISH

BRASS/TIN

THICKNESS

0.20

INSULATION

O.D.(mm)

1.9-1.2

REEL

PCS

10000

254G1-H SERIES HOUSING

MATERIAL : NYLON 66 UL 94V-2

ACCEPT 254G1-T TERMINAL

MATE WITH 254G1-V(R) HEADER

CURRENT RATING : 3A AC,DC

VOLTAGE RATING : 250V AC,DC

CONTACT RESISTANCE : 20m MAX

INSULATION RESISTANCE : 1000M MIN

WITHSTANDING VOLTAGE : 1000V AC/MINUTE

TEMPERATURE RANGE : -25ºC TO +85ºC

POLES

PART NO.

254G1-H02

254G1-H03

254G1-H04

254G1-H05

254G1-H06

254G1-H07

254G1-H08

254G1-H09

254G1-H10

254G1-H11

DIMENSIONS (mm)

POLES

5.70

8.24

10.78

13.32

15.85

18.40

20.94

24.48

26.02

28.56

2.54

5.08

7.62

10.16

12.70

15.24

17.78

20.32

22.86

25.40

254G1-H12

254G1-H13

254G1-H14

254G1-H15

254G1-H16

254G1-H17

254G1-H18

254G1-H19

254G1-H20

PART NO.

DIMENSIONS (mm)

31.10

34.64

36.18

38.72

41.26

43.80

46.34

48.88

51.42

27.94

30.48

33.02

35.56

38.10

40.64

43.18

45.72

48.26
