展碩電子股½有限公司
CST MASTER ELECTRO CO., LTD.
PRODUCT SPECIFICATION
For CSI-0184-XXXX Series Connector System
1. SCOPE:
This specification contains the test requirement of subject connectors when tested under the condition and
procedure with terminals crimped on the specified maximum size wire
2. APPLICABLE STANDARDS:
MIL - STD - 202
Methods for test of connectors for electronic equipment
MIL - STD - 1344
Test methods for electrical connectors
SS-00254
Test methods for electronic components,LEAD-FREE soldering Part
Design standards
3. APPLICABLE SERIES NO:CSI-0184-XXXX Series

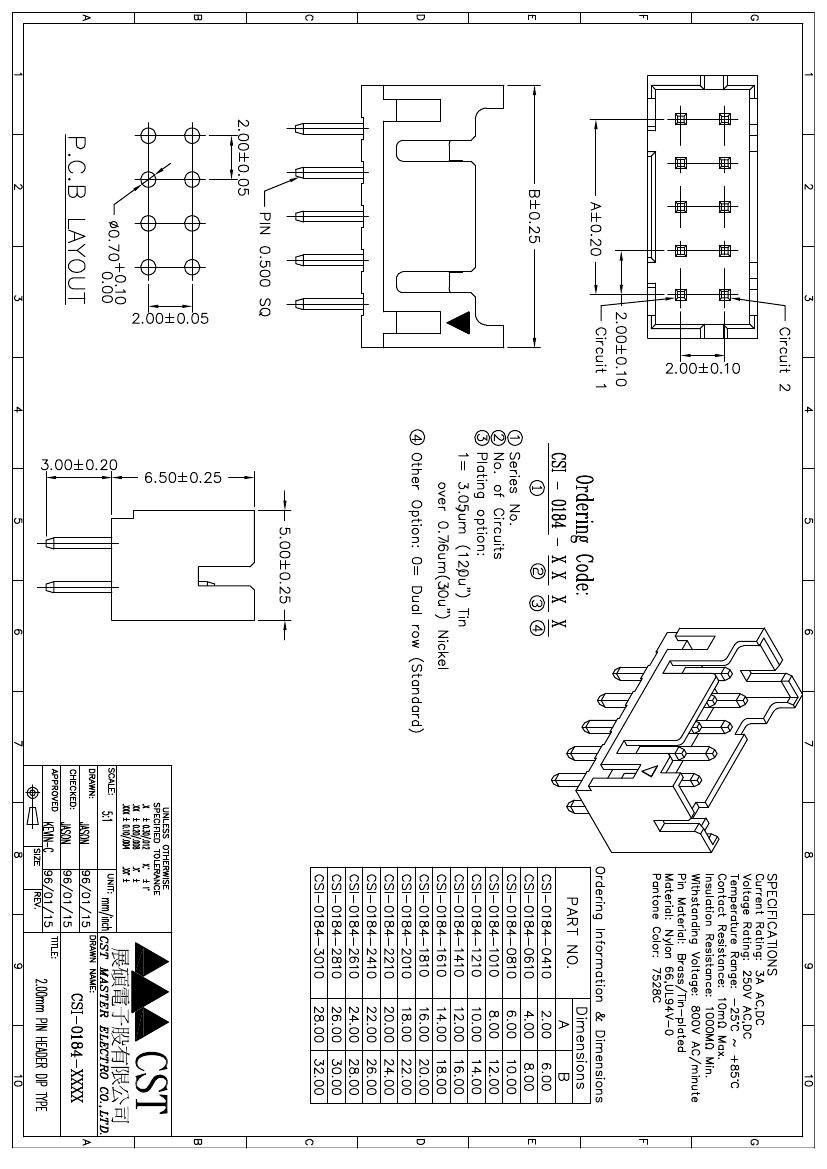

4. SHAPE, CONSTRUCTION AND DIMENSIONS
See attached drawings
5. MATERIALS
See attached drawings
6. ACCOMMODATED P.C.BOARD
6.1 Thickness: 0.8 mm (.031″) ~ 1.6 mm (.063″)
6.2 P.C. Board Layout: See attached drawings
CST MASTER
PAGE:
1/4
REVIEWED :
APPROVED :
VERIFIED :
.
展碩電子股½有限公司
CST MASTER ELECTRO CO., LTD.
PRODUCT SPECIFICATION
For CSI-0184-XXXX Series Connector System
7. ELECTRICAL PERFORMANCE:
ITEM
TEST CONDITION
7.1 Rated current and voltage
7.2 Contact resistance
Dry circuit of DC 20 mV max. , 100 mA
max.
7.3 Dielectric strength
When applied AC 500 V 1 minute between
adjacent terminal
7.4 Insulation resistance
When applied DC 500 V between adjacent
terminal or ground
CST MASTER
PAGE:
2/4
REQUIREMENT
3A 250V AC (r.m.s.)
Less than 20 mΩ
No change
More than 1000 MΩ
8. MECHANICAL PERFORMANCE:
ITEM
8.1 Wire size
8.2 Terminal crimp Tensile
strength
TEST CONDITION
Specified wire size
REQUIREMENT
Accepts AWG#22~#28
More than 5.0 Kgf
More than 3.0 Kgf
More than 2.0 Kgf
More than 1.3 Kgf
Less than 600 gram
More than 1.5 Kgf
400 gram max.
100 gram min.
When crimped AWG#22 size wire
When crimped AWG#24 size wire
When crimped AWG#26 size wire
When crimped AWG#28 size wire
Insertion speed 25± 3 mm per minute into
housing
8.4 Contact retaining force in Retention speed 25± 3 mm per minute from
insulator
housing
8.5 Single contact insertion
Measure force to insertion using 0.50 mm
force
square pin at speed 25± 3 mm per minute
8.6 Single contact
withdrawal force
8.7 Durability
8.8 Pin retention force
Measure force to withdrawal using 0.50 mm
square pin at speed 25± 3 mm per minute
8.3 Terminal insertion force
Connector shall be subjected to 100 cycles of Contact resistance:
insertion and withdrawal
Less than twice of initial
Push pin from insulator base at speed
25± 3 mm per minute
More than 1.0 Kgf
9. ENVIRONMENTAL PERFORMANCE:
ITEM
9.1 Temperature rise
9.2 Vibration
TEST CONDITION
Then carried the rated current
REQUIREMENT
30°C max.
Appearance: No damage
Discontinuity:
1 micro second max.
1.5 mm 10-55-10 HZ / minute each
2 hours for X , Y and Z directions
展碩電子股½有限公司
CST MASTER ELECTRO CO., LTD.
PRODUCT SPECIFICATION
For CSI-0184-XXXX Series Connector System
CST MASTER
PAGE:
3/4
ITEM
9.3 Solder ability
TEST CONDITION
Tin-Lead Process:
Soldering time: 5
±
0.5 second
Soldering pot: 230
±
5°C
Lead-Free Process:
REQUIREMENT
Minimum:
90% of immersed area
Soldering time: 3
±
0.5 second
Soldering pot: 245
±
5°C
9.4 Resistance to soldering
heat
Tin-Lead Process:
No damage
Soldering time: 5
±
0.5 second
Soldering pot: 240
±
5°C
Lead-Free Process
Soldering time: 5
±
0.5 second
Soldering pot: 260
±
5°C
9.5 Heat aging
9.6 Humidity
85
±
2°C , 96 hours
No damage
Appearance: No damage
Contact resistance:
Less than twice of initial
Dielectric strength:
To pass para 7-3
Appearance: No damage
Contact resistance:
Less than twice of initial
40
±
2°C , 90-95% RH , 96 hours
measurement must be taken within 30 min.
after tested
9.7 Temperature cycling
One cycle consists of :
(1)-55
+0
°C
, 30 min.
-3
9.8 Salt spray
(2)Room temp. 10-15 min.
(3) 85
+3
°C
, 30 min.
-0
(4)Room temp. 10-15 min.
Temperature: 35
±
3°C
Solution: 5
±
1%
Spray time: 48
±
4 hours
Measurement must be taken after water
rinse
Appearance: No damage
Contact resistance:
Less than twice of initial
10. AMBIENT TEMPERATURE RANGE: -25 to + 85°C
展碩電子股½有限公司
CST MASTER ELECTRO CO., LTD.
PRODUCT SPECIFICATION
For CSI-0184-XXXX Series Connector System
11.Mating and Unmating Force:
CST MASTER
0.48
0.64
0.80
0.96
1.12
1.28
1.44
1.60
1.76
1.92
2.08
2.24
2.4
2.56
PAGE:
4/4
PIN No.
6
8
10
12
14
16
18
20
22
24
26
28
30
32
Mating(kgf max.) Unmating(kfg min.)
1.8
2.4
3.0
3.6
4.2
4.8
5.4
6.0
6.6
7.2
7.8
8.4
9.0
9.6
