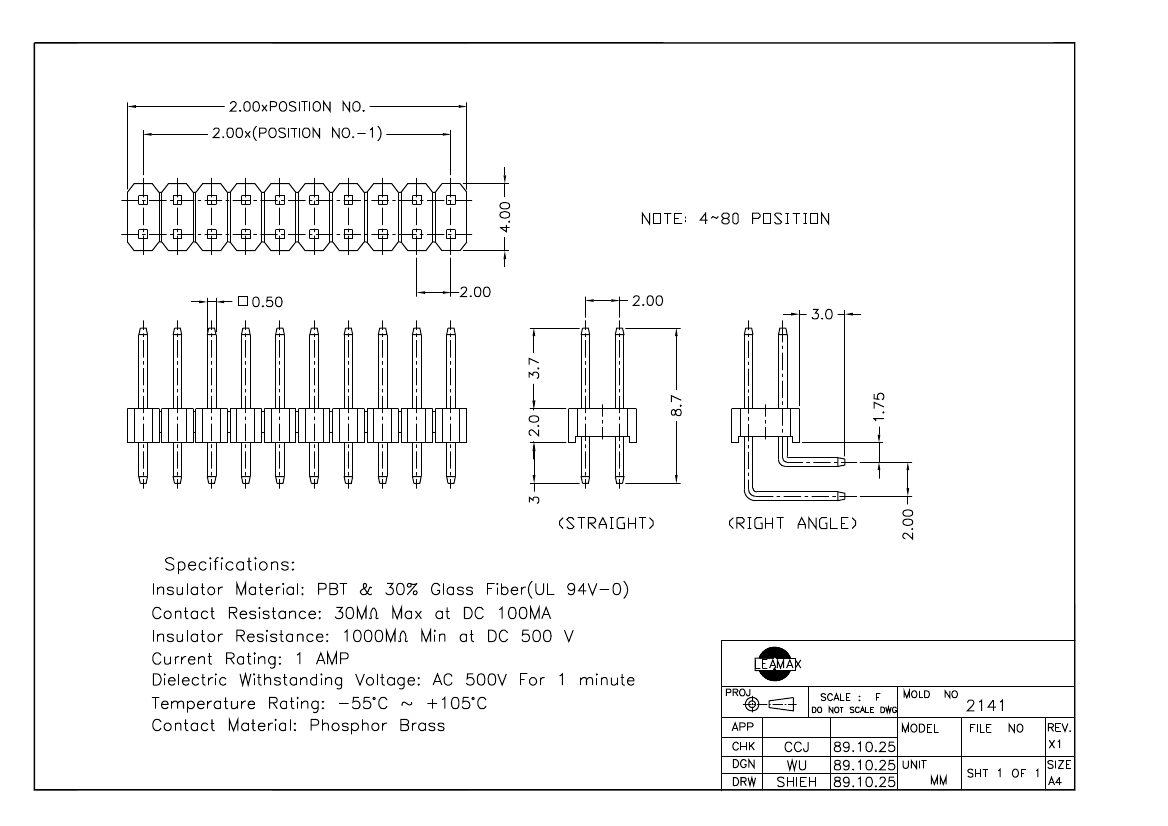

2141-D2X40-G-S

Description
Board Connector, 80 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Receptacle
CategoryThe connector    The connector
File Size50KB,1 Pages
ManufacturerLeamax Enterprise Co., Ltd.
Download Datasheet Parametric View All

2141-D2X40-G-S Overview

Board Connector, 80 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Receptacle

2141-D2X40-G-S Parametric

Parameter NameAttribute value
PCB contact patternRECTANGULAR
Termination typeSOLDER
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
PCB contact row spacing2.0066 mm
Contact completed and terminatedGOLD
Contact materialPHOSPHORUS-BRASS
Mixed contactsNO
Number of connectorsONE
Dielectric withstand voltage500VAC V
Filter functionNO
Insulation resistance1000000000 Ω
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
GuidelineUL
Is SamacsysN
Objectid303845360
Reach Compliance CodeUnknown
ECCN codeEAR99
Body/casing typeRECEPTACLE
Contact point genderMALE
PCB row number2
Other featuresNONE
Connector typeBOARD CONNECTOR
insulator materialGLASS FILLED POLYBUTYLENE TEREPHTHALATE
Rated current (signal)1 A
Contact resistance30 mΩ
Terminal pitch2.0066 mm
Total number of contacts80
Contact to complete cooperationAU
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded2
Terminal length0.118 inch
body width0.157 inch
subject depth0.079 inch
body length3.15 inch
LEAMAX ENTERPRISE CO., LED.
