2142A2-1X02-R-D3-L1 datasheet, PDF

2142A2-1X02-R-D3-L1: DescriptionBoard Connector, 2 Contact(s), 1 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size58KB，1 Pages; ManufacturerLeamax Enterprise Co., Ltd.

Download Datasheet Parametric View All

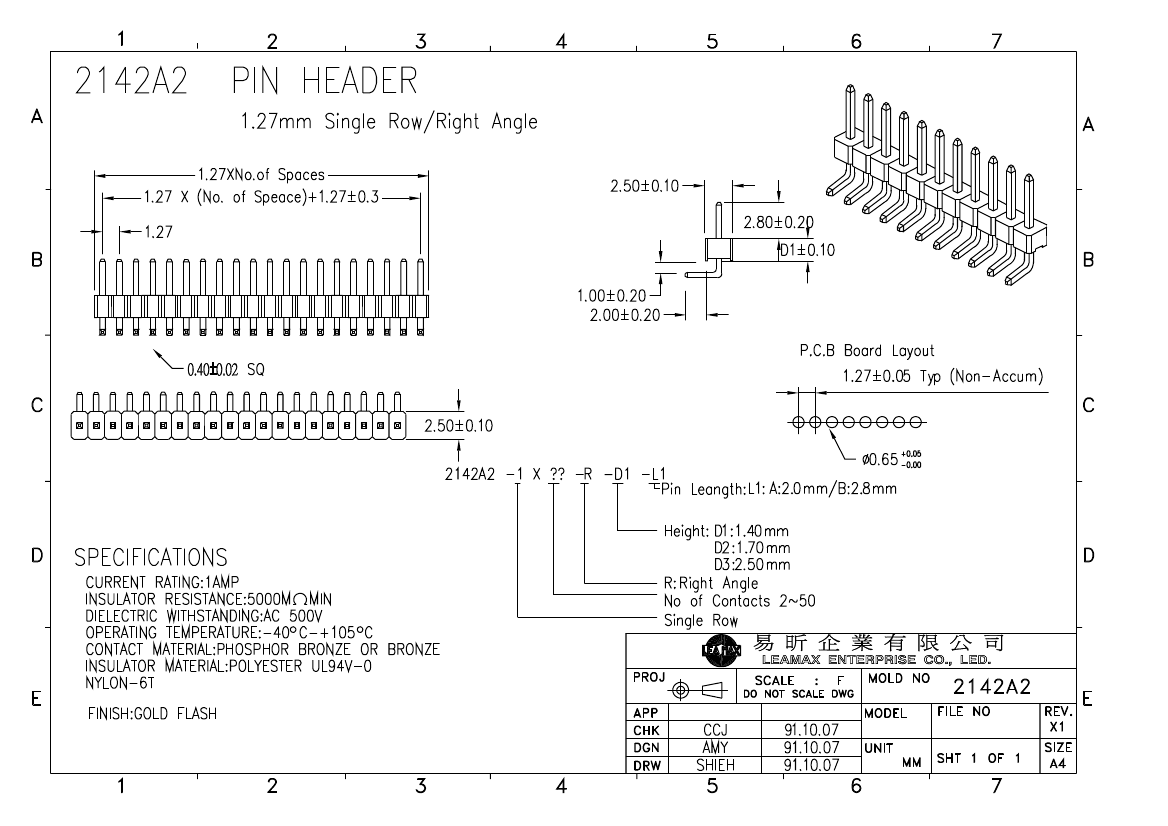

2142A2-1X02-R-D3-L1 Overview

Board Connector, 2 Contact(s), 1 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Receptacle

Parameter Name	Attribute value
Guideline	UL
Objectid	303812518
Reach Compliance Code	Unknown
ECCN code	EAR99
Is Samacsys	N
Number of rows loaded	1
Terminal pitch	1.27 mm
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Installation type	BOARD
PCB row number	1
Installation method	RIGHT ANGLE
Rated current (signal)	1 A
Total number of contacts	2
Other features	PIN LENGTH=2.8MM
Body/casing type	RECEPTACLE
Contact point gender	MALE
insulator material	POLYESTER
body width	0.098 inch
subject depth	0.146 inch
body length	0.1 inch
Terminal length	0.079 inch
Contact material	PHOSPHOR BRONZE
Plug contact pitch	0.05 inch
Mixed contacts	NO
PCB contact pattern	RECTANGULAR
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Number of connectors	ONE
Plating thickness	FLASH inch
Termination type	SOLDER
Dielectric withstand voltage	500VAC V
Filter function	NO
Insulation resistance	5000000000 Ω
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
