DBCPHC2205AG1 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> DBCPHC2205AG1

Preview

DBCPHC2205AG1: DescriptionBoard Connector, 15 Contact(s), 3 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size132KB，1 Pages; ManufacturerDUBILIER; Websitehttp://www.dubilier.co.uk/; Environmental Compliance

Download Datasheet Parametric View All

DBCPHC2205AG1 Overview

Board Connector, 15 Contact(s), 3 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle

DBCPHC2205AG1 Parametric

Parameter Name	Attribute value
subject depth	0.374 inch
body length	0.5 inch
Terminal length	0.118 inch
body width	0.295 inch
Connector type	BOARD CONNECTOR
Contact point gender	MALE
Contact resistance	30 mΩ
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
PCB row number	3
Terminal pitch	2.54 mm
Total number of contacts	15
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	3
Rated current (signal)	1 A
Plating thickness	FLASH inch
Contact completed and terminated	GOLD
Match contact row spacing	0.1 inch
Mixed contacts	NO
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Number of connectors	ONE
Termination type	SOLDER
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Insulator color	BLACK
Plug contact pitch	0.1 inch
Dielectric withstand voltage	500VAC V
Filter function	NO
Insulation resistance	1000000000 Ω
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Guideline	UL
Is it Rohs certified?	Yes
YTEOL	0
Objectid	304359701
Reach Compliance Code	Unknown
ECCN code	EAR99
Is Samacsys	N

Preview

Download Datasheet

View All

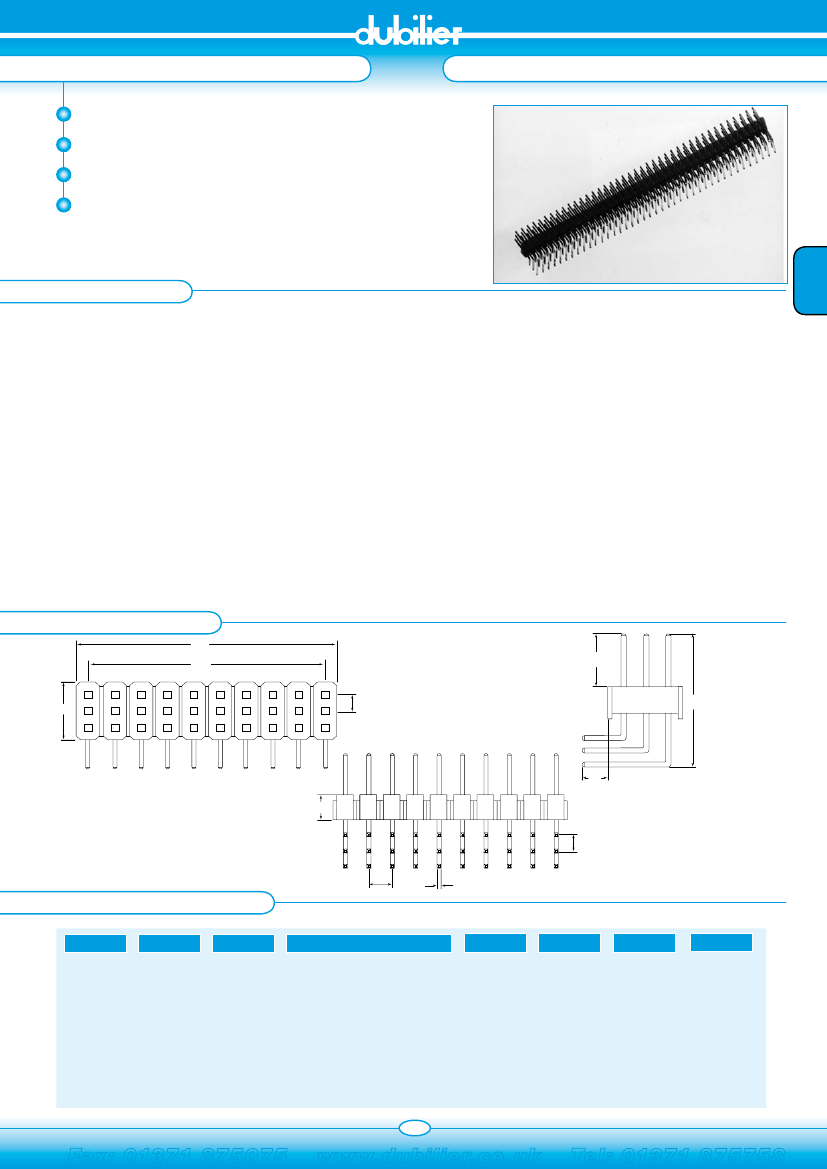

PIN HEADERS

Industry compatible

Competitively priced

Various plated contacts available

2.54mm pitch

TRIPLE ROW RIGHT ANGLE

SECTION 8

SPECIFICATION

Material & Finish

Contact Material:

Insulator Material:

Current Rating:

Brass

PBT & Glass-Fibre Reinforced UL94V-0

1 A DC

A

Contact Resistance:

7.5

Insulator Resistance:

Dielectric Withstanding

7.5 7.5

Voltage:

B B

1000M Ω Min at 500V DC

B

30M Ω Max at 6V DC 0.3A

A A

2.54

2.542.54

500V AC for One Minute

-40°C to + 105°C

Operating Temperature:

A

B

7.5

E

mm

E

2.54

G

mm

G

OUTLINE DRAWING

2.54

7.5

2.542.54

2.54

2.542.54

0.64

0.640.64

A

B

mm mm

2.54

2.542.54

F

mm

F

6

E

G

15.5

G G

F

E

mm

mm mm

E

mm mm

2.54

E

mm

E

3

F

A = 2.54 x N° of Positions

B = (2.54 x N° of Positions) -1

2.54

G

F

mm

F

2.54

ORDERING INFORMATION

DBC

Dubilier

2.54

Connectors

2.54

0.64

F

For other dimension variations please consult office

mm

PH

Pin Header

0.64

Connector

C22

Series

06

Nº of Ways

02=2x3way

Thro to

40=40x3way

mm

F

Contact Material Contact Plating

A=Brass

G= Gold Flash

S=Selective

T=Tin Plated

other plating

Available

A

G

1

Colour

1=Black

-XXX

Unique Special

Code

*See Below

*Dubilier will allocate a special code to

distinguish pin lengths if required

175

Fax: 01371 875075

www.dubilier.co.uk

Tel: 01371 875758
