DBCRJS1012: DescriptionTelecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size91KB，1 Pages; ManufacturerDUBILIER; Websitehttp://www.dubilier.co.uk/; Environmental Compliance

Download Datasheet Parametric View All

DBCRJS1012 Overview

Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle

DBCRJS1012 Parametric

Parameter Name	Attribute value
Guideline	UL
Is it Rohs certified?	Yes
YTEOL	0
Objectid	304365482
Reach Compliance Code	Unknown
ECCN code	EAR99
Is Samacsys	N
Termination type	SOLDER
Board mount options	SPLIT BOARD LOCK
Contact material	PHOSPHOR BRONZE
Contact style	TELCOM, MODULAR
Installation option 1	LOCKING
PCB contact pattern	STAGGERED
Plating thickness	6u inch
body width	0.53 inch
body length	0.626 inch
Terminal length	0.103 inch
insulator material	POLYETHYLENE
Rated current (signal)	3 A
Terminal pitch	2.032 mm
Total number of contacts	8
Contact to complete cooperation	AU ON NI
Connector type	TELECOM AND DATACOM CONNECTOR
Contact point gender	MALE
Contact resistance	30 mΩ
Installation method	RIGHT ANGLE
Installation type	BOARD
Body/casing type	RECEPTACLE
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
Number of ports	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C

Preview

Download Datasheet

View All

NETWORKING SOCKETS

LEDs within socket

Shielded and Unshielded RJ45 available

Bi Colours available

Wide range of colours

LED LIGHT JACKS

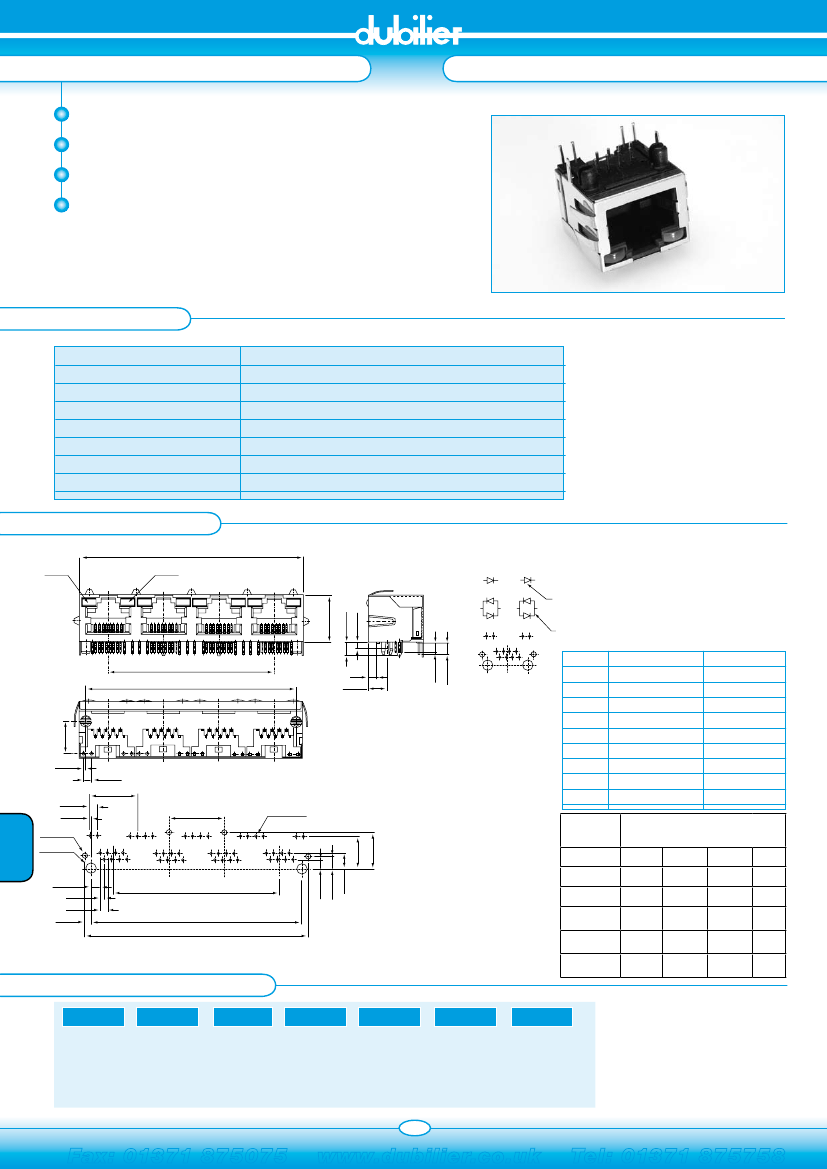

SPECIFICATION

Current Rating

Contact Resistance

Dielectric withstanding Voltage

Insulation Resistance

Plating

Housing

Contact

Operating Temperature

30mΩ max at DC 100mA

AC 500V for 1 minute

1000mΩ min at DC 500V

Gold plating over Nickel Tin plate over nickel in solder area

Thermoplastic (UL94V-0)

0.35mm Phosphor Bronze

-55˚C to +105˚C

OUTLINE DRAWING

A±0.25

LED2

LED1

TYPICAL FOR SINGLE

COLOR LED

(RED, GREEN, YELLOW)

3.68

1.70

13.46±0.25

TYPICAL FOR

BI-COLOUR LED

2.62

5.46

3.20

C±0.15

LED SCHEMATIC

0.51

2.29

13.72

2.29

0.51

4-Ø1.57

3-Ø3.25

2.78

1.02

2.04

1.78

10 9

9.14

CODE

No of

Positions

LED2 (Left)

NO LED

YELLOW

NO LED

GREEN

YELLOW

YELLOW/GREEN

GREEN/RED

YELLOW/GREEN

LED1 (Right)

NO LED

GREEN

YELLOW

GREEN

YELLOW

YELLOW/GREEN

GREEN/RED

YELLOW

9.14

15.75

48-Ø0.89

3.43

2.54

4.32

SECTION 16

Dimensions

15.75

47.25

78.75

110.25

12.70

28.45

59.94

91.45

122.94

2.25

2.37

10.16

15.91

31.66

63.16

94.66

126.16

ORDERING INFORMATION

DBC

Dubilier

Connectors

Series

Contact Type

S = Socket

No. of Ports

1 =1 port

2 = 2 ports

4 = 4 ports

8 = 8 ports

LED Colour

See table above

Contact Plating

1 = 6µ"

2 = 50µ"

Shielding

1 = Unshielded

2 = Shielded

358

Fax: 01371 875075

www.dubilier.co.uk

Tel: 01371 875758
