2064-28-01-P5 datasheet, PDF - EEWORLD Datasheet

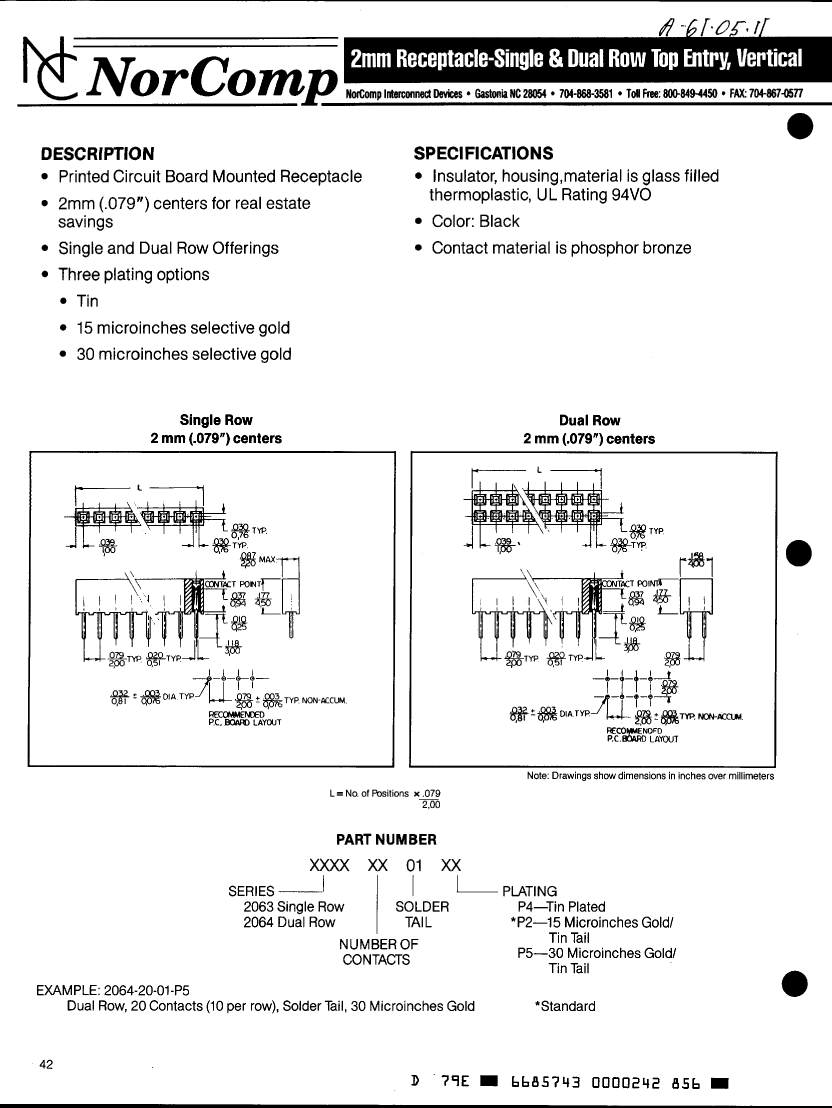

2064-28-01-P5: DescriptionBoard Connector, 28 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Plug; CategoryThe connector The connector; File Size76KB，1 Pages; ManufacturerEDAC

Download Datasheet Parametric View All

2064-28-01-P5 Overview

Board Connector, 28 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Plug

Parameter Name	Attribute value
body width	0.158 inch
subject depth	0.177 inch
body length	2.212 inch
Terminal length	0.118 inch
Body/casing type	PLUG
Installation type	BOARD
Number of rows loaded	2
Terminal pitch	2.0066 mm
Installation method	STRAIGHT
PCB row number	2
Total number of contacts	28
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
insulator material	GLASS FILLED POLYETHYLENE
Mixed contacts	NO
Number of connectors	ONE
Plating thickness	30u inch
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Insulator color	BLACK
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Termination type	SOLDER
Contact style	SQ PIN-SKT
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Filter function	NO
Guideline	UL
Objectid	301193247
Reach Compliance Code	Compliant
ECCN code	EAR99
Is Samacsys	N
