09185166904 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 09185166904

Preview

09185166904: Descriptionheaders & wire housings 16p male strt idc long levers; CategoryThe connector The connector; File Size113KB，1 Pages; ManufacturerHARTING; Environmental Compliance

Download Datasheet Parametric View All

09185166904 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	09185166904	-	-	View	Buy Now

09185166904 Overview

headers & wire housings 16p male strt idc long levers

09185166904 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	HARTING
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Confidence	4
Samacsys Status	Released
Samacsys PartID	239658
Samacsys Pin Count	18
Samacsys Part Category	Connector
Samacsys Package Category	Other
Samacsys Footprint Name	09185166904-2
Samacsys Released Date	2019-12-09 17:03:42
Is Samacsys	N
Other features	STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED
Board mount options	HOLE .099-.111
body width	0.331 inch
subject depth	0.681 inch
body length	2.087 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BEIGE
insulator material	POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LATCH & EJECT
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	CTR W/GUIDE SLOTS
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.114 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	16
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

SEK

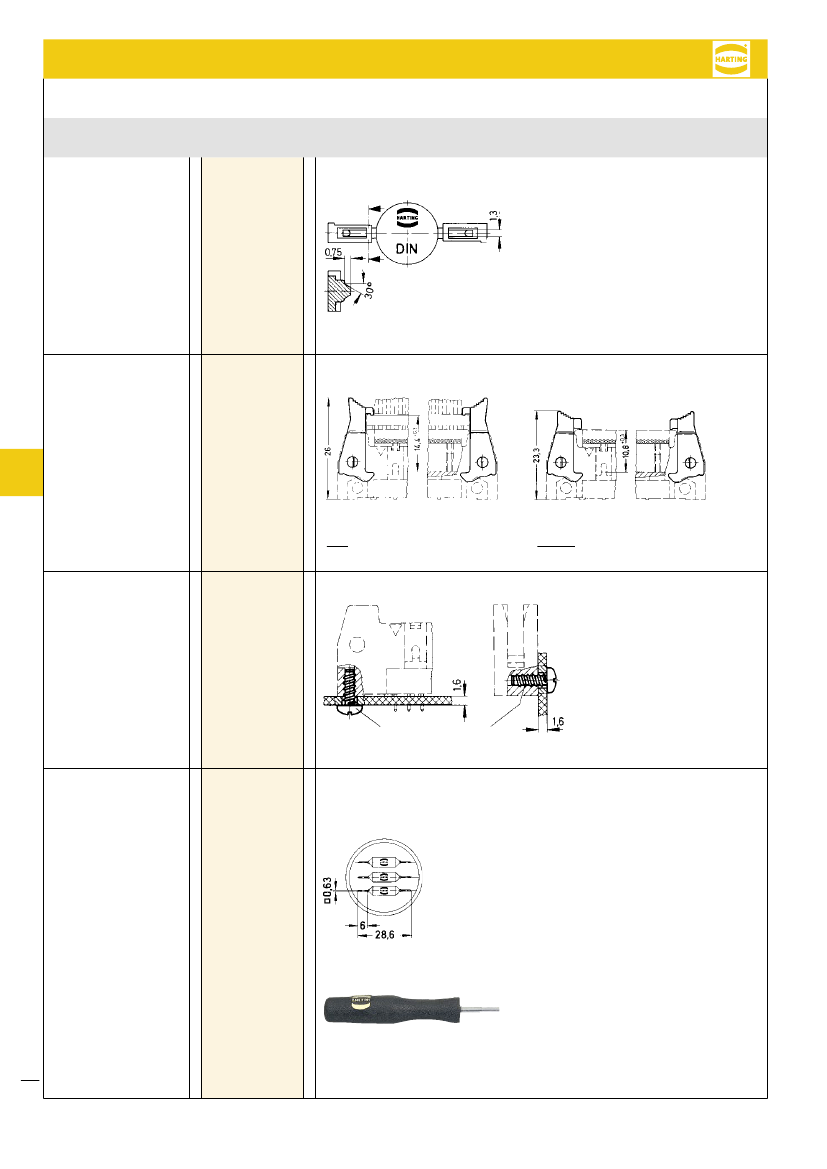

IEC 60 603-13

Accessories

Identification

Part number

Drawing

Dimensions in mm

Polarization key

09 18 500 9902

1)

Part number comprises

2 keys

(snaps into place, can

be fitted whenever

required)

Locking lever

Long

Long:

09 19 000 9903

2)

Short

SEK

Short:

09 19 000 9904

2)

Order 2 per

male header

for 1.6 mm P.C. board

For use with female connector

with strain relief clamp

For use with female connector

without strain relief clamp

Fixing screws

For connectors with part numbers

09 18 5xx x9xx: screwing torque

0.2 Nm

09 19 5xx x9xx: screwing torque

0.4 – 0.5 Nm

09 18 000 9906

3)

Screw material: Steel (Inox A2)

BZ 2.9x6.5

(DIN 7981 or DIN 7049)

3)

Part number comprises

50 pieces

Plating:

Nickel

Coding system with

loss of contact

Code pin

09 18 000 9901

4)

To avoid cross-plugging adjacent connectors a coding system is required.

A code pin is inserted into the appropriate cavity in the female connector.

The corresponding male contact is removed by a special removal tool.

Removal tool

for

male contacts

09 99 000 0133

08

48

4)

Part number comprises

6 code pins
