RJ45 OVER USB W/ 6 PNL-GND & HTD G/F
| Parameter Name | Attribute value |
| Modular socket and plug interface types | RJ45 with single USB |
| Modular socket and plug products | Combination socket |
| Connector type | socket |
| Grounding options | Panel ground |
| Connector System | cable to board |
| Sealable | no |
| Connectors and terminals terminate to | A printed circuit board |
| Connector and connector component types | Connector |
| Number of ports | 1 |
| Port matrix configuration | 2 x 1 |
| Port configuration | single port |
| Status Indicator | none |
| Connector terminal density | standard |
| PCB mounting direction | right angle |
| Number of Positions | 4, 8 |
| Number of loading locations | 4, 8 |
| shape | standard |
| Modular socket pin orientation | Reverse - Latching |
| shielding material | brass |
| Shield plating materials | nickel |
| Shell plating material | nickel |
| Terminal base material | nickel |
| Terminal base material | Phosphor bronze |
| Contact Current Rating (Max) (A) | 1, 1.5 |
| PCB terminal termination area plating materials | gold plated |
| PCB Termination Methods | Through Hole - Solder |
| Connector mounting type | board mounting |
| Shell color | black |
| Shell material | PBT GF30 |
| Centerline (Pitch) (mm) | 1.02, 2, 2.5 |
| Centerline (Pitch) (in) | .04, .07, .09 |
| PCB thickness (recommended) | 1.6 mm [ .063 in ] |
| Working group temperature range (°C) | -55 – 85, -40 – 85 |
| Unit Temperature Range (°F) | -67 – 185, -40 – 185 |
| shield | yes |
| Circuit Application | Signal |
| UL flame retardant rating | UL 94V-0 |
| performance category | Category 3 |
| Package quantity | 50 |

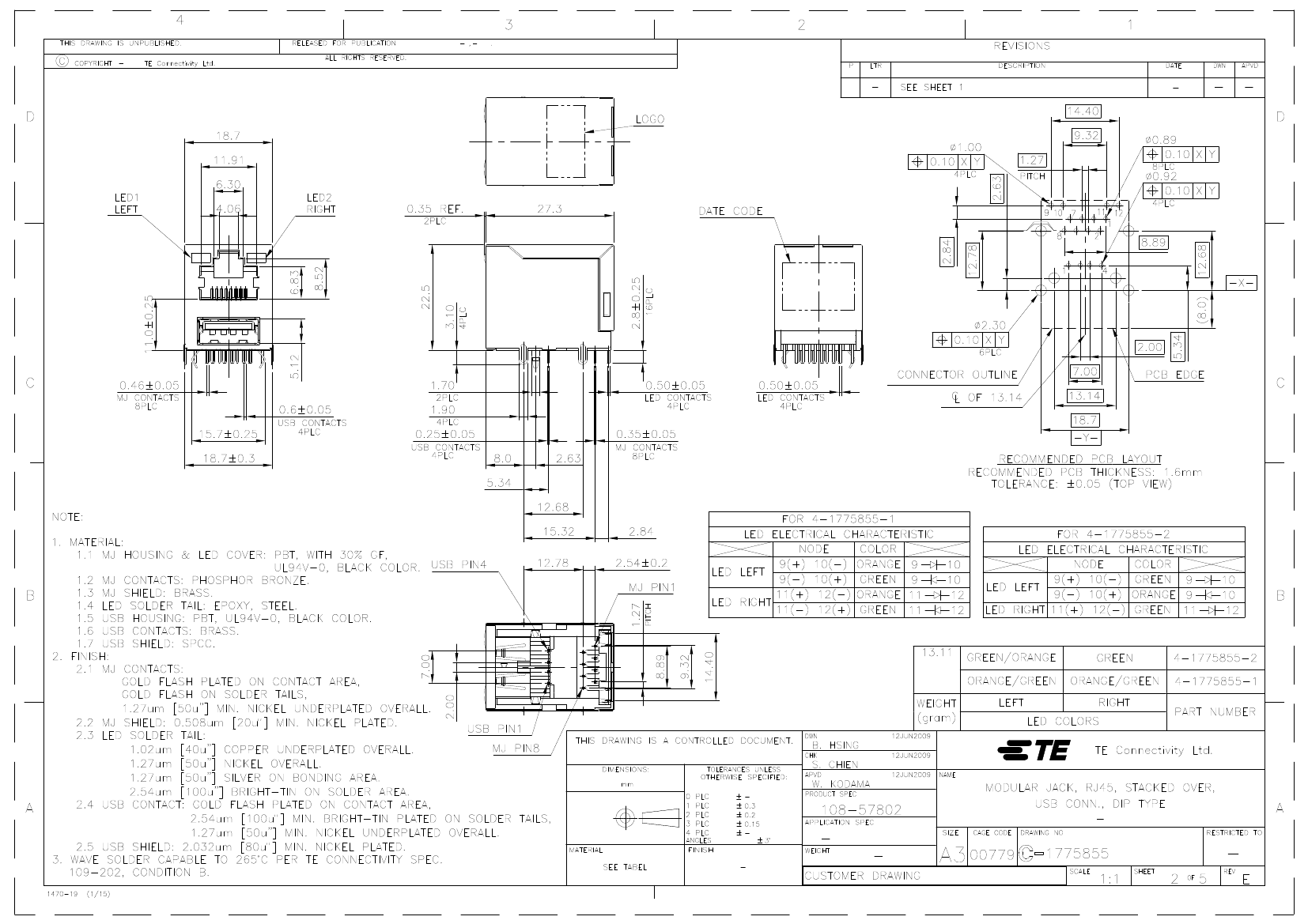

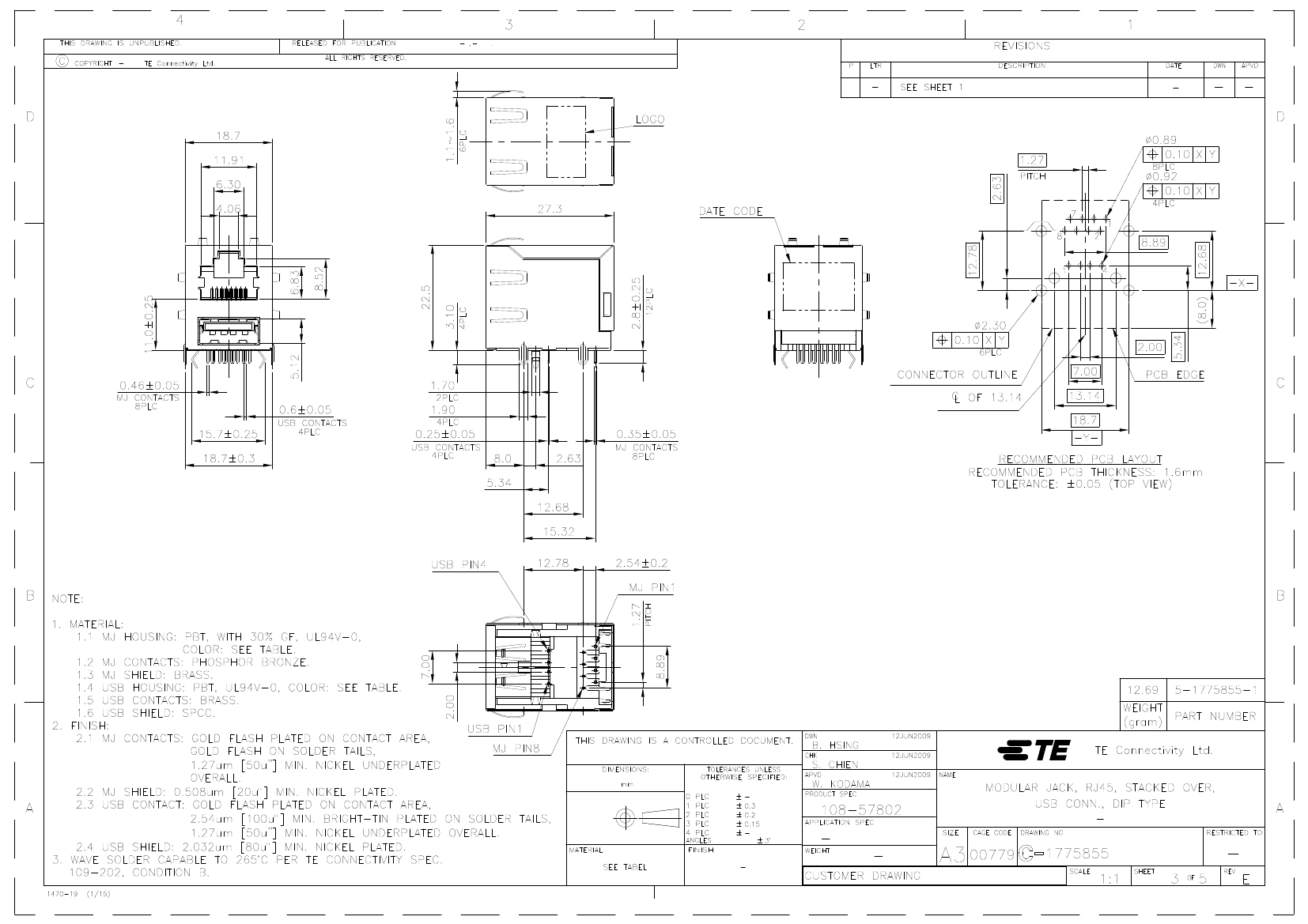

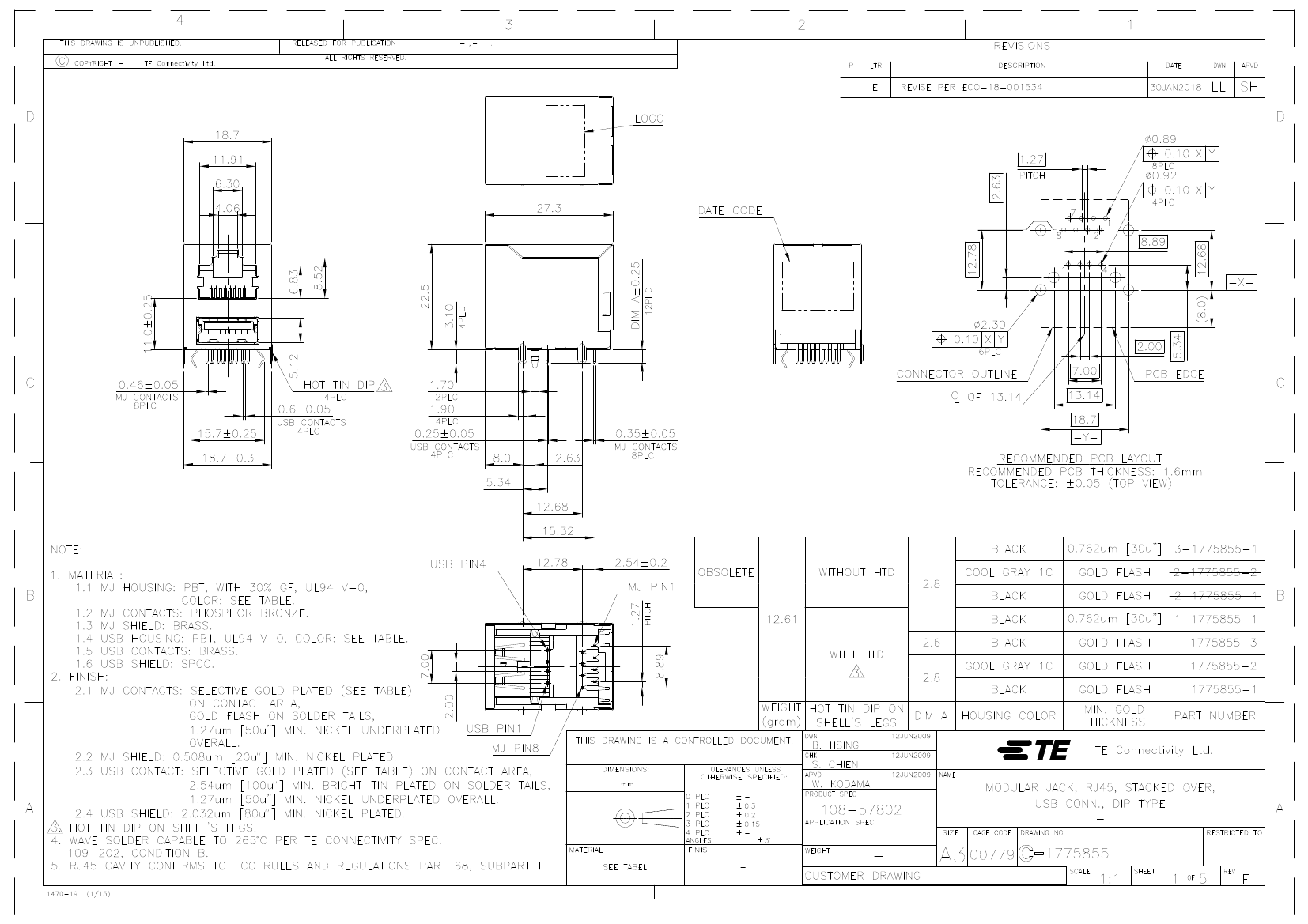

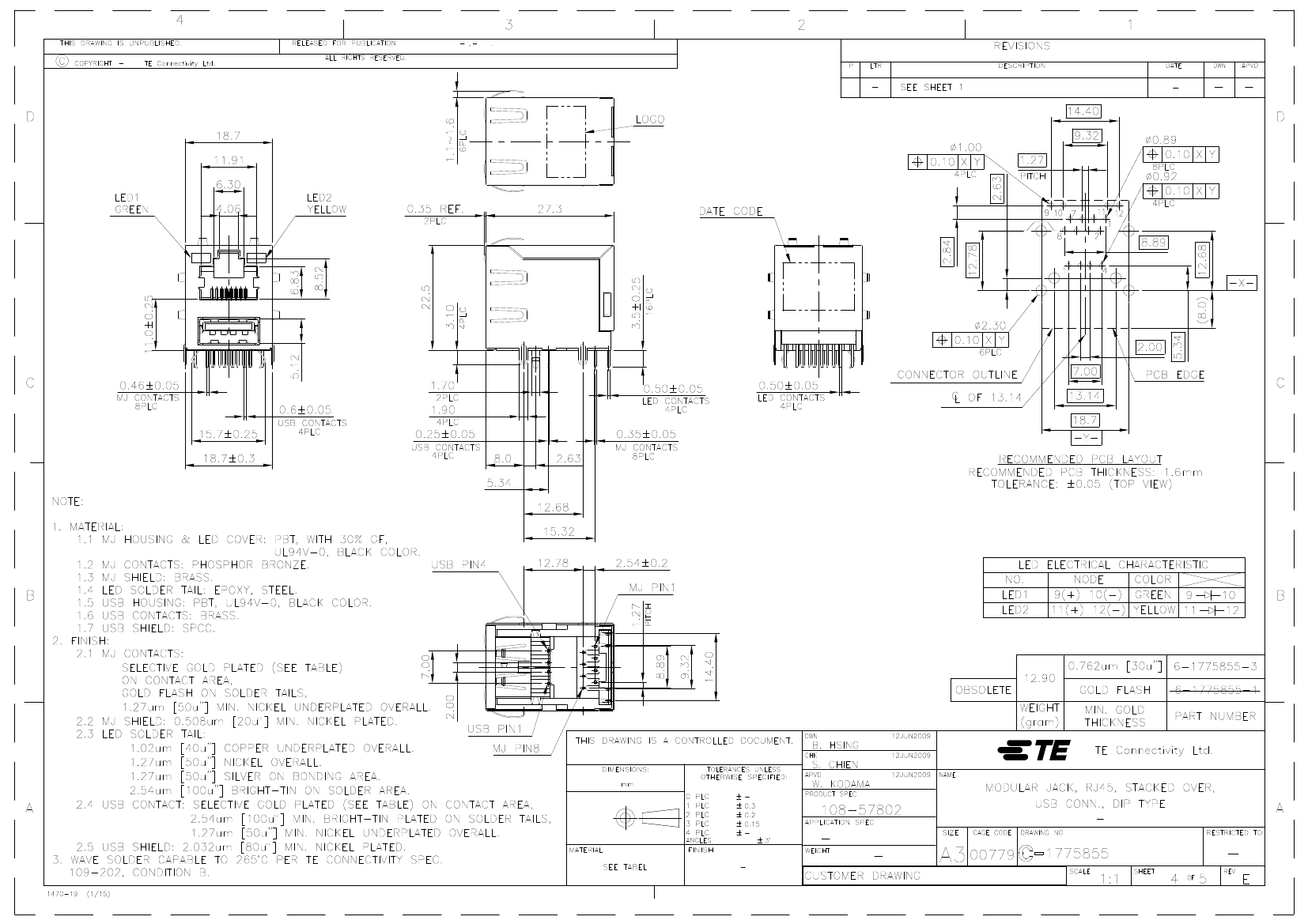

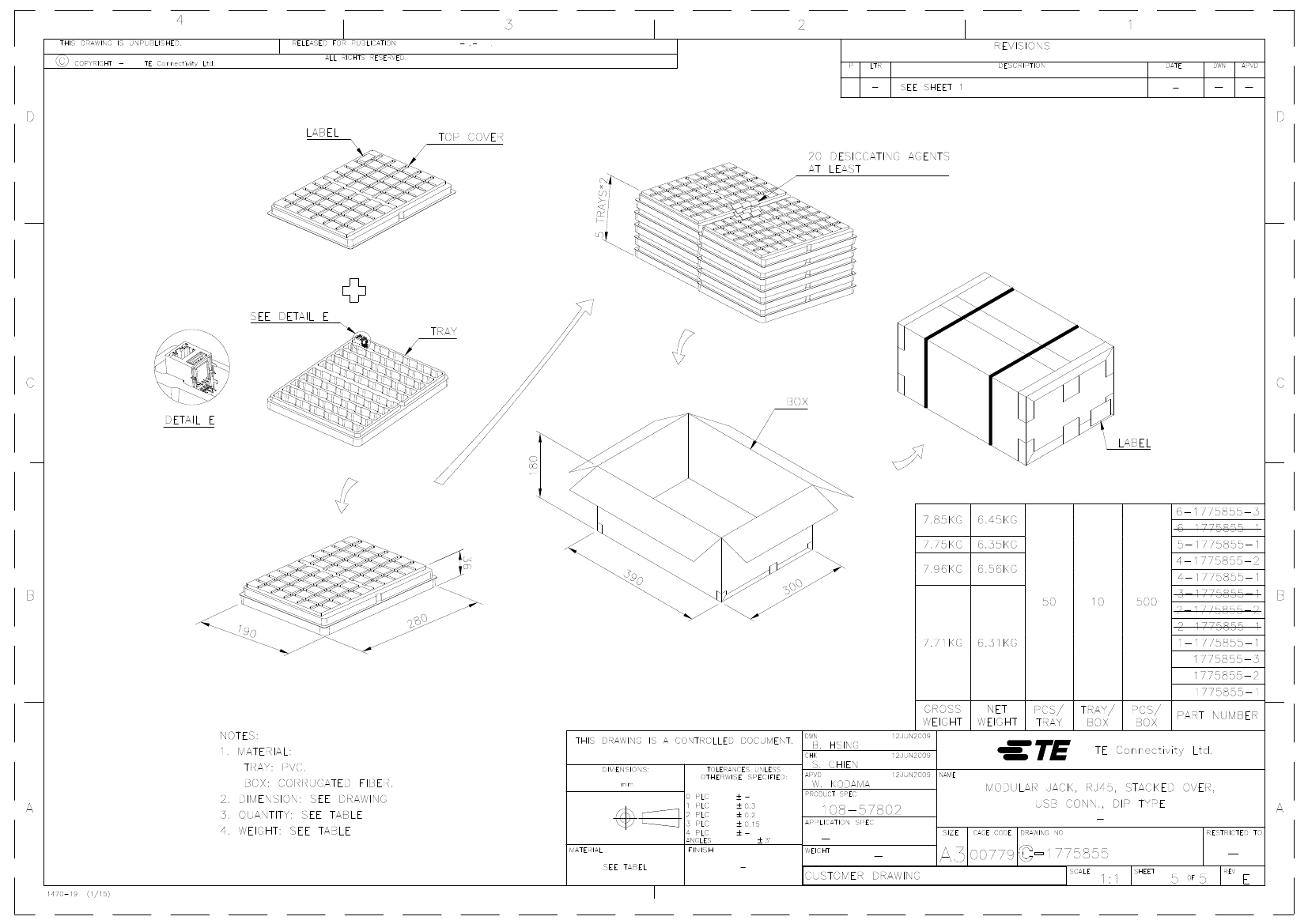

| Encapsulation method | Tray, boxes and trays |
| Comment | Using RJ45 over USB |
| 5-1775855-1 | 1775855-1 | 4-1775855-2 | 1-1775855-1 | 6-1775855-3 | |
|---|---|---|---|---|---|
| Description | RJ45 OVER USB W/ 6 PNL-GND & HTD G/F | Telecom and Datacom Connector, 4+8 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack | RJ45 OVER USB W/ LED GO/G | RJ45 W/ USB HTD BLK 30u" | RJ45 OVER USB W/ LED G/Y 30u" Au |
| Connector type | socket | RJ CONNECTOR | RJ CONNECTOR | TELECOM AND DATACOM CONNECTOR | socket |
| Shell material | PBT GF30 | BRASS | BRASS | STEEL | PBT GF |
| Number of ports | 1 | 1 | 1 | - | - |
| Is it Rohs certified? | - | conform to | conform to | conform to | - |
| Reach Compliance Code | - | compliant | compliant | compliant | - |
| Other features | - | RJ45 | RJ45 | RJ45 | - |
| Body/casing type | - | JACK | JACK | JACK | - |
| Contact to complete cooperation | - | NOT APPLICABLE | NOT APPLICABLE | NOT SPECIFIED | - |
| Contact point gender | - | FEMALE | FEMALE | FEMALE | - |
| Contact material | - | NOT APPLICABLE | NOT APPLICABLE | NOT SPECIFIED | - |
| DIN compliance | - | NO | NO | NO | - |
| empty shell | - | YES | YES | NO | - |
| Filter function | - | NO | NO | NO | - |
| IEC compliance | - | NO | NO | NO | - |
| insulator material | - | GLASS FILLED POLYBUTYLENE TEREPHTHALATE | GLASS FILLED POLYBUTYLENE TEREPHTHALATE | POLYBUTYLENE TEREPHTHALATE | - |
| MIL compliance | - | NO | NO | NO | - |
| Mixed contacts | - | NO | NO | NO | - |
| Installation method | - | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | - |
| Installation type | - | BOARD | BOARD | BOARD | - |
| Options | - | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | - |
| Shell surface | - | NICKEL | NICKEL | NICKEL | - |
| Termination type | - | SOLDER | SOLDER | SOLDER | - |
| Total number of contacts | - | 12 | 12 | 8 | - |
| UL Flammability Code | - | 94V-0 | 94V-0 | 94V-0 | - |
