103-80016: DescriptionBoard Euro Connector, 20 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal,; CategoryThe connector The connector; File Size298KB，2 Pages; Manufacturerept Connectors; Websitehttps://www.ept.de

Download Datasheet Parametric Compare View All

103-80016 Overview

Board Euro Connector, 20 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal,

103-80016 Parametric

Parameter Name	Attribute value
Maker	ept Connectors
Reach Compliance Code	compliant
Other features	STANDARDS: DIN 41612, IEC 60603-2
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
DIN compliance	YES
Filter function	NO
IEC compliance	YES
MIL compliance	NO
Manufacturer's serial number	103
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	20
Base Number Matches	1

Preview

Download Datasheet

View All

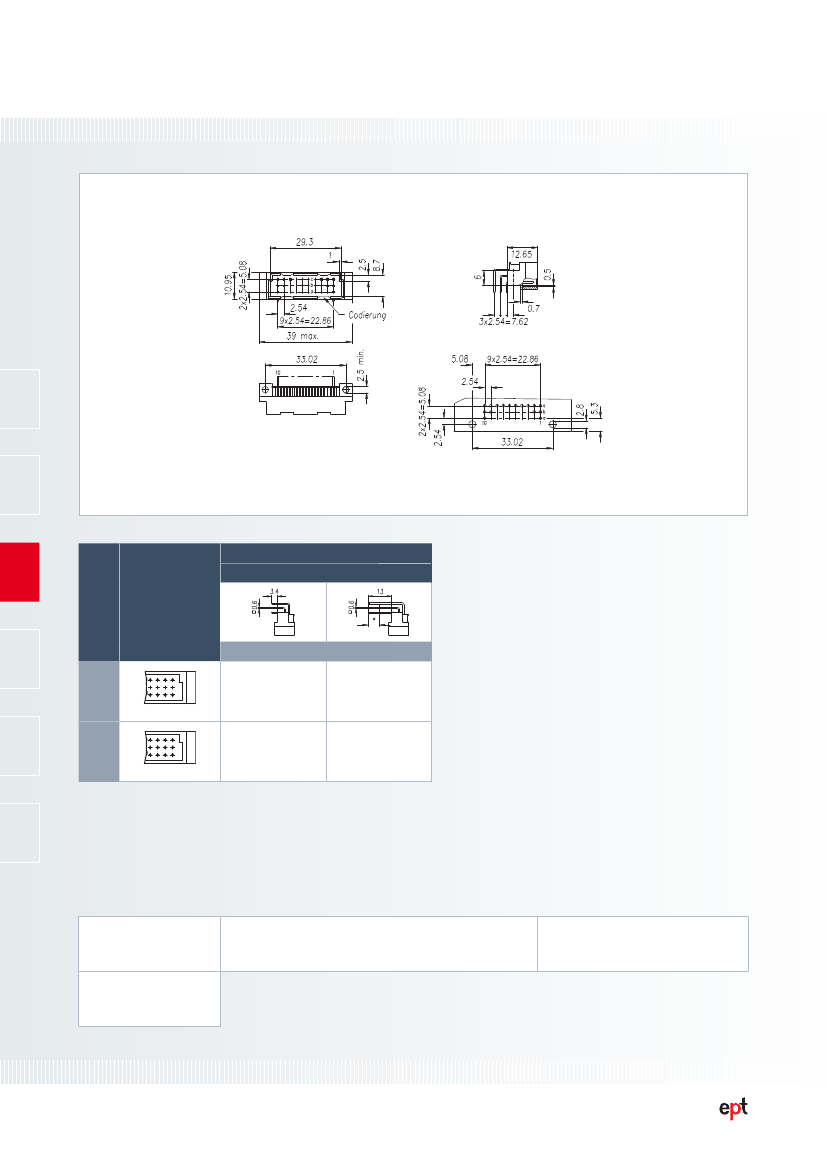

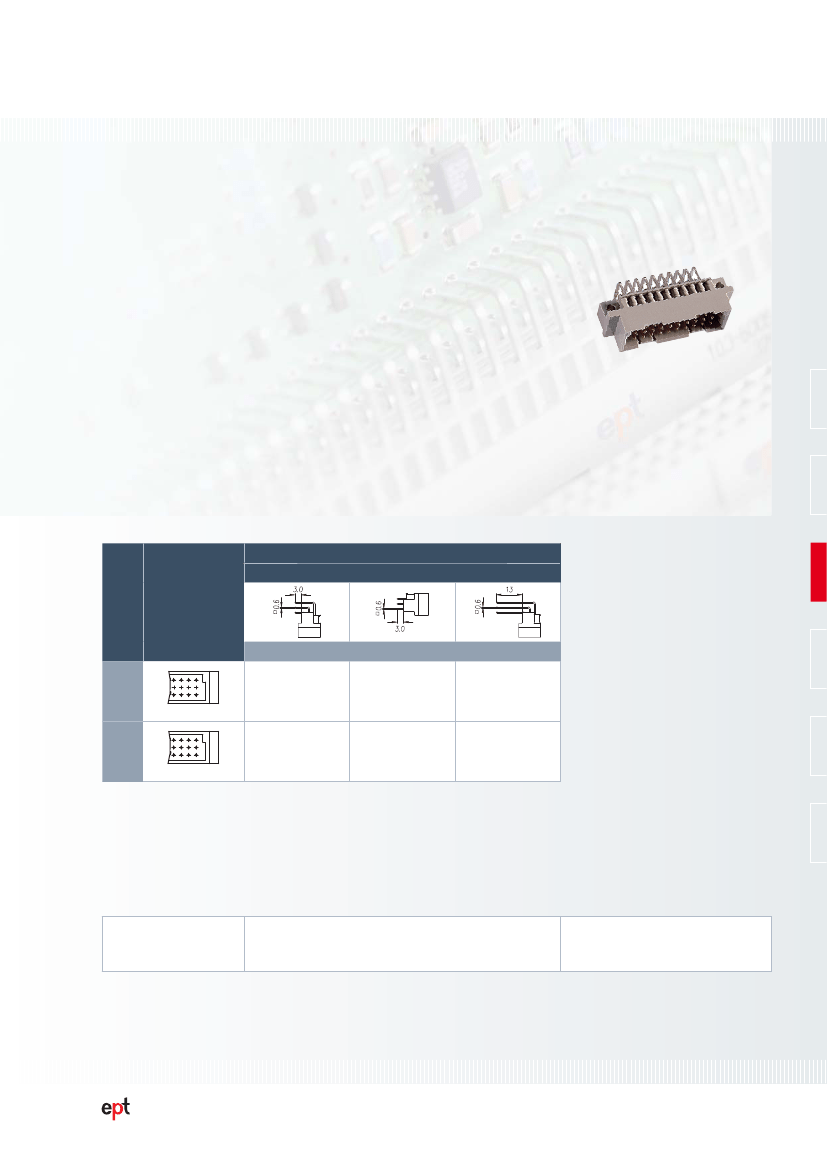

Connectors according to DIN 41612 / IEC 60603-2

Type C/3

Male connector

Dimensions in mm

Hole pattern

Press-ﬁt technology –

Performance level II

Termination length

No. of

contacts

Contact

arrangement

3 2 1

Part number

103-68004

103-78006

3 2 1

103-68014

103-78016

Accessories

– Press-ﬁt tool (see page 206)

– Support tool (see page 207)

– Coding accessories (see page 160)

Note

– * Rear mating zone

performance level II

On request

– Performance levels I + III or customer-speciﬁc

– Special contact length

Options

– Without

ﬂ

ange

– Contact arrangement (see page 162)

104

ept GmbH

Phone +49 (0) 88 61 / 25 01 0

Fax +49 (0) 88 61 / 55 07

E-mail sales@ept.de

www.ept.de
