5962R9572101VCC datasheet, PDF

5962R9572101VCC: DescriptionHCT SERIES, TRIPLE 3-INPUT AND GATE, CDIP14, CERAMIC, DIP-14; Categorylogic logic; File Size210KB，6 Pages; ManufacturerIntersil ( Renesas ); Websitehttp://www.intersil.com/cda/home/

Download Datasheet Parametric View All

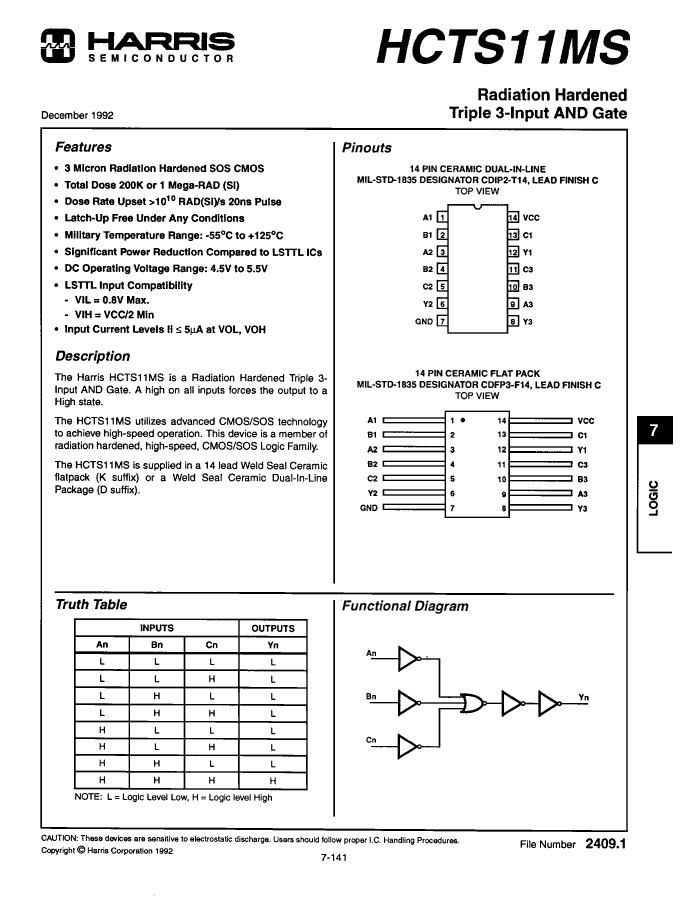

5962R9572101VCC Overview

HCT SERIES, TRIPLE 3-INPUT AND GATE, CDIP14, CERAMIC, DIP-14

Parameter Name	Attribute value
Package body material	CERAMIC, METAL-SEALED COFIRED
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Terminal surface	GOLD
Terminal location	DUAL
Number of terminals	14
Terminal pitch	2.54 mm
Terminal form	THROUGH-HOLE
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Filter level	MIL-PRF-38535 Class V

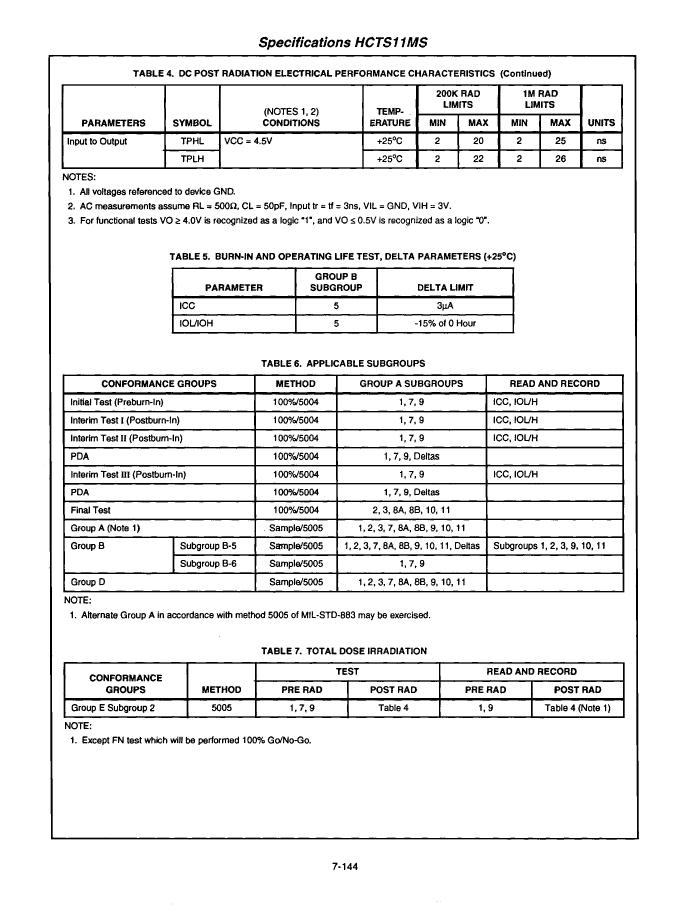

total dose	100k Rad(Si) V
Objectid	1532325164
Parts packaging code	DIP
package instruction	CERAMIC, DIP-14
Contacts	14
Is Samacsys	N
YTEOL	0
Reach Compliance Code	Unknown
Temperature level	MILITARY
Other features	RADIATION HARD CMOS/SILICON ON SAPPHIRE (SOS) TECHNOLOGY
Logic integrated circuit type	AND GATE

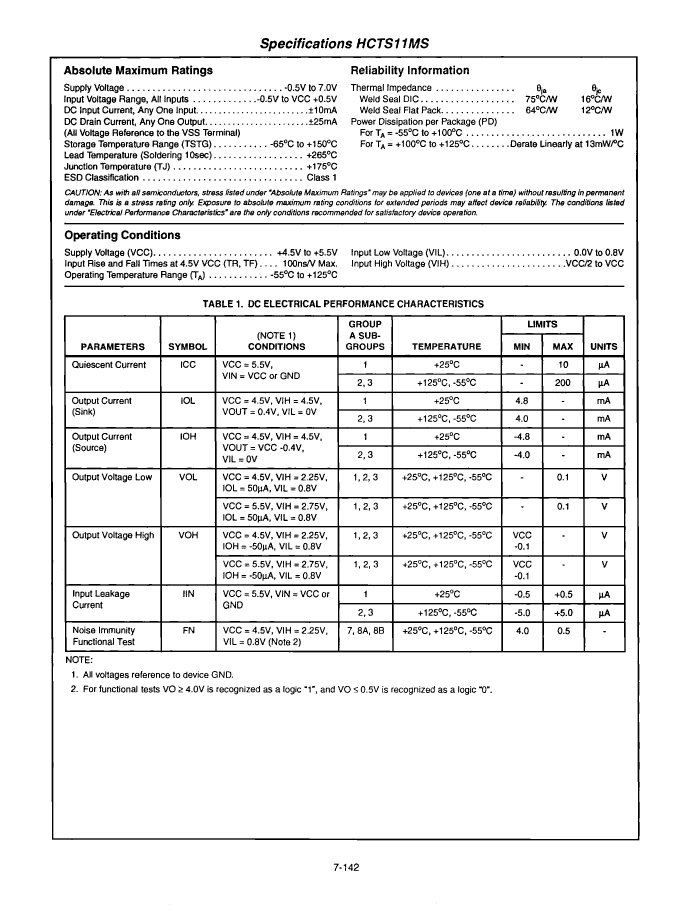

MaximumI(ol)	0.004 A
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
technology	CMOS
series	HCT
surface mount	NO
Nominal supply voltage (Vsup)	5 V

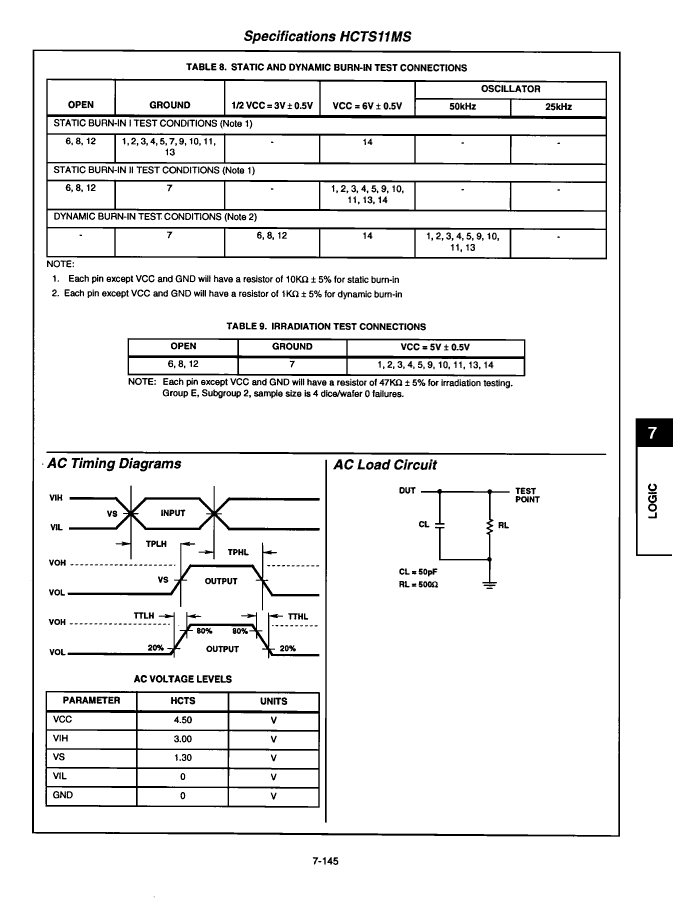

Load capacitance (CL)	50 pF
Number of functions	3
Number of entries	3
encapsulated code	DIP

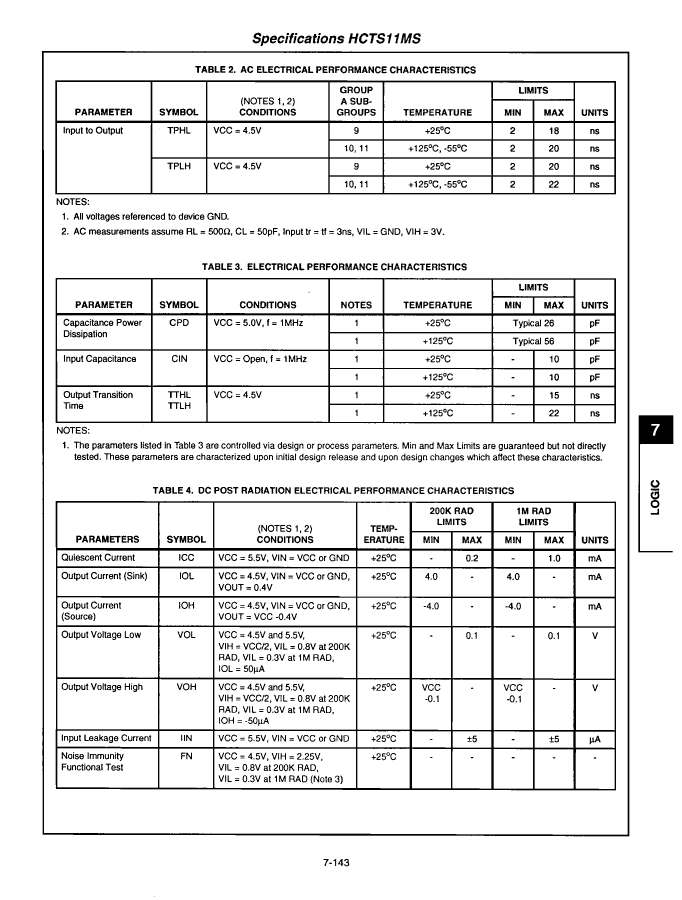

Prop。Delay @ Nom-Sup	22 ns
propagation delay (tpd)	22 ns
Schmitt trigger	NO
JESD-30 code	R-CDIP-T14
JESD-609 code	e4
Certification status	Not Qualified
length	19.43 mm
Maximum seat height	5.08 mm
width	7.62 mm
