T419G157K006TC42527005: DescriptionTantalum Capacitor, Polarized, Tantalum (dry/solid), 6V, 10% +Tol, 10% -Tol, 150uF, 2711; CategoryPassive components capacitor; File Size2MB，18 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com

Download Datasheet Parametric View All

T419G157K006TC42527005 Overview

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 6V, 10% +Tol, 10% -Tol, 150uF, 2711

T419G157K006TC42527005 Parametric

Parameter Name	Attribute value
JESD-609 code	e0
Guideline	MIL-PRF-55365/11
Number of terminals	2
Package form	SMT
method of packing	TR, Plastic, 13 Inch
surface mount	YES
Terminal surface	Tin/Lead (Sn90Pb10)
Terminal shape	J BEND
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Is it Rohs certified?	No
ECCN code	EAR99
Is Samacsys	N
YTEOL	6.85
Objectid	1806832188
package instruction	, 2711
Reach Compliance Code	Not Compliant
Country Of Origin	Mexico
Rated (DC) voltage (URdc)	6 V
size code	2711
ESR	1100 mΩ
Installation features	SURFACE MOUNT
dielectric materials	TANTALUM (DRY/SOLID)
negative tolerance	10%
polarity	POLARIZED
positive tolerance	10%
capacitance	150 µF
Capacitor type	TANTALUM CAPACITOR
high	2.79 mm
length	6.73 mm
width	2.79 mm

Preview

Download Datasheet

View All

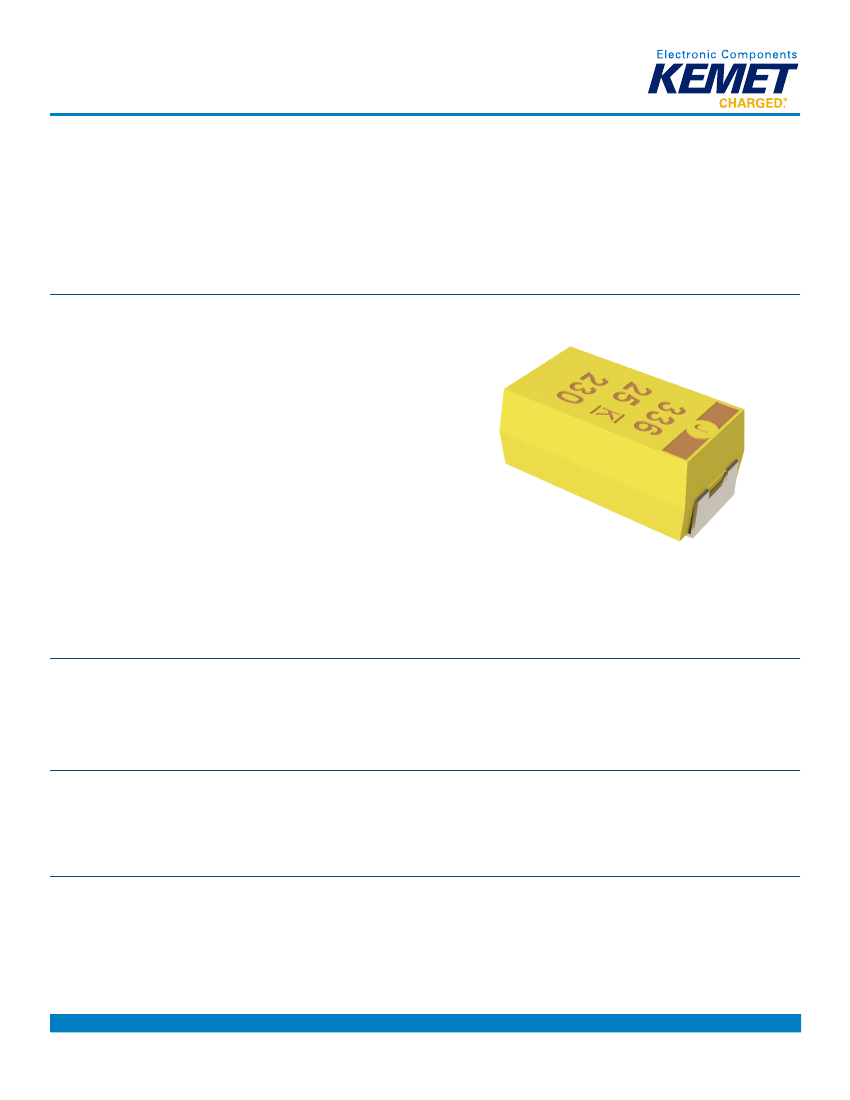

Tantalum Surface Mount Capacitors – MIL–PRF (CWR Style)

T419 Series MIL–PRF–55365/11 (CWR19 Style)

Overview

The KEMET T419 Series is approved to MIL–PRF–55365/11

(CWR19 Style) with Weibull failure rates of B level (0.1%

failures per 1,000 hours), C level (0.01% failures per 1,000

hours), D level (0.001% failures per 1,000 hours), or T level

(0.01% failures per 1,000 hours, Option C surge current,

DPA, Radiographic inspection, 100% visual inspection, DCL and

ESR measurements within +3 standard deviations, and Group C

inspection). This CWR19 product is a precision-molded device

with compliant terminations and indelible laser marking. Tape and

reeling per EIA 481 is standard.

Benefits

•

Established reliability options

Taped and reeled per EIA 481

Symmetrical, compliant terminations

Laser-marked case

100% surge current test available on all case sizes

Qualified to MIL–PRF–55365/11 (CWR19 Style)

Termination options B, C, H, K

Weibull failure options B, C, D, and T

Exponential failure rates M, P, R, S

Voltage rating of 4 – 35 VDC

Operating temperature range of -55˚C to +125˚C

Click image above for interactive 3D content

Open PDF in Adobe Reader for full functionality

Applications

Typical applications include decoupling and filtering in Military and aerospace applications requiring CWR19 devices.

Environmental Compliance

RoHS Compliant (6/6) according to Directive 2002/95/EC when ordered with 100% Sn Solder.

SPICE

For a detailed analysis of specific part numbers, please visit www.kemet.com for a free download of KEMET's SPICE software.

The KEMET SPICE program is freeware intended to aid design engineers in analyzing the performance of these capacitors over

frequency, temperature, ripple, and DC bias conditions.

One world. One KEMET

T2002_T419 • 10/14/2015
