Extract from the online
catalog
IC 2,5/ 2-ST-5,08
Order No.: 1786174

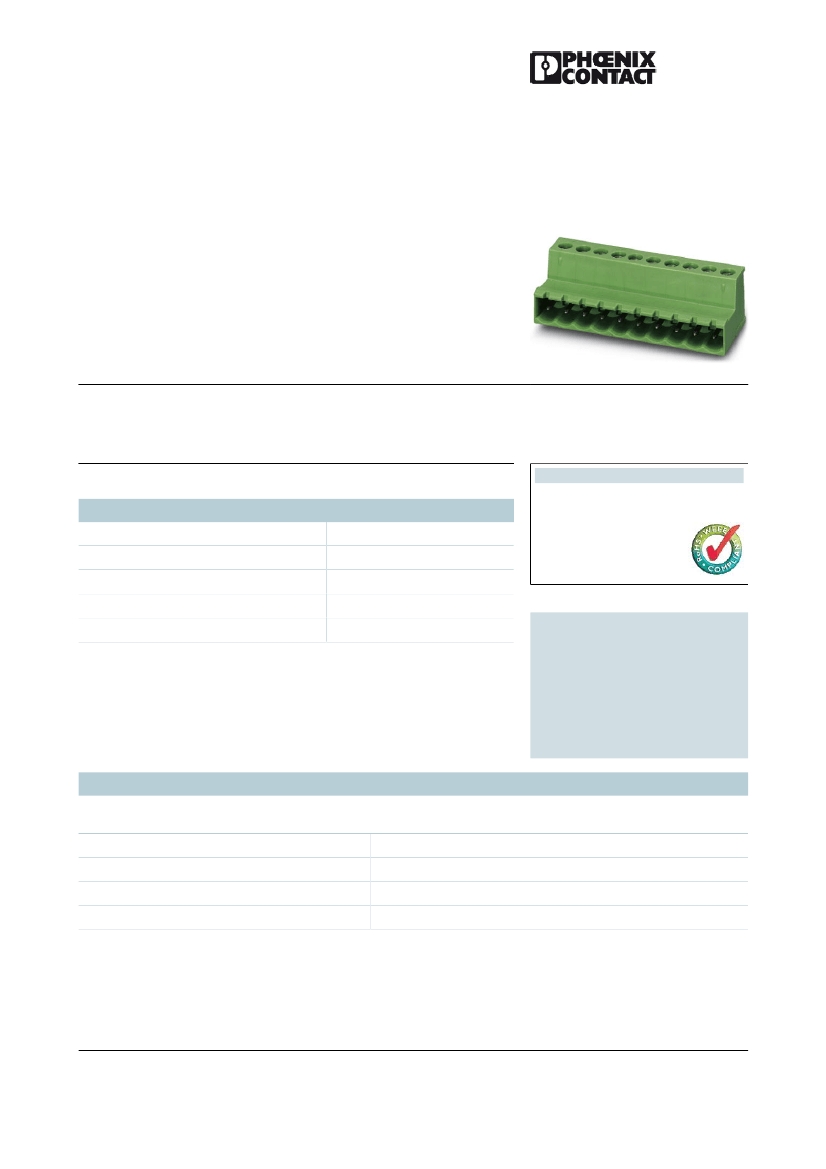

The figure shows a 10-position version of the product
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1786174
Plug component, Nominal current: 12 A, Nom. voltage: 250 V, Pitch:
5.08 mm, Number of positions: 2, Connection type: Screw connection,
Color: green
Product notes
Commercial data
EAN
Pack
Customs tariff
Weight/Piece
Catalog page information
4017918042325
50 pcs.
85366990
0.003839 KG
Page 208 (CC-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
WEEE/RoHS-compliant since:
01/01/2003
Technical data
Dimensions / positions
Pitch
Dimension a
Number of positions
Screw thread
5.08 mm
5.08 mm
2
M3
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 1 / 7
Mar 5, 2010
IC 2,5/ 2-ST-5,08
Order No.: 1786174
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1786174
Tightening torque, min
Tightening torque max
Technical data
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
Nominal cross section
Maximum load current
Insulating material
Inflammability class acc. to UL 94
Internal cylindrical gage
Stripping length
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section stranded, with ferrule
without plastic sleeve min.
Conductor cross section stranded, with ferrule
without plastic sleeve max.
Conductor cross section stranded, with ferrule
with plastic sleeve min.
Conductor cross section stranded, with ferrule
with plastic sleeve max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
0.5 Nm
0.6 Nm
I
4 kV
4 kV
4 kV
320 V
630 V
EN-VDE
12 A
250 V
2.5 mm²
12 A
PA
V0
A3
7 mm
0.2 mm²
2.5 mm²
0.2 mm²
2.5 mm²
0.25 mm²
2.5 mm²
0.25 mm²
2.5 mm²
24
12
0.2 mm²
1 mm²
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 2 / 7
Mar 5, 2010
IC 2,5/ 2-ST-5,08
Order No.: 1786174
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1786174
2 conductors with same cross section, stranded
min.
2 conductors with same cross section, stranded
max.
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, min.
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, max.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, min.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, max.
Certificates / Approvals
0.2 mm²
1.5 mm²
0.25 mm²
1 mm²
0.5 mm²
1.5 mm²
Certification
CSA
Nominal voltage U
N
Nominal current I
N
AWG/kcmil
CUL
Nominal voltage U
N
Nominal current I
N
AWG/kcmil
UL
Nominal voltage U
N
Nominal current I
N
AWG/kcmil
Accessories
Item
Assembly
1755477
MSTB-BL
Designation
CB, CSA, CUL, GOST, UL, VDE-PZI
300 V
10 A
28-12
300 V
10 A
30-12
300 V
10 A
30-12
Description
Keying cap, for forming sections, plugs onto header pin, green
insulating material
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 3 / 7
Mar 5, 2010
IC 2,5/ 2-ST-5,08
Order No.: 1786174
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1786174
General
1733169
1803934
1783779
EBP 2- 5
KGG-MSTB 2,5/ 2
KGS-MSTB 2,5/ 8
Insertion bridge, fully insulated, for plug connectors with 5.0 or
5.08 mm pitch, no. of positions: 2
Cable housing, Number of positions: 2, Dimension a: 10 mm,
Color: green
Cable housing, Number of positions: 8, Dimension a: 40 mm,
Color: green
Marking
0804293
SK 5,08/3,8:FORTL.ZAHLEN
Marker card, printed horizontally, self-adhesive, 12 identical
decades marked 1-10, 11-20 etc. up to 91-(99)100, sufficient for
120 terminal blocks
Plug/Adapter
1734401
CR-MSTB
Coding section, inserted into the recess in the header or the
inverted plug, red insulating material
Tools
1205053
SZS 0,6X3,5
Screwdriver, bladed, matches all screw terminal blocks up to 4.0
mm² connection cross section, blade: 0.6 x 3.5 mm, without VDE
approval
Additional products
Item
General
1872693
A-ICV 2,5/ 2-G-5,08
Base strip, Nominal current: 12 A, Nominal voltage: 250 V,
Mounting type: DIN rail mounting, Number of positions: 2,
Pitch: 5.08 mm, Color: green
Plug component, Nominal current: 12 A, Nom. voltage: 250 V,
Pitch: 5.08 mm, Number of positions: 2, Connection type: Spring-
cage conn., Color: green
Plug component, Nominal current: 12 A, Nom. voltage: 250 V,
Pitch: 5.08 mm, Number of positions: 2, Connection type: Spring-
cage conn., Color: green
Plug component, Nominal current: 12 A, Nom. voltage: 250 V,
Pitch: 5.08 mm, Number of positions: 2, Connection type: Spring-
cage conn., Color: green
Plug component, Nominal current: 12 A, Nom. voltage: 250 V,
Pitch: 5.08 mm, Number of positions: 2, Connection type: Spring-
cage conn., Color: green
Plug component, Nominal current: 12 A, Nom. voltage: 250 V,
Pitch: 5.08 mm, Number of positions: 2, Connection type: Screw
connection, Color: green
Designation
Description
1873058
FKC 2,5/ 2-ST-5,08
1902110
FKCT 2,5/ 2-ST-5,08
1873951
FKCVR 2,5/ 2-ST-5,08
1873650
FKCVW 2,5/ 2-ST-5,08
1777280
FRONT-MSTB 2,5/ 2-ST-5,08
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 4 / 7
Mar 5, 2010
IC 2,5/ 2-ST-5,08
Order No.: 1786174
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1786174
1786404
1785942
1757019
IC 2,5/ 2-G-5,08
ICV 2,5/ 2-G-5,08
MSTB 2,5/ 2-ST-5,08
Header, Nominal current: 12 A, Nom. voltage: 320 V, Pitch: 5.08
mm, Number of positions: 2, Color: green, Assembly: Soldering
Header, Nominal current: 12 A, Nom. voltage: 320 V, Pitch: 5.08
mm, Number of positions: 2, Color: green, Assembly: Soldering
Plug component, Nominal current: 12 A, Nom. voltage: 250 V,
Pitch: 5.08 mm, Number of positions: 2, Connection type: Screw
connection, Color: green
Plug component, Nominal current: 12 A, Nom. voltage: 320 V,
Pitch: 5.08 mm, Number of positions: 2, Connection type: Crimp
connection, Color: green
Plug component, Nominal current: 12 A, Nom. voltage: 320 V,
Pitch: 5.08 mm, Number of positions: 2, Connection type: Crimp
connection, Color: green
Plug component, Nominal current: 12 A, Nom. voltage: 250 V,
Pitch: 5.08 mm, Number of positions: 2, Connection type: Screw
connection, Color: green
Plug component, Nominal current: 12 A, Nom. voltage: 250 V,
Pitch: 5.08 mm, Number of positions: 2, Connection type: Screw
connection, Color: green
Plug component, Nominal current: 12 A, Nom. voltage: 320 V,
Pitch: 5.08 mm, Number of positions: 2, Connection type: Screw
connection, Assembly: Direct mounting, Color: green
Plug component, Nominal current: 12 A, Nom. voltage: 250 V,
Pitch: 5.08 mm, Number of positions: 2, Connection type: Screw
connection, Color: green
Plug component, Nominal current: 12 A, Nom. voltage: 250 V,
Pitch: 5.08 mm, Number of positions: 2, Connection type: Screw
connection, Color: green
Plug component, Nominal current: 10 A, Nom. voltage: 500
V, Pitch: 5.08 mm, Number of positions: 2, Connection type:
Insulation displacement connection QUICKON, Color: green
Plug component, Nominal current: 12 A, Nom. voltage: 250 V,
Pitch: 5.08 mm, Number of positions: 2, Connection type: Screw
connection, Color: green
Plug component, Nominal current: 12 A, Nom. voltage: 250 V,
Pitch: 5.08 mm, Number of positions: 2, Connection type: Screw
connection, Color: green
Feed-through modular terminal block, Connection method: Special
and hybrid connection, Cross section: 0.2 mm² - 2.5 mm²,
Width: 5.1 mm, Color: gray
1808816
MSTBC 2,5/ 2-ST-5,08
1809501
MSTBC 2,5/ 2-STZ-5,08
1769010
MSTBP 2,5/ 2-ST-5,08
1779987
MSTBT 2,5/ 2-ST-5,08
1824120
MSTBU 2,5/ 2-STD-5,08
1792249
MVSTBR 2,5/ 2-ST-5,08
1792757
MVSTBW 2,5/ 2-ST-5,08
1883255
QC 1/ 2-ST-5,08
1826283
SMSTB 2,5/ 2-ST-5,08
1853010
TMSTBP 2,5/ 2-ST-5,08
1873029
ZFKK 1,5-ICV-5,08
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 5 / 7
Mar 5, 2010
